Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

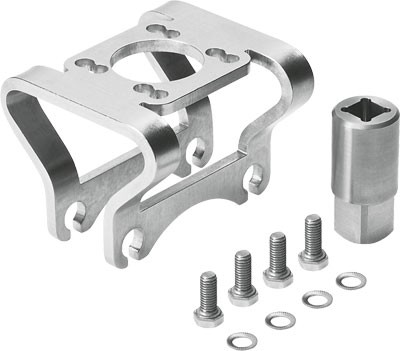

The Festo part number 552718 is a size 32 industrial component featuring a CRC rating of 3 for high corrosion stress. Constructed with high alloy steel and non-corrosive high alloy steel for the mounting adapter, disc, and screws, this assembly contains PWIS substances and conforms to RoHS. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo 552717 is an industrial component of size 32 featuring a corrosion resistance classification CRC of 3 for high corrosion stress. Its material coupling, mounting adapter, disc, and screws are constructed from high alloy steel, with the adapter, disc, and screws utilizing non-corrosive high alloy steel. This product contains PWIS substances and conforms to RoHS regulations. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 549963 is a double-acting industrial component with a 2 1/2" piston diameter, a UNF5/8-18 piston rod thread, and an adjustable pneumatic cushioning (PPV) at both ends based on the ISO 15552 standard. Operating at working pressures from 0.6 to 10 bar with dried compressed air, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke across a stroke length of 1 to 2,000 mm. The unit features a single-ended piston rod with a male thread, position detection for proximity sensors, an ambient temperature range of -20 to 80 °C, and a corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 552716 is a size 25 industrial component constructed entirely with high alloy steel and non-corrosive high alloy steel for the mounting adapter, disc, and screws. This unit features a corrosion resistance classification CRC rating of 3 for high corrosion stress, and its materials note indicates that it contains PWIS substances while conforming to RoHS standards. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 549962 is a double-acting industrial component featuring a 2-inch piston diameter, a male UNF5/8-18 piston rod thread, and a stroke length ranging from 1 to 2,000 mm based on the ISO 15552 standard. Operating at pressures between 0.6 and 10 bar with dried compressed air, it generates a theoretical return force of 990 N and advance force of 1,178 N at 6 bar. This unit incorporates adjustable pneumatic cushioning at both ends (PPV), position detection for proximity sensors, and a corrosion resistance classification of CRC 2 for ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo size 25 industrial component, part number 552715, features a corrosion resistance classification CRC of 3 for high corrosion stress and contains PWIS substances while conforming to RoHS. The material coupling, mounting adapter, disc, and screws are all constructed from high alloy steel, with the adapter, disc, and screws utilizing non-corrosive high alloy steel. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 549961 is a double-acting industrial component featuring a 1 5/8" piston diameter, a 1 to 2,000 mm stroke range, and a male UNF1/2-20 piston rod thread conforming to ISO 15552. Operating at pressures from 0.6 to 10 bar in temperatures between -20 and 80 °C, this unit delivers 754 N of theoretical advance force and 633 N of return force at 6 bar using dried compressed air. It incorporates adjustable pneumatic cushioning at both ends with a 21 mm cushioning length, position detection for proximity sensors, and a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

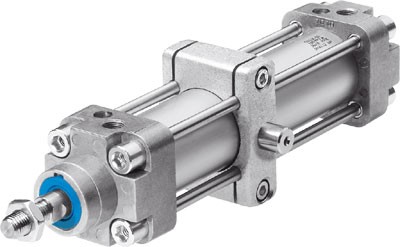

The Festo part number 549960 is a double-acting industrial component featuring a 1 1/4" piston diameter, a UNF3/8-24 piston rod thread, and a variable stroke ranging from 1 to 2,000 mm based on the ISO 15552 standard. Operating on dried compressed air at pressures between 0.6 and 10 bar within an ambient temperature range of -20 to 80 °C, this unit delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 19 mm cushioning length, a male piston-rod end, and position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
Engineered by Festo with an ISO 15552 standard design structure, part number 549959 is a double-acting industrial component featuring a 5-inch piston diameter, a male UNF1-12 piston rod thread, and adjustable pneumatic cushioning at both ends (PPV). Operating on dried compressed air between 0.6 and 10 bar, this unit delivers a theoretical return stroke force of 6,881 N and an advance stroke force of 7,363 N at 6 bar. The assembly accommodates a stroke length from 1 to 2,000 mm, an ambient temperature range of 0 to 120 °C enabled by heat-resistant S6 seals, and includes integrated position detection for proximity sensors. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 549958 is a double-acting industrial component featuring a 4" piston diameter, an adjustable stroke from 1 to 2,000 mm, and a UNF3/4-16 male piston rod thread based on the ISO 15552 standard. Operating on dried compressed air at working pressures between 0.6 and 10 bar, this unit incorporates adjustable pneumatic cushioning at both ends, S6 heat-resistant seals rated up to 120 °C, and integrated position detection for proximity sensors. It delivers a theoretical force of 4,712 N on the advance stroke and 4,418 N on the return stroke at 6 bar, with a basic weight of 4,100 g and a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 549957 is a double-acting industrial component featuring a 3-inch piston diameter, adjustable pneumatic cushioning at both ends (PPV), and a male UNF3/4-16 piston rod thread built to ISO 15552 standards. This unit operates within a pressure range of 0.6 to 10 bar and an ambient temperature range of 0 to 120 °C, utilizing heat-resistant S6 seals and supporting a configurable stroke from 1 to 2,000 mm. It delivers a theoretical advance stroke force of 3,016 N and a return stroke force of 2,721 N using dried compressed air, with position detection capability for proximity sensors and any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 549956 is a double-acting industrial component with a 2 1/2" piston diameter, a 1 to 2,000 mm stroke range, and a UNF5/8-18 piston rod thread based on the ISO 15552 standard. Operating at pressures from 0.6 to 10 bar on dried compressed air, this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. It features adjustable pneumatic cushioning at both ends, position detection for proximity sensors, and S6 heat-resistant seals supporting ambient temperatures up to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 549955 is a double-acting industrial component featuring a 2-inch piston diameter, a male UNF5/8-18 piston rod thread, and a stroke range from 1 to 2,000 mm based on the ISO 15552 standard. Built with S6 heat-resistant seals for operation in ambient temperatures up to 120 °C and a working pressure range of 0.6 to 10 bar, this unit includes adjustable pneumatic cushioning at both ends and provisions for proximity sensor position detection. At 6 bar, it delivers a theoretical advance force of 1,178 N and a return force of 990 N, with a basic weight of 1,400 g and an additional 50 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 549954 is a double-acting industrial component featuring a 1 5/8" piston diameter, a UNF1/2-20 piston rod thread with a male end, and a variable stroke ranging from 1 to 2,000 mm based on the ISO 15552 standard. Operating on dried compressed air at working pressures between 0.6 and 10 bar, this unit delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 21 mm cushioning length, S6 heat-resistant seals supporting ambient temperatures up to 120 °C, and integrated position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

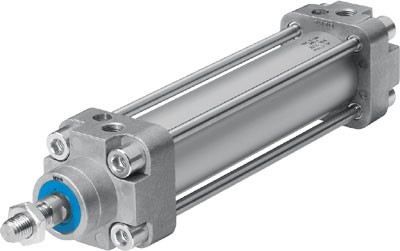

The Festo part number 549953 is a double-acting industrial component with a 1 1/4" piston diameter, a UNF3/8-24 piston rod thread, and an adjustable stroke length from 1 to 2,000 mm based on the ISO 15552 standard. This unit features S6 heat-resistant seals for operation in ambient temperatures up to 120 °C, double-ended adjustable pneumatic cushioning (PPV), and a working pressure range of 0.6 to 10 bar using dried compressed air. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, with a basic weight of 565 g and an additional 30 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 549952 is a double-acting industrial component featuring a 5-inch piston diameter, a UNF1-12 piston rod thread with a male end, and an adjustable pneumatic cushioning length of 40 mm at both ends. Built according to ISO 15552, it operates on dried compressed air within a working pressure range of 0.6 to 10 bar and an ambient temperature range of -20 to 80 °C. This S2 variant includes a through piston rod, position detection for proximity sensors, and a stroke length adaptable from 1 to 2,000 mm, delivering theoretical forces of 7,363 N on advance stroke and 6,881 N on return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 549951 is a double-acting industrial component featuring a 4-inch piston diameter, a stroke length configurable from 1 to 2,000 mm, and a UNF3/4-16 male piston rod thread designed according to ISO 15552. Operating at a working pressure of 0.6 to 10 bar on dried compressed air, this unit achieves a theoretical force of 4,712 N on the advance stroke and 4,418 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 30 mm cushioning length, position detection for proximity sensors, and an S2 through piston rod variant while operating within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 549950 is a double-acting industrial component featuring a 3-inch piston diameter, a male UNF3/4-16 piston rod thread, and a stroke range from 1 to 2,000 mm based on ISO 15552. Operating between 0.6 and 10 bar using dried compressed air, this unit achieves theoretical forces of 3,016 N on advance stroke and 2,721 N on return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends, position detection for proximity sensors, an S2 through piston rod variant, and a CRC 2 corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 549949 is a double-acting industrial component featuring a 2 1/2" piston diameter, a UNF5/8-18 piston rod thread with a male end, and an adjustable pneumatic cushioning system at both ends (PPV) with a 23 mm cushioning length. Built on ISO 15552 standards with an S2 through piston rod variant, this assembly operates within a 0.6 to 10 bar working pressure range using dried compressed air and supports strokes from 1 to 2,000 mm across any assembly position. It delivers a theoretical force of 1,870 N for the advance stroke and 1,682 N for the return stroke at 6 bar, alongside a basic weight of 1,725 g and an additional weight of 60 g per 10 mm stroke while featuring position detection for proximity sensors and a CRC 2 corrosion resistance classification for temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

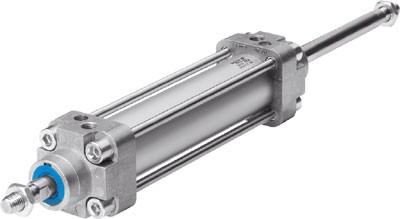

The Festo part number 549948 is a double-acting industrial component featuring a 2-inch piston diameter, a UNF5/8-18 piston rod thread, and an adjustable pneumatic cushioning (PPV) system at both ends based on the ISO 15552 standard. Operating at a working pressure of 0.6 to 10 bar with dried compressed air, this unit delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar across a stroke length ranging from 1 to 2,000 mm. It includes position detection for proximity sensors, an S2 through piston rod variant, and a CRC 2 corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
