Festo

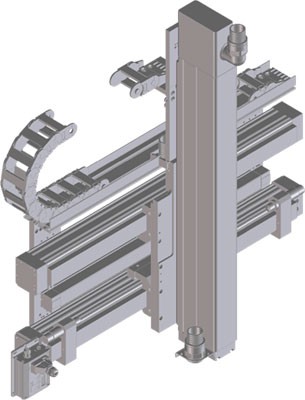

The Festo 543010 is a Linear gantry 4.0 assembly featuring an effective load capacity of 0 to 10 kg. The Z axis utilizes an HMP-25 pneumatic drive unit with a 0 to 400 mm stroke, an x1 intermediate position, and a repetition accuracy of ±0.02 mm in both the end and intermediate positions. The Y axis incorporates two DGPL-40-SPC11 servopneumatic drive units providing a 0 to 1,600 mm stroke and an x2 intermediate position, delivering a repetition accuracy of ±0.02 mm in the end position and ±1 mm in the intermediate position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

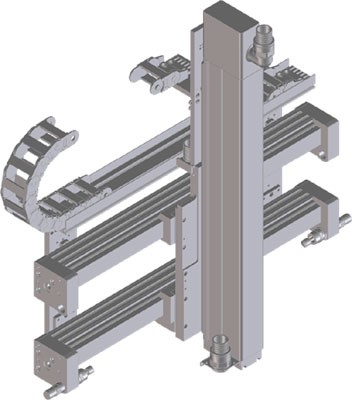

The Festo 543009 is a Linear gantry 4.0 featuring a pneumatic Z-axis drive unit type HMP-25 with an effective load capacity of 0 to 10 kg, a stroke of 0 to 400 mm, one intermediate position, and a repetition accuracy of ± 0.02 mm in both end and intermediate positions. Its Y-axis utilizes a pneumatic drive system with two DGC-40 drive units, providing a stroke of 0 to 3,000 mm and an end position repetition accuracy of ± 0.02 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

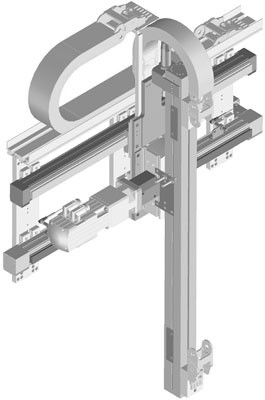

The Festo 543007 is a Linear gantry 3.0 assembly utilizing an electrical DGEA toothed belt actuator for the Z axis and dual DGE-25-ZR-KF toothed belt actuators with ball bearing guides for the Y axis. The Z axis provides an effective load capacity of 0 to 6 kg, a stroke of 0 to 800 mm, and a repetition accuracy of ±0.05 mm in both end and intermediate positions, which can be set anywhere. The Y axis delivers a stroke ranging from 0 to 2,000 mm with any intermediate position and a repetition accuracy of ±0.1 mm in both end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

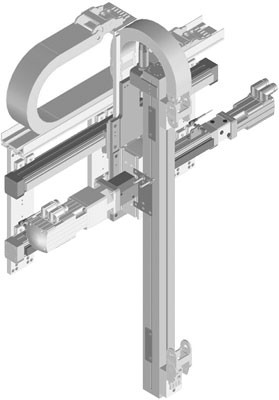

The Festo linear gantry 3.0 (Part Number: 543006) features an electrical Z-axis driven by a DGEA toothed belt actuator providing a stroke of 0 to 800 mm, an effective load capacity of 0 to 6 kg, and a repetition accuracy of ± 0.05 mm in both the end and intermediate positions. Its electrical Y-axis utilizes dual DGE-25-SP spindle drive units delivering a stroke of 0 to 1,000 mm with a repetition accuracy of ± 0.02 mm for both end and intermediate positions, supporting any intermediate position on both axes. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

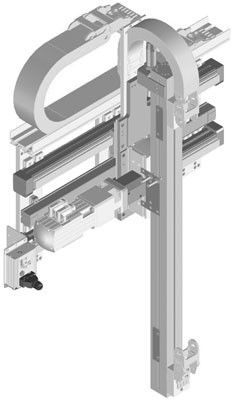

The Festo linear gantry 3.0 (part number 543005) integrates a Z-axis electrical DGEA-25 toothed belt actuator with a stroke of 0 to 800 mm and a Y-axis servopneumatic drive system utilizing dual DGPL-25-SPC11 units with a stroke of 0 to 1,600 mm. This assembly accommodates an effective load ranging from 0 to 6 kg, featuring end position repetition accuracy of ± 0,05 mm and intermediate position accuracy of ± 0,05 mm on the Z axis. The Y axis achieves end position repetition accuracy of ± 0,02 mm and intermediate position accuracy of ± 1 mm with two intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

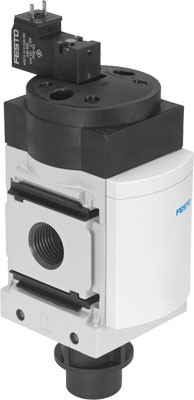

The Festo part number 542587 is a 3/2 closed, monostable industrial component utilizing a piston slide design structure and electrical actuation with mechanical spring reset. It features a standard nominal flow rate of 5,500 l/min, a working pressure range of 4 to 10 bar, and operates on a 24V DC characteristic coil drawing 2.5W with a permissible voltage fluctuation of +/- 10%. Constructed with IP65 protection and a CRC 2 corrosion resistance classification, this piloted valve accommodates compressed air meeting ISO8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

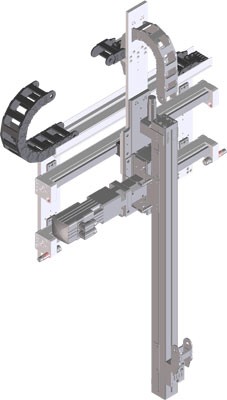

The Festo 543004 is a linear gantry 3.0 featuring a Z-axis electrical DGEA-25 toothed belt actuator with an effective load capacity of 0 to 6 kg, an adjustable stroke from 0 to 800 mm, and a repetition accuracy of ± 0.05 mm in both end and intermediate positions. Its Y-axis utilizes a dual pneumatic DGC-25 drive system delivering a stroke of 0 to 3,000 mm with an end position repetition accuracy of ± 0.02 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

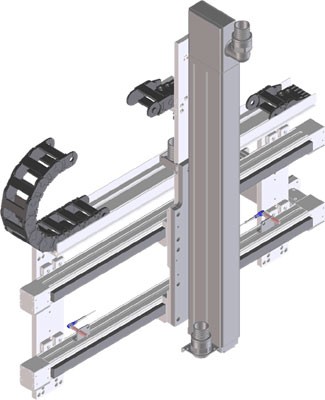

The Festo 543002 is a Linear gantry 3.0 featuring a pneumatic Z-axis drive unit utilizing the HMP-20 with a 0 to 400 mm stroke and an effective load capacity ranging from 0 to 6 kg. The Z axis incorporates one intermediate position and achieves a repetition accuracy of ± 0,02 mm in both end and intermediate positions. Movement along the Y axis is driven by two DGE-25-ZR-KF electrical toothed belt actuators featuring ball bearing guides, supporting any intermediate position across a 0 to 2,000 mm stroke with a repetition accuracy of ± 0,1 mm. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 542585 is an electrically actuated industrial component featuring a piston slide design and a monostable 3/2 closed valve function with piloted operation. This component delivers a standard nominal flow rate of 2,600 l/min across a working pressure range of 4 to 10 bar, operating on 24V DC with a 2.5W coil and 100% duty cycle. Built with IP65 protection and CRC 2 corrosion resistance, it functions with compressed air meeting ISO8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

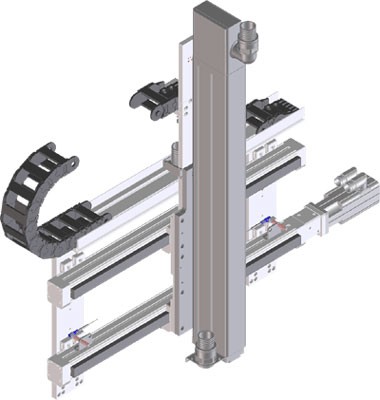

The Festo 543001 is a Linear gantry 3.0 featuring a pneumatic Z-axis drive unit HMP-20 with a stroke of 0 to 400 mm and an effective load capacity of 0 to 6 kg. Its Y-axis utilizes two electrical DGE-25-SP spindle drive units with a stroke of 0 to 1,000 mm and any intermediate position capability. Both axes deliver a repetition accuracy of ± 0.02 mm in the end position, alongside a ± 0.02 mm repetition accuracy for the Z-axis and Y-axis intermediate positions (x1 for Z-axis). Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

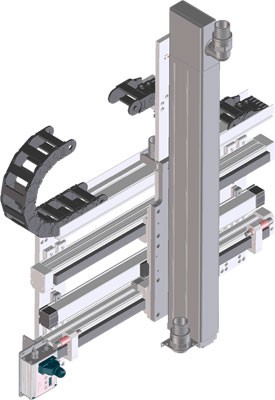

The Festo linear gantry 3.0 (part number 543000) features an effective load capacity of 0 to 6 kg. Its Z axis incorporates an HMP-20 pneumatic drive unit with a 0 to 400 mm stroke and a repetition accuracy of ± 0,02 mm in both the end and intermediate x1 positions. The Y axis utilizes two DGPL-25-SPC11 servopneumatic drive units providing a 0 to 1,600 mm stroke, with a repetition accuracy of ± 0,02 mm in the end position and ± 1 mm in the x2 intermediate position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

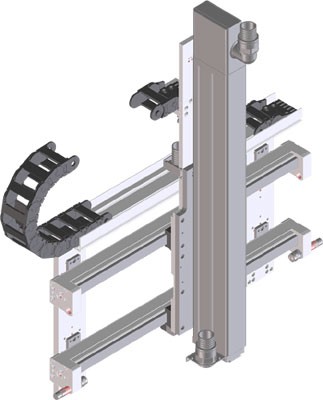

The Festo 542999 is a Linear gantry 3.0 industrial component featuring a pneumatic Z axis drive system utilizing an HMP-20 drive unit with an effective load capacity of 0 to 6 kg and a stroke ranging from 0 to 400 mm. Its Z axis achieves a repetition accuracy of ±0.02 mm in both the end and intermediate positions, complemented by one intermediate position (x1). The Y axis incorporates a pneumatic drive system with two DGC-25 drive units providing a stroke from 0 to 3,000 mm and a repetition accuracy of ±0.02 mm in the end position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

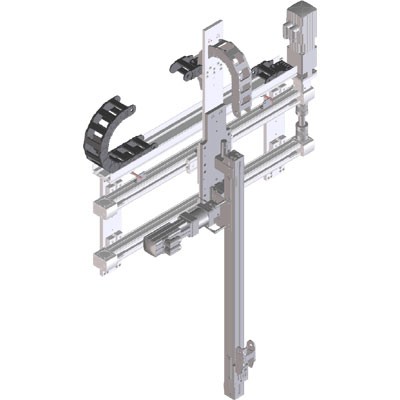

The Festo 542998 is a Linear gantry 2.0 assembly supporting an effective load from 0 to 4 kg. The electrical Z axis utilizes a DGEA-18 toothed belt actuator providing a stroke of 0 to 400 mm and a repetition accuracy of ± 0,05 mm in any intermediate position and the end position. The electrical Y axis incorporates two DGE-25-ZR-RF toothed belt units with roller guides, offering a stroke of 0 to 2,000 mm and a repetition accuracy of ± 0,1 mm in any intermediate position and the end position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

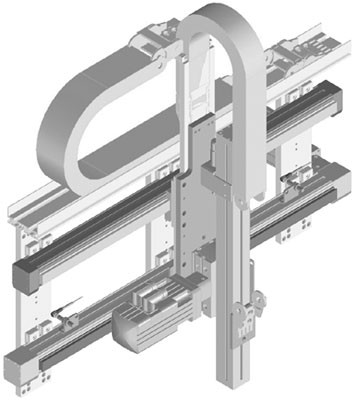

The Festo linear gantry 2.0 (Part Number: 542997) features an electrical Z-axis driven by a DGEA-18 toothed belt actuator providing a stroke of 0 to 400 mm and an effective load capacity of 0 to 4 kg. The Y-axis utilizes dual DGE-25-ZR-KF toothed belt actuators with ball bearing guides, delivering a stroke of 0 to 2,000 mm. Both axes support any intermediate position, with the Z-axis achieving a repetition accuracy of ± 0,05 mm and the Y-axis achieving ± 0,1 mm in end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

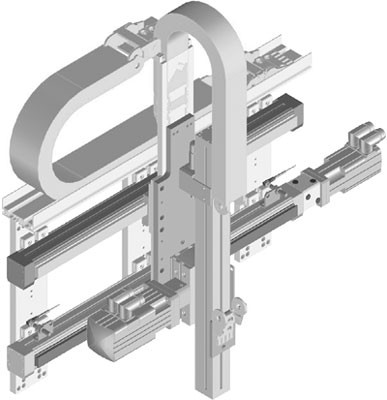

The Festo 542996 is a linear gantry 2.0 assembly featuring an electrical Z-axis DGEA-18 toothed belt actuator with a 0 to 400 mm stroke and a repetition accuracy of ± 0.05 mm in both end and intermediate positions. Its dual Y-axis drive utilizes two DGE-25-SP spindle-driven electrical units providing a 0 to 1,000 mm stroke with a repetition accuracy of ± 0.02 mm for end and intermediate positions, supporting an effective load capacity of 0 to 4 kg with any intermediate positioning capability on both axes. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo

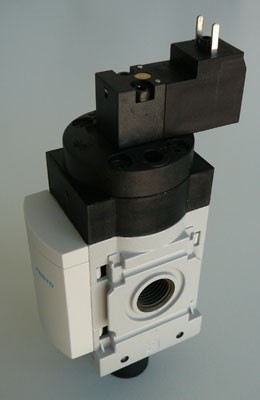

The Festo 542581 is an electrically actuated industrial component featuring a piston slide design and a monostable 3/2 closed valve function with piloted operation. It operates at a working pressure of 4 to 10 bar, a standard nominal flow rate of 1,000 l/min, and utilizes a 24V DC coil with a 100% duty cycle, mechanical spring reset, pushing manual override, and a non-throttleable exhaust-air function. Constructed with a CRC 2 corrosion resistance classification and RoHS-compliant materials, the unit functions within a medium and ambient temperature range of -10 to 50 °C and achieves IP65 protection for compressed air per ISO8573-1:2010 [7:4:4] or inert gas applications allowing lubricated operation. Submit the part number, quantity, and application requirements to request a quote.
View product details →Festo

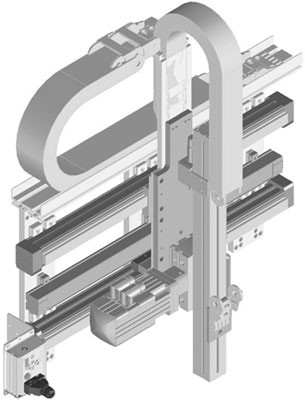

The Festo linear gantry 2.0 features an effective load capacity of 0 to 4 kg, utilizing an electrical DGEA-18 toothed belt actuator on the Z axis with a stroke of 0 to 400 mm and a repetition accuracy of ± 0,05 mm in both end and intermediate positions. The Y axis incorporates two DGPL-25-SPC11 servopneumatic drive units providing a stroke of 0 to 1,600 mm, with a repetition accuracy of ± 0,02 mm in the end position and ± 1 mm in the intermediate position, which supports any intermediate position on the Z axis. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

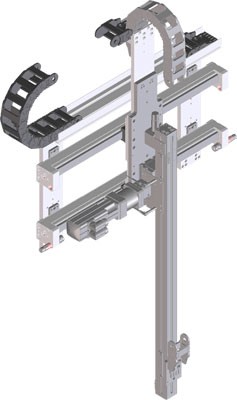

The Festo 542994 is a linear gantry 2.0 assembly featuring an electrical Z-axis drive unit utilizing a DGEA-18 toothed belt actuator with a stroke of 0 to 400 mm and a repetition accuracy of ± 0,05 mm in both end and intermediate positions for an effective load of 0 to 4 kg. Its Y-axis drive unit consists of two pneumatic DGC-25 drives providing a stroke of 0 to 3,000 mm and an end position repetition accuracy of ± 0,02 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

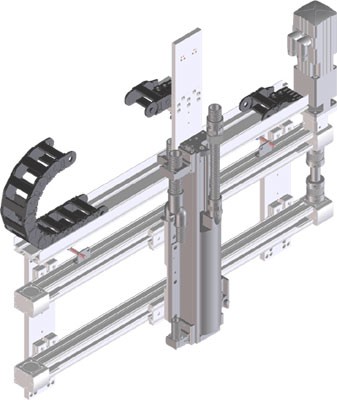

The Festo 542993 is a linear gantry 2.0 featuring a pneumatic Z-axis drive unit HMPL-20 with a stroke of 0 to 200 mm and an effective load capacity of 0 to 4 kg. The Z-axis provides an end position and intermediate position repetition accuracy of ± 0.02 mm with one intermediate position. Motion along the Y-axis is driven by two electrical DGE-25-ZR-RF toothed belt units with roller guides, offering a stroke from 0 to 2,000 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0.1 mm. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →Festo

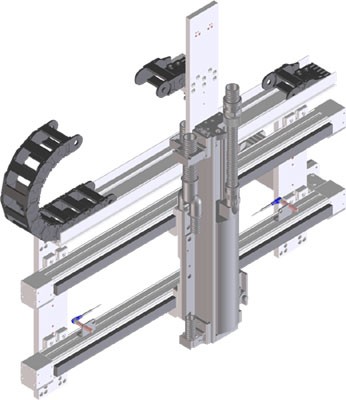

The Festo 542992 is a linear gantry 2.0 assembly featuring a pneumatic Z-axis drive unit HMPL-20 with a stroke of 0 to 200 mm, an effective load capacity of 0 to 4 kg, and an end and intermediate position repetition accuracy of ± 0,02 mm with one intermediate position. Its Y-axis utilizes two DGE-25-ZR-KF electrical toothed belt actuators with ball bearing guides, providing a stroke of 0 to 2,000 mm, any intermediate position, and an end and intermediate position repetition accuracy of ± 0,1 mm. Submit the exact part number, quantity, and application requirements for a formal quote.
