Festo
The Festo industrial component, part number 541399, is a 640 x 480 pixel VGA vision device with a CS mount lens attachment and a field of vision dependent on the selected lens. Measuring 45 mm in width, 45 mm in height, and 139.4 mm in length, the unit operates on a nominal DC voltage of 24 V with a permissible voltage fluctuation of plus or minus 10 percent and a current consumption of 120 mA with load-free outputs. It supports up to 256 test programs, eight orientations per part type, and sorting functions for up to 16 types, featuring designated inputs for trigger signals and accept inputs alongside parameterizable outputs supporting a maximum residual current of 1.5 A on the 24 V outputs. Rated IP65 and IP67, the device functions within an ambient temperature range of -10 to 50 degrees Celsius and a storage temperature range of -10 to 60 degrees Celsius while complying with the CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

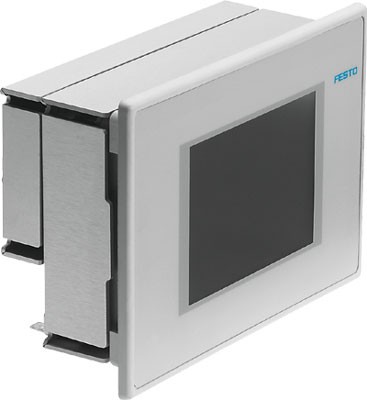

The Festo part number 543438 is an industrial component featuring a 3.8-inch monochrome LCD touchscreen display with a 1/4 VGA resolution of 320x240 pixels and a black/white color scheme. Powered by a nominal operating voltage of 24 V DC within a range of 18 to 30 V DC and consuming 0.4 A, the unit includes 512 kByte of user memory, 32 kByte of recipe memory, 4 system LEDs, and a 3 V / 270 mA lithium backup battery with a real-time clock deviation of 130 seconds per month. Physical dimensions measure 149 mm in length, 61 mm in depth, and 109 mm in height, supporting a maximum front panel thickness of 5 mm while accommodating 1,024 alarms, 256 event lists, and an integrated real-time clock. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

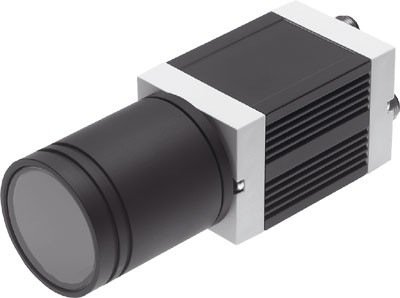

The Festo 541398 is a monochrome industrial component featuring a 640 x 480 pixel VGA sensor and a CS mount lens attachment with lens protection tubing. Weighing 182 g with dimensions of 45 mm by 45 mm by 139.4 mm, this unit operates on a 24 V DC nominal voltage with a maximum residual current of 1.5 A on the 24 V outputs and delivers an image rate of 185 fps. It is built with IP65 and IP67 protection classes, functioning within an ambient temperature range of -10 to 50 °C, and carries C-Tick and c UL us recognized authorizations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 542309 is a size 4 industrial component from the MS series featuring a branching module, start-up valve, pressure sensor, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for vertical assembly within +/- 5°. This unit operates with a working pressure of 4.5 to 14 bar, a pressure control range of 4 to 12 bar, and a standard nominal flow rate of 550 l/min using 24V DC coil data. The assembly incorporates a manual rotary condensate drain, a plastic bowl guard, a 5 µm filtration grade, and a rotary knob actuator lock with lockable accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

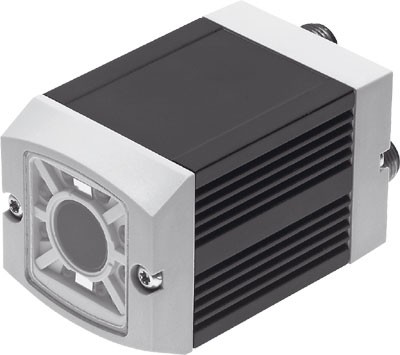

The Festo part number 541396 is an industrial component featuring a 640 x 480 pixel VGA sensor resolution, built-in optical devices, and a field of vision ranging from 14 x 10 mm to 520 x 390 mm within a 45 x 45 x 83.7 mm housing. Operating at a nominal 24 V DC with a permissible voltage fluctuation of +/- 10% and IP65 and IP67 protection classes, this unit supports 256 test programs, up to 16 sorting types, and 8 orientations per part type alongside trigger and accept inputs. Submit the exact part number, quantity, and application requirements to receive an official price and delivery quote.
View product details →Festo
The Festo part number 541395 is a monochrome industrial component featuring a 640 x 480 pixel VGA sensor, built-in optical devices, and an 185 fps image rate across a 14 x 10 mm to 520 x 390 mm field of vision. Housed in a 45 x 45 x 83.7 mm body weighing 184 g with IP65 and IP67 protection classes, this 24 V DC device operates within ambient temperatures of -10 to 50 °C and features an exposure time ranging from 40 µs to 1,000 ms. It carries CE, C-Tick, and c UL us - Recognized (OL) authorizations while supporting a maximum residual current of 1.5 A on the 24 V outputs and a load-free current consumption of 120 mA. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo 542307 is an industrial component of the MS series, size 4, featuring a branching module, on/off valve, filter regulator with pressure gauge, and a standard oil-mist lubricator design structure. It operates within a working pressure range of 1.5 to 14 bar and a pressure control range of 1 to 12 bar, delivering a standard nominal flow rate of 900 l/min using compressed air or inert gases. Configured with a manual rotary condensate drain, a 5 µm filtration grade, a plastic bowl guard, and a lockable rotary knob actuator lock, this unit maintains a constant output pressure with secondary exhaust and return flow. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 542305 is an MS series size 4 industrial component featuring a branching module, start-up valve, pressure sensor, on-off valve, and a filter regulator with a pressure gauge. It operates within a working pressure of 4.5 to 14 bar and a pressure control range of 4 to 12 bar, delivering a standard nominal flow rate of 700 l/min using 24V DC characteristic coil data. Operating on compressed air per ISO8573-1:2010 [7:4:4] or inert gases, this unit incorporates a 5 µm filtration grade, manual rotary condensate drain, plastic bowl guard, and a lockable rotary knob actuator. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 542303 is an industrial component of size 4 within the MS series, featuring a design structure that integrates a branching module, start-up valve, pressure sensor, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator. Operating with a working pressure of 4.5 to 12 bar and a standard nominal flow rate of 600 l/min, this unit utilizes a 24V DC coil and functions with compressed air conforming to ISO8573-1:2010 [7:4:4] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 542301 is an industrial component from the MS series, size 4, featuring a branching module, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for a working pressure of 2 to 12 bar and a standard nominal flow rate of 950 l/min. This assembly operates with compressed air according to ISO 8573-1:2010 [7:4:4] or inert gases within a medium and ambient temperature range of 5 to 60 °C, incorporating a 40 µm filtration grade, fully automatic condensate drain, and plastic bowl guard. Controller functions include a constant output pressure with initial pressure compensation, secondary exhaust, and return flow, regulated via a lockable rotary knob actuator in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 542297 is an industrial component of the MS series, size 4, featuring a design structure that integrates a branching module, start-up valve, pressure sensor, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator. It operates within a working pressure range of 4.5 to 14 bar, a pressure control range of 4 to 12 bar, and delivers a standard nominal flow rate of 600 l/min using 24V DC characteristic coil data. This unit is configured with a manual rotary condensate drain, a plastic bowl guard, a 40 µm filtration grade, and a rotary knob actuator lock with accessories for lockable operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 542291 is an industrial component of size 6 from the MS series, featuring a design structure that integrates a branching module, start-up valve, pressure sensor, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator. It operates within a working pressure range of 4.5 to 12 bar and a pressure control range of 4 to 12 bar, delivering a standard nominal flow rate of 2,100 l/min using compressed air or inert gases. Configured with a fully automatic condensate drain, a 5 µm filtration grade, a plastic bowl guard, and a 24V DC 1.5W coil, this unit maintains a constant output pressure with secondary exhaust and return flow capabilities. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 542289 industrial component is a Size 6 MS-series unit featuring a branching module, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for a standard nominal flow rate of 3,200 l/min across a working pressure range of 2 to 12 bar. It operates with compressed air per ISO 8573-1:2010 [7:4:4] or inert gases within an ambient and medium temperature range of 5 to 60 °C, utilizing a fully automatic condensate drain, a 5 µm filtration grade, a plastic bowl guard, and a rotary knob actuator lock with accessories. Controller functions include a constant output pressure with initial pressure compensation, secondary exhaust, and return flow, maintaining an air purity class at the output of ISO 8573-1:2010 [6:4:-] in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 542285 is a Size 6 MS series industrial component featuring a branching module, start-up valve, pressure sensor, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for a standard nominal flow rate of 2,100 l/min. Operating within a working pressure range of 4.5 to 18 bar and a pressure control range of 4 to 12 bar, this unit handles compressed air in accordance with ISO 8573-1:2010 [7:4:4] or inert gases through a 5 µm filtration grade. It incorporates a rotary knob with lock, manual rotary condensate drain, plastic bowl guard, and a 24V DC 1.5W characteristic coil while maintaining a corrosion resistance classification CRC of 2 across medium and storage temperatures of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 542283 is an industrial component of the MS series in size 6, featuring a design structure that combines a branching module, pressure sensor, on-off valve, filter regulator with pressure gauge, and a standard oil-mist lubricator. Operating within a working pressure range of 1.5 to 18 bar and a pressure control range of 1 to 12 bar, this unit delivers a standard nominal flow rate of 3,200 l/min using compressed air or inert gases. It incorporates a manual rotary condensate drain, a 5 µm filtration grade, a plastic bowl guard, and a rotary knob actuator lock with lockable accessories within a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 542279 is a size 6 industrial component from the MS series featuring a branching module, start-up valve, pressure sensor, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator design structure. It operates within a working pressure range of 4.5 to 12 bar, a pressure control range of 4 to 12 bar, and provides a standard nominal flow rate of 2,300 l/min using compressed air or inert gases. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo part number 542277 is an MS-series size 6 industrial component featuring a branching module, pressure sensor, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for a standard nominal flow rate of 3,300 l/min. Operating within a working pressure of 2 to 12 bar and a pressure control range of 1 to 12 bar, this unit utilizes a fully automatic condensate drain, a 40 µm filtration grade, and a rotary knob actuator lock with accessory lockability. It accommodates compressed air conforming to ISO8573-1:2010 [7:4:4] or inert gases within medium and ambient temperatures ranging from 5 to 60 °C and an assembly position of vertical +/- 5°. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo part number 542273 is an industrial component from the MS series in size 6, featuring a design structure that integrates a branching module, start-up valve, pressure sensor, on-off valve, filter regulator with pressure gauge, and standard oil-mist lubricator. It operates within a working pressure range of 4.5 to 18 bar and a pressure control range of 4 to 12 bar, delivering a standard nominal flow rate of 2,300 l/min using compressed air or inert gases. Equipped with a manual rotary condensate drain, a 40 µm filtration grade, a plastic bowl guard, and a rotary knob actuator lock with accessories, this unit functions with a 24V DC (1.5W) coil and maintains an output air purity class in accordance with ISO 8573-1:2010 [7:4:-]. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 542271 industrial component is a Size 6 MS-series unit featuring a branching module, pressure sensor, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for a standard nominal flow rate of 3,300 l/min. Operating within a working pressure range of 1.5 to 18 bar and a pressure control range of 1 to 12 bar, this assembly utilizes a manual rotary condensate drain, a 40 µm filtration grade, and a rotary knob actuator lock with accessory lockability. It functions with compressed air matching ISO8573-1:2010 [7:4:4] or inert gases across ambient, medium, and storage temperatures of -10 to 60 °C in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 541011 is an industrial component featuring a reinforced PA cover cap and a product weight of 3 g. This RoHS compliant part adheres to VDMA24364-B1/B2-L LABS conformity and a CRC 0 corrosion resistance class for environments with no corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote.
