Festo

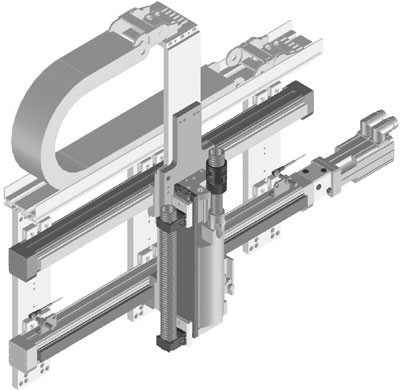

The Festo 542991 is a Linear gantry 2.0 featuring a pneumatic Z-axis drive unit utilizing an HMPL-20 with a stroke of 0 to 200 mm, an effective load capacity of 0 to 4 kg, and a repetition accuracy of ± 0.02 mm in both end and intermediate x1 positions. Its Y-axis drive system comprises two electrical DGE-25-SP spindle units providing a stroke of 0 to 1,000 mm, configurable intermediate positions, and a repetition accuracy of ± 0.02 mm for end and intermediate positions. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

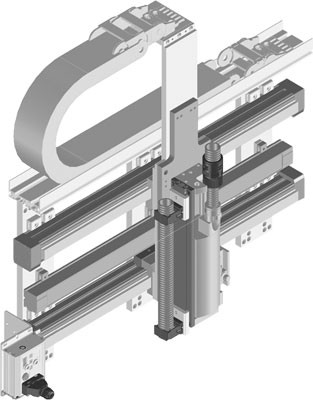

The Festo 542990 is a Linear gantry 2.0 assembly featuring a pneumatic Z-axis drive unit utilizing the HMPL-20 with a 0 to 200 mm stroke, an intermediate position x1, and a repetition accuracy of ± 0,02 mm in both the end and intermediate positions for an effective load of 0 to 4 kg. Its Y-axis utilizes a servopneumatic drive system with two DGPL-25-SPC11 drive units, providing a 0 to 1,600 mm stroke, an intermediate position x2, a repetition accuracy of ± 0,02 mm in the end position, and a repetition accuracy of ± 1 mm in the intermediate position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

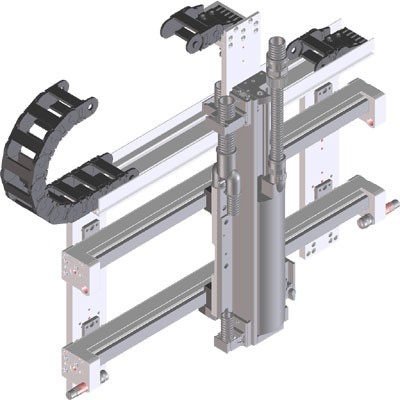

The Festo 542989 is a Linear gantry 2.0 assembly featuring a pneumatic Z-axis drive unit HMPL-20 with a stroke of 0 to 200 mm, one intermediate position, and an effective load capacity of 0 to 4 kg. Its Z-axis provides a repetition accuracy of ±0.02 mm in both the end and intermediate positions. Motion along the Y-axis is driven by two DGC-25 pneumatic units offering a stroke of 0 to 3,000 mm and an end position repetition accuracy of ±0.02 mm. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo

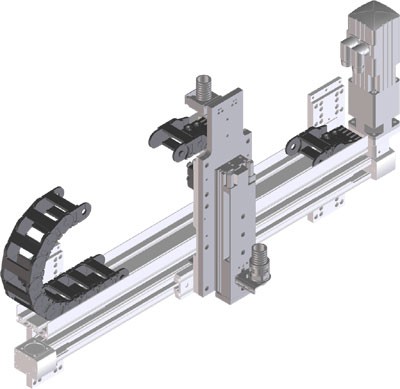

The Festo 542988 is a Linear gantry 1.0 assembly featuring an effective load capacity of 0 to 2 kg. Its Z axis incorporates an SLT-16 pneumatic drive unit with a stroke of 0 to 150 mm, achieving a repetition accuracy of ±0.02 mm in both the end and intermediate positions. The Y axis utilizes a DGE-25-ZR-RF electrical drive system with a toothed belt and roller guide, providing a stroke from 0 to 2,000 mm, an arbitrary intermediate position, and a repetition accuracy of ±0.1 mm for both end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

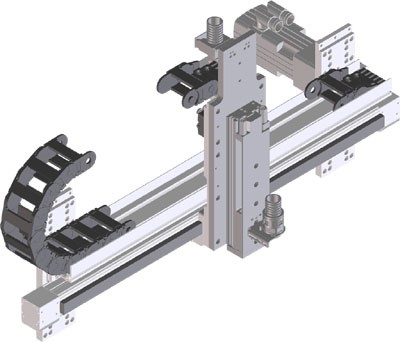

The Festo 542987 is a Linear gantry 1.0 featuring an effective load capacity of 0 to 2 kg. Its Z axis incorporates an SLT-16 pneumatic drive unit with a stroke of 0 to 150 mm, achieving an end and intermediate position repetition accuracy of ± 0,02 mm. The Y axis utilizes a DGE-25-ZR-KF electrical toothed belt actuator with a ball bearing guide, providing a stroke of 0 to 2,000 mm, any intermediate position, and a repetition accuracy of ± 0,1 mm for both end and intermediate positions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

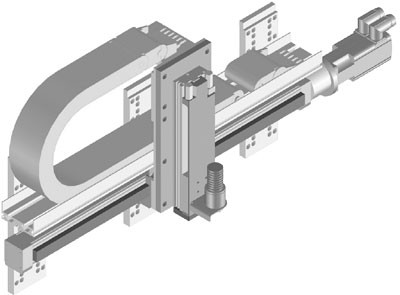

The Festo 542986 is a linear gantry 1.0 assembly featuring an effective load capacity from 0 to 2 kg. Its Z axis incorporates a pneumatic SLT-16 drive unit with a 0 to 150 mm stroke and a repetition accuracy of ± 0,02 mm in both end and intermediate positions. The Y axis utilizes a DGE-25-SP electrical drive system with a spindle, offering a stroke from 0 to 1,000 mm, arbitrary intermediate positions, and a repetition accuracy of ± 0,02 mm in end and intermediate positions. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

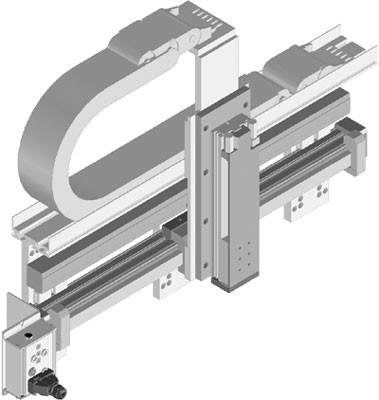

The Festo linear gantry 1.0 (part number 542985) supports an effective load capacity ranging from 0 to 2 kg. Its Z axis incorporates an SLT-16 pneumatic drive unit delivering a 0 to 150 mm stroke with a repetition accuracy of ± 0,02 mm in both the end and intermediate positions. The Y axis utilizes a DGPL-25-SPC11 servopneumatic drive system providing a stroke between 0 and 1,600 mm, featuring two intermediate positions alongside an end position repetition accuracy of ± 0,02 mm and an intermediate position repetition accuracy of ± 1 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

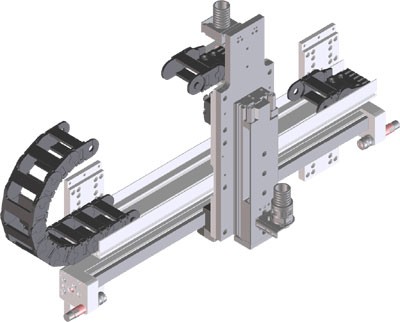

The Festo 542984 is a Linear gantry 1.0 assembly featuring a pneumatic Z-axis drive unit utilizing the SLT-16 with a stroke of 0 to 150 mm and an end position repetition accuracy of ± 0.02 mm. Its pneumatic Y-axis drive system uses the DGC-25 to provide a stroke from 0 to 3,000 mm alongside a repetition accuracy of ± 0.02 mm in the end position. This configuration supports an effective load capacity ranging from 0 to 2 kg. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

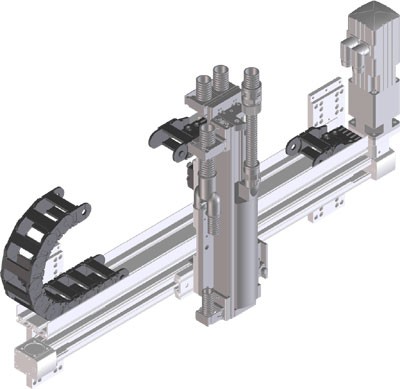

This Festo linear gantry 1.0 assembly features a pneumatic Z axis utilizing an HMPL-16 drive unit with a 0 to 160 mm stroke and an effective load capacity of 0 to 2 kg. The Z axis provides an end position and intermediate position repetition accuracy of ± 0,02 mm with one intermediate position. The electrical Y axis incorporates a DGE-25-ZR-RF toothed belt drive system with a roller guide, accommodating a 0 to 2,000 mm stroke and any intermediate position with a repetition accuracy of ± 0,1 mm in both end and intermediate positions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

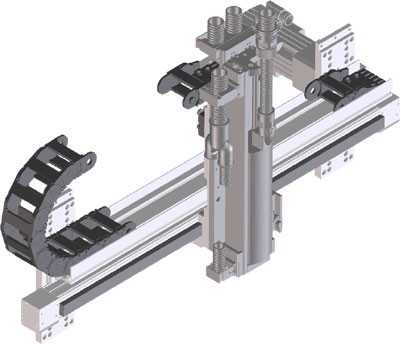

The Festo 542982 is a Linear Gantry 1.0 assembly featuring a pneumatic Z-axis drive unit utilizing the HMPL-16 with a stroke of 0 to 160 mm and an effective load capacity of 0 to 2 kg. Its Z-axis provides a repetition accuracy of ± 0,02 mm in both the end and intermediate positions. The Y-axis incorporates a DGE-25-ZR-KF electrical toothed belt actuator with a ball bearing guide, delivering a stroke of 0 to 2,000 mm and a repetition accuracy of ± 0,1 mm in any intermediate position as well as the end position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

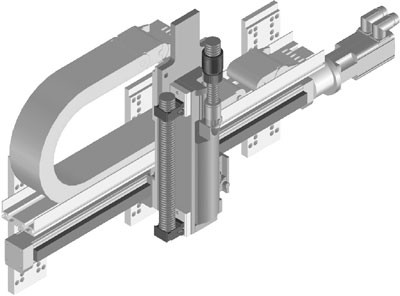

The Festo 542981 is a linear gantry 1.0 assembly configured with an effective load capacity of 0 to 2 kg. Its Z axis features a pneumatic HMPL-16 drive unit with one intermediate position and a stroke of 0 to 160 mm, achieving a repetition accuracy of ± 0.02 mm in both end and intermediate positions. The Y axis incorporates an electrical drive system with a spindle, utilizing a DGE-25-SP drive unit with any intermediate position and a stroke ranging from 0 to 1,000 mm, maintaining a repetition accuracy of ± 0.02 mm. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

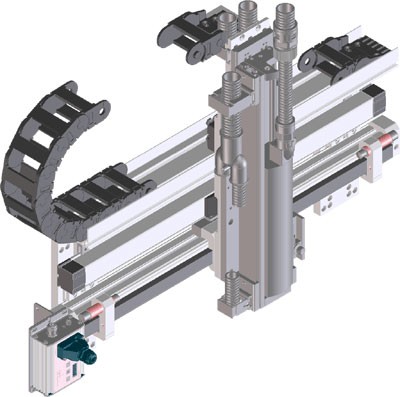

The Festo 542980 is a Linear gantry 1.0 industrial component featuring a pneumatic Z axis drive unit HMPL-16 with a stroke of 0 to 160 mm and a servopneumatic Y axis drive unit DGPL-25-SPC11 with a stroke of 0 to 1,600 mm. It supports an effective load capacity from 0 to 2 kg, incorporating one intermediate position on the Z axis and two intermediate positions on the Y axis. Both axes deliver a repetition accuracy of ±0,02 mm in the end position, while the Z axis intermediate position maintains ±0,02 mm repetition accuracy and the Y axis intermediate position maintains ±1 mm repetition accuracy. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

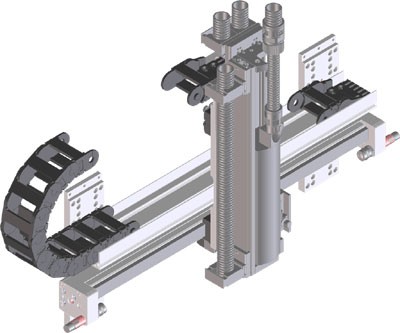

The Festo 542979 is a Linear gantry 1.0 industrial component featuring a pneumatic Z axis drive system utilizing the HMPL-16 drive unit with a 0 to 160 mm stroke and an effective load capacity of 0 to 2 kg. It incorporates a pneumatic Y axis drive system with a DGC-25 drive unit providing a 0 to 3,000 mm stroke, alongside a repetition accuracy of ± 0.02 mm in the end positions for both axes and in the Z axis intermediate position x1. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

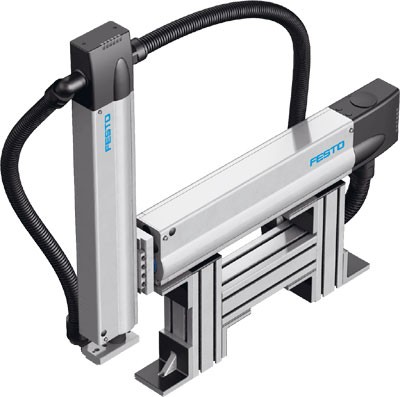

The Festo 542978 is a Pick&Place 3.0 assembly featuring pneumatic drive systems on both the Y and Z axes utilizing HMP-25 and HMP-20 drive units respectively. This component accommodates an effective load ranging from 0 to 6 kg while providing a stroke of 0 to 400 mm for each axis, alongside one intermediate position. Positional precision is defined by an end and intermediate repetition accuracy of ± 0.02 mm on the Y axis and ± 0.01 mm on the Z axis. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

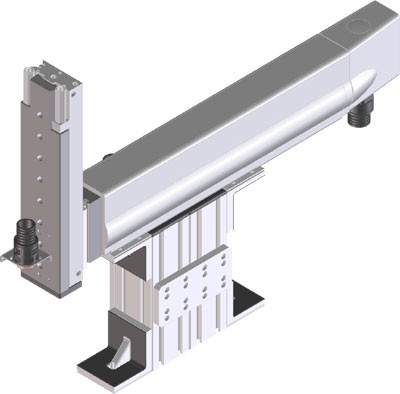

The Festo 542977 is a Pick&Place 3.0 assembly featuring pneumatic drive systems for both the Y and Z axes. The Z axis utilizes an SLT-20 drive unit with a 0 to 200 mm stroke and a repetition accuracy of ± 0,02 mm in both end and intermediate positions. The Y axis incorporates an HMP-25 drive unit with one intermediate position, a 0 to 400 mm stroke, and ± 0,02 mm repetition accuracy in end and intermediate positions, supporting an effective load capacity of 0 to 6 kg. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

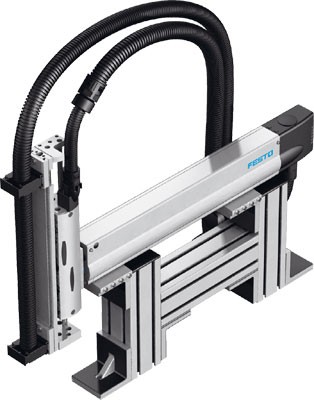

The Festo 542976 is a Pick&Place 2.0 assembly featuring a pneumatic Y-axis drive unit HMP-16 with a 0 to 320 mm stroke and a pneumatic Z-axis drive unit HMPL-20 with a 0 to 200 mm stroke. Both axes achieve a repetition accuracy of ± 0,02 mm in the end and intermediate positions, supporting an effective load capacity from 0 to 4 kg. Each axis includes one intermediate position for operational flexibility. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

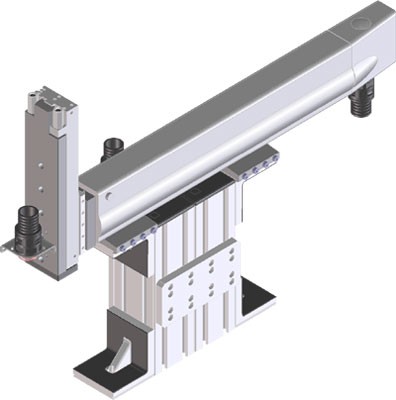

The Festo 542975 is a Pick&Place 2.0 assembly featuring a pneumatic Z-axis drive unit utilizing the SLT-16 with a 0 to 150 mm stroke and a Y-axis drive unit utilizing the HMP-16 with a 0 to 320 mm stroke, supporting an effective load from 0 to 4 kg. Both axes achieve a repetition accuracy of ± 0.02 mm in the end position and ± 0.02 mm in the intermediate position, with one intermediate position on the Y axis. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

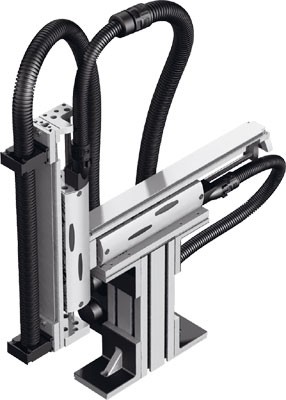

The Festo 542974 is a Pick&Place 1.0 assembly featuring pneumatic drive systems for the Y and Z axes utilizing HMPL-20 and HMPL-16 drive units, respectively. It delivers an effective load capacity of 0 to 2 kg with a Y-axis stroke of 0 to 200 mm and a Z-axis stroke of 0 to 160 mm, both equipped with one intermediate position. End and intermediate positions on both axes maintain a repetition accuracy of ± 0.02 mm. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
This Festo Pick&Place 1.0 assembly features pneumatic drive systems for both the Y and Z axes utilizing HMPL-16 and HMPL-12 drive units, respectively. The Y axis provides a stroke of 0 to 160 mm with an end and intermediate position repetition accuracy of ± 0,02 mm and one intermediate position (x1). The Z axis delivers a stroke of 0 to 100 mm with an identical repetition accuracy of ± 0,02 mm in both end and intermediate positions (x1), supporting an effective load from 0 to 1 kg. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

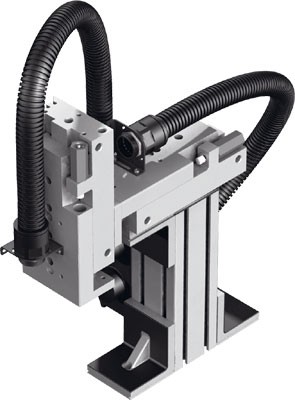

The Festo 542972 is a Pick&Place 1.0 assembly featuring pneumatic drive systems for both the Y and Z axes. The Z axis utilizes an SLT-16 drive unit with a stroke of 0 to 150 mm and an end position repetition accuracy of ± 0.02 mm, while the Y axis incorporates an SLT-20 drive unit offering a stroke of 0 to 200 mm and a repetition accuracy of ± 0.02 mm. This component handles an effective load ranging from 0 to 2 kg. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
