Festo

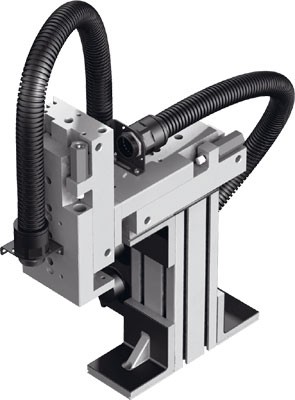

The Festo 542968 is a Pick&Place 1.0 assembly featuring pneumatic drive systems for both axes. It includes an SLT-16 Y-axis drive unit with a 0 to 150 mm stroke and an SLT-10 Z-axis drive unit with a 0 to 80 mm stroke, supporting an effective load from 0 to 2 kg. Both axes deliver a repetition accuracy of ± 0.02 mm in both the end and intermediate positions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 543516 is an industrial component featuring a 10.4-inch TFT color touchscreen display with a 640x480 pixel VGA resolution, supporting 64k colors and a maximum front panel thickness of 5 mm. It operates on a nominal DC voltage of 24 V within a range of 18 to 30 V, drawing a current of 1.2 A, and incorporates 32 Mbyte of user memory, a real-time clock with a 130 s/month deviation, and a 3 V / 270 mA lithium backup battery. The unit measures 287 mm in length, 91 mm in depth, 232 mm in height, is rated IP65 on the front and IP20 on the back, and functions within a storage temperature range of -20 to 70 °C at 5 to 85% non-condensing relative air humidity, conforming to the CE EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 543515 industrial component features a 10.4-inch TFT color touchscreen display with VGA 640x480 pixel resolution and 64k colors, housed within dimensions measuring 287 mm in length, 91 mm in depth, and 232 mm in height for a maximum front panel thickness of 5 mm. Powered by an operating voltage range of 18 to 30 V DC, this unit includes 32 Mbyte of user memory, 32 kByte of recipe memory, a real-time clock with a 130 s/month deviation, a 3 V / 270 mA Lithium backup battery, one user LED, four system LEDs, and one function key. Furthermore, the device supports 1,024 alarms and 1,024 event lists. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo Memory FEDZ-MEM32 is an industrial component featuring 32 Mbyte of user memory. This part carries the CE symbol according to the EU-EMV guideline as stated in the official Festo EN-US data sheet. Request a formal quote by submitting the exact part number, required quantity, and application specifications.
View product details →Festo
The Festo Bus interface FEDZ-IET TCP is an industrial component bearing the CE symbol according to the EU-EMV guideline. It operates within an ambient temperature range of 0 to 45 °C and withstands storage temperatures from -20 to 70 °C under non-condensing relative air humidity levels of 5 to 85 %. Submit your exact part number, quantity, and application requirements to request a quote for this official Festo specification.
View product details →Festo
The Festo part number 543448 is an industrial component featuring a 15" TFT color touchscreen display with XGA 1024x768 pixel resolution, 64k colors, and a maximum front panel thickness of 5 mm. This unit operates on a nominal DC voltage of 24 V within a range of 18 to 30 V, drawing 1.5 A at nominal voltage, and includes 32 Mbyte of user memory, a real-time clock with a deviation of 130 s/month, and a 3 V / 270 mA lithium backup battery. Measuring 101 mm in depth, 307 mm in height, and 392 mm in length, the hardware functions within storage temperatures from -20 to 70 °C and 5 to 85% non-condensing relative air humidity, providing IP65 protection on the front and IP20 on the back while complying with the CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 542405 is an industrial component featuring a three-phase primary supply with an input voltage range of 400 to 500 V AC, a line frequency of 45 to 65 Hz, and an input current of 2.3 to 1.9 A. It delivers a nominal output voltage DC of 48 V and a nominal output current of 20 A, incorporating power failure buffering of 50 ms and free convection assembly position. Measuring 125 mm in width, 130 mm in height, and 240 mm in length with a product weight of 3,500 g, this unit mounts with a top-hat rail and operates within an ambient temperature range of -25 to 70 °C, while carrying IP20 protection class and containing PWIS substances. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 543447 is an industrial component featuring a 15-inch TFT color touchscreen display with an XGA resolution of 1024x768 pixels and 64k colors. Measuring 101 mm in depth, 307 mm in height, and 392 mm in length, this unit accommodates a maximum front panel thickness of 5 mm and operates on a DC voltage range of 18 to 30 V. It is equipped with 32 Mbyte of user memory, 32 kByte of recipe memory, a real-time clock with a deviation of 130 seconds per month, 1 function key, 1 user LED, 4 system LEDs, a 3 V / 270 mA lithium backup battery, and supports 1,024 alarms and 1,024 event lists. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

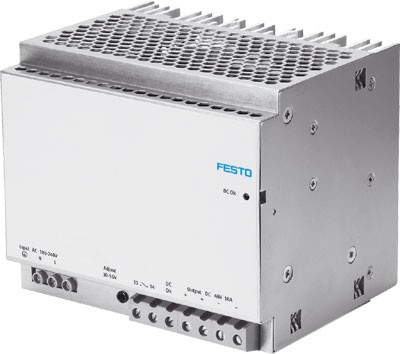

The Festo part number 542404 is an industrial component measuring 125 mm in width, 130 mm in height, 157 mm in length, and weighing 2,800 g with a materials note indicating it contains PWIS substances. It operates on a single-phase AC input voltage range of 100 to 240 V, an input current of 5,1 to 2,3 A, and a line frequency of 45 to 65 Hz, delivering a nominal DC output voltage of 48 V at a nominal output current of 10 A with 50 ms of power failure buffering. Designed for top-hat rail mounting in free convection assembly positions, the unit features an IP20 protection class, an ambient temperature range of -25 to 70 °C, a storage temperature range of -40 to 85 °C, and a relative air humidity tolerance of 95%, while carrying C-Tick and c UL us - Listed (OL) authorizations alongside CE compliance according to EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 543445 is an industrial component featuring a 12.1-inch TFT color touchscreen display with a resolution of 800x600 pixels and 64k colors, housed in dimensions measuring 91 mm in depth, 267 mm in height, and 337 mm in length. It operates on a nominal DC voltage of 24 V within a range of 18 to 30 V, drawing 1.3 A of current, and includes 32 Mbyte of user memory, a real-time clock with a deviation of 130 seconds per month, and a 3 V / 270 mA lithium backup battery. The unit provides IP65 protection on the front for panels up to 5 mm thick and IP20 protection on the back, functioning within a storage temperature range of -20 to 70 °C and 5 to 85% non-condensing relative air humidity. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo industrial component, part number 542403, is a single-phase device featuring dimensions of 125 mm width, 130 mm height, and 85 mm length with a product weight of 1,240 g. It operates within an AC input voltage range of 100 to 240 V at a line frequency of 45 to 65 Hz, drawing an input current of 2,2 to 1,2 A to deliver a nominal DC output voltage of 48 V at 5 A. Designed for top-hat rail mounting with free convection assembly, it provides 50 ms of power failure buffering, an IP20 protection class, and contains PWIS substances while supporting ambient operating temperatures from -25 to 70 °C and storage temperatures between -40 and 85 °C under up to 95% relative air humidity. Authorized by C-Tick and c UL us - Listed (OL), this unit bears the CE symbol in accordance with EU-EMV and low voltage guidelines. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

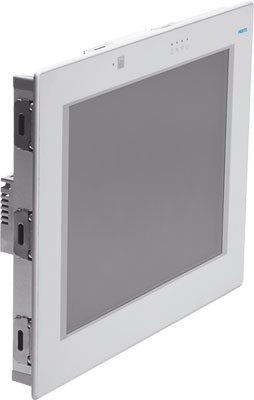

This Festo industrial component, part number 543444, features a 12,1" TFT color touchscreen display with a resolution of 800x600 pixels supporting 64 k colors, operating within a DC voltage range of 18 to 30 V. The unit is equipped with a 32 Mbyte user memory, 32 kByte recipe memory, 1,024 alarms, 1,024 event lists, a real-time clock with a deviation of 130 s per month, one function key, one user LED, and four system LEDs. Physical dimensions measure 337 mm in length, 91 mm in depth, and 267 mm in height, with a maximum front panel thickness of 5 mm and a 3 V / 270 mA Lithium backup battery. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 542315 is a size 4 industrial component from the MS series featuring a branching module, start-up valve, pressure sensor, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed for a standard nominal flow rate of 550 l/min. It operates within a working pressure range of 4.5 to 12 bar and a pressure control range of 4 to 12 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4] or inert gases. This unit includes a fully automatic condensate drain, 5 µm filtration grade, plastic bowl guard, and a rotary knob with lock actuator. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 543443, features a 7.5-inch TFT color touchscreen display with a VGA 640x480 pixel resolution supporting 64k colors and a maximum front panel thickness of 5 mm. The unit operates on a nominal DC voltage of 24 V within a range of 18 to 30 V, drawing a current consumption of 1.1 A, and includes 32 Mbyte of user memory, a real-time clock with a deviation of 130 seconds per month, and a 3 V / 270 mA lithium backup battery. Measuring 232 mm in length, 71 mm in depth, and 187 mm in height, the hardware functions within a storage temperature range of -20 to 70 °C and 5 to 85 percent non-condensing relative air humidity, achieving an IP65 protection class rating at the front and IP20 at the back while carrying the CE symbol according to the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

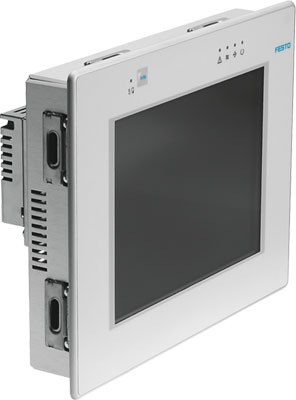

The Festo part number 543442 is an industrial component featuring a 7.5-inch TFT color touchscreen display with a VGA resolution of 640x480 pixels and 64k colors. Operating on a DC voltage range of 18 to 30 V, the unit includes 32 Mbyte of user memory, 32 kByte of recipe memory, 1,024 alarms, 1,024 event lists, a real-time clock with a deviation of 130 seconds per month, and a 3 V / 270 mA lithium backup battery. Physical specifications include a length of 232 mm, a height of 187 mm, a depth of 71 mm, a maximum front panel thickness of 5 mm, 1 user LED, 4 system LEDs, and 1 function key. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 542313 is a size 4 industrial component from the MS series featuring a branching module, on/off valve, filter regulator with pressure gauge, and standard oil-mist lubricator designed with a fully automatic condensate drain and a lockable rotary knob actuator lock. It operates within a working pressure of 2 to 12 bar and a pressure control range of 1 to 12 bar, delivering a standard nominal flow rate of 900 l/min for compressed air conforming to ISO8573-1:2010 [7:4:4] or inert gases. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

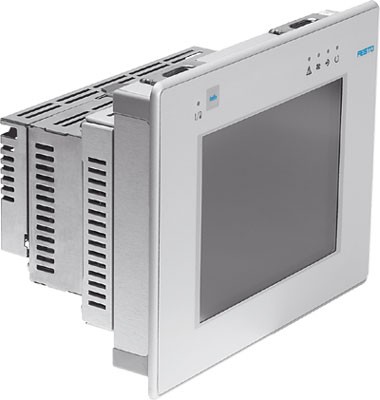

This Festo 543441 industrial component features a 5.6-inch STN color touchscreen display with a 1/4 VGA resolution of 320x240 pixels and 256 colors, housed in a unit measuring 187 mm in length, 91 mm in depth, and 147 mm in height for a maximum front panel thickness of 5 mm. Powered by an operating voltage range of 18 to 30 V DC, the device includes 32 Mbyte of user memory, 32 kByte of recipe memory, 1,024 alarms, 1,024 event lists, a real-time clock with a deviation of 130 s per month, 1 user LED, 4 system LEDs, 1 function key, and a 3 V / 270 mA lithium backup battery. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 543440 is an industrial component featuring a 5.6-inch monochrome LCD touchscreen display with a resolution of 320x240 pixels and 8 gray scales, powered by an operating voltage range of 18 to 30 V DC. It includes 32 Mbyte of user memory, 32 kByte of recipe memory, a real-time clock with a deviation of 130 seconds per month, a 3 V / 270 mA lithium backup battery, 1 user LED, 4 system LEDs, and 1 function key. Measuring 187 mm in length, 66 mm in depth, and 147 mm in height, the unit supports a maximum front panel thickness of 5 mm and accommodates 1,024 alarms and 1,024 event lists. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component from the MS series, size 4, features a design structure comprising a branching module, start-up valve, pressure sensor, on/off valve, and a filter regulator with a pressure gauge, operating at a standard nominal flow rate of 700 l/min with a working pressure of 4.5 to 12 bar and a pressure control range of 4 to 12 bar. The unit incorporates a rotary knob actuator lock with accessories, a fully automatic condensate drain, a plastic bowl guard, and a 5 µm grade of filtration, utilizing 24V DC coil data while maintaining an output air purity class in accordance with ISO8573-1:2010 [6:4:4] for compressed air or inert gases. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

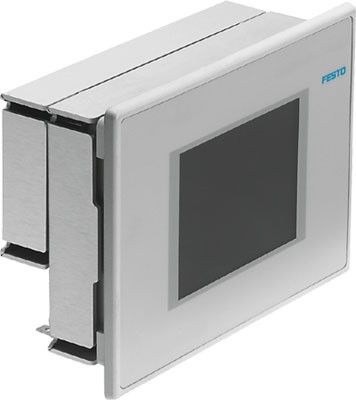

The Festo 543439 industrial component features a 3,5" TFT color touchscreen display with a 1/4 VGA resolution of 320x240 pixels and 256 colors, operated via a nominal DC voltage of 24 V within a range of 18 to 30 V and a current consumption of 0,4 A. Housed in dimensions measuring 56 mm in depth, 109 mm in height, and 149 mm in length for a maximum front panel thickness of 5 mm, it includes 1 Mbyte of user memory, 32 kByte of recipe memory, 1,024 alarms, 256 event lists, a real-time clock with a deviation of 130 s per month, 4 system LEDs, and a 3 V / 270 mA lithium backup battery. Submit the exact part number, quantity, and application requirements to request a formal quote for this unit.
