Festo
The Festo 538188 is a 4/3 exhausted industrial component utilizing a hard-sealed rotary slide valve design with a direct piloting type and a nominal size of 12 mm. This manually actuated unit features a reversible flow direction, throttleable exhaust-air function, freedom from overlap, a standard nominal flow rate of 3,500 l/min, and a working pressure range of -0.95 to 10 bar. It operates with G1/2 pneumatic connection ports, requires a 5 Nm actuation torque, weighs 1,010 g, and permits optional, front panel, or through-hole mounting within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

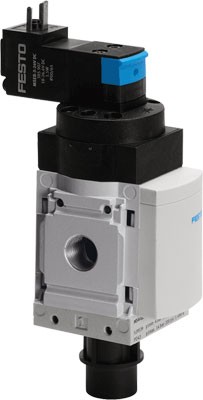

The Festo 538752 is an electrically actuated 3/2-way closed monostable industrial component utilizing a piston slide design with internal direct piloting and a non-throttleable exhaust-air function. Operating at a working pressure of 4 to 10 bar utilizing compressed air, this unit achieves a standard nominal flow rate of 2,000 l/min with a C value of 9.5 l/sbar and a b value of 0.44. Driven by 230V AC characteristic coil data, it features mechanical spring reset, detenting and pushing manual override, CRC 2 corrosion resistance, and an ambient temperature range of -10 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 537609 is an electrically actuated 3/2-way open monostable industrial component utilizing a piston slide design with soft sealing and an air spring reset. Featuring a 20 mm valve size, a 7 mm nominal size, and a standard nominal flow rate of 1,000 l/min, this piloted valve operates at a working pressure from -0.9 to 8 bar and requires an external pilot pressure of 2 to 8 bar. It provides an IP65 protection class, non-reversible flow direction, non-throttleable exhaust-air function, detenting or pushing manual override, and operates on 24 V DC at 1.5 W with 20 ms switching times in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

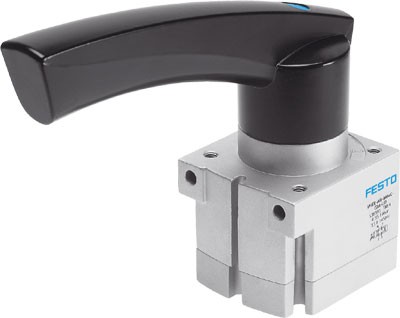

The Festo 538187 is a direct-piloted 4/3 exhausted manual industrial component featuring a rotary slide valve design with a hard sealing principle and an 8 mm nominal size. This reversible unit delivers a standard nominal flow rate of 1,500 l/min across a working pressure range of -0.95 to 10 bar, utilizing G1/4 pneumatic connection ports and operating with compressed air meeting ISO8573-1:2010 [7:4:4] standards. Weighing 510 g with a 2.8 Nm actuation torque, it offers optional front panel or through-hole mounting, throttleable exhaust-air function, freedom from overlap, and a CRC 2 corrosion resistance classification for environments spanning -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 537608 is an electrical industrial component featuring a 3/2 open, monostable piston slide valve with a 20 mm valve size and a 7 mm nominal size. Delivering a standard nominal flow rate of 800 l/min across a working pressure range of -0.9 to 8 bar, this piloted unit utilizes an external pilot air supply with a 2 to 8 bar pilot pressure, an air spring reset, and a soft sealing principle. It is rated IP65, operates on 24 V DC at 1.5 W characteristic coil data, achieves identical 20 ms switching times for on and off cycles, and includes detenting and pushing manual override functionality alongside non-reversible flow direction and non-throttleable exhaust-air function in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo

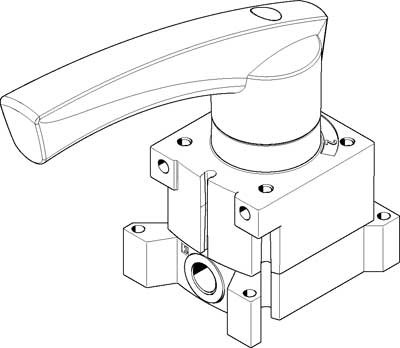

The Festo 538186 is a manual rotary slide valve featuring a 4/3 exhausted function, a nominal size of 8 mm, and a standard nominal flow rate of 1,150 l/min. This direct-piloted component offers a working pressure range of -0.95 to 10 bar, a reversible flow direction, throttleable exhaust-air function, and freedom from overlap. Weighing 560 g with an actuation torque of 2.8 Nm, it operates with compressed air according to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
View product details →Festo
The Festo 538750 is an electrically actuated 3/2 closed monostable piston slide valve featuring internal direct piloting, a non-throttleable exhaust-air function, and a mechanical spring reset. Operating at a working pressure of 4 to 10 bar with a standard nominal flow rate of 2,000 l/min, this component runs on 110V AC coil data and functions within an ambient temperature range of -10 to 60 °C. It includes a detenting and pushing manual override, a CRC corrosion resistance classification of 2, and supports any assembly position utilizing compressed air as the operating medium. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this industrial component.
View product details →Festo

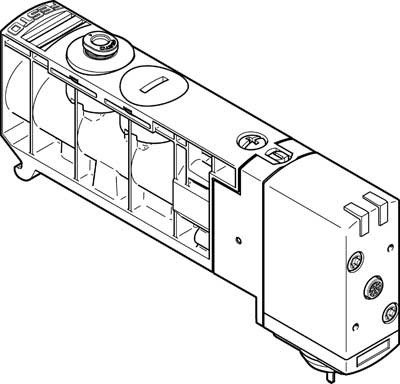

The Festo 537607 is a 20 mm electrical industrial component featuring a 3/2 open, monostable valve function with a piston slide design structure and soft sealing principle. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar, utilizing an external pilot air supply with a pilot pressure of 2 to 8 bar, an air spring reset, and 24 V DC 1.5 W coil data. Featuring IP65 protection, non-reversible flow direction, detenting and pushing manual override, and identical 20 ms switching times on and off, this unit supports any assembly position. Request a quote for part number 537607 by specifying your required quantity and application details.
View product details →Festo
The Festo 538185 is a 220 g manual rotary slide valve featuring a 4/3 exhausted function, direct piloting, and a standard nominal flow rate of 800 l/min across a working pressure range of -0.95 to 10 bar. Designed with a 6 mm nominal size, hard sealing principle, and throttleable exhaust-air function, this reversible component operates with compressed air conforming to ISO8573-1:2010 [7:4:4] within an ambient temperature range of -20 to 80 °C. It requires an actuation torque of 1.1 Nm, supports lubricated operation, features a corrosion resistance classification of CRC 2, and accommodates front panel, through-hole, or optional mounting via G1/8 ports. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 537606 is an electrical 3/2 open, monostable industrial component featuring a 20 mm valve size, 7 mm nominal size, and a standard nominal flow rate of 200 l/min utilizing a piston slide design structure. Operating with a working pressure of -0.9 to 8 bar, this piloted valve incorporates an external pilot air supply, air spring reset, soft sealing principle, non-reversible flow direction, and IP65 protection class alongside a 24 V DC, 1.5 W characteristic coil data. Featuring a detenting and pushing manual override, it delivers a 20 ms switching time on and off within any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

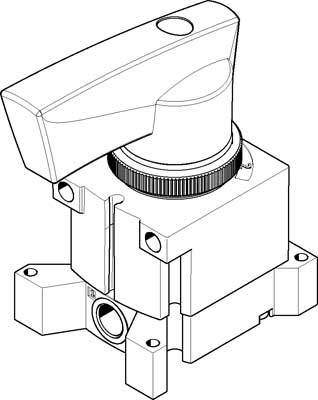

The Festo 538184 is a 4/3 exhausted industrial component utilizing a direct-piloted rotary slide valve design with a 6 mm nominal size and G1/8 pneumatic connection ports. Weighing 260 g with a hard sealing principle, this manually actuated valve operates within a pressure range of -0.95 to 10 bar, delivers a standard nominal flow rate of 600 l/min, and functions across an ambient temperature range of -20 to 80 °C. It features reversible flow direction, throttleable exhaust-air function, freedom from overlap, CRC 2 corrosion resistance, and an actuation torque of 1.1 Nm, with mounting supported via optional front panel installation or through holes using compressed air conforming to ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

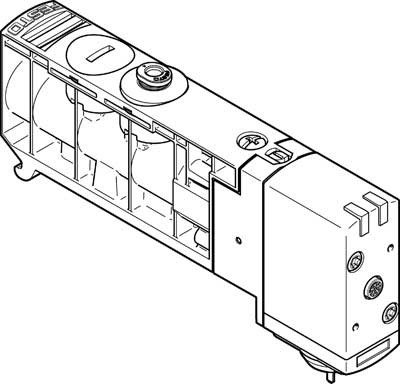

The Festo 537605 is an electrical industrial component featuring a 3/2 closed, monostable valve function and a 20 mm valve size with a piston slide design structure. Operating at a standard nominal flow rate of 1,000 l/min and a working pressure range of -0.9 to 8 bar, this piloted unit utilizes an external pilot air supply with a 2 to 8 bar pilot pressure and an air spring reset. It incorporates a soft sealing principle, IP65 protection class, 7 mm nominal size, non-reversible flow direction, and a 24 V DC 1.5 W coil achieving 20 ms on and off switching times. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 538746 is a 3/2 closed, single solenoid industrial component featuring a piston slide design structure and direct electrical actuation with a 230V AC coil. This unit operates within a working pressure range of 4 to 10 bar, delivering a standard nominal flow rate of 5,500 l/min with internal pilot air supply and a mechanical spring reset. It incorporates a non-reversible flow direction, non-throttleable exhaust-air function, detenting and pushing manual override, and a CRC 2 corrosion resistance classification for ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo
The Festo 538183 is a 4/3 closed manual rotary slide valve featuring a 12 mm nominal size and a standard nominal flow rate of 4,300 l/min. This directly piloted component operates within a working pressure range of -0.95 to 10 bar, utilizes a hard sealing principle, and provides throttleable exhaust-air functionality with reversible flow direction. Weighing 860 g with an actuation torque of 5 Nm, the unit includes G1/2 pneumatic connections on port 4 and supports optional, front panel, or through-hole mounting. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 537604 is an electrical industrial component featuring a 3/2 closed, monostable valve function and a 20 mm valve size with a piston slide design structure. It delivers a standard nominal flow rate of 800 l/min across a working pressure range of -0.9 to 8 bar, utilizing an air spring reset, soft sealing principle, and external pilot air supply operating between 2 and 8 bar. Equipped with IP65 protection and a 24 V DC, 1.5 W characteristic coil, the unit achieves on and off switching times of 20 ms each with a nominal size of 7 mm, non-reversible flow direction, and both detenting and pushing manual override options for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 538745 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with piloted operation. It delivers a standard nominal flow rate of 5,500 l/min across a working pressure range of 4 to 10 bar, supported by a 100% duty cycle and a 230 V AC coil. Featuring IP65 protection, CRC 2 corrosion resistance, and copper-free and PTFE-free materials, this unit operates within ambient temperatures from -10 to 60 °C using compressed air or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 538182 is a 4/3 closed manual rotary slide valve featuring a 12 mm nominal size and a standard nominal flow rate of 3,500 l/min. This direct-piloted component operates at a working pressure of -0.95 to 10 bar, incorporates throttleable exhaust-air functionality, and utilizes a hard sealing principle with a reversible flow direction and freedom from overlap. Weighing 1,010 g with an actuation torque of 5 Nm, the unit accommodates G1/2 pneumatic connections and offers optional front panel or through-hole mounting. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
The Festo part number 538744 is a piston slide industrial component featuring a 3/2 closed, single solenoid valve function with direct piloting and internal pilot air supply. This unit operates on a 110V AC coil with electrical actuation, a mechanical spring reset, detenting and pushing manual override, and a non-reversible flow direction with a non-throttleable exhaust-air function. Engineered for compressed air media within a working pressure range of 4 to 10 bar, it delivers a standard nominal flow rate of 5,500 l/min, a C value of 22 l/sbar, and a b value of 0.5. The assembly functions in any position across an ambient temperature range of -10 to 60 °C, maintains a CRC corrosion resistance classification of 2, incorporates a switching position indicator available with accessories, and has a product weight of 0.816 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537603 is an electrical 3/2 closed, monostable industrial component utilizing a piston slide design structure with a 20 mm valve size and a 7 mm nominal size. It features a standard nominal flow rate of 500 l/min, a working pressure range of -0.9 to 8 bar, an air spring reset, and a soft sealing principle with an IP65 protection class. Operating with external pilot air supply at 2 to 8 bar pilot pressure, the unit achieves 20 ms switching times for both on and off states via a 24 V DC, 1.5 W characteristic coil. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 538181 is a 4/3 closed manual industrial component utilizing a direct-piloted rotary slide valve design with a hard sealing principle and an 8 mm nominal size. This reversible unit delivers a standard nominal flow rate of 1,500 l/min across a working pressure range of -0.95 to 10 bar, featuring a throttleable exhaust-air function and freedom from overlap. Weighing 510 g with a 2.8 Nm actuation torque, it accommodates G1/4 pneumatic connections and optional mounting via front panel installation or through holes within a -20 to 80 °C ambient temperature range. Submit the exact part number, quantity, and application requirements for a formal quote.
