Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 538743 is an electrically actuated industrial component featuring a piston slide design with a 3/2 closed, monostable valve function and piloted operation. Engineered for compressed air per ISO 8573-1:2010 [7:4:4] or inert gases, it delivers a standard nominal flow rate of 5,500 l/min across a working pressure range of 4 to 10 bar. The unit incorporates a mechanical spring reset, non-throttleable exhaust-air function, detenting and pushing manual override, and a 110 V AC (50/60 Hz) coil with 100% duty cycle within an IP65-rated enclosure. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

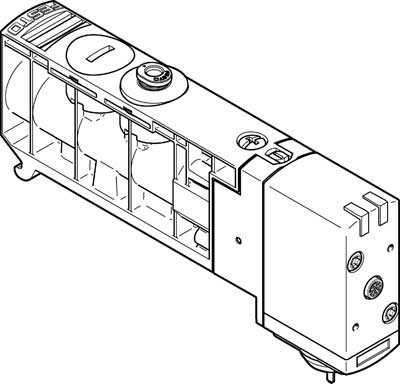

The Festo 537602 is an electrical 3/2 closed, monostable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 200 l/min. Operating with an external pilot air supply and a working pressure range of -0.9 to 8 bar, this unit utilizes an air spring reset, a soft sealing principle, and operates on 24 V DC at 1.5 W with 20 ms switching times for both on and off states. It provides an IP65 protection class, a 7 mm nominal size, detenting and pushing manual override options, and non-reversible flow direction with a pilot pressure of 2 to 8 bar in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
View product details →Festo

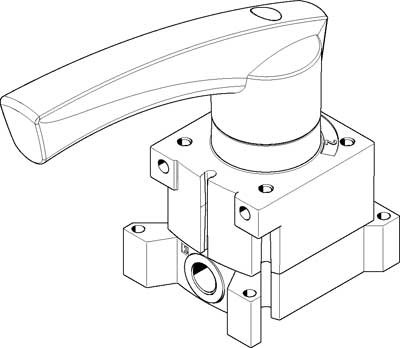

The Festo 538180 is a 4/3 closed manual rotary slide valve featuring a direct piloting type, a nominal size of 8 mm, and a standard nominal flow rate of 1,150 l/min. Designed with a hard sealing principle, a reversible flow direction, freedom from overlap, and throttleable exhaust-air function, it operates within a working pressure range of -0.95 to 10 bar and an actuation torque of 2.8 Nm. This component weighs 560 g, has a CRC corrosion resistance classification of 2, operates at ambient temperatures between -20 and 80 °C using compressed air meeting ISO8573-1:2010 [7:4:4], and supports optional mounting via front panel installation or through holes with G1/4 pneumatic connection ports. Submit your exact part number, quantity, and application requirements to receive a quote for this part.
View product details →Festo
The Festo 538740 is an electrical piston slide industrial component featuring a 3/2 closed, single solenoid valve function with direct piloting and internal pilot air supply. Operating at a working pressure of 4 to 10 bar, this unit delivers a standard nominal flow rate of 2,600 l/sbar with a 230V AC characteristic coil data and mechanical spring reset. Designed with a non-reversible flow direction, non-throttleable exhaust-air function, and a product weight of 0.816 g, it functions within an ambient temperature range of -10 to 60 °C and CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

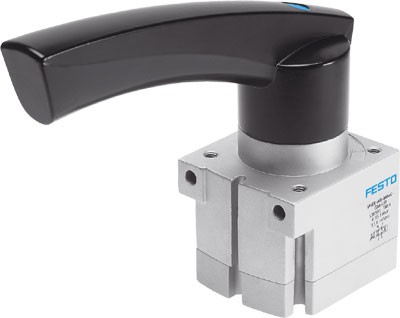

The Festo 538179 is a manually actuated 4/3 closed rotary slide valve featuring a 6 mm nominal size and a standard nominal flow rate of 800 l/min. Designed with direct piloting and a hard sealing principle, this component operates within a working pressure range of -0.95 to 10 bar and supports reversible flow direction with freedom from overlap and throttleable exhaust-air function. It weighs 220 g, requires an actuation torque of 1.1 Nm, and accommodates optional front panel installation or through-hole mounting via G1/8 ports. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537601 is a 20 mm electrical industrial component featuring a 4/2 bistable valve function with a piston slide design structure and soft sealing principle. Operating at a standard nominal flow rate of 1,000 l/min across a working pressure range of -0.9 to 8 bar, this piloted unit utilizes external pilot air supply with a pilot pressure of 2 to 8 bar, an IP65 protection class, and a 230 V AC coil drawing 3.1 VA pick-up power. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo 538739 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with piloted operation and a mechanical spring reset. It delivers a standard nominal flow rate of 2,600 l/min across a working pressure range of 4 to 10 bar, operating on a 230 V AC 50/60 Hz coil with IP65 protection and a 100% duty cycle. This copper-free and PTFE-free unit accommodates compressed air per ISO8573-1:2010 [7:4:4] or inert gases within an ambient temperature range of -10 to 60 °C, and incorporates detenting or pushing manual override. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

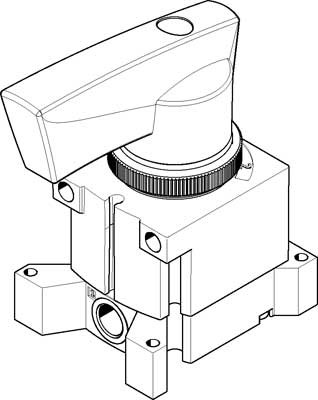

The Festo 538178 is a 4/3 closed manual industrial component utilizing a direct-piloting rotary slide valve design with a nominal size of 6 mm and a standard nominal flow rate of 600 l/min. This reversible unit operates within a working pressure range of -0.95 to 10 bar, features a throttleable exhaust-air function with hard sealing, and maintains freedom from overlap with an actuation torque of 1.1 Nm. Weighing 260 g, the device accommodates compressed air conforming to ISO8573-1:2010 [7:4:4], permits lubricated operation, withstands a CRC 2 corrosion resistance classification, and functions at ambient temperatures from -20 to 80 °C through optional front panel or through-hole mounting via G1/8 pneumatic ports. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537600 is a 20 mm electrical 4/2 bistable valve featuring a piston slide design structure with soft sealing and a standard nominal flow rate of 800 l/min. Operating within a working pressure range of -0.9 to 8 bar and a pilot pressure of 2 to 8 bar, this piloted component requires an external pilot air supply, operates with a 230 V AC 50/60 Hz coil, and achieves a 20 ms switching time reversal. Built with an IP65 protection class, 7 mm nominal size, and detenting or pushing manual override, it functions in any assembly position with non-reversible flow direction. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 538738 is an electrical piston slide industrial component featuring a 3/2 closed, single solenoid valve function with internal pilot air supply and direct piloting. Operating at a working pressure of 4 to 10 bar, this unit delivers a standard nominal flow rate of 2,600 l/min using compressed air as the operating medium within an ambient temperature range of -10 to 60 °C. It incorporates a mechanical spring reset, a detenting and pushing manual override, non-throttleable exhaust-air function, and a non-reversible flow direction. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo 537599 is a 20 mm industrial component featuring a 4/2 bistable valve function with electrical actuation and a piston slide design. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar utilizing a soft sealing principle and external pilot air supply with a pilot pressure of 2 to 8 bar. Operating on 230 V AC (50/60 Hz) coil data with 3.1 VA pick-up power and 2.2 VA holding power, this unit achieves a 20 ms switching time reversal and IP65 protection class. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 538737 is an electrically actuated industrial component featuring a piston slide design and a monostable 3/2 closed valve function with mechanical spring reset. This piloted valve operates within a working pressure range of 4 to 10 bar, delivering a standard nominal flow rate of 2,600 l/min with a 100% duty cycle and IP65 protection class. Powered by a 110 V AC (50/60 Hz) coil with 3 VA switching power and 2.4 VA holding capacity, the unit accommodates compressed air and inert gases within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537598 is an electrical 4/2 bistable valve featuring a 20 mm valve size, a piston slide design structure, and a 7 mm nominal size with a soft sealing principle. Operating within a working pressure range of -0.9 to 8 bar, this piloted component delivers a standard nominal flow rate of 200 l/min and utilizes an external pilot air supply with a pilot pressure of 2 to 8 bar. Powered by 230 V AC (50/60 Hz) characteristic coil data with a pick-up power of 3.1 VA and holding power of 2.2 VA, it achieves a switching time reversal of 20 ms, a surge strength of 4 kV, and an IP65 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

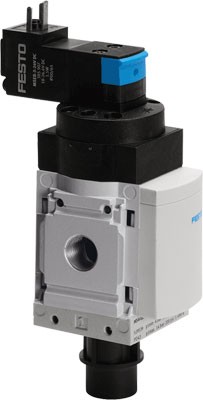

The Festo 538734 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with piloted operation. It operates at a working pressure of 4 to 10 bar, delivers a standard nominal flow rate of 7,000 l/min, and includes a mechanical spring reset with non-throttleable exhaust-air functionality. Equipped with a 230 V AC coil drawing 3 VA switching power and 2.4 VA holding capacity, the unit achieves an IP65 protection class across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo 537597 is a 20 mm electrical industrial component featuring a 4/2 monostable valve function and a piston slide design structure with soft sealing. Operating within a working pressure range of -0.9 to 8 bar, this piloted unit delivers a standard nominal flow rate of 1,000 l/min utilizing an external pilot air supply and an air spring reset. Equipped with IP65 protection and a 230 V AC coil drawing 3.1 VA pick-up and 2.2 VA holding power, the assembly achieves equal 25 ms switching times for on and off states. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 538733 is a piloted electrical piston slide industrial component featuring a 3/2 closed, monostable valve function and a standard nominal flow rate of 7,000 l/min for compressed air or inert gases within a working pressure range of 4 to 10 bar. It includes mechanical spring reset, detenting and pushing manual override, IP65 protection, and operates on 230 V AC at 50/60 Hz with a 100% duty cycle across an ambient temperature range of -10 to 60 °C. The unit is constructed copper- and PTFE-free with a CRC 2 corrosion resistance classification, and permits lubricated operation when subsequently required. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537596 is a 20 mm electrical industrial component featuring a 4/2 monostable valve function and a piston slide design structure. Operating at a standard nominal flow rate of 800 l/min and a working pressure range of -0.9 to 8 bar, this piloted unit utilizes an external pilot air supply with a 2 to 8 bar pilot pressure and an air spring reset. It is equipped with an IP65 protection class, soft sealing principle, non-reversible flow direction, and a 230 V AC coil drawing 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 538732 is an electrical piston slide industrial component featuring a 3/2 closed, single solenoid valve function with internal pilot air supply and direct piloting. Operating at a working pressure of 4 to 10 bar, it delivers a standard nominal flow rate of 7,000 l/min utilizing 110V AC characteristic coil data with a mechanical spring reset and a non-throttleable exhaust-air function. Built with a CRC 2 corrosion resistance classification, this unit operates in ambient temperatures from -10 to 60 °C, supports any assembly position, and incorporates detenting and pushing manual override with a product weight of 0.816 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537595 is a 20 mm industrial component featuring a 4/2 monostable valve function, piston slide design structure, and soft sealing principle with an IP65 protection class. Engineered for electrical actuation with piloted control requiring an external pilot air supply of 2 to 8 bar, it delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar. This non-reversible unit utilizes an air spring reset, detenting and pushing manual override, and operates on 230 V AC (50/60 Hz) characteristic coil data with 3.1 VA pick-up power and 2.2 VA holding power, achieving equal on and off switching times of 25 ms. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

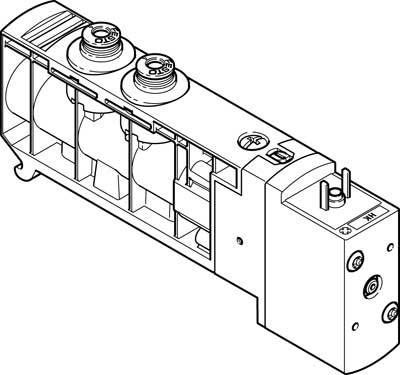

The Festo 537594 is an electrical 20 mm industrial component featuring a 4/2 monostable piston slide valve design with soft seals and a standard nominal flow rate of 200 l/min. This piloted unit operates within a working pressure range of -0.9 to 8 bar and an external pilot pressure of 2 to 8 bar, utilizing an air spring reset, a 7 mm nominal size, and non-reversible flow direction. Powered by a 230 V AC 50/60 Hz coil requiring 3.1 VA pick-up and 2.2 VA holding power, it achieves 25 ms switching times on and off while providing IP65 protection, detenting or pushing manual override, and an unthrottleable exhaust-air function in any assembly position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
