Festo

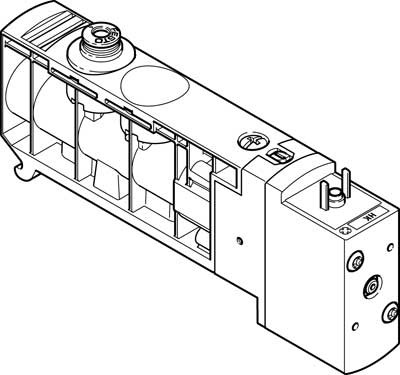

The Festo 537593 is an electrically actuated 3/2 open, monostable industrial component featuring a 20 mm valve size and a piston slide design structure with a soft sealing principle. Operating within a working pressure range of -0.9 to 8 bar and utilizing external pilot air supply with a pilot pressure of 2 to 8 bar, this unit achieves a standard nominal flow rate of 1,000 l/min through a 7 mm nominal size. Powered by 230 V AC (50/60 Hz) characteristic coil data with 3.1 VA pick-up power and 2.2 VA holding power, it delivers identical 20 ms switching times for both on and off states, an air spring reset, and an IP65 protection class rating. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →Festo
The Festo 538728 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function. It operates within a working pressure range of 4 to 10 bar, delivers a standard nominal flow rate of 1,000 l/min, and runs on a 230V AC coil with a 100% duty cycle. Rated to IP65 protection class and CRC 2 corrosion resistance, this unit accommodates compressed air and inert gases across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537592 is an electrical industrial component featuring a 3/2 open, monostable valve function with a 20 mm valve size and a piston slide design structure. This piloted unit operates within a working pressure range of -0.9 to 8 bar and a pilot pressure of 2 to 8 bar, delivering a standard nominal flow rate of 800 l/min through a 7 mm nominal size. Powered by 230 V AC (50/60 Hz) coil data with 3.1 VA pick-up power and 2.2 VA holding power, it achieves 20 ms switching times for both on and off states while maintaining an IP65 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 538727 is an electrically actuated industrial component featuring a piston slide design and a monostable 3/2 closed valve function with piloted operation. It operates within a working pressure range of 4 to 10 bar, delivers a standard nominal flow rate of 1,000 l/min with a 100% duty cycle, and functions on 230V AC coil data. Constructed with an IP65 protection class and CRC 2 corrosion resistance, this unit accommodates compressed air according to ISO8573-1:2010 [7:4:4] or inert gases with optional line or accessory mounting. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo part number 538726 is an electrically actuated industrial component featuring a piston slide design and a monostable 3/2 closed valve function with mechanical spring reset. It operates at a working pressure of 4 to 10 bar, delivers a standard nominal flow rate of 1,000 l/min with a 100% duty cycle, and utilizes 110V AC characteristic coil data. Constructed with IP65 protection and CRC 2 corrosion resistance, this RoHS-compliant unit operates with compressed air or inert gases across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 537591 is an electrical 3/2 open, monostable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 500 l/min. Operating with an external pilot air supply at a working pressure of -0.9 to 8 bar and a pilot pressure of 2 to 8 bar, this unit utilizes an air spring reset, a soft sealing principle, and a detenting or pushing manual override. It includes an IP65 protection class rating and characteristic coil data for 230 V AC at 50/60 Hz with a pick-up power of 3.1 VA and a holding power of 2.2 VA, achieving on and off switching times of 20 ms. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537590 is a 20 mm industrial component featuring a 3/2 open, monostable valve function with electrical actuation and a piston slide design structure. It operates within a working pressure range of -0.9 to 8 bar, delivering a standard nominal flow rate of 200 l/min utilizing external pilot air supply at 2 to 8 bar. Equipped with a soft sealing principle, an air spring reset, and IP65 protection class, this piloted unit runs on 230 V AC 50/60 Hz characteristic coil data with equal on and off switching times of 20 ms. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 538725 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function. It operates at working pressures from 4 to 10 bar with a standard nominal flow rate of 1,000 l/min, driven by 110V AC coil characteristics and supported by a 100% duty cycle. Constructed with IP65 protection and a CRC 2 corrosion resistance classification, this piloted unit utilizes a mechanical spring reset, detenting and pushing manual override, and non-throttleable exhaust-air functions. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537589 is a 20 mm electrical industrial component featuring a 3/2 closed, monostable valve function with a piston slide design structure and soft sealing principle. It operates at a standard nominal flow rate of 1,000 l/min, a working pressure of -0.9 to 8 bar, an external pilot pressure of 2 to 8 bar, and an IP65 protection class rating. This piloted unit utilizes an air spring reset, non-reversible flow direction, detenting and pushing manual override, and a 230 V AC coil requiring 3.1 VA pick-up and 2.2 VA holding power to achieve 20 ms switching times. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

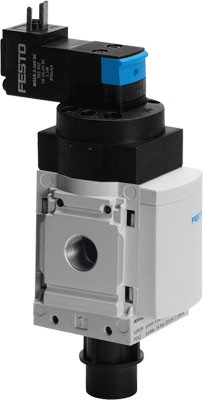

The Festo part number 538722 is an electrical piston slide industrial component featuring a 3/2 closed monostable valve function with direct piloting and internal pilot air supply. This unit operates within a working pressure range of 4 to 10 bar utilizing compressed air as the operating medium, delivering a standard nominal flow rate of 2,000 l/min with a non-throttleable exhaust-air function and mechanical spring reset. Additional attributes include a 230V AC characteristic coil data, detenting and pushing manual override, a corrosion resistance classification CRC of 2, an ambient temperature range of -10 to 60 °C, a C value of 9.5 l/sbar, a b value of 0.44, and a product weight of 0.289 g with any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

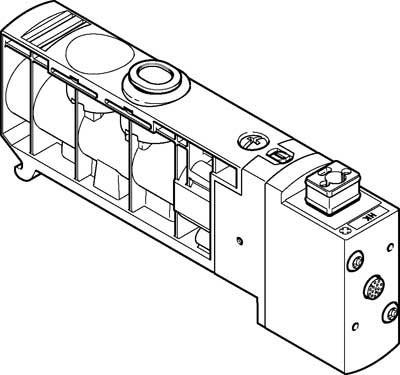

The Festo 537588 is an electrical industrial component featuring a 3/2 closed, monostable piston slide valve with a 20 mm valve size, a 7 mm nominal size, and a standard nominal flow rate of 800 l/min. Operating at a working pressure from -0.9 to 8 bar with an external pilot air supply of 2 to 8 bar, this IP65-rated unit utilizes an air spring reset, a soft sealing principle, and a 230 V AC coil drawing 3.1 VA pick-up and 2.2 VA holding power. It offers 20 ms switching times for both on and off states, non-reversible flow direction, and a detenting and pushing manual override for any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 538721 is a 3/2 closed, monostable industrial component featuring a piston slide design structure with electrical actuation and piloted piloting. It delivers a standard nominal flow rate of 2,000 l/min across a working pressure range of 4 to 10 bar, driven by 230V AC characteristic coil data and supported by a 100% duty cycle. Operating with compressed air conforming to ISO8573-1:2010 [7:4:4] or inert gases, the unit includes detenting and pushing manual override, mechanical spring reset, and IP65 protection class. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537587 is a 20 mm industrial component featuring a 3/2 closed, monostable valve function with an electrical actuation and a piston slide design structure. This piloted valve operates with an external pilot air supply, a working pressure range of -0.9 to 8 bar, a pilot pressure of 2 to 8 bar, and a standard nominal flow rate of 500 l/min utilizing a soft sealing principle. It incorporates an air spring reset, a nominal size of 7 mm, non-throttleable exhaust-air function, non-reversible flow direction, an IP65 protection class, detenting or pushing manual override, and operates on 230 V AC (50/60 Hz) characteristic coil data with 3.1 VA pick-up power and 2.2 VA holding power in any assembly position with 20 ms switching times. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 538720 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with piloted operation. It delivers a standard nominal flow rate of 2,000 l/min across a working pressure range of 4 to 10 bar, utilizing a 110V AC coil with a 100% duty cycle and mechanical spring reset. Constructed with IP65 protection and a CRC 2 corrosion resistance classification, the unit operates in ambient temperatures from -10 to 60 °C using compressed air or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537586 is an electrical industrial component featuring a 3/2 closed, monostable piston slide valve with a 20 mm size and a standard nominal flow rate of 200 l/min. Designed with an external pilot air supply operating between 2 and 8 bar and an overall working pressure range of -0.9 to 8 bar, this IP65-rated unit incorporates soft sealing, an air spring reset, and a 230 V AC 50/60 Hz coil requiring 3.1 VA pick-up and 2.2 VA holding power. It offers equal on and off switching times of 20 ms, non-reversible flow direction, and a detenting or pushing manual override for flexible assembly in any position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537585 is an electrical 4/2 bistable industrial component featuring a 20 mm valve size, a 7 mm nominal size, and a standard nominal flow rate of 1,000 l/min utilizing a piston slide design structure with soft sealing. This piloted unit operates within a working pressure range of -0.9 to 8 bar, an external pilot air supply of 2 to 8 bar, and a 20 ms switching time reversal, supported by an IP65 protection class and 110 V AC 50/60 Hz characteristic coil data. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537584 is a 4/2 bistable electrical industrial component featuring a 20 mm valve size, piston slide design, and soft sealing principle with a standard nominal flow rate of 800 l/min and an operating working pressure ranging from -0.9 to 8 bar. This piloted valve operates with an external pilot air supply of 2 to 8 bar, featuring a 7 mm nominal size, non-reversible flow direction, non-throttleable exhaust-air function, IP65 protection class, and a 20 ms switching time reversal with detenting and pushing manual override. Powered by 110 V AC at 50/60 Hz with a pick-up power of 3.1 VA, holding power of 2.2 VA, 2.5 kV surge strength, and a degree of contamination rating of 3, it supports any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537583 is a 20 mm electrical industrial component featuring a 4/2 bistable valve function with a piston slide design structure and soft sealing principle. Operating at a working pressure of -0.9 to 8 bar with an external pilot air supply requiring 2 to 8 bar of pilot pressure, this piloted unit delivers a standard nominal flow rate of 500 l/min and a 20 ms switching time reversal. It is equipped for 110 V AC (50/60 Hz) operation with a pick-up power of 3.1 VA and holding power of 2.2 VA, featuring IP65 protection, 2.5 kV surge strength, and a degree of contamination rating of 3. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

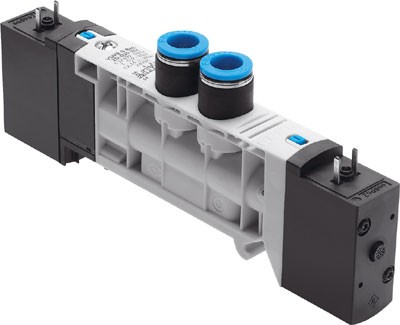

The Festo 537582 is a 20 mm electrical 4/2 bistable industrial component featuring a piston slide design structure and a standard nominal flow rate of 200 l/min. Operating within a working pressure range of -0.9 to 8 bar, this piloted valve utilizes external pilot air supply, a soft sealing principle, and a 7 mm nominal size with IP65 protection class. Electrical operation is driven by 110 V AC (50/60 Hz) coil data with 3.1 VA pick-up power, 2.2 VA holding power, 2.5 kV surge strength, and a degree of contamination rating of 3. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

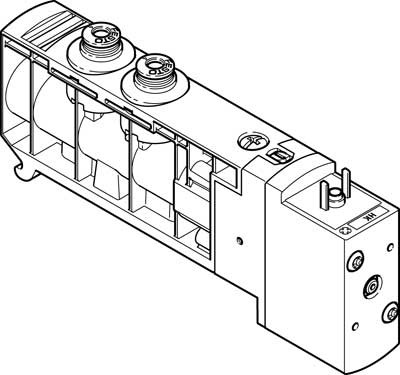

The Festo 537581 is an electrical 4/2 monostable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 1,000 l/min with a soft sealing principle. It operates at a working pressure of -0.9 to 8 bar utilizing external pilot air supply with a pilot pressure ranging from 2 to 8 bar, an air spring reset, and a nominal size of 7 mm with an IP65 protection class rating. This piloted valve includes detenting and pushing manual override functions, non-reversible flow direction, non-throttleable exhaust-air function, an any assembly position, equal 25 ms switching times for on and off states, and characteristic coil data of 110 V AC at 50/60 Hz with 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
