Festo

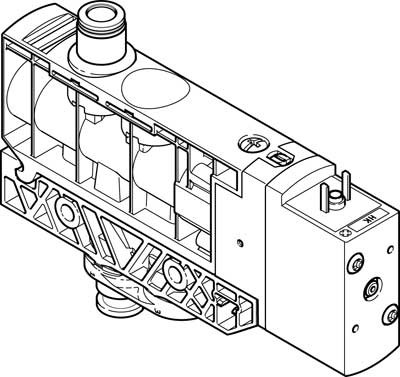

The Festo 537549 is an electrical industrial component featuring a 3/2 open, monostable valve function with a 20 mm valve size and a piston slide design structure. This piloted unit operates within a working and pilot pressure range of 2 to 8 bar, delivering a standard nominal flow rate of 800 l/min through a 7 mm nominal size. Equipped with an internal pilot air supply, soft sealing principle, air spring reset, and IP65 protection class, it functions with 230 V AC 50/60 Hz characteristic coil data requiring 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537026 is an industrial piezoresistive pressure sensor featuring an integrated display for measuring relative pressure from 0 bar to 6 bar in compressed air systems conforming to ISO8573-1:2010 [7:4:4]. Constructed free of copper and PTFE in compliance with RoHS, this component operates within a medium and ambient temperature range of 0 to 50 °C and accepts a 15 to 30 V DC operating voltage range with full polarity protection. It delivers a 2 %FS accuracy with a 0.3 % switching point reproducibility via a freely programmable, switchable PNP switch output supporting a maximum output current of 150 mA and pulsing short-circuit strength. Authorized by the RCM Mark and c UL us Recognized (OL) certifications with a CE symbol according to the EU-EMV guideline, this unit permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 537865 is a size 4 MS-series membrane dryer featuring an integrated metal shell bowl guard and a standard nominal flow rate of 100 l/min for air quality class 1:7:2 to DIN ISO 8573-1 operating medium. Constructed with a die-cast aluminium housing and a wrought aluminium alloy bowl, this unit supports vertical assembly positions within plus or minus 5 degrees and accommodates an inlet pressure of 3 to 8.5 bar while achieving a 13 degrees Celsius pressure dew-point reduction. It includes 2 NPT1/8-27 pneumatic connection ports, operates within medium and ambient temperatures of 5 to 55 degrees Celsius, and weighs 640 g with optional line installation or accessory mounting. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 537548 is an electrical industrial component featuring a 3/2 open, monostable valve function with a 20 mm valve size and a piston slide design structure. Operating at a working and pilot pressure range of 2 to 8 bar, this piloted unit delivers a standard nominal flow rate of 500 l/min utilizing internal pilot air supply and an air spring reset. It includes an IP65 protection class, soft sealing principle, non-reversible flow direction, and a 230 V AC (50/60 Hz) coil requiring 3.1 VA pick-up power and 2.2 VA holding power with 20 ms on and off switching times. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 537025 is a piezoresistive pressure sensor with an integrated display for measuring relative pressure within a 0 to 2 bar range using compressed air operating media. This component features two freely programmable 2xPNP switch outputs with a 150 mA max output current, 0.3% switching point reproducibility, and a 2 %FS accuracy operating on a 15 to 30 V DC voltage range. Certified with RCM Mark and c UL us - Recognized (OL) approvals while conforming to RoHS and EU-EMV guidelines, the unit is constructed free of copper and PTFE for operation in temperatures from 0 to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537864 is a size 4 industrial component from the MS series featuring a membrane dryer design structure with an integrated metal shell bowl guard and an aluminum die cast housing. Operating with an inlet pressure of 3 to 8.5 bar, it delivers a standard nominal flow rate of 100 l/min for air quality class 1:7:2 to DIN ISO 8573-1 media within an ambient and medium temperature range of 5 to 55 °C. This unit achieves a pressure dew-point reduction of 13 °C, weighs 640 g, utilizes 2 NPT1/4-18 pneumatic connection ports, and includes a wrought aluminum alloy bowl with a CRC 2 corrosion resistance classification for vertical +/- 5° line or accessory mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

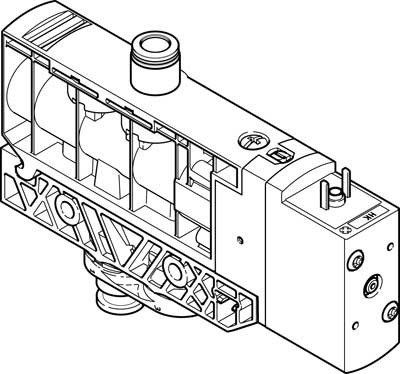

The Festo 537547 is an electrically actuated industrial component featuring a 3/2 closed, monostable valve function and a 20 mm valve size with a 7 mm nominal size. Utilizing a piston slide design structure with soft seals and an internal pilot air supply, this piloted valve delivers a standard nominal flow rate of 800 l/min across a working and pilot pressure range of 2 to 8 bar. It includes an air spring reset, detenting and pushing manual override, non-reversible flow direction, and an IP65 protection class while operating on 230 V AC (50/60 Hz) coil data with 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

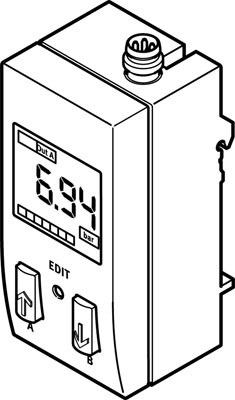

The Festo 537024 is an industrial piezoresistive pressure sensor with an integrated display, measuring relative pressure from an initial value of 0 bar to a final value of 2 bar in compressed air operating media conforming to ISO8573-1:2010 [7:4:4]. This component features a PNP switch output with freely programmable switching functions, switchable switching element function, 2 %FS accuracy, and 0.3 % switching point reproducibility. Constructed from copper-free and PTFE-free materials conforming to RoHS, the unit operates on a 15 to 30 V DC voltage range with pulsing short-circuit strength and reverse polarity protection for all electrical connections. It carries the RCM Mark, c UL us Recognized (OL) authorization, and a CE symbol according to the EU-EMV guideline for a medium and ambient temperature range of 0 to 50 °C with lubricated operation possible. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537863 is a size 4 industrial component from the MS series featuring a membrane dryer design structure with an integrated metal shell bowl guard and a standard nominal flow rate of 100 l/min. Constructed with an aluminium die cast housing and a wrought aluminium alloy bowl, this unit operates within an inlet pressure range of 3 to 8.5 bar, provides a pressure dew-point reduction of 13 °C for air quality class 1:7:2 to DIN ISO 8573-1, and supports vertical +/- 5° assembly with G1/8 pneumatic connection ports. Weighing 640 g, it is rated for storage, medium, and ambient temperatures from -20 to 55 °C and features a CRC of 2 with optional line or accessory mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537546 is a 20 mm electrical industrial component featuring a 3/2 closed, monostable piston slide valve design with a standard nominal flow rate of 500 l/min and an IP65 protection class. Operating at a working and pilot pressure range of 2 to 8 bar, this piloted valve utilizes internal pilot air supply, a soft sealing principle, an air spring reset, and a non-reversible flow direction with a 7 mm nominal size. It operates on 230 V AC (50/60 Hz) characteristic coil data with 3.1 VA pick-up power and 2.2 VA holding power, delivering 20 ms switching times for both on and off states alongside detenting and pushing manual override functions in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

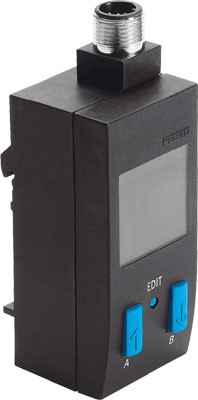

The Festo part number 537023 is an industrial component utilizing a piezoresistive pressure sensor with a display to measure relative pressure across a range of 0 bar to -1 bar. This RoHS-compliant unit operates with compressed air meeting ISO8573-1:2010 [7:4:4] standards within a medium and ambient temperature range of 0 to 50 °C, and supports lubricated operation. Electrical features include a 15 to 30 V DC operating voltage range, a PNP switch output with a 4 - 20 mA analog output, 150 mA maximum output current, and pulsing short circuit strength. Certifications include RCM Mark and c UL us - Recognized (OL) alongside the CE symbol per the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537862 is an MS-series size 4 membrane dryer featuring a 100 l/min standard nominal flow rate, an integrated metal shell bowl guard, and G1/8 pneumatic connection ports. Constructed with an aluminum die-cast housing and a wrought aluminum alloy bowl, this component operates within an inlet pressure range of 3 to 8.5 bar while delivering a 13 °C pressure dew-point reduction for air quality class 1:7:2 per DIN ISO 8573-1. Designed for vertical assembly within plus or minus 5 degrees and featuring a CRC 2 corrosion resistance classification, the unit weighs 640 g and supports optional line installation or accessory mounting across a temperature range of 5 to 55 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537545 is a 20 mm industrial component featuring a 4/2 bistable valve function with electrical actuation and internal pilot air supply. Built with a piston slide design structure and soft sealing principle, this piloted unit delivers a standard nominal flow rate of 800 l/min across a working and pilot pressure range of 2 to 8 bar. It operates on 110 V AC (50/60 Hz) with a pick-up power of 3.1 VA and holding power of 2.2 VA, achieving a 20 ms switching time reversal and IP65 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537022 is a piezoresistive pressure sensor with an integrated display for measuring relative pressure from 0 to -1 bar in compressed air systems operating under ISO8573-1:2010 [7:4:4] standards. This component features a PNP switch output with freely programmable switching functions, a 4 - 20 mA analog output, and operates on a 15 to 30 V DC voltage range with a maximum output current of 150 mA. Built with RoHS-compliant and copper- and PTFE-free materials, it functions within a medium and ambient temperature range of 0 to 50 °C and holds c UL us - Recognized (OL) and RCM Mark authorizations. Submit the exact part number, quantity, and application requirements to receive a quote for this industrial component.
View product details →Festo
The Festo 537861 is an MS-series size 4 membrane dryer featuring an integrated metal shell bowl guard and a standard nominal flow rate of 100 l/min for air quality class 1:7:2 to DIN ISO 8573-1 operating medium. Constructed with an aluminum die-cast housing and a wrought aluminum alloy bowl, this unit operates at an inlet pressure of 3 to 8.5 bar with a pressure dew-point reduction of 13 °C. It is designed for vertical +/- 5° assembly with G1/4 pneumatic connection ports and supports optional line installation or mounting with accessories within a medium and ambient temperature range of 5 to 55 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 640 g industrial component.
View product details →Festo

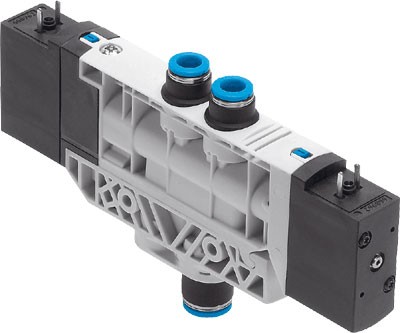

The Festo 537544 is a 20 mm industrial component featuring a 4/2 bistable valve function with electrical actuation and a piston slide design structure. Operating at a working pressure and pilot pressure of 2 to 8 bar, this piloted valve delivers a standard nominal flow rate of 500 l/min with internal pilot air supply and non-reversible flow direction. It incorporates soft sealing, an IP65 protection class, detenting and pushing manual override, an assembly position of any, and a switching time reversal of 20 ms powered by 110 V AC 50/60 Hz characteristic coil data with 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 537021 is a piezoresistive pressure sensor with an integrated display measuring relative pressure from 0 bar to 10 bar within a medium and ambient temperature range of 0 to 50 degrees Celsius. This component features a PNP switch output with a freely programmable switching function, a switchable switching element function, 0.3 percent switching point reproducibility, 150 mA maximum output current, 4 to 20 mA analog output, pulsing short circuit strength, and an operating voltage range of 15 to 30 VDC. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] with lubricated operation possible, the unit is RoHS compliant, free of copper and PTFE, bears the CE symbol according to the EU-EMV guideline, and holds RCM Mark and c UL us - Recognized (OL) authorizations. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537860 is an industrial MS series size 4 membrane dryer featuring an integrated metal shell bowl guard and an aluminum die cast housing with a wrought aluminium alloy bowl. This component operates with an inlet pressure of 3 to 8.5 bar, a standard nominal flow rate of 100 l/min, and provides a pressure dew-point reduction of 13 °C for air meeting quality class 1:7:2 to DIN ISO 8573-1. Designed with a vertical +/- 5° assembly position, CRC 2 corrosion resistance classification, and G1/4 pneumatic connection ports, it weighs 640 g and supports optional line or accessory mounting within ambient, medium, and storage temperatures of -20 to 55 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

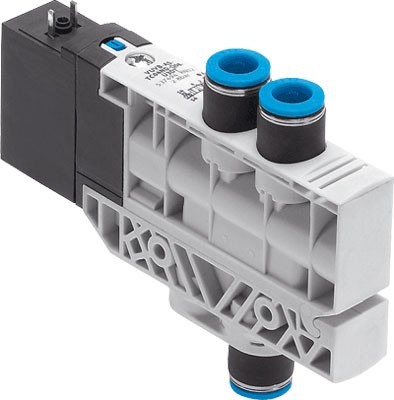

The Festo 537543 is an electrical 4/2 monostable industrial component featuring a 20 mm valve size, a piston slide design structure, and a standard nominal flow rate of 800 l/min with a soft sealing principle. Operating at a working and pilot pressure range of 2 to 8 bar, this piloted valve utilizes internal pilot air supply, an air spring reset, and a non-reversible flow direction with an IP65 protection class. Actuation is managed via a 110 V AC 50/60 Hz coil requiring 3.1 VA pick-up power and 2.2 VA holding power, achieving 25 ms switching times for both on and off states alongside detenting and pushing manual override options in any assembly position. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.
View product details →Festo
The Festo 537020 is a piezoresistive pressure sensor with an integrated display designed to measure relative pressure from 0 bar to 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. This RoHS-compliant, copper-free and PTFE-free component operates within a 15 to 30 V DC voltage range, featuring a 4-20 mA analog output and a PNP switch output with a maximum output current of 150 mA, 2 %FS accuracy, and 0.3 % switching point reproducibility. Authorized by the RCM Mark and c UL us - Recognized (OL) with a CE symbol according to the EU-EMV guideline, it functions at medium and ambient temperatures between 0 and 50 °C with support for lubricated operation and pulsing short circuit strength. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
