Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

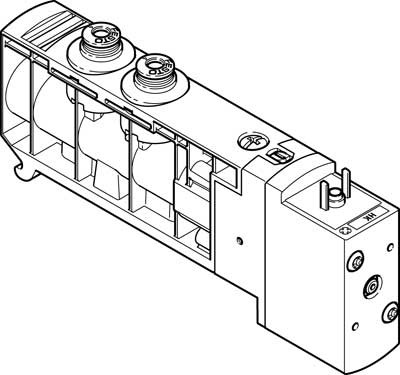

The Festo 537580 is an electrical 4/2 monostable industrial component featuring a 20 mm valve size, a 7 mm nominal size, and a standard nominal flow rate of 800 l/min utilizing a piston slide design structure with soft sealing. Operating within a working pressure range of -0.9 to 8 bar and an external pilot pressure of 2 to 8 bar, this piloted valve incorporates an air spring reset, IP65 protection class, detenting and pushing manual override, and a non-reversible flow direction with non-throttleable exhaust-air function. Characteristic coil data requires 110 V AC at 50/60 Hz with a pick-up power of 3.1 VA and holding power of 2.2 VA, achieving identical on and off switching times of 25 ms in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537579 is a 20 mm industrial component featuring a 4/2 monostable valve function and electrical actuation via a 110 V AC (50/60 Hz) coil with 3.1 VA pick-up and 2.2 VA holding power. This piloted piston slide valve provides a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar, utilizing external pilot air supply from 2 to 8 bar and an air spring reset mechanism. Built with an IP65 protection class, soft sealing principle, 7 mm nominal size, and detenting or pushing manual override, the unit supports any assembly position with non-reversible flow direction and non-throttleable exhaust-air function. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

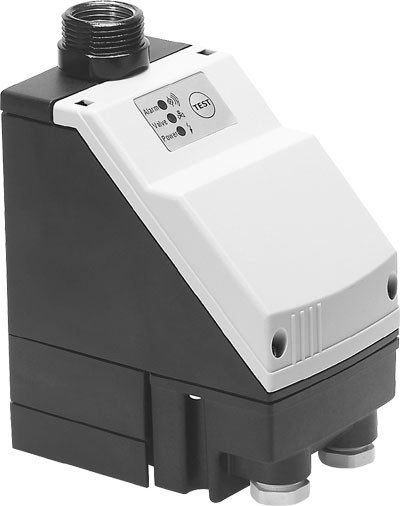

The Festo part number 538678 is an electrical, fully automated industrial component designed for fill-level measured variables with a 3/2, closed, monostable valve function and a working pressure range of 0.8 to 16 bar. This unit operates on a nominal DC voltage of 24 V with a 2 W nominal capacity for the fully automatic condensate drain, featuring IP65 protection class to IEC 60529 and a CRC corrosion resistance classification of 2. Control elements include a membrane keypad with a test key, a pushing manual override, an alarm output with a contact-type configuration, and LED indicators for ready and operating status displays within a medium and storage temperature range of -10 to 60 °C and 1 to 60 °C respectively. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this vertical +/- 5° assembly position component utilizing compressed air as the operating medium.
View product details →Festo
The Festo 537578 is a 4/2 monostable industrial component featuring electrical actuation and a 20 mm valve size with a standard nominal flow rate of 200 l/min. Designed with a piston slide structure, soft sealing principle, and air spring reset, this piloted valve operates within a working pressure range of -0.9 to 8 bar and an external pilot pressure of 2 to 8 bar. It includes IP65 protection, detenting and pushing manual override, non-reversible flow direction, and a 110 V AC coil drawing 3.1 VA pick-up power with 25 ms switching times. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537577 is an electrically actuated industrial component featuring a 3/2 open, monostable piston slide valve with a 20 mm valve size and a 7 mm nominal size. Delivering a standard nominal flow rate of 1,000 l/min across a working pressure of -0.9 to 8 bar, this piloted unit utilizes an external pilot air supply with a pilot pressure of 2 to 8 bar, an air spring reset, and soft sealing with non-reversible flow direction. It operates on a 110 V AC 50/60 Hz characteristic coil requiring 3.1 VA pick-up power and 2.2 VA holding power, achieving identical on and off switching times of 20 ms alongside IP65 protection, detenting or pushing manual override, and an unthrottleable exhaust-air function in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 537576 is a 20 mm electrical industrial component featuring a 3/2 open, monostable piston slide valve design with an 800 l/min standard nominal flow rate. This piloted unit operates within a working pressure range of -0.9 to 8 bar and an external pilot pressure of 2 to 8 bar, utilizing an air spring reset, a soft sealing principle, and a non-reversible flow direction with a 7 mm nominal size. Equipped with IP65 protection, a detenting and pushing manual override, non-throttleable exhaust-air function, and any assembly position, it runs on 110 V AC (50/60 Hz) characteristic coil data with a 3.1 VA pick-up power and 2.2 VA holding power, delivering 20 ms switching times on and off. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 537575 is an electrical 3/2 open, monostable industrial component featuring a 20 mm valve size, a 7 mm nominal size, and a piston slide design structure with a soft sealing principle. Operating at a working pressure of -0.9 to 8 bar with an air spring reset and external pilot air supply, it delivers a standard nominal flow rate of 500 l/min and an IP65 protection class. The unit utilizes piloted actuation with detenting and pushing manual override, non-reversible flow direction, 20 ms switching times, and a 110 V AC 50/60 Hz characteristic coil requiring 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

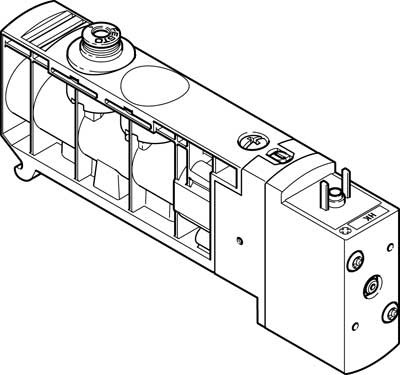

The Festo 537574 is an electrical industrial component featuring a 3/2 open, monostable valve function and a 20 mm valve size with a piston slide design structure. It delivers a standard nominal flow rate of 200 l/min across a working pressure range of -0.9 to 8 bar, utilizing an external pilot air supply with a pilot pressure of 2 to 8 bar and an air spring reset. Equipped with IP65 protection, soft sealing, and a 110 V AC coil requiring 3.1 VA pick-up and 2.2 VA holding power, this unit achieves 20 ms switching times for both on and off states. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537573 is an electrical 20 mm industrial component featuring a 3/2 closed, monostable valve function with a piston slide design structure and soft sealing principle. This piloted valve operates within a working pressure of -0.9 to 8 bar, utilizing an external pilot air supply of 2 to 8 bar to deliver a standard nominal flow rate of 1,000 l/min through a 7 mm nominal size. Equipped with an air spring reset, detenting and pushing manual override, non-reversible flow direction, and IP65 protection class, it functions on 110 V AC (50/60 Hz) coil data with a 3.1 VA pick-up power and 2.2 VA holding power, achieving 20 ms switching times on and off in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 537572 is a 20 mm electrical industrial component featuring a 3/2 closed, monostable piston slide valve design with an 800 l/min standard nominal flow rate and a working pressure range of -0.9 to 8 bar. This piloted valve utilizes an external pilot air supply with a 2 to 8 bar pilot pressure, a soft sealing principle, an air spring reset, and non-throttleable exhaust-air function, achieving 20 ms on and off switching times alongside IP65 protection. It operates on 110 V AC (50/60 Hz) coil data with 3.1 VA pick-up power and 2.2 VA holding power, featuring detenting and pushing manual override and an assembly position that can be set to any orientation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

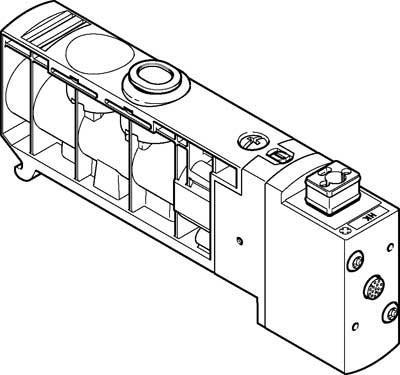

The Festo 537571 is a 20 mm electrical industrial component featuring a 3/2 closed, monostable valve function with a piston slide design structure and soft sealing principle. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar, utilizing an external pilot air supply with a 2 to 8 bar pilot pressure and an air spring reset. The unit incorporates an IP65 protection class, non-reversible flow direction, detenting and pushing manual override, and a 110 V AC 50/60 Hz coil requiring 3.1 VA pick-up and 2.2 VA holding power to achieve 20 ms switching times on and off. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537570 is a 20 mm electrical industrial component featuring a 3/2 closed, monostable piston slide valve design with an air spring reset and soft sealing principle. Operating at a working pressure of -0.9 to 8 bar, it delivers a standard nominal flow rate of 200 l/min through a 7 mm nominal size with IP65 protection. This piloted unit utilizes external pilot air supply ranging from 2 to 8 bar, non-reversible flow direction, detenting and pushing manual override, and operates on 110 V AC 50/60 Hz coil data with 20 ms switching times. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

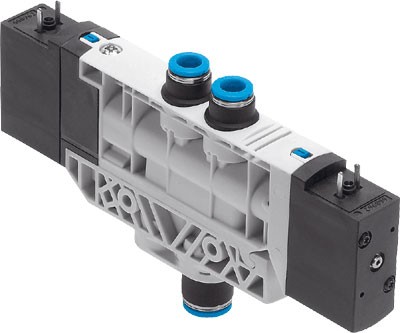

The Festo 537569 is a 20 mm electrical industrial component featuring a 4/2 bistable piston slide valve design with soft seals and a 7 mm nominal size. Powered by 230 V AC (50/60 Hz) with a pick-up power of 3.1 VA and holding power of 2.2 VA, this piloted unit operates at a working pressure of -0.9 to 8 bar and an external pilot pressure of 2 to 8 bar to deliver a standard nominal flow rate of 800 l/min. It includes IP65 protection, a detenting and pushing manual override, a 20 ms switching time reversal, 4 kV surge strength, and degree of contamination 3 for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 537568 is an electrical 4/2 bistable industrial component featuring a 20 mm valve size, a 7 mm nominal size, and a piston slide design structure with soft sealing. This piloted valve operates with an external pilot air supply at a working pressure of -0.9 to 8 bar, a pilot pressure of 2 to 8 bar, and delivers a standard nominal flow rate of 500 l/min with a 20 ms switching time reversal. Equipped with IP65 protection, non-reversible flow direction, detenting or pushing manual override, and a 230 V AC coil requiring 3.1 VA pick-up and 2.2 VA holding power, it includes a 4 kV surge strength and degree of contamination 3 rating. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 537561 is a 20 mm electrical actuated 4/2 bistable industrial component featuring a piston slide design structure and soft sealing principle with a nominal size of 7 mm. It delivers a standard nominal flow rate of 800 l/min across a working pressure range of -0.9 to 8 bar utilizing external pilot air supply with a pilot pressure of 2 to 8 bar. Equipped with an IP65 protection class and 110 V AC 50/60 Hz characteristic coil data, the unit achieves a 20 ms switching time reversal and features detenting and pushing manual override options. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 537560 is a 20 mm industrial component featuring a 4/2 bistable valve function with electrical actuation and a piston slide design structure. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 8 bar utilizing external pilot air supply with a 2 to 8 bar pilot pressure. Built with IP65 protection class and soft sealing, the unit operates on 110 V AC (50/60 Hz) coil data with 3.1 VA pick-up power and 2.2 VA holding power. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

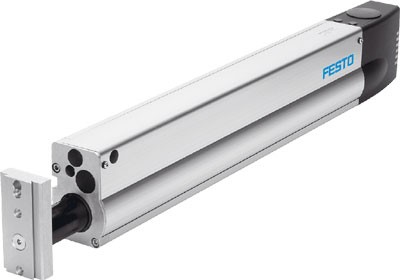

The Festo part number 537943 is a double-acting industrial component featuring a 32 mm piston diameter, a stroke range of 100 to 400 mm, and a yoke drive unit operating mode with yoke kinematics. Designed with a recirculating ball bearing guide, a YSRW soft characteristic curve shock absorber, and position detection for proximity sensors, this unit operates at working pressures between 4 and 8 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. It delivers a repetition accuracy of ±0.01 mm, a maximum advancing speed of <= 1.2 m/s, and features a clamping unit on the piston rod with a moderate corrosion stress CRC classification of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component features a 25 mm piston diameter, a stroke length adjustable from 100 to 400 mm, and a double-acting mode of operation utilizing yoke kinematics with a recirculating ball bearing guide. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] at pressures between 4 and 8 bar, the unit achieves an advancing and retracting speed of <= 1.1 m/s with a repetition accuracy of ±0,01 mm and incorporates YSRW-12-20 soft characteristic curve shock absorbers. The design accommodates any assembly position, includes position detection for proximity sensors, and offers variants with a clamping unit on the piston rod for pulling operations under moderate corrosion stress (CRC 2). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 537941 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 to 400 mm stroke, and yoke kinematics with a recirculating ball bearing guide. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] at a working pressure of 4 to 8 bar, this unit achieves a repetition accuracy of ±0,01 mm and a maximum advancing or retracting speed of <= 1,1 m/s. It incorporates YSRW-12-20 soft characteristic curve shock absorber cushioning, position detection for proximity sensors, and a moderate corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 537940 is a double-acting industrial component featuring a 16 mm piston diameter, a stroke range of 50 to 320 mm, and a yoke drive unit design with yoke kinematics, a piston, and a piston rod. This unit operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] at a working pressure of 4 to 8 bar, incorporates a recirculating ball bearing guide, and utilizes YSRW-8-14 soft characteristic curve shock absorbers for cushioning. Equipped for position detection via proximity sensors and offering a repetition accuracy of ±0,01 mm, the assembly achieves maximum advancing and retracting speeds of <= 0.8 m/s with a maximum travel time of <= 1,000 ms under a CRC 2 moderate corrosion stress classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
