Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

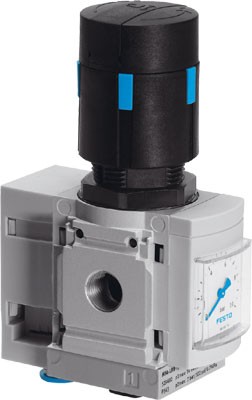

The Festo 531791 is a size 4 industrial component from the MS series featuring a directly-controlled diaphragm regulator design with a looped-through compressed air supply and a rotary knob with an integrated lock actuator. This unit delivers a standard nominal flow rate of 640 l/min across a pressure control range of 0.5 to 12 bar, incorporating secondary exhaust, return flow capabilities, and an included pressure gauge with QS-8 pneumatic port connections. Constructed with an aluminum die cast subbase, it supports any assembly position and offers versatile mounting options including line installation, front panel installation, or accessory mounting. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 531429 is a size 4 industrial component from the MS series featuring a directly-controlled diaphragm regulator design with a standard nominal flow rate of 1,000 l/min and an operating medium of compressed air. This unit provides a constant output pressure with secondary exhaust and return flow, operating across a pressure control range of 0.5 to 12 bar and an inlet pressure range of 0.8 to 14 bar with a maximum pressure hysteresis of 0.25 bar. Constructed with an aluminum die-cast subbase and a weight of 225 g, the device includes a pressure gauge and a rotary knob with an integrated lock for actuator security. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 531787 is an industrial component featuring a direct-controlled diaphragm regulator design with a looped-through compressed air supply, integrated rotary knob actuator lock, and a built-in pressure gauge. Operating within a pressure control range of 0.3 to 4 bar and an inlet pressure range of 0.8 to 14 bar, this size 4 MS series unit delivers a standard nominal flow rate of 650 l/min using compressed air. It incorporates an aluminum die cast subbase, supports a maximum pressure hysteresis of 0.25 bar, and offers flexible installation via optional front panel or line mounting accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531785 is an MS-series size 4 industrial component featuring a directly-controlled diaphragm regulator design with a looped-through compressed air supply and a rotary knob with integrated lock actuator. This unit delivers a standard nominal flow rate of 1,500 l/min across a pressure control range of 0.5 to 12 bar, incorporating secondary exhaust, constant output pressure, and return flow controller functions. Constructed with an aluminum die-cast subbase and copper- and PTFE-free materials, the 222 g component accommodates NPT1/4-18 pneumatic connections and operates within a temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this item.
View product details →Festo

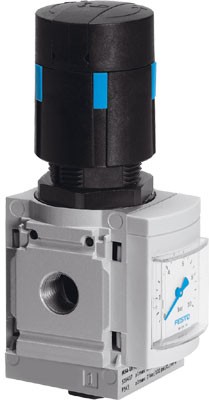

The Festo 531425 is an MS series size 4 industrial component featuring a directly-controlled diaphragm regulator with a rotary knob actuator lock and an integrated pressure gauge. Operating with compressed air across an inlet pressure range of 0.8 to 14 bar, it delivers a constant output pressure within a 0.3 to 7 bar control range at a standard nominal flow rate of 1,150 l/min. This unit weighs 225 g, incorporates an aluminum die cast subbase, features 2 NPT1/8-27 pneumatic connection ports, and supports any assembly position with optional front panel or line installation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531783 is an industrial component from the MS series, size 4, featuring a directly-controlled diaphragm regulator design with a looped-through compressed air supply and a rotary knob actuator lock with an integrated lock. This component provides a constant output pressure with secondary exhaust and return flow, operating within a pressure control range of 0.3 to 7 bar and an inlet pressure 1 of 0.8 to 14 bar with a standard nominal flow rate of 1,700 l/min using compressed air. Constructed with an aluminum die cast subbase that is free of copper and PTFE, the unit weighs 222 g, has a CRC of 2, and accommodates ambient, medium, and storage temperatures from -10 to 60 °C with installation options including line installation, front panel installation, or mounting with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

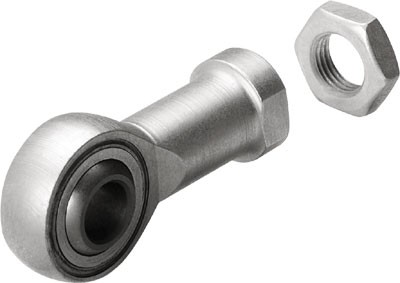

The Festo 532701 industrial component features a 1/2-12 UNF-2B size with a product weight of 2,084 g and a CRC rating of 1 for low corrosion stress. Constructed with a galvanized steel housing and nut, a steel inner ring, and a brass outer ring, this RoHS-compliant unit operates within an ambient temperature range of -40 to 150 °C and conforms to VDMA24364-B2-L PWIS standards. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 531781 is a size 4 industrial component from the MS series featuring a directly-controlled diaphragm regulator design with a looped-through compressed air supply, a rotary knob actuator lock with an integrated lock, and an aluminum die cast subbase that is free of copper and PTFE. It provides a pressure control range of 0.3 to 4 bar, an inlet pressure 1 of 0.8 to 14 bar, a maximum pressure hysteresis of 0.25 bar, a standard nominal flow rate of 1,900 l/min, and 2 NPT1/4-18 pneumatic connection ports while supporting any assembly position and weighing 222 g. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531421 is a directly-controlled diaphragm regulator of the MS series, size 4, featuring a rotary knob with an integrated lock and a pressure gauge. This component provides a constant output pressure with secondary exhaust, return flow, a standard nominal flow rate of 1,200 l/min, and a pressure control range of 0.3 to 4 bar for compressed air operating media. Constructed with an aluminum die cast subbase and a product weight of 225 g, it accommodates any assembly position and supports line installation, front panel installation, or mounting with accessories. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531420 is an industrial component featuring a directly-controlled diaphragm regulator design from the MS series in size 4, equipped with a rotary knob with an integrated lock and a pressure gauge. It operates within an inlet pressure range of 0.8 to 14 bar to deliver a constant output pressure of 0.3 to 4 bar with a standard nominal flow rate of 2,100 l/min using compressed air as the operating medium. Constructed with an aluminum die-cast subbase and a corrosion resistance classification of CRC 2, this part weighs 225 g and supports any assembly position via line installation, front panel installation, or optional accessories with NPT1/4-18 pneumatic connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531339 is an MS-series size 6 filter regulator with a pressure gauge, designed with a 40 µm filtration grade, a fully automatic condensate drain, and a 38 ml maximum condensate volume. This component operates on compressed air within an inlet pressure range of 2 to 12 bar and a pressure control range of 0.5 to 12 bar, delivering a standard nominal flow rate of 4,500 l/min with a maximum pressure hysteresis of 0.25 bar. Built with a metal bowl guard, an output pressure constant controller function with secondary exhaust, and vertical +/- 5° assembly positioning, the unit maintains an air purity class of 5:7:- per DIN ISO 8573-1 at a medium temperature of 5 to 60 °C and a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 532692 is an industrial component featuring a UNF1 1/2-12 size built on the ISO 8140 standard. This assembly weighs 4,220 g and utilizes galvanized steel for the mounting pin, clevis, and nut, operating within an ambient temperature range of -40 to 150 °C. It holds a CRC 1 corrosion resistance classification, VDMA24364-B2-L PWIS conformity, and conforms to RoHS materials notes. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

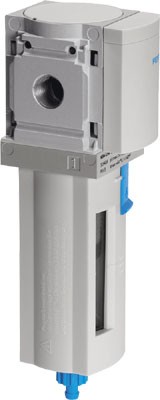

The Festo part number 531765 is an industrial component featuring an active carbon filter design structure housed in aluminum die cast with a plastic bowl guard and a PC bowl. It operates within an inlet pressure of 0 to 14 bar, delivers a standard nominal flow rate of 250 l/min, and provides filtered, unlubricated compressed air with 0.01 µm filtration achieving an output air purity class of 1.7.1 per DIN ISO 8573-1 and a residual oil content of 0.003 mg/m3. This size 4 MS series unit includes 2 NPT1/4-18 pneumatic connection ports, supports vertical +/- 5° assembly, features a CRC 2 corrosion resistance classification, and operates at ambient and medium temperatures ranging from -10 to 60 ¼irc}C and 5 to 30 ¼irc}C respectively. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531338 is an MS-series size 6 filter regulator with a pressure gauge, designed with a 40 µm filtration grade and a fully automatic condensate drain holding a maximum condensate volume of 38 ml. Operating on compressed air with an inlet pressure of 2 to 12 bar, this unit delivers a pressure control range of 0.5 to 12 bar, a standard nominal flow rate of 2,500 l/min, and constant output pressure with secondary exhaust. It features a metal bowl guard, an actuator lock with accessories that is lockable, and a corrosion resistance classification CRC of 2 for a medium and storage temperature range of 5 to 60 µC and -10 to 60 µC, respectively. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

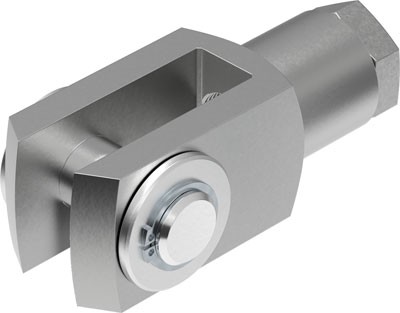

The Festo part number 532690 is an industrial component featuring a UNF3/4-16 size and construction based on DIN 71752 and ISO 8140 standards. Weighing 785 g, this assembly incorporates a galvanized steel mounting pin, clevis, and nut, rated for an ambient temperature range of -40 to 150 °C with a CRC 1 low corrosion stress classification and VDMA24364-B2-L PWIS conformity. All constituent materials conform to RoHS regulations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

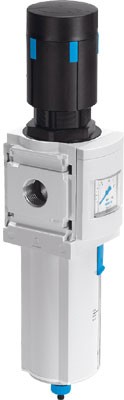

The Festo part number 531334 is an MS-series size 6 filter regulator featuring a design structure with a pressure gauge, manual rotary condensate drain, and metal bowl guard. It operates with compressed air across an inlet pressure range of 0.8 to 12 bar, a pressure control range of 0.5 to 12 bar, a standard nominal flow rate of 4,000 l/min, and a 40 µm grade of filtration. This component provides a constant output pressure with secondary exhaust, maintains a maximum pressure hysteresis of 0.25 bar, achieves an air purity class at the output of 5:7:- per DIN ISO 8573-1, and is rated for a medium and storage temperature of -10 to 60 µC in a vertical +/- 5° assembly position with a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 531333 is an MS series size 6 filter regulator with a pressure gauge, designed for compressed air operating media with a standard nominal flow rate of 4,500 l/min and an inlet pressure range of 0.8 to 20 bar. This unit features a 40 µm grade of filtration, a manual rotary condensate drain with a maximum condensate volume of 38 ml, a metal bowl guard, and a pressure control range of 0.5 to 12 bar supporting a constant output pressure with secondary exhaust. It includes a lockable actuator lock with accessories, operates within a medium and storage temperature range of -10 to 60 °C, maintains a corrosion resistance classification CRC of 2, and achieves an air purity class at output of 5:7:- per DIN ISO 8573-1 when mounted in a vertical position within +/- 5°. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531332 is an MS-series size 6 filter regulator featuring an integrated pressure gauge, a manual rotary condensate drain with a 38 ml maximum volume, and a metal bowl guard. This component operates with compressed air within an inlet pressure range of 0.8 to 12 bar, delivering an output pressure control range of 0.5 to 12 bar at a standard nominal flow rate of 2,500 l/min. Designed for vertical assembly within +/- 5°, the unit provides a 40 µm filtration grade and maintains a constant output pressure with secondary exhaust. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

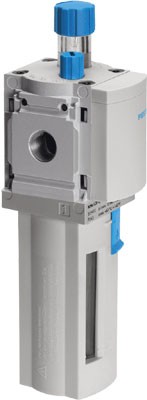

The Festo 531721 is an industrial component featuring a proportional standard mist lubricator design from the MS series, size 6, with a standard nominal flow rate of 5,300 l/min and a minimum flow rate for lubricator function of 50 l/min. Constructed with an aluminum die-cast housing, a wrought aluminum alloy bowl, and a metal bowl guard, this unit supports a maximum oil capacity of 80 cm3 using ISO VG 32 oil viscosity, an inlet pressure range of 1 to 16 bar, and operates with filtered compressed air at 40 µm filtration. It has a product weight of 810 g, a corrosion resistance classification CRC of 2, and requires a vertical assembly position within +/- 5° for line installation with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531720 is an industrial component featuring a proportional standard mist lubricator of the MS series, size 6, housed in aluminum die cast with a wrought aluminum alloy bowl and metal bowl guard. This unit operates with filtered compressed air at 40 µm filtration, supporting an inlet pressure of 1 to 16 bar, a minimum flow rate for lubricator function of 50 l/min, and a standard nominal flow rate of 7,200 l/min. It has a max. oil capacity of 80 cm3 utilizing ISO VG 32 oil viscosity, a pneumatic connection of 2 NPT1/2-14, a product weight of 810 g, a corrosion resistance classification CRC of 2, and requires a vertical +/- 5° assembly position with mounting via accessories or line installation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
