Festo
The Festo 531865 is an industrial component from the MS series, sized at 6 with a manual rotary condensate drain and a 38 cm3 max condensate volume. Utilizing a fiber filter design with a 0.01 µm filtration grade, it delivers a 99.9999 % filter efficiency, a 430 l/min standard nominal flow rate, and a 0 to 20 bar inlet pressure range. Weighing 600 g and featuring a NPT3/8-18 pneumatic connection port, this unit operates within a -10 to 60 °C temperature range for both ambient and medium conditions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 531864 is a size 6 industrial component from the MS series featuring a fiber filter design structure and a 0.01 µm filtration grade with 99.9999 % filter efficiency. This unit operates with an inlet pressure range of 0 to 20 bar, a standard nominal flow rate of 480 l/min, and a manual rotary condensate drain with a maximum condensate volume of 38 cm3. It supports vertical assembly positions within +/- 5° and utilizes a 2 NPT1/2-14 pneumatic connection port for line installation with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531863 is a size 6 industrial component from the MS series featuring a fiber filter design with a manual rotary condensate drain and a max condensate volume of 38 cm3. Operating with an inlet pressure of 0 to 20 bar and a standard nominal flow rate of 380 l/min, this unit delivers a 0.01 µm grade of filtration with 99.9999% efficiency and a residual oil content of 0.01 mg/m3 for filtered, unlubricated compressed air. It features a 2 NPT1/4-18 pneumatic connection, a product weight of 600 g, and a vertical +/- 5° assembly position, maintaining an air purity class at output of 1.7.2 per DIN ISO 8573-1 across medium, ambient, and storage temperatures of -10 to 60 µC. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo part number 531859 is an industrial component featuring a size 6 MS series fiber filter design with a vertical +/- 5° assembly position and a fully automatic condensate drain holding a maximum volume of 38 cm3. Operating within an inlet pressure range of 2 to 12 bar and a medium temperature of 5 to 60 °C, this unit delivers a standard nominal flow rate of 700 l/min with a 1 µm filtration grade, 99.99% filter efficiency, and DIN ISO 8573-1 air purity class 2.7.3 output. It incorporates a plastic bowl guard, weighs 600 g, achieves corrosion resistance classification CRC 2, and accommodates line installation via optional accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531858 is an industrial component from the MS series, sized at 6, featuring a fiber filter design structure with a 1 µm filtration grade and 99.99% filter efficiency. This unit operates with a standard nominal flow rate of 850 l/min, an inlet pressure range of 2 to 12 bar, and includes a fully automatic condensate drain with a maximum condensate volume of 38 cm3 housed within a plastic bowl guard. Weighing 600 g, the assembly functions within a medium and ambient temperature range of 5 to 60 ¼ircÄ√C and achieves an air purity class of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531857 is an MS series industrial component featuring a size 6 fiber filter design structure with a fully automatic condensate drain and a plastic bowl guard. It operates with an inlet pressure of 2 to 12 bar, a standard nominal flow rate of 550 l/min, and delivers an air purity class of 2.7.3 per DIN ISO 8573-1 with a 1 µm filtration grade and 99.99 % filter efficiency. The unit weighs 600 g, supports vertical assembly within +/- 5°, and is rated for a medium and ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →Festo
The Festo manual override VMPA1-HBT is an industrial component detailed in the official Festo EN-US data sheet. The materials of this part conform to RoHS as stated in the official specification text. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

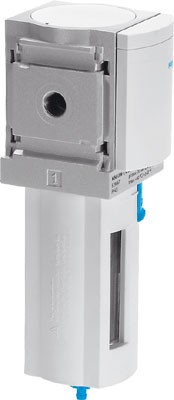

The Festo part number 531851 is an industrial component from the MS series of size 6, featuring a fiber filter design structure with a 1 µm grade of filtration and 99.99% filter efficiency. This unit delivers a standard nominal flow rate of 550 l/min across an inlet pressure range of 0 to 20 bar, while maintaining an air purity class output of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. Operating within a temperature range of -10 to 60 °C, the 600 g assembly incorporates a manual rotary condensate drain, a 38 cm3 maximum condensate volume, a plastic bowl guard, and a vertical +/- 5° assembly position with corrosion resistance classification CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 531829 is an industrial component featuring a size 6 MS series design structure with a directly-controlled diaphragm regulator and looped-through compressed air supply. This unit provides a pressure control range of 0.5 to 12 bar, an inlet pressure of 0.8 to 20 bar, a standard nominal flow rate of 800 l/min, and incorporates a pressure gauge alongside a lockable actuator lock with accessories. Operating with compressed air across a temperature range of -10 to 60 °C, the 747 g component supports front panel or line installation mounting types with QS-8 pneumatic connections and POM and PA control panel materials. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

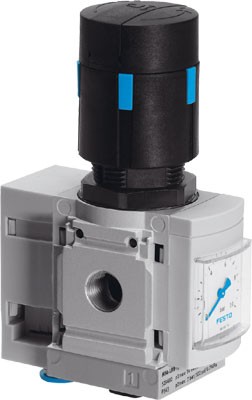

The Festo 531827 is an industrial component featuring a directly-controlled diaphragm regulator from the MS series in size 6, equipped with a looped-through compressed air supply and a pressure gauge. Operating with a standard nominal flow rate of 880 l/min, it provides a pressure control range of 0.3 to 7 bar for compressed air media within a temperature range of -10 to 60 °C and an inlet pressure of 0.8 to 20 bar. This directly-controlled diaphragm regulator incorporates secondary exhaust, initial pressure compensation, and an actuator lock with lockable accessories while weighing 747 g with a CRC of 2 and POM and PA control panel materials. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531825 is an industrial component from the MS series in size 6, featuring a directly-controlled diaphragm regulator design with a looped-through compressed air supply and initial pressure compensation. This unit operates with an inlet pressure range of 0.8 to 20 bar, a pressure control range of 0.3 to 4 bar, and delivers a standard nominal flow rate of 600 l/min using compressed air as the operating medium. It includes a pressure gauge, a secondary exhaust function, a maximum pressure hysteresis of 0.25 bar, and an actuator lock that is lockable with accessories. Weighing 747 g, the device supports any assembly position and offers mounting options for line installation, front panel installation, or optional use with accessories via its two QS-8 pneumatic connection ports. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 531823 is an industrial MS series size 6 directly-controlled diaphragm regulator with a looped-through compressed air supply and NPT1/2-14 pneumatic connection ports weighing 747 g. This component features a constant output pressure controller function with initial pressure compensation, secondary exhaust, an inlet pressure range of 0.8 to 20 bar, a pressure control range of 0.5 to 12 bar, and a standard nominal flow rate of 5,500 l/min. Constructed with NBR seals, POM and PA control panel materials, and a CRC 2 corrosion resistance classification, it supports front panel, line, or accessory mounting and includes a lockable actuator lock. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 531821 is an industrial component featuring a directly-controlled diaphragm regulator design with a looped-through compressed air supply and a size 6 MS series construction. It operates with a pressure control range of 0.3 to 7 bar, an inlet pressure of 0.8 to 20 bar, and delivers a standard nominal flow rate of 6,300 l/min using compressed air. The unit includes secondary exhaust, initial pressure compensation, constant output pressure regulation, and a maximum pressure hysteresis of 0.25 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531819 is an industrial component featuring a directly-controlled diaphragm regulator design structure with a looped-through compressed air supply, a size 6 MS series construction, and a 747 g product weight. Operating with compressed air across a 0.3 to 4 bar pressure control range and an inlet pressure range of 0.8 to 20 bar, this unit delivers a standard nominal flow rate of 7,300 l/min through 2 NPT1/2-14 pneumatic connection ports. Constructed with NBR seals and copper- and PTFE-free materials including POM and PA for the control panel, it provides secondary exhaust, initial pressure compensation, and an actuator lock with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

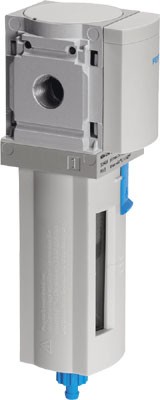

The Festo part number 531813 is an industrial component from the MS series featuring a size 4 design structure with a fiber filter and a manual rotary condensate drain. It provides a standard nominal flow rate of 120 l/min, an inlet pressure range of 0 to 14 bar, and a filtration grade of 0.01 µm delivering 99.9999% filter efficiency and an air purity class of 1.7.2 per DIN ISO 8573-1. Weighing 190 g with a NPT1/4-18 pneumatic connection port, this unit operates within a medium and ambient temperature range of -10 to 60 µC and requires vertical +/- 5° assembly positioning. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 531811 is an industrial component featuring a Size 4 MS series design structure utilizing a 1 µm fiber filter with a 99.99% filter efficiency and a manual rotary condensate drain. This unit operates with an inlet pressure range of 0 to 14 bar, a standard nominal flow rate of 180 l/min, and delivers filtered, unlubricated compressed air achieving an output air purity class of 2.7.3 per DIN ISO 8573-1 with a residual oil content of 0.5 mg/m3. The 190 g component operates and stores within a temperature range of -10 to 60 µC, maintains a maximum condensate volume of 19 ml, features a plastic bowl guard, and requires vertical assembly within ±5° for line installation with accessories. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531447 is an industrial size 6 MS series directly-controlled diaphragm regulator featuring a 0.3 to 4 bar pressure control range, an inlet pressure of 0.8 to 20 bar, and a standard nominal flow rate of 5,500 l/min for compressed air operations. This component delivers a constant output pressure with initial pressure compensation and secondary exhaust, incorporating a pressure gauge, lockable actuator lock accessories, and a corrosion resistance classification of CRC 2. Weighing 730 g with POM and PA control panel materials, it supports any assembly position and mounts via optional front panel installation, line installation, or accessories using 2 NPT3/8-18 pneumatic connection ports. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

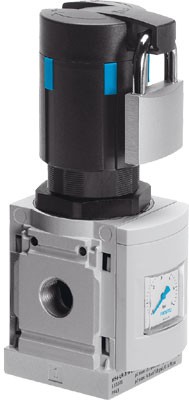

The Festo 531446 is an industrial component featuring a directly-controlled diaphragm regulator design from the MS series, size 6, equipped with a 2 NPT1/2-14 pneumatic connection port and an integrated pressure gauge. This unit provides a standard nominal flow rate of 7,500 l/min for compressed air, operating within an inlet pressure range of 0.8 to 20 bar and a pressure control range of 0.3 to 4 bar while maintaining output pressure constancy with initial pressure compensation and secondary exhaust. Weighing 730 g with a CRC rating of 2, it supports any assembly position and offers optional mounting via line installation, front panel installation, or accessories, alongside a lockable actuator lock and control panel materials of POM and PA. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 531445 is an MS-series industrial component featuring a directly-controlled diaphragm regulator design in size 6, providing a standard nominal flow rate of 2,400 l/min for compressed air operations. This unit delivers constant output pressure with initial pressure compensation, secondary exhaust, and a pressure control range of 0.3 to 4 bar under an inlet pressure of 0.8 to 20 bar. Weighing 730 g with a CRC rating of 2, it operates within a temperature range of -10 to 60 °C and includes a pressure gauge alongside lockable accessory actuator locks and flexible mounting options including front panel or line installation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

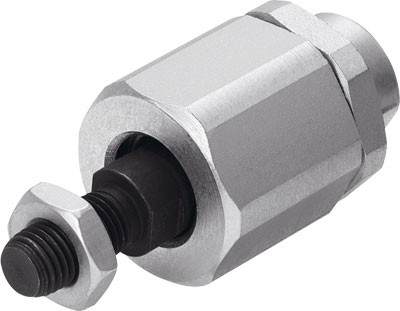

The Festo 532710 industrial component features a 1 1/2-12 UNF-2B size with a product weight of 5,800 g and a CRC rating of 2 for moderate corrosion stress. Its construction comprises a galvanized steel bushing, housing, and nut, paired with a case-hardened steel ball pin and spherical washer, all conforming to RoHS and VDMA24364-B2-L PWIS conformity within an ambient temperature range of -40 to 150 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo part.
