Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

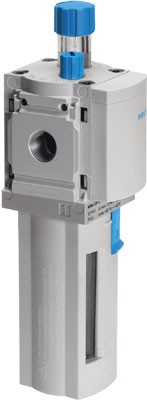

The Festo 531719 is an industrial size 6 proportional standard mist lubricator from the MS series featuring an aluminum die-cast housing, a wrought aluminum alloy bowl, and a metal bowl guard. Operating with filtered compressed air at 40 µm filtration, this component handles an inlet pressure of 1 to 16 bar, a standard nominal flow rate of 2,500 l/min, and a minimum flow rate for lubricator function of 50 l/min with a maximum oil capacity of 80 cm3. It supports a vertical assembly position within +/- 5°, features 2 NPT1/4-18 pneumatic connection ports, and weighs 810 g while operating within a temperature range of 0 to 60 °C using ISO VG 32 oil viscosity. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo part number 531328 is an MS series size 6 filter regulator featuring a design structure with a pressure gauge, a fully automatic condensate drain, and a 5 µm filtration grade. It provides a standard nominal flow rate of 3,500 l/min across an inlet pressure range of 2 to 12 bar and a pressure control range of 0.5 to 12 bar, maintaining a constant output pressure with secondary exhaust. This component includes a metal bowl guard, a lockable actuator lock with accessories, and operates within a medium temperature range of 5 to 60 µC in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 531327 is an MS series size 6 filter regulator featuring a integrated pressure gauge, fully automatic condensate drain, and a 5 µm filtration grade within a metal bowl guard design structure. Operating with compressed air at an inlet pressure of 2 to 12 bar and a pressure control range of 0.5 to 12 bar, this component delivers a standard nominal flow rate of 4,000 l/min with a constant output pressure and secondary exhaust. The assembly position is vertical plus or minus 5 degrees, supporting a medium and storage temperature range of 5 to 60 degrees Celsius and -10 to 60 degrees Celsius respectively, along with an air purity class at output of 3.7.- per DIN ISO 8573-1 and a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to receive a quote for this unit.
View product details →Festo
The Festo 531715 is an industrial component featuring a proportional standard mist lubricator of the MS series in size 6, equipped with a plastic bowl guard and an aluminum die-cast housing. This unit operates with a standard nominal flow rate of 5,300 l/min, a minimum flow rate for lubricator function of 50 l/min, and an inlet pressure ranging from 1 to 16 bar using filtered compressed air with 40 µm filtration. Featuring a maximum oil capacity of 75 cm3, a 2 NPT3/8-18 pneumatic connection port, a PC bowl, and a corrosion resistance classification CRC 2, it weighs 600 g and is designed for vertical +/- 5° assembly with optional line installation using accessories within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo size 6 MS series filter regulator with part number 531326 features a design structure integrating a pressure gauge, a fully automatic condensate drain, and a metal bowl guard. Operating with compressed air across an inlet pressure of 2 to 12 bar and a pressure control range of 0.5 to 12 bar, this component achieves a standard nominal flow rate of 2,200 l/min with a 5 µm filtration grade. It maintains a constant output pressure with secondary exhaust, featuring a maximum pressure hysteresis of 0.25 bar, a 38 ml maximum condensate volume, and a vertical assembly position within +/- 5°. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531714 is an industrial component from the MS series, size 6, featuring a proportional standard mist lubricator design structure with a maximum oil capacity of 75 cm3 and a plastic bowl guard. Built with an aluminum die cast housing and a PC bowl, this part operates with a standard nominal flow rate of 7,200 l/min, a minimum flow rate for lubricator function of 50 l/min, and an inlet pressure range of 1 to 16 bar using filtered compressed air at 40 µm filtration and ISO VG 32 oil viscosity. It accommodates a vertical assembly position within ± 5°, a pneumatic connection port of 2 NPT1/2-14, a product weight of 600 g, optional line installation mounting with accessories, and a corrosion resistance classification CRC of 2 across medium, ambient, and storage temperature ranges of 0 to 60 µC, 0 to 60 µC, and -10 to 60 µC respectively. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531713 is an industrial MS series size 6 proportional standard mist lubricator featuring a 75 cm3 max. oil capacity and a plastic bowl guard. Built with an aluminum die-cast housing and a PC bowl, this component accommodates an inlet pressure range of 1 to 16 bar and provides a standard nominal flow rate of 2,500 l/min with a minimum flow rate of 50 l/min for lubricator function. Operating on filtered compressed air with 40 µm filtration using ISO VG 32 oil viscosity, the unit supports a vertical +/- 5° assembly position and includes 2 NPT1/4-18 pneumatic connection ports with a product weight of 600 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

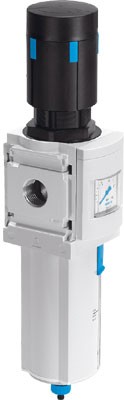

The Festo 531322 is an MS-series size 6 filter regulator with a pressure gauge featuring a 5 µm filtration grade, manual rotary condensate drain, 38 ml max condensate volume, and a metal bowl guard. Operating with compressed air across an inlet pressure range of 0.8 to 20 bar and a pressure control range of 0.5 to 12 bar, this unit delivers a standard nominal flow rate of 3,500 l/min while maintaining a constant output pressure with secondary exhaust. Designed for a vertical assembly position within +/- 5° and a corrosion resistance classification CRC of 2, it functions within a medium and storage temperature range of -10 to 60 °C, achieving air purity class 3.7.- per DIN ISO 8573-1 with a max pressure hysteresis of 0.25 bar and an actuator lock that is lockable with accessories. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531705 is an MS-series size 4 proportional standard mist lubricator featuring an aluminum die cast housing, a PC bowl with a plastic guard, and 2 NPT1/8-27 pneumatic connection ports. Operating with compressed air at an inlet pressure range of 1 to 12 bar, this unit delivers a standard nominal flow rate of 1,100 l/min with a minimum flow rate of 40 l/min for lubricator function and a maximum oil capacity of 30 ml using ISO VG 32 oil viscosity. Designed for vertical +/- 5 degrees assembly position with a product weight of 194 g, it functions within a storage, medium, and ambient temperature range of -10 to 60 degrees Celsius and features a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 531321 is an MS-series size 6 filter regulator with a pressure gauge, designed with a manual rotary condensate drain and a 38 ml maximum condensate volume. Operating with compressed air across an inlet pressure range of 0.8 to 20 bar and a pressure control range of 0.5 to 12 bar, this component achieves a standard nominal flow rate of 4,000 l/min and a 5 µm grade of filtration. The unit features a metal bowl guard, constant output pressure with secondary exhaust controller function, and an actuator lock with accessories that is lockable. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531704 is an MS series size 4 proportional standard mist lubricator featuring a 30 ml max oil capacity, plastic bowl guard, and a 2,200 l/min standard nominal flow rate. Constructed with an aluminum die-cast housing and a PC bowl, this industrial component operates with compressed air at inlet pressures ranging from 1 to 12 bar and a minimum flow rate of 40 l/min for lubricator function. It includes 2 NPT1/4-18 pneumatic connection ports, supports vertical assembly within +/- 5 degrees, and is rated for temperatures between -10 and 60 °C with ISO VG 32 oil viscosity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

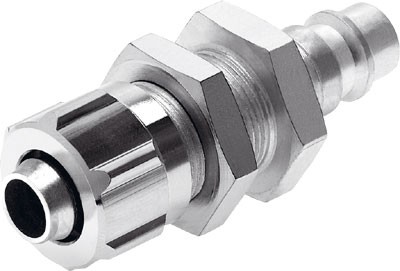

The Festo 531701 is an industrial component featuring a 7.4 mm nominal size and a CK-9 pneumatic connection port supporting a standard nominal flow rate of 1,274 l/min. Operating within a pressure range of -0.95 to 12 bar and an ambient temperature range of -10 to 60 °C, this 64 g unit functions with compressed air conforming to ISO8573-1:2010 [7:-:-] and allows lubricated operation. Constructed with RoHS-compliant materials and a CRC 1 low corrosion stress classification, the part carries BIA and TÜV authorizations. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

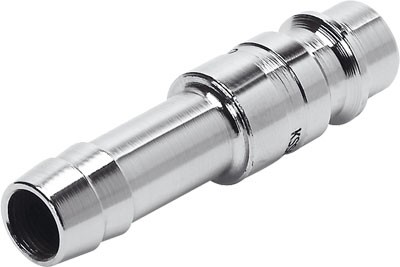

The Festo 531700 is a 17 g industrial component featuring a 7 mm nominal size and an N-9 pneumatic connection port. It operates within a pressure range of -0.95 to 12 bar across an ambient temperature of -10 to 60 °C, delivering a standard nominal flow rate of 1,121 l/min using compressed air conforming to ISO8573-1:2010 [7:-:-]. This RoHS-conforming unit holds BIA and TÜV authorizations, possesses a CRC 1 low corrosion resistance classification, and accommodates lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
Engineered by Festo, part number 531699 is an industrial component featuring a nominal size of 7.85 mm and a standard nominal flow rate of 1,697 l/min for compressed air operating media conforming to ISO8573-1:2010 [7:-:-]. This 50 g unit supports an operating pressure range of -0.95 to 12 bar across ambient temperatures from -10 to 60 °C, accommodates lubricated operation, and carries a CRC 1 corrosion resistance classification alongside BIA and TÜV authorizations. The pneumatic connection utilizes a 1 CK-13 port, and the assembly includes materials compliant with RoHS requirements. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531316 is an MS-series size 6 filter regulator featuring an integrated pressure gauge, a fully automatic condensate drain, and a 5 µm filtration grade. This unit provides a constant output pressure with secondary exhaust across a 0.3 to 7 bar pressure control range, handling an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 5,000 l/min using compressed air. Built with a plastic bowl guard, a 38 ml maximum condensate volume, and an actuator lock with lockable accessories, the assembly operates within a medium and storage temperature range of -10 to 60 µC and requires a vertical ± 5° assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

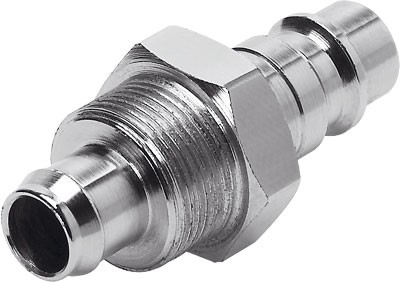

The Festo 531698 is an industrial component featuring a 7.4 mm nominal size and a CK-9 pneumatic connection port, weighing 37 g with RoHS-conforming materials. It operates within a pressure range of -0.95 to 12 bar and a temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 1,269 l/min using compressed air compliant with ISO8573-1:2010 [7:-:-]. This part accommodates lubricated operation, holds BIA and TÜV authorizations, and exhibits a CRC corrosion resistance classification of 1 for low corrosion stress. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 531697 is an industrial component featuring a 7.85 mm nominal size and a G1/2 female threaded pneumatic connection port for compressed air media in accordance with ISO8573-1:2010 [7:-:-]. This part operates across a pressure range of -0.95 to 12 bar and a temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 1,782 l/min with a nominal tightening torque of 32.5 Nm at a ± 20 % tolerance. Weighing 49 g with a CRC 1 low corrosion stress classification and RoHS compliance, it features BIA and TÜV authorizations while supporting lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531315 is an MS series size 6 filter regulator featuring a built-in pressure gauge, a fully automatic condensate drain, and a 5 µm filtration grade for compressed air operation. This unit provides a 0.3 to 7 bar pressure control range, a standard nominal flow rate of 5,600 l/min, and a constant output pressure with secondary exhaust within a 2 to 12 bar inlet pressure 1 range. Constructed with a plastic bowl guard and a corrosion resistance classification CRC of 2, the assembly operates at medium temperatures between 5 and 60 °C and maintains an air purity class at output of 3.7.- per DIN ISO 8573-1. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

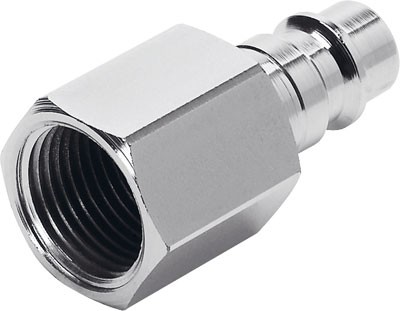

The Festo 531696 industrial component features a 7.85 mm nominal size, a G3/8 female threaded pneumatic connection, and a standard nominal flow rate of 1,733 l/min for compressed air conforming to ISO8573-1:2010 [7:-:-]. This RoHS-compliant part operates within a pressure range of -0.95 to 12 bar and an ambient temperature range of -10 to 60 °C, accommodating lubricated operation and carrying a CRC 1 low corrosion stress classification alongside BIA and TÜV authorizations. Weighing 29 g, the unit requires a nominal tightening torque of 21.5 Nm with a tolerance of ±15%. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 531314 is an MS-series size 6 filter regulator featuring a pressure gauge, a fully automatic condensate drain, and a 5 µm grade of filtration with a 38 ml maximum condensate volume. This component provides a 0.3 to 7 bar pressure control range, an inlet pressure range of 2 to 12 bar, a standard nominal flow rate of 2,700 l/min, and a constant output pressure function with secondary exhaust. Operating with compressed air at temperatures between 5 and 60 °C, the unit includes a plastic bowl guard, a lockable actuator lock with accessories, and a vertical assembly position within a +/- 5° tolerance. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
