Festo

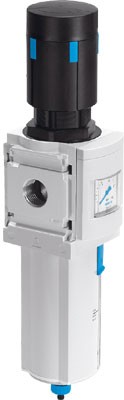

The Festo part number 531292 is an industrial size 6 filter regulator from the MS series featuring a design structure with an integrated pressure gauge, a 5 µm filtration grade, and a fully automatic condensate drain with a 38 ml maximum condensate volume. This component operates with compressed air within an inlet pressure range of 2 to 12 bar, a pressure control range of 0.5 to 12 bar, and delivers a standard nominal flow rate of 3,500 l/min while maintaining a constant output pressure with secondary exhaust. It includes a plastic bowl guard, a lockable actuator lock with accessories, and a corrosion resistance classification CRC of 2, functioning at a medium and storage temperature range of 5 to 60 °C and -10 to 60 °C respectively. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

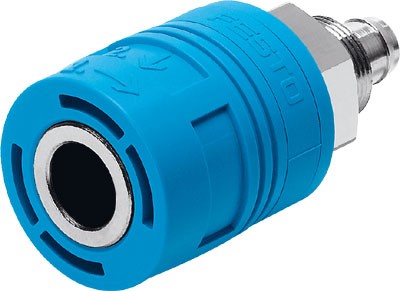

The Festo 531654 is an industrial component featuring a 10 mm nominal size and a pneumatic connection port of CK-13, weighing 121 g with RoHS-conforming materials and a CRC corrosion resistance classification of 1 for low corrosion stress. It operates across a pressure range of -0.5 to 12 bar and delivers a standard nominal flow rate of 1,697 l/min using compressed air conforming to ISO8573-1:2010 [7:-:-], with lubricated operation possible within an ambient temperature range of -10 to 60 °C, backed by BIA and TÜV authorizations. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531291 is an MS-series size 6 filter regulator featuring a design structure with a pressure gauge and a fully automatic condensate drain. It provides a standard nominal flow rate of 4,000 l/min, a pressure control range of 0.5 to 12 bar, and a 5 µm grade of filtration for compressed air operating within a medium temperature of 5 to 60 °C. This unit includes a plastic bowl guard, a lockable actuator lock with accessories, and a maximum condensate volume of 38 ml while maintaining a constant output pressure with secondary exhaust. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 531653, features a nominal size of 7.4 mm and a pneumatic connection port of 1 CK-9, with a product weight of 104 g. It operates with compressed air conforming to ISO8573-1:2010 [7:-:-] across a pressure range of -0.5 to 12 bar and an ambient temperature range of -10 to 60 °C, accommodating lubricated operation and carrying BIA and TÜV authorizations. The unit delivers a standard nominal flow rate of 1,269 l/min while maintaining a CRC 1 low corrosion stress classification and RoHS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 531290 is a size 6 industrial component from the MS series featuring a filter regulator with a pressure gauge, designed for compressed air operating media within a medium and storage temperature range of 5 to 60 °C and -10 to 60 °C, respectively. This unit delivers a standard nominal flow rate of 2,200 l/min with an inlet pressure of 2 to 12 bar and a pressure control range of 0.5 to 12 bar, incorporating a fully automatic condensate drain with a 38 ml maximum volume, a 5 µm grade of filtration, and a plastic bowl guard. Additional specifications include an output pressure constant controller function with secondary exhaust, a maximum pressure hysteresis of 0.25 bar, a vertical assembly position within +/- 5°, and an air purity class at the output of 3.7.- per DIN ISO 8573-1. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo part number 531652 is an industrial component featuring a 7.2 mm nominal size and a G1/2 female thread pneumatic connection port 1, operating at pressures from -0.5 to 12 bar across an ambient temperature range of -10 to 60 °C. This RoHS-conforming unit delivers a standard nominal flow rate of 1,782 l/min using compressed air compliant with ISO8573-1:2010 [7:-:-], while accommodating lubricated operation and carrying BIA and TÜV authorizations. Built with a CRC 1 low corrosion stress classification and a product weight of 121 g, it requires a nominal tightening torque of 32.5 Nm with a tolerance of ± 20 %. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

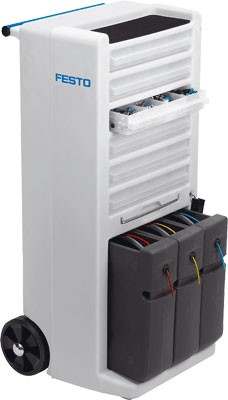

The Festo Pneutainer ZW, designated by part number 532371, is an industrial component with a verified product weight of 1,700 g according to the official Festo EN-US data sheet. Request a formal quotation for this part by submitting your exact part number, required quantity, and application requirements.
View product details →Festo

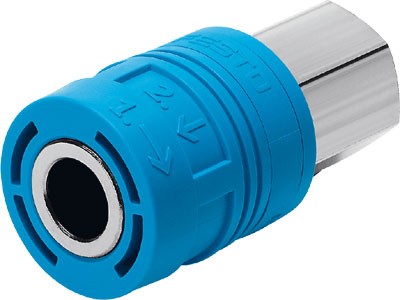

The Festo 531651 industrial component is a 7.2 mm nominal size pneumatic part featuring a G3/8 female thread port 1 and a product weight of 115 g. It operates within a pressure range of -0.5 to 12 bar and an ambient temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 1,733 l/min using compressed air in accordance with ISO8573-1:2010 [7:-:-]. This RoHS-conforming unit holds BIA and TÜV authorizations, exhibits a CRC 1 low corrosion stress classification, requires a nominal tightening torque of 21.5 Nm with a ± 15 % tolerance, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531650 industrial component features a 7.2 mm nominal size and a standard nominal flow rate of 1,373 l/min for compressed air operating media conforming to ISO8573-1:2010 [7:-:-]. This RoHS-conforming part supports an operating pressure range of -0.5 to 12 bar across an ambient temperature range of -10 to 60 °C, alongside lubricated operation capabilities and a CRC 1 low corrosion stress classification. Weighing 125 g with a female thread 1/4 pneumatic connection port, it requires a nominal tightening torque of 9.5 Nm with a ± 15 % tolerance and carries BIA and TÜV authorizations. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 531649 is an industrial component featuring a 10 mm nominal size, a G1/2 male thread pneumatic connection port, and a product weight of 111 g. It operates within a pressure range of -0.5 to 12 bar across an ambient temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 1,643 l/min using compressed air in accordance with ISO8573-1:2010 [7:-:-]. This RoHS-conforming part achieves a CRC 1 low corrosion stress classification, supports lubricated operation, and requires a nominal tightening torque of 32.5 Nm with a \u00b1 20% tolerance, backed by BIA and T\u00dcV authorizations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 531648 is an industrial component featuring a 10 mm nominal size and a G3/8 male threaded pneumatic connection port. It operates within a pressure range of -0.5 to 12 bar across an ambient temperature of -10 to 60 °C, delivering a standard nominal flow rate of 1,755 l/min with compressed air under ISO8573-1:2010 [7:-:-] conditions. This RoHS-conforming part weighs 96 g, exhibits a CRC 1 low corrosion stress classification, requires a nominal tightening torque of 21.5 Nm with a ± 15 % tolerance, and carries BIA and TÜV authorizations with lubricated operation supported. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 531286 is an industrial filter regulator with a pressure gauge from the MS series, featuring a size 6 design structure and a manual rotary condensate drain with a maximum condensate volume of 38 ml. It operates with compressed air across an inlet pressure range of 0.8 to 12 bar and a pressure control range of 0.5 to 12 bar, delivering a standard nominal flow rate of 3,500 l/min while maintaining a constant output pressure with secondary exhaust. This component incorporates a 5 µm grade of filtration, a plastic bowl guard, lockable actuator lock accessories, and a vertical +/- 5° assembly position suited for operating and storage temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

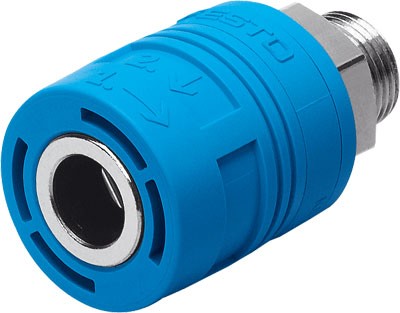

The Festo part number 531647 is an industrial component featuring an 8 mm nominal size and a G1/4 male threaded pneumatic connection port. This unit operates within a pressure range of -0.5 to 12 bar across an ambient temperature of -10 to 60 °C, delivering a standard nominal flow rate of 1,611 l/min using compressed air conforming to ISO8573-1:2010 [7:-:-]. Featuring RoHS-conforming materials and a low corrosion stress classification CRC of 1, the 93 g assembly requires a nominal tightening torque of 9.5 Nm with a tolerance of ± 15% and holds BIA and TÜV authorizations with lubricated operation supported. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 531285 is an industrial filter regulator from the MS series, size 6, featuring a design structure with a pressure gauge and a 5 µm filtration grade. It delivers a standard nominal flow rate of 4,000 l/min across an inlet pressure range of 0.8 to 20 bar and a pressure control range of 0.5 to 12 bar using compressed air as the operating medium. Additional functional attributes include a manual rotary condensate drain with a 38 ml maximum volume, a plastic bowl guard, a lockable actuator lock with accessories, and an output pressure constant controller function with secondary exhaust. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

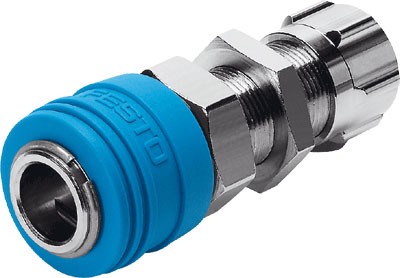

The Festo 531642 is an industrial component featuring a 7.4 mm nominal size and a 1 CK-9 pneumatic connection port with a product weight of 97 g. It operates within a pressure range of -0.95 to 12 bar and an ambient temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 1,017 l/min using compressed air conforming to ISO8573-1:2010 [7:-:-] with lubricated operation possible. This RoHS-compliant unit has a corrosion resistance classification CRC of 1 for low corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 531284 is an MS-series size 6 filter regulator with a pressure gauge, designed for compressed air operation with a standard nominal flow rate of 2,200 l/min and an inlet pressure range of 0.8 to 20 bar. This unit features a 5 µm filtration grade, a manual rotary condensate drain with a 38 ml maximum condensate volume, a plastic bowl guard, and an output pressure control range of 0.5 to 12 bar with secondary exhaust. Operating within a temperature range of -10 to 60 °C and classified under corrosion resistance CRC 2, it delivers an air purity class of 3.7.- per DIN ISO 8573-1 in a vertical assembly position within +/- 5°. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 532285 is an MS series size 6 membrane dryer featuring an integrated metal shell bowl guard, an aluminium die-cast housing, and a wrought aluminium alloy bowl with 2 NPT3/8-18 pneumatic connection ports. Designed for vertical assembly within plus or minus 5 degrees, this component delivers a standard nominal flow rate of 400 l/min, a pressure dew-point reduction of 13 °C, and operates at an inlet pressure of 3 to 8.5 bar using ISO 8573-1 air quality class 1:7:1 medium. It is rated for storage, medium, and ambient temperatures ranging from -20 to 55 °C, features a corrosion resistance classification CRC of 2, weighs 1,410 g, and supports optional line installation or accessory mounting. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 532284 is an industrial MS series size 6 membrane dryer featuring an integrated metal shell bowl guard and a standard nominal flow rate of 400 l/min. Constructed with an aluminium die cast housing and a wrought aluminium alloy bowl, this component operates within an inlet pressure range of 3 to 8.5 bar while delivering a 13 °C pressure dew-point reduction for ISO 8573-1 air quality class 1:7:1 operating medium. It has a product weight of 1,410 g, a vertical assembly position of +/- 5°, NPT1/2-14 pneumatic connection ports, and supports optional line installation or mounting with accessories across a medium and ambient temperature range of 5 to 55 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 532283 is an MS series size 6 membrane dryer featuring an integrated metal shell bowl guard and a standard nominal flow rate of 400 l/min. Constructed with an aluminum die-cast housing and a wrought aluminum alloy bowl, this component operates within an inlet pressure range of 3 to 8.5 bar and achieves a pressure dew-point reduction of 13 °C for air quality class 1:7:1 per ISO 8573-1. It is designed for vertical +/- 5° assembly with 2 NPT1/4-18 pneumatic connection ports and supports line installation or optional mounting with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 531280 is an MS-series size 6 filter regulator with a pressure gauge, designed for compressed air operation within an inlet pressure range of 2 to 12 bar and a pressure control range of 0.5 to 12 bar. It features a 40 µm grade of filtration, a fully automatic condensate drain with a maximum condensate volume of 38 ml, a plastic bowl guard, and a standard nominal flow rate of 4,000 l/min. The unit provides a constant output pressure with secondary exhaust, a maximum pressure hysteresis of 0.25 bar, and delivers an air purity class at output of 5:7:- per DIN ISO 8573-1 while maintaining a corrosion resistance classification CRC of 2 in a vertical assembly position within +/- 5°. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
