Festo
The Festo 531015 is a size 6 membrane dryer from the MS series featuring an integrated metal shell bowl guard and a durable die-cast aluminum housing with a wrought aluminum alloy bowl. This component operates with an inlet pressure of 3 to 8.5 bar, a standard nominal flow rate of 400 l/min, and provides a 13 °C pressure dew-point reduction for air meeting ISO 8573-1 class 1:7:1 quality. It supports a vertical assembly position within +/- 5°, features G1/2 pneumatic connection ports, and weighs 1,410 g with optional line or accessory mounting for ambient and medium temperatures ranging from 5 to 55 °C. Submit the exact part number, quantity, and application requirements to request a quote for this industrial component.
View product details →Festo
The Festo 529838 is an electrically actuated industrial component featuring a piston slide design and a monostable 3/2 closed valve function with non-throttleable exhaust-air capability. This piloted valve operates within a working pressure range of 4 to 18 bar, delivers a standard nominal flow rate of 5,500 l/min, and runs on a 230 V AC (50/60 Hz) coil with a 100% duty cycle. Rated to IP65 protection class and CRC 2 corrosion resistance, it functions with compressed air or inert gases across a medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

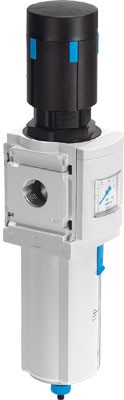

The Festo 529207 is an MS series size 6 filter regulator featuring a built-in pressure gauge and a fully automatic condensate drain with a maximum condensate volume of 38 ml. This component provides a standard nominal flow rate of 2,200 l/min for compressed air operating media within a pressure control range of 0.5 to 12 bar and a filtration grade of 5 µm. Designed with a plastic bowl guard, a lockable actuator lock using accessories, and a corrosion resistance classification CRC of 2, it functions with a constant output pressure and secondary exhaust for medium temperatures between 5 and 60 °C in a vertical assembly position of +/- 5°. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 531014 is a size 6 membrane dryer from the MS series featuring an integrated metal shell bowl guard and an aluminium die cast housing with a wrought aluminium alloy bowl. It operates with a standard nominal flow rate of 400 l/min, an inlet pressure range of 3 to 8.5 bar, and delivers a pressure dew-point reduction of 13 °C using air quality class 1:7:1 per ISO 8573-1. Designed for a vertical assembly position within plus or minus 5°, this 1,410 g component accommodates line installation or mounting with accessories via G1/2 pneumatic connection ports. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo 529837 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with non-throttleable exhaust-air capabilities. It operates at a working pressure range of 4 to 18 bar, delivers a standard nominal flow rate of 5,500 l/min, and runs on a 230 V AC (50/60 Hz) coil with IP65 protection and a 100% duty cycle. This RoHS-compliant, copper-free and PTFE-free unit incorporates mechanical spring reset, piloted actuation, detenting and pushing manual override, and a CRC 2 corrosion resistance classification for compressed air or inert gas media between -10 and 60 °C. Request a quote for this part today by submitting your exact part number, required quantity, and application parameters.
View product details →Festo

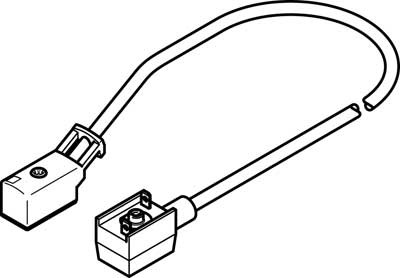

The Festo 530942 industrial component features an any assembly position and includes the reduction of holding current as an additional function with an LED switching position indicator. This IP65-rated part operates at an ambient temperature of -10 to 50 °C, weighs 18 g, and mounts on a solenoid valve using an M2 central screw with a 0.25 Nm tightening torque. Its electrical connection consists of a 2-pin angled socket and plug with a 0.2 m cable of 3.4 mm diameter containing 2x0,25 wiring, alongside a PA housing, TPE-U(PUR) cable sheath, bronze crimp connectors, and RoHS-compliant materials conforming to the EU-EMV guideline CE symbol. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 530291 is an industrial component featuring a Size 6 MS series design structure that integrates a filter regulator with a pressure gauge and a proportional standard mist lubricator. It delivers a standard nominal flow rate of 4,400 l/min across an inlet pressure range of 1.5 to 12 bar and a pressure control range of 0.3 to 7 bar, utilizing a fully automatic condensate drain and a 5 µm filtration grade. The unit operates within ambient and medium temperatures of 5 to 60 µC, maintains a vertical assembly position within +/- 5°, and includes a plastic bowl guard along with a rotary knob actuator lock having an integrated lock. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 529836 is an electrical 3/2 closed, single solenoid industrial component featuring a piston slide design structure and direct piloting with internal pilot air supply. Operating with a working pressure of 4 to 18 bar, it delivers a standard nominal flow rate of 5,500 l/min using compressed air as the operating medium within a temperature range of -10 to 60 °C. This unit incorporates a mechanical spring reset, detenting and pushing manual override, non-reversible flow direction, and 110V AC characteristic coil data. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

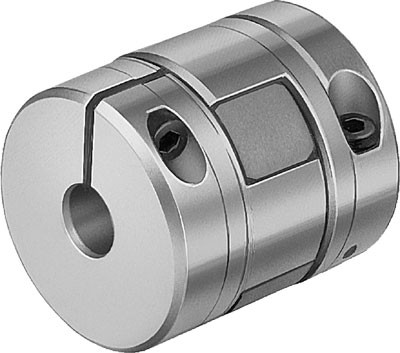

Engineered by Festo, this industrial component features a 6 mm first holder diameter, a 9 mm second holder diameter, a size 30 configuration, and a nominal length of 35 mm with an overall product weight of 45 g. It accommodates any assembly position while operating up to a maximum speed of 8,000 1/min, transferring a torque of 7.5 Nm, and maintaining a mass moment of inertia of 6.1 kgmm2 within an ambient and storage temperature range of -25 to 60 °C and 0 to 95 % relative air humidity. Built with materials that conform to RoHS, the unit is ready for integration. Submit the exact part number, quantity, and application requirements for a formal quote on part number 530941.
View product details →Festo
This Festo industrial component (Part Number 529835) is an electrically actuated piston slide featuring a 3/2 closed, monostable valve function with piloted operation and mechanical spring reset. Designed with a standard nominal flow rate of 5,500 l/min, a C value of 22 l/sbar, a b value of 0.5, and a working pressure range of 4 to 18 bar, it supports compressed air per ISO 8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 60 °C. The unit incorporates detenting and pushing manual override, an IP65 protection class, CRC corrosion resistance classification 2, and copper- and PTFE-free RoHS-compliant materials alongside a 110 V AC (50/60 Hz) coil requiring 3 VA switching power and 2.4 VA holding capacity at a 100% duty cycle. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 530289 is a Size 6 MS-series industrial component featuring a filter regulator with pressure gauge, proportional standard mist lubricator, 5 µm filtration grade, and manual rotary condensate drain. This unit operates within a 1.5 to 20 bar inlet pressure range, a 0.3 to 7 bar pressure control range, and delivers a standard nominal flow rate of 4,400 l/min using compressed air. Built with a plastic bowl guard, a rotary knob actuator lock with integrated lock, and a pressure gauge, it maintains a vertical +/- 5° assembly position and a CRC 2 corrosion resistance classification across ambient, medium, and storage temperatures of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this 1,495 g assembly.
View product details →Festo
The Festo part number 529832 is an electrical 3/2 closed, single solenoid industrial component featuring a piston slide design structure and direct piloting with internal pilot air supply. This unit operates within a working pressure range of 4 to 18 bar, delivering a standard nominal flow rate of 2,600 l/min with a C value of 11 l/sbar and a b value of 0.5 using compressed air as the operating medium. Designed with a mechanical spring reset, detenting and pushing manual override, non-reversible flow direction, and a CRC corrosion resistance classification of 2, it functions at medium and ambient temperatures between -10 and 60 °C with characteristic coil data of 230V AC and an assembly position of any. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 529831 is an electrically actuated industrial component featuring a piston slide design with a piloted, 3/2 closed, monostable valve function and mechanical spring reset. Operating within a working pressure range of 4 to 18 bar, it delivers a standard nominal flow rate of 2,600 l/min, a 100% duty cycle, and utilizes a 230 V AC coil at 50/60 Hz with IP65 protection. The unit is constructed without copper or PTFE, conforms to RoHS standards, and accommodates compressed air per ISO 8573-1:2010 [7:4:4] or inert gases within a medium temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo

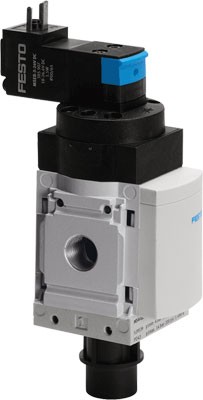

The Festo 529830 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function. It operates within a working pressure range of 4 to 18 bar, delivers a standard nominal flow rate of 2,600 l/min, and runs on a 110 V AC 50/60 Hz coil with a 100% duty cycle. This IP65-rated unit includes a detenting and pushing manual override, mechanical spring reset, piloted actuation, and non-throttleable exhaust-air function for compressed air or inert gas systems. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 529829 is an electrically actuated industrial component featuring a piston slide design and a 3/2 closed, monostable valve function with piloted operation. It delivers a standard nominal flow rate of 2,600 l/min across a working pressure range of 4 to 18 bar, operating reliably on compressed air or inert gases within a medium temperature range of -10 to 60 °C. Rated at IP65 protection class, this unit incorporates a mechanical spring reset, non-throttleable exhaust-air function, and a detenting or pushing manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 530285 is an industrial component from the MS series in size 6, featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator. Designed for a standard nominal flow rate of 3,400 l/min using compressed air, this assembly operates within an inlet pressure range of 1.5 to 12 bar and a pressure control range of 0.5 to 12 bar. It incorporates a fully automatic condensate drain, a 5 µm filtration grade, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 529826 is an electrically actuated industrial component featuring a piston slide design and a piloted, monostable 3/2 closed valve function with a mechanical spring reset. Engineered for a working pressure range of 4 to 18 bar, it delivers a standard nominal flow rate of 7,000 l/min with a 100% duty cycle and operates on 230 V AC (50/60 Hz) power with an IP65 protection class. The unit includes detenting and pushing manual override options, a non-throttleable exhaust-air function, and construction that is free of copper and PTFE while conforming to RoHS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo

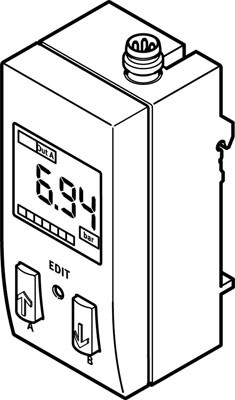

The Festo 530900 is a piezoresistive pressure sensor with a display engineered to measure relative pressure from 0 bar to 10 bar within a medium and ambient temperature range of 0 to 50 °C. It features a PNP switch output with a freely programmable switching function, a switchable switching element function, and an analog output of 0 to 10 V, operating on a 15 to 30 V DC voltage range. Certified with the RCM Mark, c UL us Recognized, and a CE symbol according to the EU-EMV guideline, the unit operates with compressed air meeting ISO8573-1:2010 [7:4:4] standards and allows lubricated operation while remaining free of copper and PTFE and compliant with RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 529824 is a 3/2 closed, monostable industrial component featuring a piston slide design structure and electrical actuation with a mechanical spring reset. This piloted valve operates at a working pressure of 4 to 18 bar, delivers a standard nominal flow rate of 7,000 l/min, and supports a 100% duty cycle using compressed air or inert gases. Built with IP65 protection and CRC 2 corrosion resistance, the unit operates on 110 V AC at 50/60 Hz with a switching power of 3 VA and a holding capacity of 2.4 VA. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 530275 is a size 6 industrial component from the MS series featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator. It operates within an inlet pressure range of 1.5 to 12 bar, a pressure control range of 0.5 to 12 bar, and delivers a standard nominal flow rate of 1,700 l/min using compressed air. Additional attributes include a 5 µm filtration grade, fully automatic condensate drain, plastic bowl guard, rotary knob actuator lock with integrated lock, and a weight of 1,495 g. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
