Festo
The Festo 530392 is a Bourdon-tube pressure gauge conforming to EN 837-1 with a nominal size of 63 and a 0 to 36 psi indicating and working pressure range. Featuring a black ABS housing, a PMMA viewing window, and brass media-contacting components with a central rear NPT1/4-18 pneumatic connection, this line-installation unit operates within ambient and medium temperatures of -20 to 60 °C. It provides an alternating load factor of 0.66, a measurement accuracy class of 2.5, IP43 protection, and RoHS compliance while handling inert gases and neutral fluids. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 530391 is a Bourdon-tube pressure gauge featuring a nominal size of 50 and a central rear-side NPT1/4-18 pneumatic connection for line installation. Conforming to EN 837-1, this component delivers an indicating and working pressure range of 0 to 232 psi with a measurement accuracy class of 2.5 and an alternating load factor of 0.66. Constructed with an ABS housing, PMMA viewing window, and brass media-contacting components, the unit operates within medium and ambient temperatures from -20 to 60 °C and holds an IP43 protection class. Submit the exact part number, quantity, and application requirements to receive a quote for this RoHS-compliant industrial component.
View product details →Festo
The Festo 530390 is a Bourdon-tube pressure gauge featuring a nominal size of 50 and a central rear-side NPT1/4-18 pneumatic connection for line installation. Built with an ABS housing, PMMA viewing window, and brass media-contacting components, it operates within a 0 to 145 psi range for neutral fluids and inert gases under an alternating load factor of 0.66. This EN 837-1 compliant device delivers a measurement accuracy class of 2,5 across ambient and medium temperatures ranging from -20 to 60 °C with an IP43 protection class. Request a formal quote by submitting the exact part number, quantity, and application parameters.
View product details →Festo
The Festo 530389 is a Bourdon-tube pressure gauge featuring a nominal size of 50 and a central rear-side NPT1/4-18 pneumatic connection for line installation. Built with an ABS housing, PMMA viewing window, and brass wetted parts, it measures working pressures and neutral fluids or inert gases across a 0 to 36 psi indicating range with an accuracy class of 2.5 and IP43 protection. This RoHS-compliant component conforms to EN 837-1 and operates within ambient and medium temperature limits of -20 to 60 °C with an alternating load factor of 0.66. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 530388 is a Bourdon-tube pressure gauge featuring an indicating range and working pressure of 0 to 232 psi, a nominal size of 40, and a measurement accuracy class of 2.5 conforming to EN 837-1. Designed for line installation with a central rear-side NPT1/8-27 pneumatic connection, this component operates with inert gases and neutral fluids within medium and ambient temperature ranges of -20 to 60 °C. The device incorporates a black ABS housing, PMMA viewing window, and brass media-contacting materials and screw-in stud, while maintaining an IP43 protection class and an alternating load factor of 0.66. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 530387 is a Bourdon-tube pressure gauge featuring a 40 nominal size and an indicating range of 0 to 145 psi that conforms to the EN 837-1 standard. This line installation component operates within a medium and ambient temperature range of -20 to 60 °C, utilizing brass media-contacting materials and a central rear-side NPT1/8-27 pneumatic connection for inert gases and neutral fluids. Constructed with a black ABS housing, PMMA viewing window, and an IP43 protection class, it delivers a measurement accuracy class of 2.5 with an alternating load factor of 0.66 while maintaining RoHS compliance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →Festo

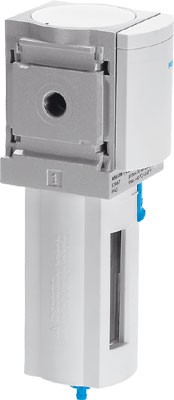

The Festo part number 529678 is an MS series industrial component featuring a size 6 fiber filter design structure and a fully automatic condensate drain with a maximum condensate volume of 38 cm3. Operating with an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 700 l/min, this unit achieves a filtration grade of 1 µm and a filter efficiency of 99.99% for filtered, unlubricated compressed air. The assembly position is vertical plus or minus 5 degrees, and the component includes a metal bowl guard, a corrosion resistance classification CRC of 2, a product weight of 820 g, and optional line installation mounting with accessories. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

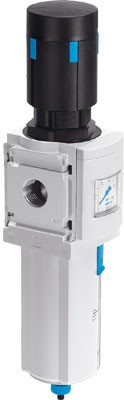

The Festo 530347 is an MS-series size 6 filter regulator featuring an integrated pressure gauge, a manual rotary condensate drain with a 38 ml maximum condensate volume, and a 5 µm grade of filtration. Operating with compressed air, this design structure delivers a standard nominal flow rate of 3,500 l/min across a 0.5 to 12 bar pressure control range and an inlet pressure range of 0.8 to 20 bar. Additional attributes include a metal bowl guard, constant output pressure controller function with secondary exhaust, lockable actuator lock with accessories, and a vertical +/- 5° assembly position with a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo
The Festo 530229 is an industrial component from the MS series featuring a size 6 design structure that integrates a start-up valve, on/off valve, filter regulator with a pressure gauge, and a standard oil-mist lubricator. Operating within a working pressure range of 4.5 to 12 bar and a pressure control range of 4 to 12 bar, this unit achieves a standard nominal flow rate of 1,900 l/min using compressed air or inert gases at a 5 µm filtration grade with a fully automatic condensate drain. It incorporates a 24V DC 1.5W coil, a rotary knob actuator lock with lockable accessories, a plastic bowl guard, and a controller function providing constant output pressure, initial pressure compensation, secondary exhaust, and return flow. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 530227 is a size 6 MS series industrial component featuring a start-up valve, on-off valve, filter regulator with a pressure gauge, and a standard oil-mist lubricator with a 5 µm filtration grade and manual rotary condensate drain. It operates within a working pressure range of 4.5 to 18 bar, a pressure control range of 4 to 12 bar, and delivers a standard nominal flow rate of 1,900 l/min using compressed air or inert gases at temperatures from -10 to 60 µC. This unit incorporates a rotary knob with lock actuator, plastic bowl guard, 24V DC 1.5W coil data, and a controller function providing constant output pressure with initial pressure compensation, secondary exhaust, and return flow. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 529666 is an MS series industrial component featuring a size 6 fiber filter design with a fully automatic condensate drain and a 38 cm3 max condensate volume. Operating with an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 380 l/min, it delivers a 0.01 µm filtration grade with 99.9999% filter efficiency for unlubricated compressed air media. This unit achieves an output air purity class of 1.7.2 per DIN ISO 8573-1 and a residual oil content of 0.01 mg/m3 within a medium and ambient temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 530225 is an MS series industrial component in size 6, featuring a vertical assembly position within +/- 5° and a corrosion resistance classification of CRC 2. This unit integrates a start-up valve, an on-off valve, a filter regulator with a pressure gauge, and a standard oil-mist lubricator, providing a 40 µm filtration grade, a fully automatic condensate drain, and a standard nominal flow rate of 2,000 l/min. Operating with compressed air per ISO 8573-1:2010 [7:4:-] or inert gases at a working pressure of 4.5 to 12 bar and a control range of 4 to 12 bar, it includes a lockable rotary knob actuator and a 24V DC, 1.5W coil. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

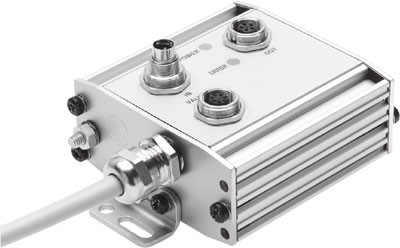

The Festo 527496 is an industrial component weighing 300 g and operating within an ambient temperature range of 0 to 50 °C. It features a max proportional valve current consumption of 1.1 A, a typical axis interface current consumption of 100 mA, and an IP65 protection class per IEC 60529 with CE conformity to the EU-EMV guideline. Electrical connections include a 7-pin M9 round plug for the proportional valve, a 4-pin cubic cable with plug for the displacement encoder, and M9 5-pin connectors for AIF IN and AIF OUT via a 0.3 m cable, supplemented by DIN/IEC 68 tested shock and vibration resistance at severity level 2. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →Festo

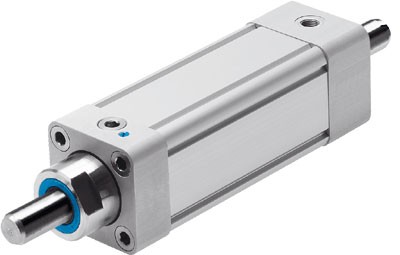

The Festo 527494 is an industrial component featuring an assembly position of any and a static holding force of 8,000 N, designed for clamping on both ends with a spring and releasing via compressed air within a working pressure range of 3.8 to 10 bar. Constructed with a wrought aluminum alloy housing and piston, tool steel clamp jaws, and NBR and TPE-U seals, this unit accommodates a 25 mm round material and operates within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

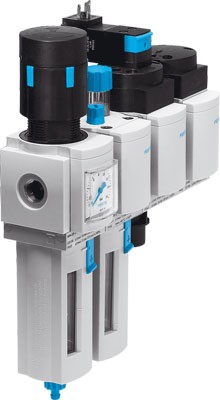

The Festo 530223 is an industrial component from the MS series, size 6, featuring a design structure that combines a start-up valve, an on/off valve, a filter regulator with pressure gauge, and a standard oil-mist lubricator. Operating within a working pressure range of 4.5 to 18 bar and a pressure control range of 4 to 12 bar, this unit achieves a standard nominal flow rate of 2,000 l/min with 24V DC (1,5W) coil data. It incorporates a 40 µm filtration grade, a manual rotary condensate drain, a plastic bowl guard, and a rotary knob actuator lock with lockable accessories. Request a quote by submitting the part number, quantity, and application requirements.
View product details →Festo
The Festo 527493 is an industrial component featuring a static holding force of 3,200 N and a working pressure range of 3.8 to 10 bar, designed for a 20 mm round material to be clamped. This assembly operates with compressed air in accordance with ISO8573-1:2010 [7:4:4] via a G1/4 release connection, utilizing spring force for clamping and compressed air for release at both ends. Constructed with a wrought aluminum alloy housing and piston, tool steel clamp jaws, high alloy steel spring, and NBR and TPE-U(PU) seals, the unit weighs 4,515 g and offers a CRC corrosion resistance classification of 0. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 527492 is an industrial component featuring a static holding force of 1,300 N and a clamping mechanism that operates at both ends via spring force with compressed air release. This unit accommodates a 16 mm round material, requires a working pressure of 3.8 to 10 bar with a minimum release pressure of 3.8 bar, and functions within an ambient temperature range of -20 to 80 °C. Constructed with a wrought aluminum alloy housing, tool steel clamp jaws, high alloy steel spring, and NBR and TPE-U(PU) seals, the assembly weighs 1,860 g and supports any assembly position with internal female thread mounting or accessories. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →Festo

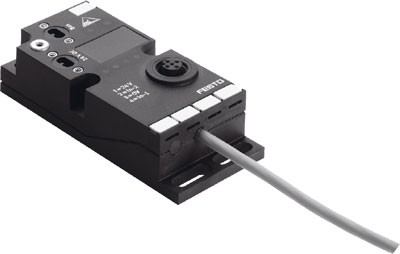

This Festo industrial component, part number 527474, measures 46 mm in width, 102 mm in height, and 28,5 mm in length with a product weight of 190 g. Featuring an IP65 protection class in assembled condition according to IEC 60529, it operates within an ambient temperature range of -5 to 50 °C and supports optional mounting via through hole or top-hat rail. The unit includes an AS interface fieldbus interface with a flat cable plug and a 4-pin, A-coded M12x1 bush, operating on a nominal DC voltage of 26.5 V for the AS interface and 24 V for the load voltage. Constructed with a PA-reinforced housing and cover, PUR seals, and RoHS-compliant materials, it complies with the EU-EMV guideline. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 530219 is an industrial component featuring a size 6 MS series design structure comprising a standard filter with a 5 µm filtration grade, a pressure regulator with gauge spanning a 1 to 12 bar control range, and a standard oil-mist lubricator. This unit provides a standard nominal flow rate of 4,400 l/min and operates within a medium and ambient temperature range of -10 to 60 µC utilizing a manual rotary condensate drain and a plastic bowl guard. Incorporating a rotary knob lockable actuator and weighing 2,000 g, the assembly maintains a vertical +/- 5° installation position with an inlet pressure between 1.5 and 18 bar. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

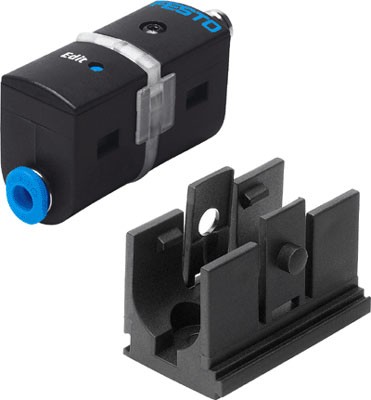

The Festo 527465 is an industrial component featuring a piezoresistive pressure sensor for measuring relative pressure within an operating temperature range of 0 to 50 °C. It operates on a 15 to 30 V DC voltage range with a pulsing short-circuit strength, incorporating a PNP switch output and a normally open contact with a threshold value setting range of 0 to 100 %. Electrical connection is made via an M8x1, 3-pin plug adhering to EN 60947-5-2 standards, and pneumatic connection utilizes a QS-3 port for filtered compressed air. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
