Festo
The Festo 530273 is an industrial component featuring a Size 6 MS series design structure combining a filter regulator with a pressure gauge and a proportional standard mist lubricator. It delivers a standard nominal flow rate of 1,700 l/min for compressed air operating media, maintaining an output pressure control range of 0.5 to 12 bar with an inlet pressure range of 1.5 to 20 bar. Additional attributes include a 5 µm filtration grade, manual rotary condensate drain, plastic bowl guard, rotary knob actuator lock with an integrated lock, and a product weight of 1,495 g. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 529812 is an electrically actuated 2/2 piston seat industrial component featuring external pilot air supply, a mechanical spring reset, and a throttleable exhaust-air function. Designed with a non-reversible flow direction, it operates at a working pressure of 4 to 18 bar, delivers a standard nominal flow rate of 5,050 l/min, and functions on 110V AC coil data within a medium and ambient temperature range of -10 to 60 °C. Additional specifications include a detenting or pushing manual override, an assembly position of any, a product weight of 680 g, and a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 529808 is an electrically actuated 2/2 piston seat industrial component featuring external pilot air supply, mechanical spring reset, and a throttleable exhaust-air function. Operating within a working pressure range of 4 to 18 bar and a medium and ambient temperature span of -10 to 60 °C, this unit delivers a standard nominal flow rate of 2,700 l/min with a C value of 11.22 l/sbar and a b value of 0.54. It weighs 680 g, exhibits a corrosion resistance classification CRC of 2, incorporates a detenting and pushing manual override, operates on 230V AC coil data, and supports any assembly position with optional switching position indicator accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 529806 is an electrically actuated 2/2 piston seat industrial component featuring external pilot air supply, mechanical spring reset, and a throttleable exhaust-air function. Operating at a working pressure of 4 to 18 bar, this non-reversible valve delivers a standard nominal flow rate of 2,700 l/min with a C value of 11.22 l/sbar and a b value of 0.54, utilizing a 110V AC coil and functioning within a medium and ambient temperature range of -10 to 60 °C. Weighing 680 g with a CRC 2 corrosion resistance classification, it includes a detenting and pushing manual override, accommodates any assembly position, and supports a switching position indicator via accessories. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 530265 is an industrial component featuring an MS series size 6 design structure that combines a filter regulator with a pressure gauge and a proportional standard mist lubricator. Operating with compressed air across a medium and ambient temperature range of -10 to 60 °C, this unit provides a standard nominal flow rate of 2,000 l/min, a 5 °m grade of filtration, and an adjustable pressure control range of 0.3 to 7 bar. It incorporates a manual rotary condensate drain, a plastic bowl guard, a rotary knob actuator lock with an integrated lock, and a controller function offering constant output pressure with initial pressure compensation, secondary exhaust, and return flow. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

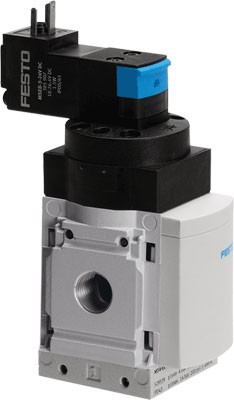

The Festo 529800 is a 2/2 piston seat industrial component featuring electrical actuation, a mechanical spring reset, and external pilot air supply with a throttleable exhaust-air function. This piloted valve operates at a working pressure of 4 to 18 bar, delivering a standard nominal flow rate of 6,450 l/min with a C value of 28.97 l/sbar and a b value of 0.39, powered by 110V AC characteristic coil data. Designed for any assembly position with a product weight of 680 g, it includes detenting or pushing manual override, CRC 2 corrosion resistance classification, and functions within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 530263 is an industrial component within the MS series, featuring a size 6 design structure that combines a filter regulator with a pressure gauge and a proportional standard mist lubricator. This unit operates with compressed air within an inlet pressure range of 1.5 to 12 bar, a pressure control range of 0.3 to 7 bar, and a standard nominal flow rate of 2,100 l/min while maintaining a filtration grade of 40 µm. Equipped with a fully automatic condensate drain, a plastic bowl guard, and a rotary knob actuator lock with an integrated lock, it supports a vertical assembly position within a +/- 5° tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 529786 is an industrial size 6 proportional standard mist lubricator from the MS series featuring a G3/8 pneumatic connection port and an integrated metal shell bowl guard with an 80 cm3 max. oil capacity. Engineered for a standard nominal flow rate of 5,300 l/min and a working pressure range of 1 to 16 bar, it operates with compressed air per ISO8573-1:2010 [7:4:4] or inert gases within a medium temperature of 0 to 60 °C. This RoHS-conforming component weighs 810 g, has a corrosion resistance classification CRC 2, and requires a minimum flow rate of 50 l/min for lubricator function with ISO VG 32 oil viscosity. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →Festo
The Festo 530261 is an industrial component from the MS series, size 6, combining a filter regulator with a pressure gauge and a proportional standard mist lubricator. This unit features a 5 µm filtration grade, a fully automatic condensate drain, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. It provides a standard nominal flow rate of 1,700 l/min across an inlet pressure range of 1.5 to 12 bar and a pressure control range of 0.5 to 12 bar using compressed air as the operating medium. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

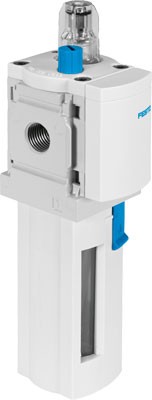

The Festo 529784 is a Size 6 proportional standard mist lubricator from the MS series, featuring a G3/8 pneumatic connection port and a maximum oil capacity of 75 cm3 with a plastic bowl guard. It operates within a working pressure range of 1 to 16 bar, a standard nominal flow rate of 5,300 l/min, and a minimum flow rate for lubricator function of 50 l/min using compressed air or inert gases. Designed for a vertical assembly position within +/- 5 degrees, this 600 g component supports optional line installation or mounting with accessories while utilizing ISO VG 32 oil viscosity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

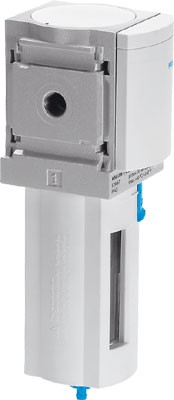

The Festo 530516 is a size 6 MS-series industrial component featuring a fiber filter design structure and a fully automatic condensate drain with a maximum condensate volume of 38 cm3. Operating with an inlet pressure of 2 to 12 bar and a standard nominal flow rate of 550 l/min, this unit delivers a 1 µm filtration grade with 99.99% filter efficiency, producing an air purity class of 2.7.3 per DIN ISO 8573-1 and a residual oil content of 0.5 mg/m3. Designed for vertical ± 5° assembly with line installation accessories, the 600 g component functions in ambient and medium temperatures ranging from 5 to 60 °C using filtered, unlubricated compressed air with 5 µm filtration. Submit the exact part number, quantity, and application requirements to receive a formal price quote.
View product details →Festo
The Festo part number 529782 is an MS series size 6 proportional standard mist lubricator featuring an 80 cm3 maximum oil capacity and an integrated metal shell bowl guard. This component operates within a working pressure range of 1 to 16 bar, requiring a minimum flow rate of 50 l/min and delivering a standard nominal flow rate of 2,500 l/min using compressed air or inert gases. Weighing 810 g with G1/4 pneumatic connection ports, it accommodates vertical assembly within +/- 5° and optional line or accessory mounting. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 529780 is a proportional standard mist lubricator of the MS series, size 6, featuring a maximum oil capacity of 75 cm3 and an integrated plastic bowl guard. Operating within a working pressure range of 1 to 16 bar, this unit supports a standard nominal flow rate of 2,500 l/min and a minimum flow rate of 50 l/min for lubricator function using compressed air per ISO 8573-1:2010 [7:4:4] or inert gases. Weighing 600 g with G1/4 pneumatic connection ports and CRC 2 corrosion resistance, it is designed for vertical assembly within +/- 5° via optional line installation or accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 529778 is an industrial proportional standard mist lubricator of the MS series, size 6, featuring a G1/2 pneumatic connection and an integrated metal shell bowl guard. Designed for a working pressure range of 1 to 16 bar and a standard nominal flow rate of 7,200 l/min with a minimum flow rate of 50 l/min for lubricator function, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] or inert gases using ISO VG 32 oil up to an 80 cm3 max capacity. This RoHS-conforming component weighs 810 g, has a CRC rating of 2, operates and stores within a -10 to 60 °C temperature range, and allows vertical +/- 5° assembly via line installation or optional accessories. Submit your exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

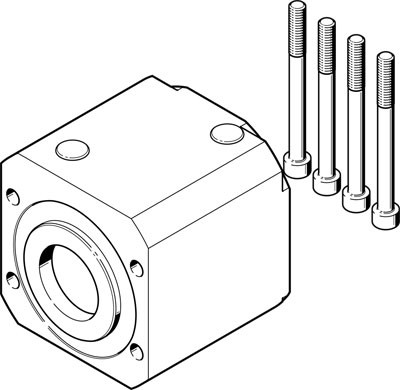

The Festo 530470 is an industrial component featuring an H40 actuator interface code and coupling housing interface codes 118A, 118B, and 118C, with materials that conform to RoHS. It operates within an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity of 0 to 95%, supporting any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 530469 is an industrial component featuring an actuator interface code of F32 and a coupling housing interface code of 64A. This part accommodates any assembly position and operates within an ambient temperature range of -10 to 60 °C, a storage temperature range of -25 to 60 °C, and a relative air humidity of 0 to 95 %. Constructed with materials that conform to RoHS, this unit meets specific regulatory standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

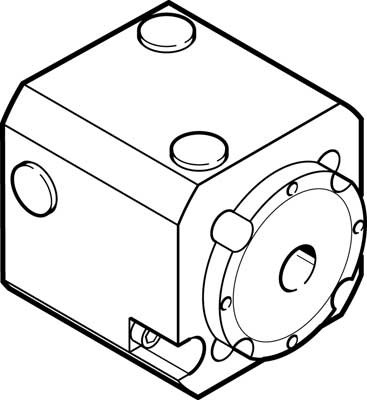

The Festo 530468 is an industrial component featuring an actuator interface code of F28 and a coupling housing interface code of 44A with an assembly position rated for any orientation. This RoHS-compliant part operates within an ambient temperature range of -10 to 60 °C, supports a storage temperature of -25 to 60 °C, and tolerates relative air humidity levels from 0 to 95 percent. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

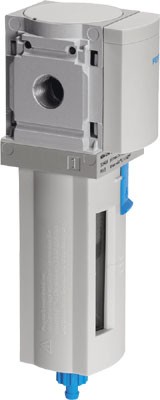

The Festo part number 529686 is an active carbon filter from the MS series, size 6, featuring a metal bowl guard and an aluminum die cast housing with G1/4 pneumatic connections. This component delivers an air purity class of 1.7.1 per DIN ISO 8573-1, achieving a residual oil content of 0.003 mg/m3 at a standard nominal flow rate of 700 l/min using filtered, unlubricated compressed air with 0.01 µm filtration. Operating within a medium temperature range of 5 to 30 °C and an inlet pressure of 0 to 20 bar, the unit weighs 820 g, includes copper- and PTFE-free materials, and is designed for vertical assembly within plus or minus 5 degrees via line installation or optional accessories. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 530394 is a Bourdon-tube pressure gauge conforming to EN 837-1 standards with a nominal size of 63 and a 0 to 232 psi indicating range. This line installation component features an ABS housing in black, a PMMA viewing window, a central rear NPT1/4-18 pneumatic connection, and brass materials in contact with media for operation within neutral fluids and inert gases. It operates across ambient and medium temperatures of -20 to 60 °C with an accuracy class of 2.5, an alternating load factor of 0.66, and IP43 protection. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo 530393 is a Bourdon-tube pressure gauge featuring a nominal size of 63 and a central rear-side NPT1/4-18 pneumatic connection for line installation. Built with an ABS housing, PMMA viewing window, and brass media-contacting components, it operates within an indicating and working pressure range of 0 to 145 psi. This EN 837-1 compliant component delivers a measurement accuracy class of 2,5 with an IP43 protection class across medium and ambient temperatures of -20 to 60 °C for neutral fluids and inert gases. Submit the exact part number, quantity, and application requirements to receive a quote.
