Festo
The Festo 34712 is a double-acting industrial component featuring a 320 mm stroke, a 20 mm piston diameter, an M8 piston rod thread, and a single-ended piston rod design conforming to CETOP RP 52 P and ISO 6432 standards. Operating at working pressures from 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], this unit delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 15 mm cushioning length, 0.2 J impact energy in end positions, and a CRC 2 moderate corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo QM-1/8-A/I sleeve features a wrought aluminum alloy construction with an anodized finish and a total product weight of 7 grams. This industrial component is equipped with G1/8 pneumatic connections for port 1 and port 2 while conforming to RoHS materials standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 34711 is a double-acting industrial component featuring a 25 mm piston diameter and a 320 mm stroke, operating via compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar. Conforming to CETOP RP 52 P and ISO 6432 standards, this unit incorporates flexible cushioning rings at both ends, an M10x1,25 male piston-rod end, and a CRC 2 corrosion resistance classification for moderate stress environments. It delivers theoretical forces of 294.5 N on advance stroke and 247.4 N on return stroke at 6 bar, while functioning within an ambient temperature range of -20 to 80 °C. Submit part number 34711 along with your required quantity and application specifications to receive a formal quotation.
View product details →Festo

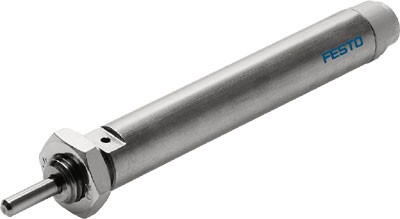

The Festo part number 3617 is a single-acting industrial component featuring a 12 mm piston diameter, a 10 mm stroke, and a single-ended piston rod operating via a pushing action. It operates within a working pressure range of 2 to 8 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4], delivering a theoretical force of 68 N during the advance stroke at 6 bar. Designed without cushioning or position detection, this unit functions at ambient temperatures from -20 to 80 °C and utilizes a G1/8 pneumatic connection with lubricated operation possible. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo QM-M5-A/I sleeve, part number 36169, is an industrial component featuring an M5 pneumatic connection for port 1 and an M5 pneumatic connection for port 2. Constructed with a steel sleeve and built free of copper and PTFE, this component has a verified product weight of 4 g. Request a quote for this Festo part by submitting your exact part number, quantity, and application requirements.
View product details →Festo

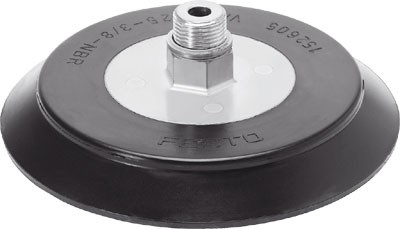

The Festo part number 36141 is a round, standard industrial component featuring a 100 mm suction cup diameter, an 85 mm effective suction diameter, and a 4 mm nominal size with a top vacuum connection. Constructed with a TPE-U(PU) suction cup of 62 Shore hardness and a zinc die-casting screw-in stud, this unit operates using atmospheric air within an ambient temperature range of -20 to 60 °C and delivers a breakaway force of 397 N at 70% vacuum via G1/4 mounting threads and a G1/4 vacuum connection. Request a quote for this specific part number by submitting your required quantity and application parameters.
View product details →Festo

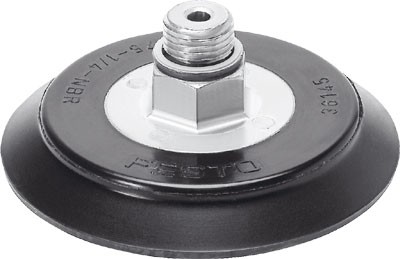

The Festo 36140 industrial component features a round, standard design structure with a nominal size of 4 mm, a suction cup diameter of 75 mm, and an effective suction diameter of 60 mm. Operating with atmospheric air across an ambient temperature range of -20 to 60 °C, this unit includes a zinc die-casting screw-in stud, a TPE-U(PU) suction cup with a 62 Shore hardness, and G1/4 threads for the vacuum connection, mounting, and suction cup mounting. It delivers a breakaway force of 197 N at 70% vacuum. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 36139 is a round, standard industrial component featuring a 55 mm suction cup diameter, a 44 mm effective suction diameter, and a 4 mm nominal size with a top vacuum connection. Constructed with a TPE-U(PU) suction cup having a 62 Shore hardness and a zinc die-casting screw-in stud, this assembly utilizes atmospheric air to deliver a breakaway force of 106 N at 70% vacuum within an ambient temperature range of -20 to 60 °C. The G1/4 mounting thread matches the G1/4 suction cup mounting and G1/4 vacuum connection specifications. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

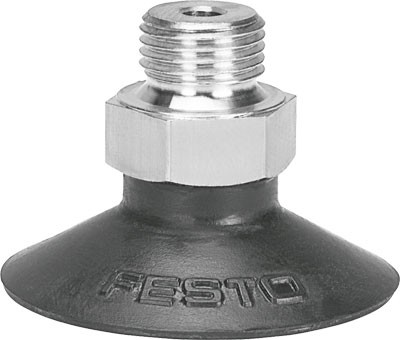

The Festo 36138 is a round, standard industrial component featuring a 40 mm suction cup diameter, a 32 mm effective suction diameter, and a 4 mm nominal size with a vacuum connection at the top. Constructed with a zinc die-casting screw-in stud and a TPE-U(PU) suction cup of 62 shore hardness, this unit operates using atmospheric air within an ambient temperature range of -20 to 60 °C and provides a breakaway force of 56 N at 70% vacuum via G1/4 mounting threads and connections. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 36137 is a round, standard industrial component featuring a 3 mm nominal size, a 30 mm suction cup diameter, and a 25 mm effective suction diameter with a top vacuum connection. Constructed with a zinc die-casting screw-in stud and a TPE-U(PU) suction cup of 62 Shore hardness, this assembly operates using atmospheric air within an ambient temperature range of -20 to 60 °C and delivers a breakaway force of 34 N at 70% vacuum via G1/8 mounting threads and vacuum connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 36136 is an industrial component featuring a round, standard suction cup with a 15 mm diameter, a 12 mm effective suction diameter, and a 3 mm nominal size utilizing a top vacuum connection. Constructed with a TPE-U(PU) suction cup of 62 Shore hardness and a zinc die-casting screw-in stud, this assembly operates on atmospheric air across an ambient temperature range of -20 to 60 °C while delivering a breakaway force of 7.9 N at 70% vacuum through G1/8 mounting threads, suction cup mounting, and vacuum connections. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 36135 is a round, standard industrial component featuring a 2 mm nominal size, an 8 mm suction cup diameter, and a 5.5 mm effective suction diameter with a top vacuum connection. Constructed with a brass screw-in stud and a TPE-U(PU) suction cup with a 62 Shore hardness, this assembly operates using atmospheric air within an ambient temperature range of -20 to 60 °C. It provides a breakaway force of 1.6 N at 70% vacuum and utilizes an M5 mounting thread, M5 suction cup mounting, and an M5 vacuum connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

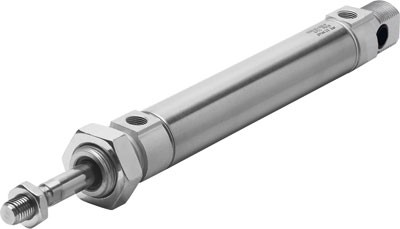

The Festo 34710 is a double-acting industrial component featuring a 20 mm piston diameter, a 320 mm stroke, and an M8 male piston rod thread designed with a single-ended piston rod structure. Conforming to CETOP RP 52 P and ISO 6432 standards, this unit operates within a 1 to 10 bar pressure range using compressed air in accordance with ISO 8573-1:2010 [7:4:4] and includes flexible cushioning rings at both ends. It delivers a theoretical force of 188.5 N on the advance stroke and 158.3 N on the return stroke at 6 bar, while functioning across an ambient temperature range of -20 to 80 °C with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

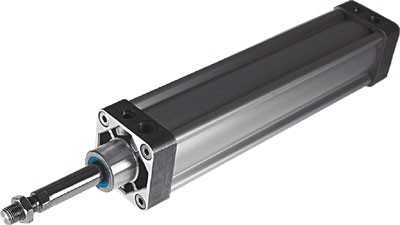

The Festo 34709 is a double-acting industrial component featuring a 100 mm piston diameter, a 320 mm stroke, and an M20x1,5 male piston rod thread conforming to ISO 6431. Designed with a single-ended piston rod and position detection for proximity sensors, it operates on dried compressed air within a 0.2 to 12 bar pressure range and an ambient temperature span of -20 to 80 °C. It provides adjustable pneumatic cushioning at both ends across a 30 mm cushioning length, delivering a theoretical force of 4,496 N on the advance stroke and 4,221 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo part number 34708 is a double-acting industrial component featuring an 80 mm piston diameter, a 320 mm stroke, and a single-ended piston rod with an M20x1,5 male thread. It operates at pressures from 0.3 to 12 bar utilizing dried compressed air, delivering a theoretical force of 2,908 N on the advance stroke and 2,615 N on the return stroke at 6 bar. Constructed to ISO 6431 standards with adjustable pneumatic cushioning at both ends, a 30 mm cushioning length, and Germanischer Lloyd authorization, this unit supports any assembly position and includes position detection for a proximity sensor. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 34707 is a double-acting industrial component featuring a 63 mm piston diameter and a 320 mm stroke, conforming to ISO 6431 standards with a single-ended male threaded piston rod in M16x1,5. It operates within a pressure range of 0.4 to 12 bar using dried compressed air and incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length. This unit delivers a theoretical force of 1,761 N on the advance stroke and 1,601 N on the return stroke at 6 bar, functioning across an ambient temperature range of -20 to 80 °C with CRC 2 corrosion resistance and Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 34706 is a double-acting industrial component featuring a 50 mm piston diameter, a 320 mm stroke, and an M16x1,5 male piston-rod thread. Built with a single-ended piston rod and conforming to ISO 6431, this unit operates within a 0.5 to 12 bar pressure range using dried compressed air and incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length. It provides a theoretical force of 1,131 N on the advance stroke and 924 N on the return stroke at 6 bar, while achieving a CRC 2 corrosion resistance classification across an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 34705 is a double-acting industrial component featuring a 40 mm piston diameter, a 320 mm stroke, and a single-ended piston rod with an M12x1,25 male thread conforming to ISO 6431. Operating within a pressure range of 0.6 to 12 bar using dried compressed air, this unit delivers theoretical forces of 715 N on the advance stroke and 586 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 21 mm cushioning length, position detection for proximity sensors, and a corrosion resistance classification of CRC 2 for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo

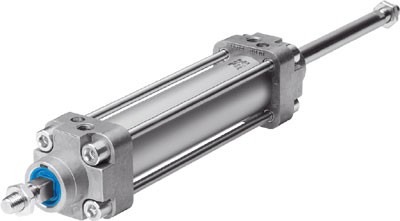

The Festo part number 35343 is a double-acting industrial component featuring a 100 mm piston diameter, an M20x1,5 male piston-rod thread, and a stroke length adjustable from 1 to 2,000 mm based on ISO 15552. Built with a square piston rod for torque protection and a through piston rod variant, this unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] at working pressures between 0.6 and 12 bar, delivering a theoretical force of 4,418 N at 6 bar for both advance and return strokes. It incorporates adjustable pneumatic cushioning at both ends with a 30 mm cushioning length, operates in ambient temperatures from -20 to 80 °C, and includes position detection for proximity sensors with a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

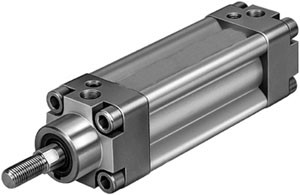

The Festo 34704 is a double-acting industrial component featuring a 32 mm piston diameter, a 320 mm stroke, and an M10x1,25 male piston-rod end. Conforming to ISO 6431, this single-ended piston rod unit operates within a 0.6 to 12 bar pressure range using dried compressed air and incorporates adjustable pneumatic cushioning at both ends with a 19 mm cushioning length. It delivers a theoretical force of 462 N on the advance stroke and 393 N on the return stroke at 6 bar, while supporting any assembly position and position detection via proximity sensor within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
