Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 35342 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1,5 male piston rod thread, and a square piston rod for torque protection and guidance. Built on the ISO 15552 standard, this unit operates with compressed air at a working pressure of 0.6 to 12 bar and delivers a theoretical force of 2,721 N at 6 bar for both advance and return strokes. It incorporates adjustable pneumatic cushioning at both ends over a 30 mm cushioning length, accommodates position detection via proximity sensors, and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 35341 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 male piston rod thread, and a stroke length adjustable from 1 to 2,000 mm based on ISO 15552. Designed with a square piston rod for torque protection, this model operates on compressed air according to ISO 8573-1:2010 [7:4:4] at working pressures between 0.6 and 12 bar, delivering a theoretical force of 1,682 N on both advance and return strokes at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →Festo

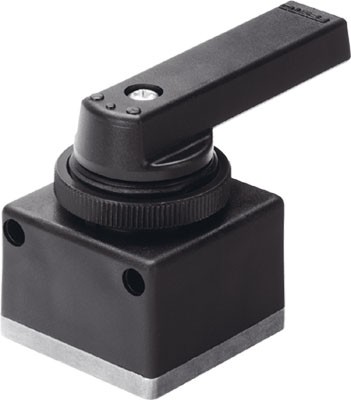

The Festo part number 34639 is a rotary slide valve featuring a 3.6 mm nominal size and three M5 pneumatic connection ports. Constructed with a plastic housing and NBR seals, this component supports a standard nominal flow rate of 130 l/min across an operating pressure range of -0.95 to 10 bar. It weighs 0.035 kg, requires an actuation torque of 0.3 Nm, and is configured for front panel installation within a medium and ambient temperature range of -20 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 35340 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke length from 1 to 2,000 mm, and a square piston rod with an M16x1,5 male thread that provides torque protection and guidance. Built on the ISO 15552 standard, this unit operates with compressed air according to ISO 8573-1:2010 [7:4:4] at working pressures between 0.6 and 12 bar, delivering a theoretical force of 990 N on both advance and return strokes at 6 bar. It incorporates dual-end adjustable pneumatic cushioning (PPV) over a 23 mm cushioning length, position detection for proximity sensors, and a corrosion resistance classification of CRC 2 for ambient temperatures ranging from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 35339 is a double-acting industrial component featuring a 40 mm piston diameter, an M12x1,25 piston rod thread, and a stroke range from 1 to 2,000 mm based on ISO 15552. Built with a square piston rod for torque protection and a through piston rod design, this unit operates on compressed air within a 0.6 to 12 bar working pressure and includes adjustable pneumatic cushioning at both ends. It achieves a theoretical force of 633 N on both advance and return strokes at 6 bar and functions in ambient temperatures from -20 to 80 °C with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo blanking plate IAP-04-D-3 is an industrial component operating at a working pressure range of -0.9 to 16 bar. This unit features PWIS conformity according to VDMA24364-B2-L and includes a materials note confirming RoHS compliance based on the official Festo data sheet. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

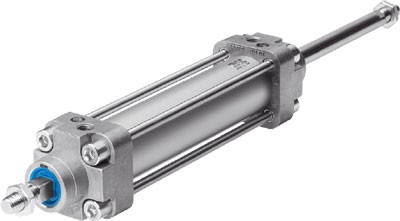

The Festo 35338 is a double-acting industrial component with a 32 mm piston diameter, an adjustable stroke from 1 to 2,000 mm, and a square piston rod featuring an M10x1,25 male thread for torque protection. Built in accordance with ISO 15552, it operates at a working pressure of 0.6 to 12 bar using compressed air according to ISO 8573-1:2010 [7:4:4] across an ambient temperature range of -20 to 80 °C. This unit incorporates adjustable pneumatic cushioning at both ends with a 19 mm cushioning length, position detection for proximity sensors, and a corrosion resistance classification of CRC 2. Submit part number 35338, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo blanking plate IAP-04-D-2 is an industrial component supporting a working pressure range of -0.9 to 16 bar. Materials used in this official Festo part conform to RoHS standards according to the official data sheet. Request a formal quote for part number 36111 by submitting your exact quantity and application requirements.
View product details →Festo
This Festo 34633 industrial component is a double-acting piston and piston-rod design featuring a 200 mm piston diameter, an M36x2 male piston rod thread, and an adjustable stroke ranging from 1 to 2,000 mm. Operating within a 0.6 to 10 bar working pressure range using compressed air compliant with ISO 8573-1:2010 [7:4:4], the unit delivers a theoretical force of 18,096 N at 6 bar for both advance and return strokes. It conforms to ISO 15552 standards, incorporates adjustable pneumatic cushioning at both ends with a 50 mm cushioning length, and includes provisions for position detection via proximity sensor across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 34632 is a double-acting industrial component featuring a 160 mm piston diameter, an M36x2 male piston rod thread, and a stroke length ranging from 1 to 2,000 mm. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] at working pressures between 0.6 and 10 bar, this unit conforms to ISO 15552 and delivers a theoretical force of 11,310 N on both advance and return strokes at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 40 mm cushioning length, provision for proximity sensors, and a corrosion resistance classification of CRC 2 for ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 34631 is a double-acting industrial component featuring a 125 mm piston diameter, an M27x2 male piston-rod thread, and a stroke length adjustable from 1 to 500 mm. Built with a through piston rod and an ISO 15552 conforming design, it operates on compressed air within a 0.6 to 12 bar working pressure range and includes adjustable pneumatic cushioning at both ends. This unit accommodates position detection via proximity sensor, functions in ambient temperatures from -20 to 80 °C, and delivers a theoretical force of 6,881 N at 6 bar for both advance and return strokes. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo

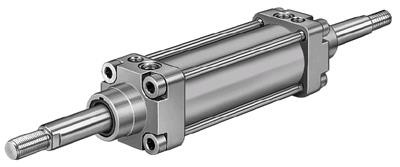

The Festo part number 34630 is a double-acting industrial component featuring a 100 mm piston diameter, an M20x1,5 male piston-rod thread, and a stroke ranging from 1 to 2,000 mm. Built with a piston and through piston rod design structure, this unit conforms to ISO 15552 standards and incorporates adjustable PPV pneumatic cushioning at both ends with a 30 mm cushioning length. It operates within a working pressure range of 0.6 to 12 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 4,418 N at 6 bar for both advance and return strokes. The assembly supports any mounting position, includes position detection for proximity sensors, and features a Germanischer Lloyd authorization alongside a corrosion resistance classification CRC of 2 for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 34629 is a double-acting industrial component featuring an 80 mm piston diameter, an M20x1,5 male piston-rod thread, and a stroke range from 1 to 2,000 mm with through piston rod variants. Operating within a 0.6 to 12 bar working pressure and -20 to 80 °C ambient temperature using ISO 8573-1:2010 [7:4:4] compressed air, it conforms to ISO 15552 and includes adjustable pneumatic cushioning at both ends with a 30 mm cushioning length. This unit delivers a theoretical force of 2,721 N at 6 bar for both advance and return strokes, provides position detection for proximity sensors, and carries Germanischer Lloyd authorization with a corrosion resistance classification CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 34628 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 male piston rod thread, and an adjustable pneumatic cushioning (PPV) at both ends with a 23 mm cushioning length. Built with a through piston rod design, this unit conforms to ISO 15552 standards, features position detection for proximity sensors, and operates within a working pressure range of 0.6 to 12 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 1,682 N for both advance and return strokes at 6 bar, holds a corrosion resistance classification CRC of 2, carries Germanischer Lloyd authorization, and functions in ambient temperatures from -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 34627 is a double-acting industrial component featuring a 50 mm piston diameter, an M16x1,5 male piston rod thread, and a variable stroke ranging from 1 to 2,000 mm. Built with adjustable pneumatic cushioning at both ends (PPV) and a 23 mm cushioning length, this ISO 15552 conforming unit operates on compressed air from 0.6 to 12 bar within ambient temperatures of -20 to 80 °C. It delivers a theoretical force of 990 N for both advance and return strokes at 6 bar and includes position detection capabilities for proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

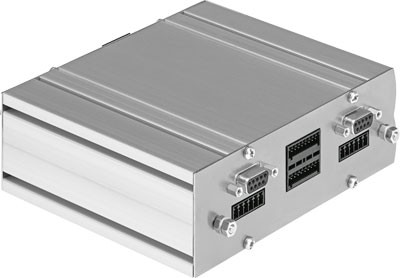

The Festo industrial component 3605478 operates with a nominal DC voltage of 24 V for the logic power supply and features one CANopen Slave fieldbus coupling with a 9-pin Sub-D bus connection. This unit weighs 700 g, achieves an IP20 protection class, supports H-rail mounting with accessories or screw mounting in slots, and functions within an ambient temperature range of 0 to 50 °C. It includes eight digital logic inputs and five 24 V DC digital logic outputs available exclusively in I/O mode, operating via direct mode or set selection for 31 process interface records. Certified by TÜV Rheinland and carrying the RCM Mark, the device complies with EU-EMV and EU machines guidelines while conforming to RoHS and VDMA24364-B2-L PWIS standards. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo part number 34626 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable 1 to 500 mm stroke, and a male M12x1,25 piston rod thread with a through piston rod design. Conforming to ISO 15552 standards, this unit operates with compressed air at a working pressure of 0.6 to 12 bar, incorporates adjustable pneumatic cushioning at both ends (PPV), and supports position detection via proximity sensors across an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 633 N for both advance and return strokes at 6 bar, carries a Germanischer Lloyd authorization, and features a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

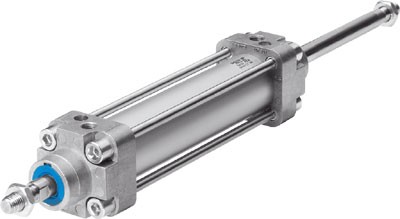

The Festo 34625 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable PPV pneumatic cushioning at both ends, and a stroke range of 1 to 500 mm with an M10x1,25 male piston rod thread. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 0.6 to 12 bar working pressure range, this unit conforms to ISO 15552 and delivers a theoretical force of 415 N at 6 bar for both advance and return strokes. It includes position detection for proximity sensors, accommodates any assembly position, operates in ambient temperatures from -20 to 80 °C, and holds Germanischer Lloyd authorization with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo central mounting ZBRQ-32 is an industrial component featuring an assembly position of any and a corrosion resistance classification CRC of 2. Built with materials free of copper and PTFE, this official Festo part meets precise manufacturing specifications. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo central mounting ZBRQ-25 is an industrial component featuring an assembly position of any and a corrosion resistance classification CRC of 2. Its materials note specifies that the part is free of copper and PTFE. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
