Festo
This Festo industrial component (Part Number 34264) is a double-acting pneumatic cylinder with a 5/8" piston diameter, an adjustable stroke length from 10 to 200 mm, and ISO 6432 compliance. Operating within a 1 to 10 bar pressure range and an ambient temperature of -20 to 80 °C, the unit delivers 103.7 N of theoretical force during both advance and return strokes at 6 bar. The assembly features a wrought aluminum alloy cover, non-corrosive high alloy steel housing and piston rod, NBR and TPE-U(PU) seals, adjustable pneumatic cushioning at both ends (PPV), and an M16x1,5 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

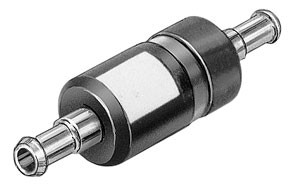

The Festo pressure indicator OHI-PK-3, part number 32608, operates within a working pressure range of 1 to 8 bar. This industrial component utilizes a pneumatic connection featuring a barbed fitting PK-3. Its operating medium accommodates filtered, unlubricated compressed air as well as filtered, lubricated air. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

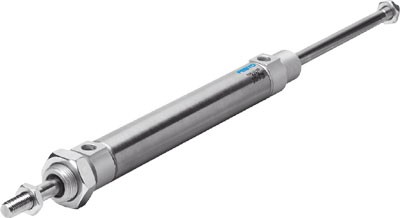

The Festo part number 34263 is a double-acting industrial component with a 1" piston diameter and a stroke length ranging from 10 to 500 mm, manufactured in accordance with the ISO 6432 standard. It operates at pressures between 1 and 10 bar using dried compressed air, delivering a theoretical force of 247.4 N on both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover, a non-corrosive high alloy steel housing and piston rod, and NBR and TPE-U seals, this unit features flexible cushioning rings or plates at both ends and an M22x1,5 pneumatic connection within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 32484 is a double-acting industrial component featuring a 100 mm piston diameter, a 500 mm stroke, and an M20x1,5 male piston-rod thread conforming to ISO 6431. Designed with adjustable pneumatic cushioning at both ends (PPV), a 30 mm cushioning length, and position detection capabilities for proximity sensors, this unit operates on dried compressed air between 0.2 and 12 bar across a -20 to 80 °C ambient temperature range. It delivers a theoretical force of 4,496 N on the advance stroke and 4,221 N on the return stroke at 6 bar, with a CRC 2 corrosion resistance classification, Germanischer Lloyd authorization, and any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 34262 is a double-acting industrial component featuring a 3/4" piston diameter, an adjustable stroke ranging from 10 to 320 mm, and a male thread piston-rod end built to ISO 6432 standards. Operating at pressures between 1 and 10 bar using dried compressed air, this unit achieves a theoretical force of 158.3 N on both advance and return strokes at 6 bar while utilizing flexible cushioning rings or plates at both ends. Its construction includes a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and NBR and TPE-U(PU) seals providing a CRC 2 corrosion resistance classification across an ambient temperature range of -20 to 80 °C through an M22x1,5 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 32483 is a double-acting industrial component featuring a 100 mm piston diameter and a 400 mm stroke, conforming to ISO 6431 standards. This unit includes an M20x1,5 male piston-rod end, adjustable pneumatic cushioning at both ends, and position detection capabilities for proximity sensors. Operating within a pressure range of 0.2 to 12 bar and temperatures from -20 to 80 °C, it delivers a theoretical force of 4,496 N on the advance stroke and 4,221 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 34261 is a double-acting industrial component with a 5/8" piston diameter and a stroke length of 10 to 200 mm based on ISO 6432. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminium alloy covers, and NBR and TPE-U(PU) seals, it operates within a pressure range of 1.1 to 10 bar and temperatures from -20 to 80 °C using dried compressed air. This unit features flexible cushioning rings or plates at both ends, a male piston-rod end, an M16x1,5 pneumatic connection, and delivers a theoretical force of 103.7 N during both advance and return strokes at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 32482 is a double-acting industrial component featuring an 80 mm piston diameter, a 500 mm stroke, and an M20x1,5 male piston-rod thread conforming to ISO 6431. This single-ended piston rod design operates within a 0.3 to 12 bar pressure range using dried compressed air, delivering a theoretical force of 2,908 N on the advance stroke and 2,615 N on the return stroke at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 30 mm cushioning length, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 34260 is a double-acting industrial component based on the ISO 6432 standard, featuring a 1/2" piston diameter and a stroke length ranging from 10 to 200 mm. Built with a non-corrosive high alloy steel housing and piston rod, wrought aluminium alloy covers, and NBR and TPE-U(PU) seals, this unit operates on dried compressed air at pressures from 1 to 10 bar across ambient temperatures of -20 to 80 °C. It utilizes flexible cushioning rings or plates at both ends (P), an M16x1,5 pneumatic connection, a male thread piston-rod end, and delivers a theoretical force of 50.9 N for both the advance and return strokes at 6 bar with a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 32481 is a double-acting industrial component featuring an 80 mm piston diameter, a 400 mm stroke, and a male M20x1,5 piston rod thread conforming to ISO 6431. Designed with adjustable pneumatic cushioning at both ends (PPV), a cushioning length of 30 mm, and position detection for proximity sensors, this unit operates on dried compressed air within a 0.3 to 12 bar pressure range and a -20 to 80 °C ambient temperature range. It delivers a theoretical force of 2,908 N on the advance stroke and 2,615 N on the return stroke at 6 bar, while carrying a CRC 2 corrosion resistance classification and Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
This Festo industrial component, part number 34259, is a double-acting pneumatic cylinder with a 3/8" piston diameter and an adjustable stroke ranging from 10 to 100 mm based on ISO 6432. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, it operates between 1 and 10 bar using dried compressed air and achieves a theoretical force of 39.6 N for both advance and return strokes at 6 bar. The unit features flexible cushioning rings or plates at both ends (P), an M12x1,25 pneumatic connection, a male thread piston-rod end, a CRC 2 corrosion resistance classification, and an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

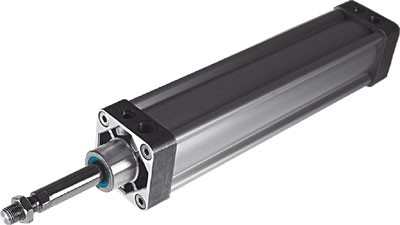

The Festo 32480 is a double-acting industrial component featuring a 63 mm piston diameter, a 500 mm stroke, and an M16x1,5 male piston-rod thread. Built to ISO 6431 standards with a single-ended piston rod design and adjustable pneumatic cushioning at both ends, this unit operates between 0.4 and 12 bar using dried compressed air. It delivers a theoretical force of 1,761 N on the advance stroke and 1,601 N on the return stroke at 6 bar, while accommodating ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 34258 is a double-acting industrial component based on the ISO 6432 standard, featuring a 5/16" piston diameter and an adjustable stroke length from 10 to 100 mm. Operating on dried compressed air at pressures between 1 and 10 bar, this unit delivers a theoretical force of 22.6 N on both advance and return strokes at 6 bar. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and NBR and TPE-U(PU) seals, it incorporates flexible cushioning rings at both ends and an M12x1,25 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 32479 is a double-acting industrial component featuring a 63 mm piston diameter and a 400 mm stroke with a single-ended male M16x1,5 piston rod thread. Conforming to ISO 6431, this unit operates between 0.4 and 12 bar using dried compressed air and incorporates adjustable pneumatic cushioning at both ends with a 23 mm cushioning length. It delivers a theoretical force of 1,761 N on the advance stroke and 1,601 N on the return stroke at 6 bar, while supporting position detection for proximity sensors across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 32478 is a double-acting industrial component featuring a 50 mm piston diameter, a 500 mm stroke, and an M16x1,5 male piston-rod thread conforming to ISO 6431. Designed with a single-ended piston rod, position detection for proximity sensors, and adjustable pneumatic cushioning at both ends (PPV), this unit operates within a 0.5 to 12 bar pressure range and an ambient temperature of -20 to 80 °C using dried compressed air. It delivers a theoretical force of 1,131 N on the advance stroke and 924 N on the return stroke at 6 bar, with a CRC 2 corrosion resistance classification and Germanischer Lloyd authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 32477 is a double-acting industrial component featuring a 50 mm piston diameter, a 400 mm stroke, and an M16x1,5 male piston rod thread conforming to ISO 6431. This single-ended piston rod unit operates within a pressure range of 0.5 to 12 bar using dried compressed air, delivering a theoretical force of 1,131 N on the advance stroke and 924 N on the return stroke at 6 bar. Equipped with adjustable pneumatic cushioning at both ends (PPV) and position detection for proximity sensors, it functions in any assembly position across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo

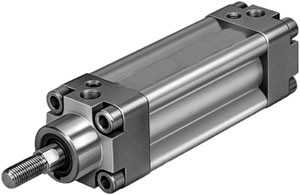

The Festo 32476 is a double-acting industrial component featuring a 40 mm piston diameter, a 500 mm stroke, and a male M12x1,25 piston-rod end configured as a single-ended piston rod. Built to ISO 6431 standards with Germanischer Lloyd authorization, this unit operates on dried compressed air within a 0.6 to 12 bar pressure range and a -20 to 80 °C ambient temperature span. It incorporates adjustable pneumatic cushioning at both ends with a 21 mm cushioning length, position detection for proximity sensors, and a CRC 2 corrosion resistance classification, delivering a theoretical force of 715 N on the advance stroke and 586 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

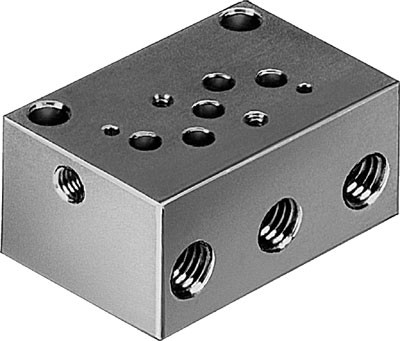

This Festo industrial component, part number 34352, features a subbase constructed from aluminum with a product weight of 15 g and incorporates mounting via a through hole. Pneumatic connections include port 5 M5 alongside pilot exhaust ports 82 and 84 featuring M3 specifications. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 32475 is a double-acting industrial component featuring a 40 mm piston diameter, a 400 mm stroke, and an M12x1,25 male piston rod thread conforming to ISO 6431. Operating within a pressure range of 0.6 to 12 bar on dried compressed air, this single-ended piston rod unit delivers a theoretical return force of 586 N and an advance force of 715 N at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 21 mm cushioning length, position detection for proximity sensors, and a CRC 2 corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo

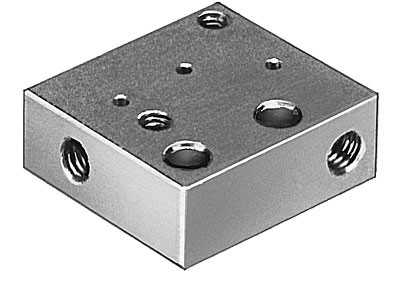

This Festo industrial component, part number 34351, features a subbase constructed from aluminum and weighs 17 g. It includes a pilot exhaust port 82 of M3, a pneumatic connection port 3 of M5, and is configured for mounting with a through hole. Submit the exact part number, quantity, and application requirements for a quote.
