Festo

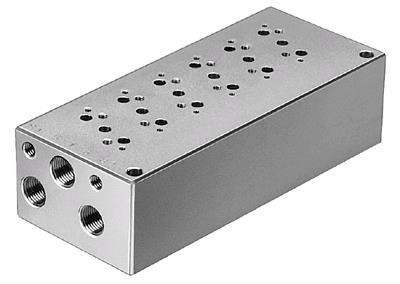

The Festo connector block PRS-M5-5, part number 34328, is an industrial component designed with a maximum number of valve positions of 5. This official Festo specification is detailed within the EN-US data sheet. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

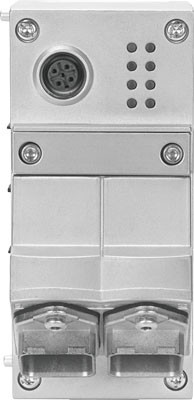

The Festo part number 3228960 is an industrial component featuring dimensions of 50 mm x 107 mm x 80 mm including the interlinking block, a product weight of 280 g, and an IP65 and IP67 protection class rating. Operating on a nominal DC voltage of 24 V within a range of 18 to 30 V, it provides a 100 Mbit/s baud rate, PROFINET RT protocol support via an SCRJ push-pull AIDA fieldbus interface, and maximum address volumes of 64 Byte for both inputs and outputs. Additional features include channel and module-oriented diagnostics, acyclic data access, Fast Start Up, DIL switches, an optional memory card, and bus-specific LED displays. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

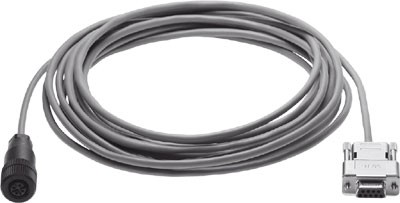

The Festo 30437 industrial component features an any assembly position and operates at an AC voltage range of 300 V or less with an ambient temperature tolerance between -30 and 80 °C. Weighing 210 g, this unit utilizes a 5-pin M12x1 to 25-pin Sub-D straight socket electrical connection, a 5 m cable length with a 4.5 to 6.5 mm diameter, and a 4 x 0.14 mm² cable structure. The assembly includes a PBT housing, nickel-plated brass locknut, gold-plated copper alloy crimp connectors, and PUR cable sheaths, supporting mounting via a sleeve nut or clip. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 2942266 is an object vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps. Operating at a distance ranging from 30 mm to infinite with a focal depth of 12 mm, this unit integrates infrared and LED lighting at an 880 nm wavelength alongside a built-in optical lens attachment with adjustable focus. It supports a maximum of 8 test programs and 32 test criteria, utilizing detectors for position tracking via contour, pattern matching, contour matching, contrast, brightness, and grey value threshold with cycle times between 2 ms and 30 ms. Featuring an M12 4-pin socket for Ethernet connectivity, the sensor carries CE-EMV, KC-EMV, RCM, and c UL us - Listed (OL) authorizations. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2942265 is a monochrome object sensor featuring a 736 x 480 pixel WideVGA resolution, an integrated infrared LED lighting type with an 880 nm wavelength, and a focal depth of 6 mm with an operating distance ranging from 6 mm to infinity. It supports up to 8 test programs and 32 test criteria, executing detector functions such as position tracking via contour, pattern matching, contour matching, contrast, brightness, and grey value threshold with an image rate of 50 fps. Connectivity is provided via an M12 4-pin socket for Ethernet, and the unit holds c UL us Listed (OL), RCM, and KC-EMV authorizations while complying with the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo blanking plate, part number 30430, is designated as model IAP-04-D-1 within the official documentation. This industrial component operates within a working pressure range of -0.9 to 16 bar and features materials conforming to RoHS standards. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 30429 is an industrial component featuring a width of 64 mm and a working pressure range of -0.9 to 16 bar. It operates with compressed air in accordance with ISO8573-1:2010 [7:-:-] within a medium and ambient temperature range of -10 to 60 °C. The unit includes a threaded subbase mounting method, an auxiliary pilot air port 12/14 utilizing NPT1/8-27, and a pneumatic connection port 5 using NPT1/2-14, backed by a UL Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2942262 is an object vision sensor featuring an integrated white LED lighting type and a monochrome sensor resolution of 736 x 480 pixels operating at 50 fps. It provides an operating distance from 30 mm to infinite, a 12 mm focal depth, and a minimum field of vision of 8 x 6 mm with adjustable focus via adjusting screw and built-in optical devices lens attachment. This component supports up to 8 test programs and 32 test criteria for functions including position tracking via contour, pattern matching, contour matching, contrast, brightness, and grey value threshold, with Ethernet connection technology via a 4-pin M12 socket at 100 Mbit/s data transmission speed. It complies with the EU-EMV guideline, KC-EMV, RCM Mark, and c UL us - Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 30428 is an industrial component featuring an aluminum die-cast subbase with a width of 149 mm, designed for mounting with a through hole. It operates with a working pressure range of -0.9 to 16 bar across a medium and ambient temperature range of -10 to 60 °C, utilizing compressed air in accordance with ISO8573-1:2010 [7:-:-]. This unit includes NPT1/2-14 pneumatic connections at port 5, NPT1/8-27 auxiliary pilot air ports 12/14, and holds UL - Recognized (OL) authorization. Please submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 2942261 is an object sensor vision sensor featuring a WideVGA monochrome sensor resolution of 736 x 480 pixels and an image rate of 50 fps. This industrial component utilizes built-in optical devices with an adjustable focal depth of 6 mm, operating distances ranging from 6 mm to infinite, and an integrated white LED lighting type. It supports up to 8 test programs and 32 test criteria, executing detector functions such as position tracking, pattern matching, contour matching, contrast, brightness, and grey value thresholds with a 100 Mbit/s M12 4-pin Ethernet connection. Certifications include the CE symbol according to the EU-EMV guideline, KC-EMV mark, RCM Mark, and c UL us - Listed (OL) authorization. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 30424 is an industrial component designed in accordance with the ISO 5599-2 standard, featuring a maximum of one valve position and aluminum die-cast subbase construction. It operates with filtered compressed air at a working pressure ranging from -0.9 to 16 bar and medium and ambient temperatures between -10 and 60 °C. This UL-recognized unit utilizes a 5 G1/2 pneumatic connection port and mounts via through holes on the subbase. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 2930243 is a code reader vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps. Equipped with an integrated white LED lighting type, built-in optical devices, and a focal depth of 12 mm, this unit supports an operating distance from 30 mm to infinite with a minimum field of vision of 8 x 6 mm. It processes up to 8 test programs and 2 test criteria with detector functions for various 1D barcodes and 2D codes, achieving a typical cycle time of 30 ms for 1D-barcodes and 40 ms for 2D-codes. Communication occurs via a 4-pin M12 Ethernet socket with a data transmission speed of 100 Mbit/s, and the component complies with EU-EMV and KC-EMV guidelines while carrying RCM and c UL us - Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 2930242 is a code reader vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps, utilizing an integrated white LED lighting type. Operating with a focal depth of 6 mm, a field of vision of min. 5 x 4 mm, and an operating distance ranging from 6 mm to infinity, it supports up to 8 test programs and 2 test criteria for detectors including EAN, UPC, RSS, 2/5 Interleaved, 2/5 Industrial, Code 39, Code 93, Code 128, GS1, Pharmacode, Codabar, ECC200, QR-Code, and PDF 417. This component includes built-in optical devices with an adjustable focus screw, a 4-pin M12 Ethernet socket providing 100 Mbit/s data transmission, and achieves typical cycle times of 30 ms for 1D barcodes and 40 ms for 2D codes, backed by CE, KC, RCM, and c UL us - Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

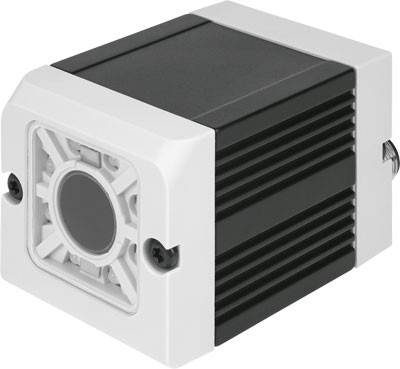

The Festo 2930241 is an industrial vision sensor code reader featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps. Equipped with an integrated infrared LED lighting type, built-in optical devices, and an adjustable 12 mm focal depth, it operates from 30 mm to infinite distance and reads 1D and 2D codes with typical cycle times of 30 ms and 40 ms respectively. Communication occurs via a 4-pin M12 socket Ethernet connection supporting a 100 Mbit/s data transmission speed, while compliance is backed by CE, KC-EMV, RCM, and c UL us-Listed (OL) authorizations. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

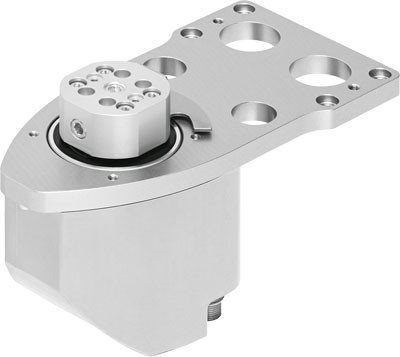

This Festo electro-mechanical rotary module with air through-feed, part number 3385154, features size 11 architecture, a 30:1 gear unit ratio, and endless rotation with a repetition accuracy of ±0,01°. Operating on a nominal voltage of 230 V AC, the integrated servomotor delivers 22.1 W of nominal power, 0.74 A nominal current, 1.5 A peak current, 1.8 Nm nominal torque, and a maximum output speed of 200 1/min alongside a maximum static pull-out torque of 40 Nm. The unit supports a 100% duty cycle in any assembly position while accommodating a working pressure range of -0.9 to 10 bar, a standard nominal flow rate of 350 l/min, and a max axial force of 300 N within its 1,298 g body. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 2930240 is a code reader vision sensor featuring a WideVGA monochrome sensor resolution of 736 x 480 pixels and an image rate of 50 fps. Equipped with an integrated infrared LED lighting type, built-in optical devices, and a focal depth of 6 mm, it delivers an operating distance ranging from 6 mm to infinity with a minimum field of vision of 5 x 4 mm. It supports a maximum of 8 test programs, 2 test criteria, and processes multiple code characteristics including EAN, UPC, QR-Code, and ECC200 with typical cycle times of 30 ms for 1D barcodes and 40 ms for 2D codes. Connectivity is facilitated via a 4-pin M12 socket Ethernet interface supporting a data transmission speed of 100 Mbit/s, and the unit holds c UL us - Listed (OL), RCM, and KC-EMV authorizations alongside CE compliance under the EU-EMV guideline. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 3385153 is an electro-mechanical rotary module of size 11 featuring an integrated servomotor with a nominal motor power of 22.1 W, a nominal motor current of 0.74 A, and a peak current of 1.5 A at a nominal operating voltage of 230 V AC. This unit provides an endless rotation angle, a gear unit ratio of 30:1, a nominal torque of 1.8 Nm, a peak torque of 4.5 Nm, a max. pull-out torque static of 40 Nm, and a max. output speed of 200 1/min with a repetition accuracy of ±0,01 °. Weighing 1,298 g with an IP40 protection class, it supports any assembly position, a 100% duty cycle, a max. axial force of 300 N, and a permissible mass moment of inertia of load of 0.006 kgm2. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 2930239 is an industrial code reader vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps. Equipped with an integrated infrared LED lighting type operating at an 880 nm wavelength, this device offers an operating distance from 30 mm to infinite, a 12 mm focal depth, and manual focus setting via an adjusting screw. It supports up to 8 test programs and 2 test criteria capable of detecting EAN, UPC, RSS, 2/5 Interleaved, 2/5 Industrial, Code 39, Code 93, Code 128, GS1, Pharmacode, Codabar, ECC200, QR-Code, and PDF 417 symbologies with typical cycle times of 30 ms for 1D-barcodes and 40 ms for 2D-codes. Compliance is certified by the CE symbol according to the EU-EMV guideline, KC mark, RCM Mark, and c UL us - Listed (OL) authorization, while external communication is handled via a 4-pin M12 socket Ethernet connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo electro-mechanical rotary module with air through-feed, part number 3385152, features a size 8 design structure with an endless rotation angle and a 30:1 gear unit ratio. This unit operates on a nominal voltage of 230 V AC utilizing a servomotor with a nominal motor power of 9.2 W, a nominal motor current of 0.31 A, and a peak current of 0.61 A to deliver a nominal torque of 0.75 Nm, a max output speed of 200 1/min, and a max pull-out torque static of 15 Nm. Weighing 1,095 g with a 100 % duty cycle, it supports a working pressure of -0.9 to 10 bar, a standard nominal flow rate of 350 l/min, a repetition accuracy of ±0,01 °, and a max axial force of 200 N in any assembly position. Submit part number 3385152, quantity, and application requirements for a quote.
View product details →Festo
The Festo 2930238 is a code reader vision sensor featuring a monochrome WideVGA sensor resolution of 736 x 480 pixels and an image rate of 50 fps, utilizing an integrated infrared LED light with an 880 nm wavelength. It provides an operating distance from 6 mm to infinity, a focal depth of 6 mm, a minimum field of vision of 5 x 4 mm, and a focus setting via adjusting screw with built-in optical lens attachment. Supporting up to 8 test programs and 2 test criteria for 1D barcodes and 2D codes with typical cycle times of 30 ms and 40 ms, this unit includes a 4-pin M12 Ethernet socket connection and carries CE, KC, RCM, and c UL us-Listed authorizations. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
