Festo
This Festo industrial component, part number 2885065, is a double-acting pneumatic cylinder featuring a 63 mm piston diameter and a 50 mm stroke, operating within a pressure range of 2 to 10 bar using compressed air that complies with ISO8573-1:2010 [7:4:4]. The assembly incorporates a piston, a piston rod with a rod clevis and male thread, a swivel mounting on the bearing cap, integrated flow control valves on both sides for speed regulation, and self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, while supporting any assembly position, position detection via proximity sensors, and a moving mass of 717 g at 0 mm stroke under a CRC 0 corrosion resistance classification and ambient temperatures from -10 to 60 °C. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

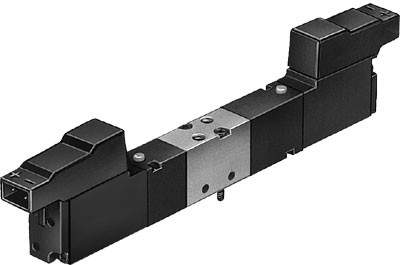

The Festo 30221 is a 5/2 bistable industrial component featuring a piston slide design structure with a 1.5 mm nominal size and a standard nominal flow rate of 80 l/min. Piloted for a 6 ms switching time reversal, this unit operates on a 24V DC 0,55W coil and accepts a working pressure of 2 to 7 bar with a 100% duty cycle using dried compressed air. Constructed with an aluminum die cast housing and NBR seals, it integrates IP40 protection with a plug socket and mounts via through hole on a 5 manifold module port. Submit the exact part number, quantity, and application requirements to receive a quote for this 55 g component.
View product details →Festo
This Festo industrial component features a 63 mm piston diameter with a 150 mm stroke and operates in a double-acting mode using compressed air in accordance with ISO8573-1:2010 [7:4:4]. The assembly incorporates self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, a male thread with rod clevis, and a swivel mounting on the bearing cap. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar across an ambient temperature range of -10 to 60 °C. Submit part number 2885064, quantity, and application requirements to request a formal quote.
View product details →Festo
The Festo part number 30220 is a 5/2 single solenoid industrial component featuring a piston slide design structure and a standard nominal flow rate of 80 l/min across a working pressure range of 2 to 7 bar. Constructed with an aluminum die-cast housing, NBR seals, and an IP40 protection class with plug socket, this piloted valve operates on 24V DC at 0.55W with a 100% duty cycle, 9 ms on-switching time, and 21 ms off-switching time. Designed for a medium and ambient temperature range of -5 to 50 °C, the 30 g unit handles dried compressed air, lubricated or unlubricated, using a nominal size of 1.5 mm, through-hole mounting, and port 5 manifold module connections. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
This Festo industrial component features a 63 mm piston diameter, a 125 mm stroke, and a double-acting mode of operation utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 2 to 10 bar working pressure range. The design structure incorporates a piston, a piston rod with a rod clevis having a width of 19.5 mm, a swivel mounting on the bearing cap with a width of 19.5 mm, and integrated flow control valves on both sides for speed regulation. Additional technical attributes include self-adjusting pneumatic end-position cushioning, proximity sensor position detection, and theoretical forces of 1,870 N for the advance stroke and 1,682 N for the return stroke at 6 bar. Submit part number 2885063, desired quantity, and application requirements to receive a formal quotation.
View product details →Festo

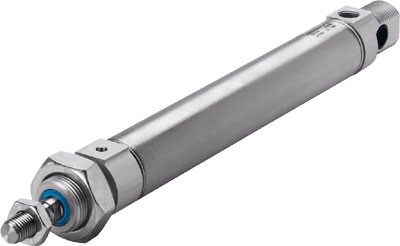

The Festo 33513 is a single-acting industrial component featuring a 1-inch piston diameter, a 10 to 50 mm stroke, and a pushing mode of operation that delivers a theoretical force of 271 N at 6 bar. Constructed with a wrought aluminum alloy cover, a non-corrosive high alloy steel housing and piston rod, and NBR and TPE-U(PU) seals, this ISO 6432 standard unit operates between -20 and 80 °C within a 1 to 10 bar pressure range using dried compressed air. It incorporates flexible cushioning rings or plates at both ends (P), an M22x1,5 pneumatic connection, a male piston-rod end, and a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 30219 is a 3/2 open, single solenoid industrial component featuring a piston slide design structure and a 1.5 mm nominal size. Constructed with an aluminum die cast housing and NBR seals, this piloted valve operates on 24V DC with 0.55W coil data, delivering a standard nominal flow rate of 80 l/min across a working pressure of 2 to 7 bar. It achieves a 7 ms switching time on and a 21 ms switching time off within a medium and ambient temperature range of -5 to 50 °C, offering a 100% duty cycle and IP40 protection class with a plug socket. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →Festo
This Festo double-acting industrial component features a 63 mm piston diameter and a 100 mm stroke, operating with compressed air in accordance with ISO 8573-1:2010 [7:4:4] across a working pressure range of 2 to 10 bar. The design incorporates a piston rod with a male thread and rod clevis, a swivel mounting on the bearing cap, integrated flow control valves on both sides for speed regulation, and self-adjusting pneumatic end-position cushioning (PPS). Operating within an ambient temperature range of -10 to 60 °C, it delivers theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit part number 2885062, your required quantity, and application specifications to request a formal quote.
View product details →Festo
The Festo part number 33512 is a single-acting industrial component operating via a pushing action with a 3/4" piston diameter and an adjustable stroke of 10 to 50 mm based on ISO 6432. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminium alloy cover, and NBR and TPE-U(PU) seals, this unit functions at an operating pressure of 1 to 10 bar utilizing dried compressed air. It features flexible cushioning rings or plates at both ends, a male thread piston-rod end, an M22x1,5 pneumatic connection, a CRC corrosion resistance classification of 2, an ambient temperature range of -20 to 80 °C, and delivers a theoretical force of 169 N at 6 bar on the advance stroke. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo

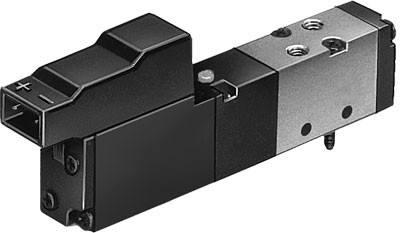

The Festo 30218 is a 3/2 closed, single solenoid industrial component featuring a piston slide design structure and a 1.5 mm nominal size. Engineered with an aluminum die cast housing and NBR seals, this piloted valve operates on 24V DC at 0.55W with a 100% duty cycle, delivering a standard nominal flow rate of 80 l/min across a working pressure range of 2 to 7 bar. It incorporates through-hole mounting, a port designed for a 5 manifold module, IP40 protection with a plug socket, and functions within a medium and ambient temperature range of -5 to 50 °C using dried compressed air. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 2885049 is a double-acting industrial component featuring a 63 mm piston diameter, a 75 mm stroke, and a working pressure range of 2 to 10 bar operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via proximity sensors. Designed in any assembly position with a piston, cylinder barrel, piston rod with male thread and rod clevis, and swivel mounting on the bearing cap, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 33511 is a single-acting industrial component operating via pushing action with a 5/8" piston diameter and a stroke of 10 to 50 mm based on ISO 6432. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and NBR and TPE-U(PU) seals, this unit features flexible cushioning rings or plates at both ends and an M16x1,5 pneumatic connection. It functions within an operating pressure range of 1.2 to 10 bar, an ambient temperature range of -20 to 80 °C, and uses dried compressed air that can be lubricated or unlubricated, delivering a theoretical force of 106.5 N at 6 bar during the advance stroke with a corrosion resistance classification CRC of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

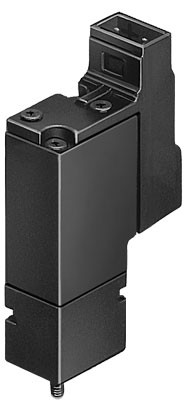

The Festo 30217 is a direct-piloted 3/2 closed, single solenoid industrial component featuring a poppet seat design structure and a 0.4 mm nominal size. Constructed with an aluminum die-cast housing and NBR seals, this 20 g valve operates at a working pressure of 0 to 7 bar with a standard nominal flow rate of 4 l/min using dried compressed air. It consumes 0.55W at 24V DC, achieves a 100% duty cycle with switching times of 5 ms on and 13 ms off, and provides IP40 protection when fitted with a plug socket. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →Festo

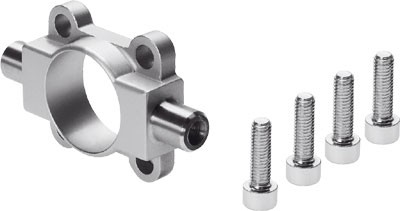

The Festo part number 31760 is an industrial component in size 125 built on the ISO 15552 standard with a corrosion resistance classification CRC of 2. Weighing 3,484 g, this unit features a stainless steel casting mounting material, galvanized steel screws, and materials that are free of copper and PTFE while conforming to RoHS. It operates within an ambient temperature range of -40 to 150 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

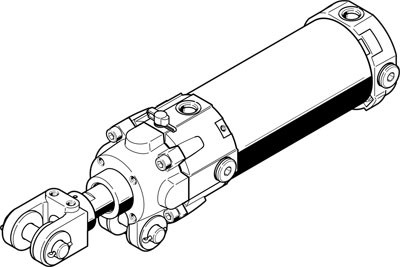

The Festo 2885048 is a double-acting industrial component featuring a 63 mm piston diameter, a 50 mm stroke, and an operating pressure range of 2 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4]. This design structure incorporates a piston, piston rod with rod clevis, swivel mounting on the bearing cap, cylinder barrel, integrated flow control valves on both sides for speed regulation, and self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length. Operating within an ambient temperature range of -10 to 60 °C, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 33510 is a single-acting industrial component operating via a pushing action with a 1/2" piston diameter and a stroke of 10 to 50 mm based on the ISO 6432 standard. Featuring a high alloy, non-corrosive steel housing and piston rod, wrought aluminium alloy cover, and NBR and TPE-U(PU) seals, this unit operates at pressures from 1.2 to 10 bar using dried compressed air and provides a theoretical force of 61 N at 6 bar during the advance stroke. Flexible cushioning rings or plates are located at both ends alongside an M16x1,5 pneumatic connection, a male thread piston-rod end, and a CRC 2 corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 30210 is a direct-piloted 3/2 closed single solenoid industrial component featuring a poppet seat design and a nominal size of 0.4 mm. It delivers a standard nominal flow rate of 4 l/min across a working pressure range of 0 to 7 bar with an identical switching time on and off of 4 ms at a 100% duty cycle. Housed in aluminum die cast with NBR seals, this 20 g component operates on 24V DC at 0.5W within medium and ambient temperatures of -5 to 50 °C using dried compressed air. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 31759 is an industrial component in size 100 based on the ISO 15552 standard with a corrosion resistance classification CRC of 2. Constructed with a stainless steel casting mounting material and galvanized steel screws, this unit features a product weight of 2,254 g, operates within an ambient temperature range of -40 to 150 °C, and is free of copper and PTFE while conforming to RoHS. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component features a 63 mm piston diameter, a 150 mm stroke, and a double-acting mode of operation operating within a 2 to 10 bar working pressure range. The unit incorporates self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, and a male thread with a rod clevis on the piston-rod end. Operating medium requirements follow ISO8573-1:2010 [7:4:4] standards with an ambient temperature range of -10 to 60 °C, delivering a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit part number 2885047, quantity, and application requirements for an official quote.
View product details →Festo
The Festo 33509 is a single-acting industrial component operating via a pushing action with a 3/8" piston diameter and an adjustable stroke of 10 to 50 mm based on the ISO 6432 standard. Designed for an operating pressure of 1.2 to 10 bar using dried compressed air, it delivers a theoretical advance force of 41.6 N at 6 bar and features flexible cushioning rings or plates at both ends. Constructed with a wrought aluminium alloy cover, a non-corrosive high alloy steel housing and piston rod, and NBR and TPE-U(PU) seals, this unit operates in ambient temperatures from -20 to 80 °C with a CRC corrosion resistance of 2 and an M12x1,25 pneumatic connection. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
