Festo

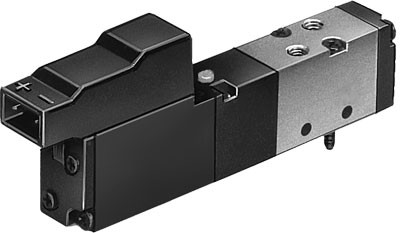

The Festo 30192 is a 3/2 closed, single solenoid industrial component featuring a piston slide design structure, a 1.5 mm nominal size, and a standard nominal flow rate of 80 l/min for operation with dried compressed air. Constructed with an aluminum die-cast housing and NBR seals, this piloted valve operates within a working pressure range of 2 to 7 bar, supports a 100% duty cycle, and requires 24V DC at 0.55W. It offers an IP40 protection class with a plug socket, a product weight of 30 g, through-hole mounting, a 5 subbase pneumatic connection port, and medium and ambient temperature ranges of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
Engineered with a 63 mm piston diameter and a 125 mm stroke, this double-acting Festo industrial component operates at working pressures from 2 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. The assembly features self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, and a male thread with a rod clevis on the piston-rod end supporting a moving mass of 717 g at 0 mm stroke. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo

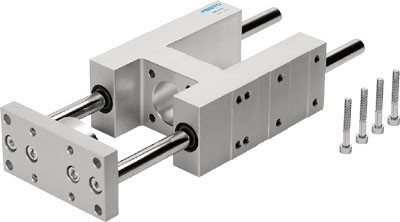

The Festo 33485 is an industrial guide unit featuring a size 40 designation and a stroke length ranging from 10 to 500 mm with any assembly position. This component incorporates a recirculating ball bearing guide constructed from heat-treatment steel alongside an anodized wrought aluminum alloy housing. It operates within an ambient temperature range of -20 to 80 °C, offering a displacement force of 15 N, a basic weight of 2,370 g for 0 mm stroke, and an additional weight of 32 g per 10 mm stroke with mounting via internal female threads. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component features a 63 mm piston diameter, a 50 mm stroke, and a double-acting mode of operation with a working pressure range of 2 to 10 bar. The unit incorporates self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, a male thread piston-rod end with a rod clevis, and a swivel mounting on the bearing cap. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4], it delivers theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 33484 is an industrial guide featuring a size 32 design structure with a recirculating ball bearing guide made of heat-treatment steel and an anodized wrought aluminum alloy housing. It accommodates a stroke range of 10 to 500 mm in any assembly position within an ambient temperature range of -20 to 80 °C, exerting a displacement force of 15 N. This component has a basic weight of 1,530 g for a 0 mm stroke with an additional weight of 18 g per 10 mm stroke and mounts via internal female threads. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 2876463 is a double-acting industrial component featuring a 50 mm piston diameter and a 150 mm stroke, operating at working pressures between 2 and 10 bar with compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This assembly incorporates PPS self-adjusting pneumatic end-position cushioning with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and a male thread with a rod clevis at the piston-rod end. It delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, while supporting ambient temperatures from -10 to 60 °C across any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2876462 is a double-acting industrial component featuring a 50 mm piston diameter and a 125 mm stroke, engineered with an integrated piston rod with rod clevis, swivel mounting on bearing cap, cylinder barrel, and self-adjusting pneumatic end-position cushioning (PPS). Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 2 to 10 bar pressure range, this unit delivers theoretical forces of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. It accommodates any assembly position, includes integrated flow control valves on both sides for speed regulation, and provides provisions for position detection via proximity sensor across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo Connector Block PRS-ME-1/8-9 is an industrial component featuring a maximum number of 9 valve positions. Constructed from aluminum, the connecting plate provides a durable mounting base for pneumatic configurations. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo Connector block PRS-ME-1/8-7 is an industrial component featuring a maximum number of valve positions of 7 and an aluminum material of connecting plate. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2876461 is a double-acting industrial component featuring a 50 mm piston diameter, a 100 mm stroke, and a piston rod with a male thread and rod clevis. Operating at a working pressure of 2 to 10 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], it delivers theoretical forces of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, a swivel mounting on the bearing cap, and provisions for proximity sensor position detection. Submit part number 2876461, required quantity, and application specifications to request a formal quote.
View product details →Festo

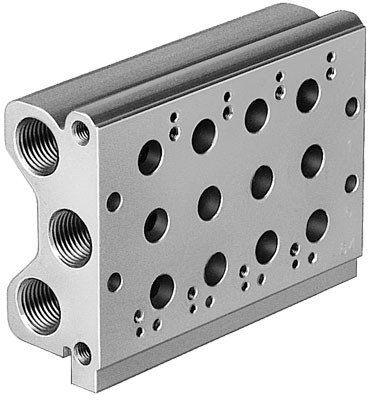

The Festo connector block PRS-ME-1/8-5, part number 33478, is an industrial component featuring a maximum of 5 valve positions and an aluminum connecting plate material, as specified in the official data sheet. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2876460 is a double-acting industrial component featuring a 50 mm piston diameter, a 75 mm stroke, and integrated flow control valves on both sides for speed regulation. Built with a piston rod with a rod clevis, swivel mounting on the bearing cap, and self-adjusting pneumatic end-position cushioning (PPS), it operates within a 2 to 10 bar working pressure range using compressed air according to ISO 8573-1:2010 [7:4:4]. This unit provides a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, while supporting ambient temperatures from -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo Connector block PRS-ME-1/8-3 is an industrial component featuring a maximum number of 3 valve positions. This connecting plate is constructed from aluminum material as specified in the official Festo documentation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2876459 is a double-acting industrial component featuring a 50 mm piston diameter, a 50 mm stroke, and a piston rod with a male thread and rod clevis. This cylinder operates within a working pressure range of 2 to 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4], delivering theoretical forces of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Designed with self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, and provisions for proximity sensor position detection, it functions in any assembly position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo

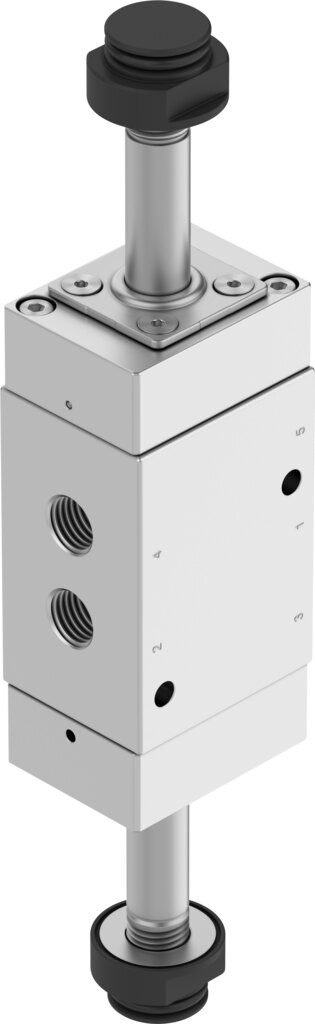

The Festo part number 3344863 is an electrically actuated industrial component featuring a piston gate valve structural design with a 40 mm width and a 6 mm nominal width. This unit supports 3/2-way closed monostable, 5/2-way bistable, and 5/2-way monostable valve functions with a soft sealing principle, mechanical spring reset, and a normal nominal flow rate ranging from 913 l/min to 1030 l/min. Configured with a sub-base, G1/4, or 1/4 NPT pneumatic working port, it operates within a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar, 36.25 psi to 145 psi) and provides IP50 or IP65 protection in any mounting position. Certified with CE marking per the EU explosion protection directive, ATEX category II 2G and II 2D ratings, IEC-EX and KR EPL Db and Gb certifications, and specific ignition protection types, the hardware accommodates explosive ambient temperatures from -40°C to +70°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 2876458 is a double-acting industrial component featuring a 50 mm piston diameter, a 150 mm stroke, and integrated flow control valves on both sides for speed regulation. Operating at a working pressure of 2 to 10 bar with compressed air in accordance with ISO 8573-1:2010 [7:4:4], this assembly delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. It incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, a male thread piston-rod end with a rod clevis, and is designed for position detection via proximity sensor in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This double-acting industrial component from Festo features a 50 mm piston diameter and a 125 mm stroke, operating at pressures between 2 and 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. The design includes self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via proximity sensors. Operating within an ambient temperature range of -10 to 60 °C, the unit delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 2876456 is a double-acting industrial component featuring a 50 mm piston diameter, a 100 mm stroke, and a piston rod with a male thread and rod clevis. Operating at a working pressure of 2 to 10 bar on ISO 8573-1:2010 [7:4:4] compressed air, it delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. This unit incorporates self-adjusting pneumatic end-position cushioning, integrated flow control valves on both sides, position detection for proximity sensors, and can be assembled in any position within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

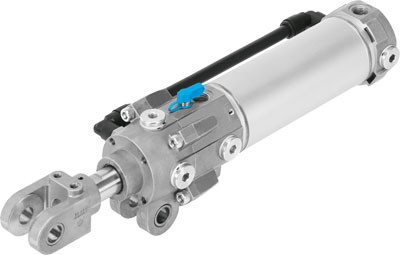

The Festo 2876455 is a double-acting industrial component featuring a 50 mm piston diameter, a 75 mm stroke, and a working pressure range of 2 to 10 bar. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, a male thread with a rod clevis, and provisions for proximity sensor position detection. Operating within an ambient temperature range of -10 to 60 °C, it delivers a theoretical advance stroke force of 1,178 N and a return stroke force of 990 N at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
This Festo industrial component features a 50 mm piston diameter, a 50 mm stroke, and a double-acting mode of operation with integrated flow control valves on both sides. The unit is designed with a piston, a piston rod with a rod clevis, a swivel mounting on the bearing cap, a cylinder barrel, and self-adjusting pneumatic end-position cushioning (PPS). It operates at a working pressure of 2 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4] and delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
