Festo
The Festo 30197 is a piloted 5/3 exhausted industrial component utilizing a piston slide design structure housed in aluminum die cast with NBR seals and weighing 50 g. Operating on 24V DC at 0.55W with a 100% duty cycle, this unit features a nominal size of 1.5 mm, a standard nominal flow rate of 40 l/min, and a working pressure of 2 to 7 bar with a 5 ms switch-on time and 30 ms switch-on/off performance. Designed with 5 subbase pneumatic connections, through-hole mounting, and IP40 protection class with a plug socket, it functions within medium and ambient temperatures of -5 to 50 °C using dried compressed air that is lubricated or unlubricated. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 31758 is an industrial component in size 80 based on the ISO 15552 standard, featuring a product weight of 1,296 g and a corrosion resistance classification CRC of 2. Constructed with a stainless steel casting mounting material and galvanized steel screws, the unit operates within an ambient temperature range of -40 to 150 °C. Its materials note indicates that it is free of copper and PTFE while conforming to RoHS directives. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Festo
This double-acting industrial component from Festo features a 63 mm piston diameter, a 125 mm stroke, and a piston rod with a rod clevis and swivel mounting on the bearing cap. Operating at pressures from 2 to 10 bar on compressed air meeting ISO8573-1:2010 [7:4:4], the unit incorporates self-adjusting pneumatic end-position cushioning with a 24 mm cushioning length and integrated flow control valves on both sides. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, with a moving mass of 717 g at 0 mm stroke and an ambient temperature range of -10 to 60 °C. Submit part number 2885046, quantity, and application requirements to request a quote.
View product details →Festo

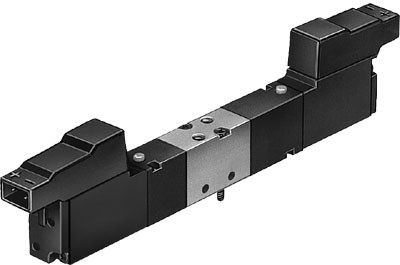

The Festo part number 30196 is a 5/3 closed piston slide industrial component featuring a piloted design structure, a nominal size of 1.5 mm, and a standard nominal flow rate of 40 l/min for dried compressed air that can be lubricated or unlubricated. Constructed with an aluminum die cast housing and NBR seals, this 50 g component operates at a working pressure of 2 to 7 bar across a medium and ambient temperature range of -5 to 50 °C. It utilizes a 24V DC characteristic coil drawing 0.55W to deliver a 100% duty cycle with a 6 ms switching time on and a 30 ms switching time off, offering an IP40 protection class with a plug socket and through-hole mounting to a 5 subbase pneumatic connection port. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

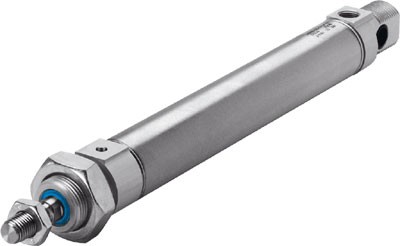

The Festo 33508 is an ISO 6432 single-acting industrial component featuring a 5/16" piston diameter and an adjustable stroke ranging from 10 to 50 mm for pushing action. Constructed with a wrought aluminum alloy cover, non-corrosive high alloy steel housing and piston rod, and NBR and TPE-U(PU) seals, this part operates on dried compressed air at pressures from 1.2 to 10 bar across ambient temperatures of -20 to 80 °C. It includes flexible cushioning rings or plates at both ends (P), an M12x1,25 pneumatic connection, a male thread piston-rod end, and provides a theoretical force of 24.6 N at 6 bar during the advance stroke. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 31757 is an industrial component in size 63 built upon the ISO 15552 standard, featuring a stainless steel casting mounting material and galvanized steel screws. This unit weighs 704 g, includes a CRC rating of 2 for corrosion resistance, and operates within an ambient temperature range of -40 to 150 °C while maintaining a construction that is free of copper and PTFE and conforms to RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2885045 is a double-acting industrial component featuring a 63 mm piston diameter, a 100 mm stroke, and a robust design structure comprising a piston, cylinder barrel, piston rod with a male thread and rod clevis, and a swivel mounting on the bearing cap. Engineered for a working pressure range of 2 to 10 bar utilizing ISO8573-1:2010 [7:4:4] compressed air, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. This unit incorporates self-adjusting PPS pneumatic end-position cushioning with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via proximity sensor across any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

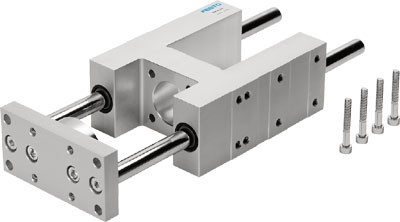

The Festo part number 33489 is an industrial guide unit featuring a size 100 designation and an adjustable stroke ranging from 10 to 500 mm. Built with an anodized wrought aluminum alloy housing and a heat-treatment steel recirculating ball bearing guide, this component operates within an ambient temperature range of -20 to 80 °C and provides a displacement force of 40 N. It accommodates mounting via internal female threads in any assembly position, carrying a basic weight of 12,990 g for 0 mm stroke alongside an additional weight of 80 g per 10 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 30195 is a 5/2 bistable industrial component featuring a piston slide design structure and a 1.5 mm nominal size. Constructed with an aluminum die-cast housing and NBR seals, this piloted valve operates on a working pressure of 2 to 7 bar with a standard nominal flow rate of 80 l/min and a 100% duty cycle. It requires 24V DC at 0.55W for its characteristic coil data, achieves a switching time reversal of 6 ms, and provides IP40 protection when used with a plug socket within a medium and ambient temperature range of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this unit.
View product details →Festo

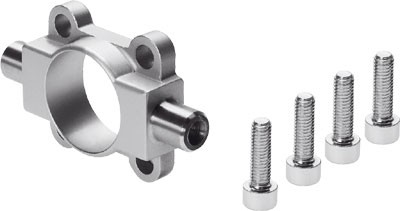

The Festo 31756 is a size 50 industrial component built on the ISO 15552 standard with a corrosion resistance classification CRC of 2 and an ambient temperature range of -40 to 150 °C. Weighing 473 g, this unit features a stainless steel casting mounting material, galvanized steel screws, and is free of copper and PTFE while conforming to RoHS. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component features a double-acting design with a 63 mm piston diameter, a 75 mm stroke, and an operating pressure range of 2 to 10 bar. The unit incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, a male thread piston-rod end with a rod clevis, and a swivel mounting on the bearing cap. It operates with compressed air according to ISO 8573-1:2010 [7:4:4], delivers a theoretical force of 1,870 N on the advance stroke at 6 bar, and provides provisions for position detection via proximity sensor across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 33488 is an industrial guide featuring a size 80 design structure with a recirculating ball bearing guide constructed from heat-treatment steel and an anodized wrought aluminum alloy housing. This component accommodates a stroke ranging from 10 to 500 mm in any assembly position, generating a displacement force of 40 N across an ambient temperature range of -20 to 80 °C. The unit features internal female threads for mounting, a basic weight of 10,430 g for a 0 mm stroke, and an additional weight of 80 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 31755 industrial component features a size 40 build based on the ISO 15552 standard with a CRC of 2 and a product weight of 285 g. Constructed with a stainless steel casting mounting material and galvanized steel screws, this unit operates within an ambient temperature range of -40 to 150 °C. The materials are RoHS compliant and free of copper and PTFE. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo 30194 is a 5/2 single solenoid industrial component featuring a piston slide design structure and a standard nominal flow rate of 80 l/min within a working pressure range of 2 to 7 bar. Built with an aluminum die cast housing, NBR seals, and a 1.5 mm nominal size, this piloted valve operates on 24V DC at 0.55W with a 100% duty cycle and provides an IP40 protection class when fitted with a plug socket. Weighing 30 g, it mounts via a through hole and accepts dried compressed air, either lubricated or unlubricated, across medium and ambient temperatures of -5 to 50 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

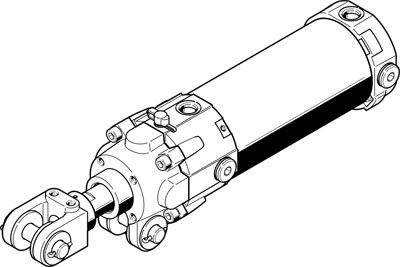

The Festo 2885040 is a double-acting industrial component featuring a 63 mm piston diameter and a 50 mm stroke, operating within a pressure range of 2 to 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4]. This piston design incorporates integrated flow control valves on both sides, self-adjusting PPS pneumatic end-position cushioning, position detection capabilities for a proximity sensor, and a male thread with a rod clevis on the piston-rod end. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, with a moving mass of 717 g at 0 mm stroke and an ambient temperature operating range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 33487 is a size 63 industrial guide featuring a recirculating ball bearing guide design structure and an anodized wrought aluminum alloy housing with heat-treatment steel guide components. This component operates across an ambient temperature range of -20 to 80 °C, accommodates a stroke from 10 to 500 mm, and mounts via internal female threads in any assembly position. It exerts a displacement force of 15 N, with a basic weight of 5,410 g for a 0 mm stroke and an additional weight of 50 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 31754 is a size 32 industrial component based on the ISO 15552 standard with a corrosion resistance classification CRC of 2 and an ambient temperature range of -40 to 150 °C. Weighing 150 g, this unit features a stainless steel casting mounting material and galvanized steel screw material, while the construction remains free of copper and PTFE and conforms to RoHS. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

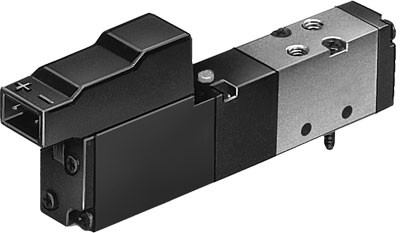

The Festo 30193 is a 3/2 open, single solenoid industrial component featuring a piston slide design structure and a 1.5 mm nominal size. Constructed with an aluminum die cast housing and NBR seals, this piloted valve operates on 24V DC at 0,55W with a 100% duty cycle, delivering a standard nominal flow rate of 80 l/min across a working pressure range of 2 to 7 bar. It offers a 7 ms switching time on and a 21 ms switching time off for dried compressed air media within a temperature range of -5 to 50 °C, achieving an IP40 protection class with a plug socket. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 2885039 is a double-acting industrial component featuring a 63 mm piston diameter and a 150 mm stroke, operating within a working pressure range of 2 to 10 bar on compressed air conforming to ISO8573-1:2010 [7:4:4]. This design structure incorporates a piston, a piston rod with a rod clevis having a width of 16.5 mm, a swivel mounting on the bearing cap with a 16.5 mm width, integrated flow control valves on both sides for speed regulation, and self-adjusting pneumatic end-position cushioning. At 6 bar, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke, utilizing a moving mass of 717 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →Festo
The Festo part number 33486 is an industrial guide featuring a size 50 design structure with a stroke range of 10 to 500 mm and a recirculating ball bearing guide composed of heat-treatment steel. Housed in anodized wrought aluminum alloy, this component operates within an ambient temperature range of -20 to 80 °C and includes internal female threads for mounting with a displacement force of 15 N. It weighs 4,030 g at 0 mm stroke with an additional weight of 50 g per 10 mm stroke and can be installed in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
