Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo

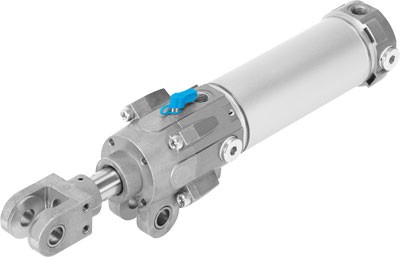

The Festo 2876441 is a double-acting industrial component featuring a 50 mm piston diameter, a 100 mm stroke, and an operating pressure range of 2 to 10 bar. This unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and a male thread with a rod clevis at the piston-rod end. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across an ambient temperature range of -10 to 60 °C, it delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →Festo
The Festo part number 2876440 is a double-acting industrial component featuring a 50 mm piston diameter, a 75 mm stroke, and an operating pressure range of 2 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4]. This design structure incorporates a piston, a piston rod with a male thread and rod clevis, integrated flow control valves on both sides for speed regulation, self-adjusting pneumatic end-position cushioning (PPS), and a swivel mounting on the bearing cap for any assembly position. It delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, while accommodating proximity sensors for position detection within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 2876439 is a double-acting industrial component featuring a 50 mm piston diameter, a 50 mm stroke, and a piston rod with a male thread and rod clevis. It operates within a working pressure range of 2 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. This unit includes self-adjusting pneumatic end-position cushioning with a 24 mm cushioning length, integrated flow control valves on both sides for speed regulation, and provisions for position detection via a proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 33355 is a double-acting industrial component with a 1" piston diameter and a stroke length ranging from 10 to 500 mm, built upon the ISO 6432 standard. Featuring adjustable pneumatic cushioning at both ends (PPV) over a 17 mm cushioning length, it operates on dried compressed air, lubricated or unlubricated, at pressures between 1 and 10 bar within an ambient temperature range of -20 to 80 °C. The unit incorporates a male thread piston-rod end, an M22x1,5 pneumatic connection, wrought aluminium alloy covers, NBR and TPE-U(PU) seals, and a non-corrosive high alloy steel housing and piston rod rated at CRC 2 corrosion resistance. At 6 bar, it delivers a theoretical force of 294.5 N on the advance stroke and 247.4 N on the return stroke. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

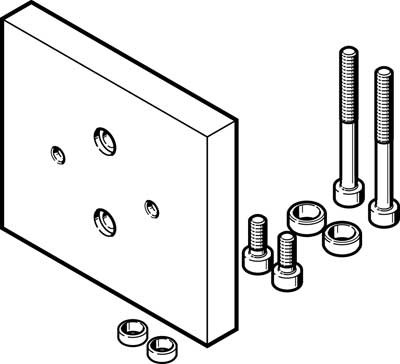

This Festo industrial component, part number 3122168, features a size 14 configuration with a product weight of 140 g and supports any assembly position. Constructed with a wrought aluminum alloy adapter plate, steel screws, and steel centering elements, it carries a CRC 2 moderate corrosion stress classification and conforms to RoHS materials standards. It mounts via a through-hole with a screw and a centering sleeve. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
This Festo industrial component, part number 2876438, is a double-acting cylinder featuring a 50 mm piston diameter and a 150 mm stroke. Operating at working pressures between 2 and 10 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], it delivers a theoretical advance force of 1,178 N and a return force of 990 N at 6 bar. The assembly incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, a male thread with rod clevis, and a swivel mounting on the bearing cap for installation in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 33354 is a double-acting industrial component built to ISO 6432 standards with a 3/4" piston diameter and a stroke range of 10 to 320 mm. Operating on dried compressed air between 1 and 10 bar, this unit delivers a theoretical force of 158.3 N on the return stroke and 188.5 N on the advance stroke at 6 bar. It features adjustable pneumatic cushioning at both ends across a 17 mm cushioning length, an M22x1,5 pneumatic connection, and a male piston-rod end. The assembly integrates a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a non-corrosive high alloy steel housing and piston rod rated for CRC 2 corrosion resistance and ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 2876437, is a double-acting cylinder featuring a 50 mm piston diameter, a 125 mm stroke, and a piston rod with a male thread and rod clevis. It operates on compressed air within a working pressure range of 2 to 10 bar, delivering a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. The assembly incorporates self-adjusting pneumatic end-position cushioning (PPS), integrated flow control valves on both sides, provisions for proximity sensor position detection, and can be mounted in any position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo
The Festo part number 33353 is a double-acting industrial component with a 5/8" piston diameter and an adjustable stroke ranging from 10 to 200 mm, manufactured in accordance with ISO 6432. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and NBR and TPE-U(PU) seals, it operates on dried compressed air at pressures between 1 and 10 bar across ambient temperatures of -20 to 80 °C. This unit features adjustable pneumatic cushioning at both ends (PPV) with a 14 mm cushioning length, an M16x1,5 pneumatic connection, a male piston-rod end, and provides theoretical forces of 103.7 N on the return stroke and 120.6 N on the advance stroke at 6 bar with a CRC rating of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 2876436 is a double-acting industrial component featuring a 50 mm piston diameter, a 100 mm stroke, and integrated flow control valves on both sides for speed regulation. Operating at working pressures between 2 and 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4], this unit incorporates self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length. It delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, while supporting any assembly position and proximity sensor position detection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 33352 is a double-acting industrial component with a 1" piston diameter and an adjustable stroke from 10 to 500 mm, built in accordance with ISO 6432. It operates at pressures between 1 and 10 bar using dried compressed air, delivering a theoretical advance force of 294.5 N and return force of 247.4 N at 6 bar via an M22x1,5 pneumatic connection. Featuring a non-corrosive high alloy steel housing and piston rod, wrought aluminium alloy covers, and NBR and TPE-U(PU) seals, the unit functions within ambient temperatures from -20 to 80 °C with flexible cushioning rings or plates at both ends and a male thread piston-rod end. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 2876435 is a double-acting industrial component featuring a 50 mm piston diameter, a 75 mm stroke, and a working pressure range of 2 to 10 bar. This assembly utilizes self-adjusting pneumatic end-position cushioning (PPS) with a 24 mm cushioning length, integrated flow control valves on both sides, and a male thread with a rod clevis at the piston-rod end. It delivers a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar, operating within an ambient temperature range of -10 to 60 °C using compressed air according to ISO 8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →Festo
The Festo 33351 is a double-acting industrial component with a 3/4" piston diameter and an adjustable stroke from 10 to 320 mm, built in accordance with the ISO 6432 standard. It features flexible cushioning rings or plates at both ends (P), a male thread piston-rod end, and an M22x1,5 pneumatic connection, operating on dried compressed air at pressures between 1 and 10 bar within an ambient temperature range of -20 to 80 °C. The unit delivers a theoretical force of 158.3 N on the return stroke and 188.5 N on the advance stroke at 6 bar. Constructed with a wrought aluminium alloy cover, high alloy non-corrosive steel housing and piston rod, NBR and TPE-U(PU) seals, and a CRC 2 corrosion resistance classification, this component accommodates lubricated or unlubricated media. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 2876434 is a double-acting industrial component featuring a 50 mm piston diameter, a 50 mm stroke, and a piston rod with a male thread and rod clevis. It operates within a working pressure range of 2 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4], delivering a theoretical force of 1,178 N on the advance stroke and 990 N on the return stroke at 6 bar. This assembly includes integrated flow control valves on both sides for speed regulation, self-adjusting pneumatic end-position cushioning (PPS), and provisions for proximity sensor position detection. Submit your exact part number, quantity, and application requirements to receive a quote for this component.
View product details →Festo
The Festo 33350 is an ISO 6432 double-acting industrial component featuring a 5/8" piston diameter, an adjustable stroke ranging from 10 to 200 mm, and a male threaded piston-rod end. Constructed with a high alloy steel non-corrosive housing and piston rod, wrought aluminium alloy covers, and NBR and TPE-U seals, this unit operates on dried compressed air at pressures between 1 and 10 bar across an ambient temperature range of -20 to 80 °C. It provides flexible cushioning rings or plates at both ends, an M16x1,5 pneumatic connection, and delivers a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar with CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 33349 is a double-acting industrial component built to ISO 6432 with a 1/2" piston diameter and a stroke length ranging from 10 to 200 mm. Operating on dried compressed air at pressures between 1 and 10 bar, this unit features a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals with flexible cushioning rings at both ends. It delivers a theoretical force of 67.9 N on the advance stroke and 50.9 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

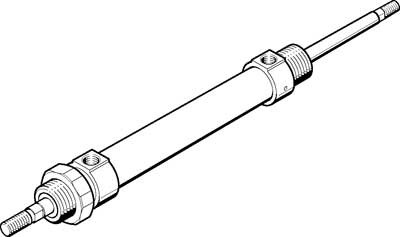

The Festo part number 2872 is a double-acting industrial component featuring a 40 mm piston diameter and a variable stroke ranging from 1 to 2,000 mm with a through piston rod design. Operating within a pressure range of 0.6 to 10 bar and ambient temperatures between -20 and 80 °C, this unit delivers a theoretical force of 633 N for both advance and return strokes at 6 bar via G1/4 pneumatic connections. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 15 mm cushioning length, while omitting internal position detection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

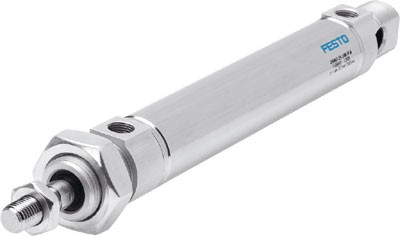

The Festo 33348 is a double-acting industrial component featuring a 3/8" piston diameter, an adjustable stroke of 10 to 100 mm, and compliance with ISO 6432 standards. Operating at pressures from 1 to 10 bar on dried compressed air, this unit incorporates flexible cushioning at both ends, a male piston-rod end, and an M12x1,25 pneumatic connection. Its construction integrates high-alloy non-corrosive steel for the housing and piston rod, wrought aluminium alloy for the covers, and NBR and TPE-U(PU) seals, achieving a CRC corrosion resistance rating of 2 within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 33347 is a double-acting industrial component built to ISO 6432 standards with a 5/16" piston diameter and an adjustable stroke length from 10 to 100 mm. Operating on dried compressed air, either lubricated or unlubricated, at pressures between 1 and 10 bar, this unit delivers a theoretical return force of 22.6 N and advance force of 30.2 N at 6 bar. Constructed with a wrought aluminum alloy cover, high-alloy non-corrosive steel housing and piston rod, NBR and TPE-U(PU) seals, and flexible cushioning rings or plates at both ends (P), it achieves a CRC 2 corrosion resistance classification across an ambient temperature range of -20 to 80 °C via an M12x1,25 pneumatic connection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo

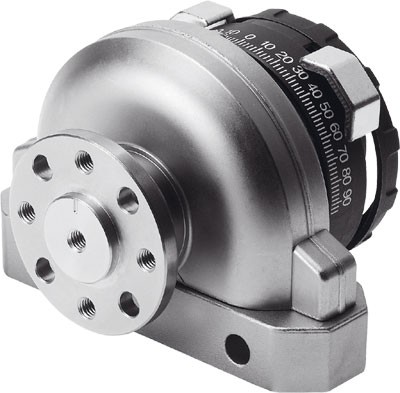

The Festo part number 33157 is a double-acting industrial component featuring a swivel and rotation angle adjustment range of 0 to 180 degrees with a cushioning angle of 2.4 degrees. It utilizes flexible cushioning rings and plates at both ends and operates within a working pressure range of 2.5 to 8 bar using compressed air in accordance with ISO8573-1:2010 [7:-:-]. This unit delivers a theoretical torque of 0.5 Nm at 6 bar, incorporates an M3 pneumatic connection, and functions in ambient temperatures from -10 to 60 °C. Request a formal quote by submitting the exact part number, required quantity, and application parameters.
View product details →
