Festo
The Festo part number 194387 is a double-acting industrial component featuring a 6 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating mode with a recirculating ball bearing guide. This unit operates within a working pressure range of 2 to 10 bar on dried compressed air, utilizing flexible cushioning rings or plates at both ends and accommodating position detection via proximity sensors. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust with an explosion-proof ambient temperature range of -5°C to +60°C, it supports any assembly position and a maximum speed of 0.5 m/s. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 194737 is a Midi-size filter regulator from the D series featuring a design structure without a pressure gauge, prepared for G1/4 connections, and equipped with a 40 µm filtration grade alongside a manual rotary condensate drain with a maximum volume of 43 cm3. Operating within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar, this component achieves a standard nominal flow rate of 2,100 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. Housed with a metal bowl guard and a rotary knob actuator lock with an integrated lock, it operates in temperatures from -10 to 60 µC while maintaining an air purity class at the output of ISO 8573-1:2010 [7:8:4]. Please submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194980 is a Maxi size Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator in a vertical assembly position of +/- 5°. It offers an inlet pressure of 1 to 16 bar, a pressure control range of 0.5 to 12 bar, a maximum pressure hysteresis of 0.4 bar, a standard nominal flow rate of 3,600 l/min, and G3/4 pneumatic connection ports for compressed air operating between -10 and 60 °C. This unit weighs 2,950 g and is equipped with a 5 µm filtration grade, manual rotary condensate drain with a 43 cm3 maximum condensate volume, metal bowl guard, and a rotary knob actuator lock with an integrated lock for line installation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194386 is a double-acting industrial guide component featuring a 6 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 10 mm for operation within a working pressure of 2 to 10 bar and a maximum speed of 0.5 m/s using dried compressed air. Certified with ATEX category II 2G for gas and II 2D for dust with an explosion-proof ambient temperature range of -5°C to +60°C, it supports position detection via proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194979 is a Maxi series D industrial component combining a filter regulator without a pressure gauge and a proportional standard mist lubricator for compressed air operation. Featuring a G3/4 pneumatic port, a standard nominal flow rate of 3,800 l/min, and a pressure control range of 0.5 to 12 bar, this unit includes a 40 µm filtration grade, manual rotary condensate drain with a 43 cm3 max capacity, metal bowl guard, and a rotary knob actuator lock with an integrated lock. It operates within a medium and ambient temperature range of -10 to 60 µm, handles inlet pressures from 1 to 16 bar with a max pressure hysteresis of 0.4 bar, weighs 2,600 g, and is designed for vertical +/- 5° line installation with a G1/4" prepared pressure gauge. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194385 is a double-acting guide drive unit featuring a 6 mm piston diameter, a 20 mm stroke, and a yoke operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This component utilizes a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 10 mm while supporting an operating pressure of 2 to 10 bar with dried compressed air, lubricated or unlubricated. Rated for hazardous locations with ATEX category II 2G gas and II 2D dust certifications alongside an explosion-proof ambient temperature range of -5°C to +60°C, it includes position detection for proximity sensors and operates at a maximum speed of 0.5 m/s in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194978 is a Maxi size Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator in a vertical assembly position within +/- 5°. This unit operates with compressed air at an inlet pressure of 1 to 16 bar, a pressure control range of 0.5 to 12 bar, and a standard nominal flow rate of 3,800 l/min across G3/4 pneumatic connection ports. Additional attributes include a 40 µm filtration grade, manual rotary condensate drain, 43 cm3 max condensate volume, metal bowl guard, rotary knob actuator lock with an integrated lock, and a product weight of 2,600 g for line installation within a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194735 is a Midi size D series filter regulator featuring a fully automatic condensate drain and a 40 µm filtration grade within a design structure lacking a pressure gauge. This unit provides a standard nominal flow rate of 2,000 l/min across a pressure regulation range of 0.5 to 12 bar, utilizing a rotary knob with an integrated lock for actuator security. Operating with compressed air conforming to ISO 8573-1:2010 [7:9:-] or inert gases, the assembly includes a metal bowl guard and is prepared for a G1/4 pressure gauge connection. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

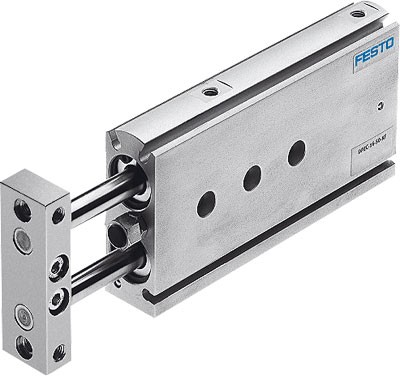

The Festo 194384 is a double-acting industrial drive unit featuring a 6 mm piston diameter, a 10 mm stroke, and a yoke operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This guide incorporates a recirculating ball bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 10 mm for operation at a working pressure between 2 and 10 bar and a maximum speed of 0.5 m/s. Certified with ATEX category II 2G for gas and II 2D for dust, it operates within an explosion-proof ambient temperature range of -5°C to +60°C using dried compressed air that can be lubricated or unlubricated. Submit your exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 194977 is a D-series Maxi industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator designed for vertical installation within +/- 5°. This unit operates with compressed air across an inlet pressure range of 1 to 16 bar, a pressure control range of 0.5 to 7 bar, a maximum pressure hysteresis of 0.4 bar, and a standard nominal flow rate of 4,500 l/min within a temperature range of -10 to 60 °C. It includes a 40 µm filtration grade, a manual rotary condensate drain with a maximum condensate volume of 43 cm3, a metal bowl guard, G1/2 pneumatic connection ports, a G1/4" prepared pressure gauge, and a rotary knob actuator lock with an integrated lock. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

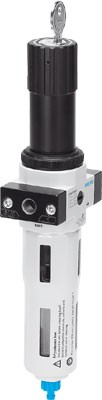

The Festo 194734 is a Midi-sized D-series filter regulator featuring a rotary knob with an integrated lock and a design structure without a pressure gauge while being prepared for a G1/4 pressure gauge. It operates within a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 2,000 l/min with a 40 µm filtration grade. The unit incorporates a manual rotary condensate drain, a metal bowl guard, and a maximum condensate volume of 43 cm3 for compressed air and inert gases under ISO 8573-1:2010 specifications. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →Festo
The Festo 194383 is a double-acting industrial guide component featuring a 16 mm piston diameter, a 100 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates within a working pressure range of 1 to 10 bar using dried compressed air, incorporates flexible cushioning rings or plates at both ends, and includes position detection capabilities for proximity sensors. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust within an ambient temperature range of -5°C to +60°C, this unit supports a maximum speed of 0.8 m/s in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo

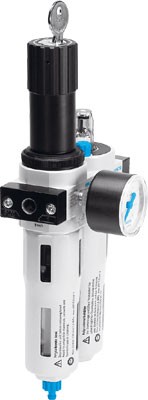

The Festo 194976 is an industrial filter regulator with a pressure gauge and a proportional standard mist lubricator in a Maxi size from the D series, featuring G1/2 pneumatic connection ports and a 40 µm filtration grade. This assembly operates with compressed air within a medium and ambient temperature range of -10 to 60 µc, supporting an inlet pressure of 1 to 16 bar and a pressure control range of 0.5 to 7 bar with a standard nominal flow rate of 4,500 l/min. Weighing 2,600 g for line installation with a vertical +/- 5° assembly position, it incorporates a manual rotary condensate drain with a 43 cm3 max condensate volume, a metal bowl guard, and an actuator lock via a rotary knob with an integrated lock. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 194382 is a double-acting industrial component featuring a yoke drive unit design with a plain-bearing guide, a 16 mm piston diameter, and an 80 mm stroke. Operating on dried compressed air, either lubricated or unlubricated, it functions within a working pressure range of 1 to 10 bar at a maximum speed of 0.8 m/s, utilizing flexible cushioning rings or plates at both ends and an adjustable end-position range of 15 mm. Certified under ATEX category II 2G for gas with c T4 protection and category II 2D for dust with c 120°C protection, this unit is rated for explosion-proof ambient temperatures from -5°C to +60°C and includes position detection for proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194975 is a D-series Maxi industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator. This assembly operates with compressed air across a medium and ambient temperature range of -10 to 60 °C, utilizing a G1/2 pneumatic connection port and a G1/4" prepared pressure gauge. It provides a 5 µm grade of filtration, a 3,000 l/min standard nominal flow rate, and a pressure control range of 0.5 to 12 bar with a maximum pressure hysteresis of 0.4 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
Engineered with a 16 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode, this Festo industrial component features a plain-bearing guide with flexible cushioning rings or plates at both ends and an adjustable end-position range of 15 mm. The double-acting unit functions within a working pressure range of 1 to 10 bar, a maximum speed of 0.8 m/s, and accommodates dried compressed air that is either lubricated or unlubricated in any assembly position. Certified with ATEX category II 2G for gas and II 2D for dust, it operates within an explosion-proof ambient temperature range of -5°C to +60°C and includes position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194974 is a Maxi size D-series industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator for compressed air operations. This unit operates within an inlet pressure range of 1 to 16 bar, a pressure control range of 0.5 to 12 bar, a standard nominal flow rate of 3,000 l/min, and a medium and ambient temperature range of -10 to 60 °C. It includes a 5 µm filtration grade, a manual rotary condensate drain with a maximum 43 cm3 condensate volume, a metal bowl guard, G1/2 pneumatic connection ports, a rotary knob actuator lock with an integrated lock, and a pressure gauge, weighing 2,950 g for vertical line installation within +/- 5°. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 194731 is a mini Series D filter regulator featuring a rotary knob with an integrated lock and a design structure without a pressure gauge while being prepared for G1⁄8. It operates within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, delivering a standard nominal flow rate of 1,350 l⁄min with a 5 µm filtration grade and a fully automatic condensate drain. The unit includes a metal bowl guard, accommodates a maximum condensate volume of 22 cm³, and functions with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases within a medium temperature range of 5 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194380 is a double-acting industrial component featuring a yoke drive unit design structure, a 16 mm piston diameter, and a 40 mm stroke. It operates at a working pressure of 1 to 10 bar with a maximum speed of 0.8 m/s, utilizing a plain-bearing guide and flexible cushioning rings or plates at both ends. Certified with ATEX category II 2G for gas and II 2D for dust, this unit functions within an explosion-proof ambient temperature range of -5°C to +60°C using dried compressed air that may be lubricated or unlubricated. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component from the D series in size Maxi combines a filter regulator without a pressure gauge and a proportional standard mist lubricator featuring a 40 µm filtration grade, a manual rotary condensate drain, and a 43 cm3 maximum condensate volume. Designed with a metal bowl guard and a rotary knob with integrated lock for actuator locking, the unit operates on compressed air within a medium and ambient temperature range of -10 to 60 °C, offering a pressure control range of 0.5 to 12 bar and a standard nominal flow rate of 3,300 l/min. It weighs 2,600 g, supports vertical assembly positions within +/- 5°, utilizes G1/2 pneumatic connection ports, and is prepared for a G1/4" pressure gauge via line installation. Submit the exact part number, quantity, and application requirements to request a quote.
