Festo
The Festo part number 194379 is a double-acting industrial component featuring a yoke drive unit design with a 16 mm piston diameter, a 30 mm stroke, and a plain-bearing guide operating at a maximum speed of 0.8 m/s. This unit operates within a working pressure range of 1 to 10 bar using dried compressed air, which may be lubricated or unlubricated, and incorporates flexible cushioning rings or plates at both ends with an adjustable end-position range of 15 mm. Certified for hazardous environments under ATEX category II 2G for gas with ignition protection c T4 and ATEX category II 2D for dust with ignition protection c 120°C, it functions at ambient temperatures from -5°C to +60°C and includes position detection capabilities for proximity sensors in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194972 is a size Maxi series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator in a vertical assembly position within a +/- 5° tolerance. This assembly operates with compressed air in accordance with ISO8573-1:2010 [-:-:-] across a working pressure range of 1 to 16 bar and a medium and ambient temperature range of -10 to 60 °C, delivering a standard nominal flow rate of 3,300 l/min through G1/2 pneumatic connection ports. Additional attributes include a manual rotary condensate drain with a maximum volume of 43 cm3, a 40 µm grade of filtration, a metal bowl guard, an integrated rotary knob actuator lock, and a pressure regulation range of 0.5 to 12 bar with a maximum pressure hysteresis of 0.4 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194729 is a mini D-series filter regulator featuring a 5 µm filtration grade, a manual rotary condensate drain with a 22 cm3 maximum condensate volume, and a metal bowl guard for compressed air and inert gases within a 1 to 16 bar working pressure. It provides a pressure regulation range of 0.5 to 12 bar with a maximum pressure hysteresis of 0.2 bar, a standard nominal flow rate of 1,350 l/min, and incorporates a rotary knob actuator lock with an integrated lock. The assembly position is vertical +/- 5° with a G1/8 pressure gauge preparation, a moderate corrosion resistance classification CRC of 2, and operating and medium temperatures spanning -10 to 60 µC. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
This Festo industrial component, part number 194378, is a double-acting guide drive unit featuring a 16 mm piston diameter, a 20 mm stroke, and a yoke plate design with a 0 mm centre of gravity distance from the working load. It operates at working pressures between 1 and 10 bar using dried compressed air, either lubricated or unlubricated, and incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and position detection for proximity sensors. Certified with ATEX category II 2G for gas and II 2D for dust, the unit functions within an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194971 is a D-series Maxi industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a fully automatic condensate drain with an 80 cm3 max condensate volume. Operating with a working pressure of 2 to 12 bar and a standard nominal flow rate of 7,200 l/min, this unit delivers a 5 µm grade of filtration and an output air purity class of ISO 8573-1:2010 [6:8:-]. Features include a rotary knob actuator lock with an integrated lock, a metal bowl guard, and a design prepared for a G1/4 pressure gauge for media temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194377 is a double-acting industrial guide component featuring a 16 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with zero center of gravity distance from the working load to the yoke plate. This unit incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and position detection for proximity sensors, functioning across a working pressure of 1 to 10 bar and a maximum speed of 0.8 m/s with dried compressed air. Certified for hazardous locations under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C), the mechanism operates within an explosion-proof ambient temperature range of -5°C to +60°C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194970 is a Maxi-size Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator, designed for a working pressure of 2 to 12 bar and a standard nominal flow rate of 7,200 l/min. It incorporates a fully automatic condensate drain with an 80 cm3 max. condensate volume, a 5 µm grade of filtration, a metal bowl guard, and a rotary knob actuator lock with an integrated lock. Operating within a temperature range of -10 to 60 °C, this 2,620 g unit processes compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo 194727 is a D-series mini filter regulator featuring a fully automatic condensate drain, a 40 µm filtration grade, and a metal bowl guard. Designed for a standard nominal flow rate of 1,700 l/min with an operating pressure range of 2 to 12 bar, this component operates on compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. It incorporates a rotary knob actuator lock with an integrated lock and a pressure regulation range of 0.5 to 7 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194376 is a double-acting industrial component featuring a 10 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates within a working pressure range of 1.5 to 10 bar at a maximum speed of 0.8 m/s, utilizing flexible cushioning rings or plates at both ends and accommodating position detection via proximity sensors. Rated for hazardous locations with ATEX categories II 2G for gas and II 2D for dust within an ambient temperature of -5°C to +60°C, this unit functions with dried compressed air that may be lubricated or unlubricated in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →Festo

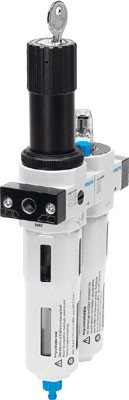

The Festo 194969 is a Maxi size D series industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a manual rotary condensate drain with an 80 cm3 max volume. Operating within a 1 to 16 bar working pressure and a 0.5 to 12 bar regulation range, this unit delivers a 7,200 l/min standard nominal flow rate across a -10 to 60 °C temperature range while utilizing a 5 µm grade of filtration. Constructed with a metal bowl guard, an actuator lock via a rotary knob with an integrated lock, and a vertical +/- 5° assembly position, it weighs 2,620 g and is prepared for a G1/4 pressure gauge using compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Festo
The Festo 194375 is a double-acting industrial component featuring a 10 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating with a plain-bearing guide. It operates at working pressures from 1.5 to 10 bar using dried compressed air, which can be lubricated or unlubricated, achieving a maximum speed of 0.8 m/s with flexible cushioning rings or plates at both ends. Certified for hazardous locations under ATEX categories II 2G for gas and II 2D for dust within an ambient temperature range of -5°C to +60°C, the unit includes position detection for proximity sensors and supports assembly in any position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo

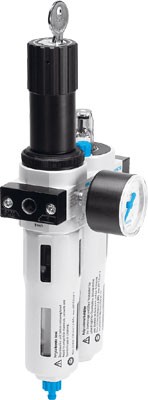

The Festo part number 194968 is a Maxi size Series D industrial component featuring a filter regulator with pressure gauge and a proportional standard mist lubricator designed for vertical assembly within +/- 5°. This unit operates with a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 12 bar, a maximum pressure hysteresis of 0.4 bar, and delivers a standard nominal flow rate of 7,200 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. Equipped with a 5 µm grade of filtration, manual rotary condensate drain, 80 cm3 max. condensate volume, metal bowl guard, and a rotary knob actuator lock with an integrated lock, the assembly weighs 2,620 g and functions across a medium and ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo

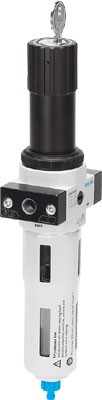

The Festo 194725 is a Series D mini filter regulator featuring a 40 µm filtration grade, a manual rotary condensate drain, a metal bowl guard, and a rotary knob with an integrated lock for a pressure regulation range of 0.5 to 7 bar within a 1 to 16 bar working pressure. Designed with a standard nominal flow rate of 1,700 l/min and a maximum condensate volume of 22 cm3, this unit operates on compressed air to ISO 8573-1:2010 [-:9:-] or inert gases with a vertical assembly position tolerance of +/- 5°. It is prepared for a G1/8 pressure gauge, exhibits a maximum pressure hysteresis of 0.2 bar, and maintains a moderate corrosion resistance classification CRC of 2 across medium and storage temperatures of -10 to 60 µC. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194374 is a double-acting industrial component featuring a yoke drive unit design structure with a 10 mm piston diameter, a 30 mm stroke, and a plain-bearing guide. It operates at working pressures from 1.5 to 10 bar using dried compressed air, lubricated or unlubricated, reaching a maximum speed of 0.8 m/s with flexible cushioning rings or plates at both ends (P cushioning) and a 15 mm adjustable end-position range. Rated for hazardous environments under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C) within an explosion-proof ambient temperature range of -5°C to +60°C, this unit supports position detection via proximity sensor and can be mounted in any assembly position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo 194967 is a Series D industrial component in a Maxi size designed for vertical line installation or mounting with accessories using G1 pneumatic connection ports. This filter regulator features a fully automatic condensate drain, a 40 µm grade of filtration, an 80 cm3 max condensate volume, a proportional standard mist lubricator, and a metal bowl guard. Operating within a working pressure range of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, the unit delivers a standard nominal flow rate of 8,700 l/min for compressed air media conforming to ISO8573-1:2010 [-:-:-] at temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194373 is a double-acting industrial guide component featuring a 10 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. It operates at working pressures from 1.5 to 10 bar using dried compressed air, which can be lubricated or unlubricated, and includes flexible cushioning rings or plates at both ends with an adjustable end-position range of 15 mm. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust, this unit functions within an explosion-proof ambient temperature range of -5°C to +60°C and incorporates position detection for a proximity sensor. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194966 is a Series D Maxi industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator, complete with a fully automatic condensate drain and a 40 µm grade of filtration. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, this unit delivers a standard nominal flow rate of 8,700 l/min for compressed air in accordance with ISO8573-1:2010 [-:-:-]. Weighing 2,620 g, it incorporates a metal bowl guard, a rotary knob with an integrated lock for actuator locking, and G1 pneumatic connection ports intended for vertical line installation within a temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194723 is a mini series D filter regulator without a pressure gauge, featuring a rotary knob with an integrated lock and a fully automatic condensate drain. It operates within a working pressure range of 2 to 12 bar, a pressure regulation range of 0.5 to 12 bar, and delivers a standard nominal flow rate of 1,600 l/min using compressed air or inert gases. The unit incorporates a 40 µm filtration grade, a 22 cm3 max condensate volume, a metal bowl guard, and is prepared for a G1/8 pressure gauge while maintaining a vertical assembly position within +/- 5°. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194372 is a double-acting industrial component featuring a 10 mm piston diameter, a 10 mm stroke, and a yoke drive unit operating mode with a plain-bearing guide. This unit accommodates a working pressure of 1.5 to 10 bar, flexible cushioning rings or plates at both ends, position detection for a proximity sensor, and an adjustable end-position range of 15 mm for installation in any assembly position. Certified for hazardous environments, the device meets ATEX category II 2G for gas with c T4 ignition protection and ATEX category II 2D for dust with c 120°C ignition protection within an explosion-proof ambient temperature range of -5°C to +60°C using dried compressed air that may be lubricated or unlubricated. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 194965 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge, paired with a proportional standard mist lubricator and a manual rotary condensate drain. This unit operates within a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 7 bar, delivering a standard nominal flow rate of 8,700 l/min with a 40 µm grade of filtration. Engineered with 2 G1 pneumatic connection ports, a metal bowl guard, and a rotary knob with an integrated lock actuator, the assembly weighs 2,620 g and is designed for vertical +/- 5° line installation or mounting with accessories. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
