Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 194722 is a mini D-series filter regulator featuring a 40 µm filtration grade, a manual rotary condensate drain with a 22 cm3 max volume, and a metal bowl guard. Operating within a 1 to 16 bar working pressure and a 0.5 to 12 bar regulation range, this unit achieves a standard nominal flow rate of 1,600 l/min for compressed air to ISO 8573-1:2010 [-:9:-] and inert gases. It includes a rotary knob with an integrated lock, a G1/8 pressure gauge preparation, and vertical +/- 5° assembly with a CRC 2 moderate corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
This Festo industrial component features a 6 mm piston diameter, a 50 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. Designed with a plain-bearing guide and flexible cushioning rings or plates at both ends, the double-acting drive operates on dried compressed air at working pressures from 2.5 to 10 bar and speeds up to 0.5 m/s. Certified for hazardous locations under ATEX categories II 2G and II 2D with an explosion-proof ambient temperature range of -5°C to +60°C, the unit includes position detection for proximity sensors and supports any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

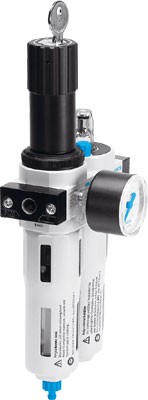

The Festo part number 194964 is a D-series Maxi industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator designed for vertical installation within +/- 5°. This unit operates with a working pressure of 1 to 16 bar, a pressure regulation range of 0.5 to 7 bar, a standard nominal flow rate of 8,700 l/min, and a 40 µm grade of filtration. It incorporates a rotary knob with an integrated lock actuator, a manual rotary condensate drain with an 80 cm3 max condensate volume, a metal bowl guard, and G1 pneumatic connection ports with a total product weight of 2,620 g. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo part number 194370 is a double-acting industrial component featuring a yoke drive unit design structure, a 6 mm piston diameter, and a 40 mm stroke. Equipped with a plain-bearing guide, flexible cushioning rings or plates at both ends, and position detection for proximity sensors, this unit operates at working pressures from 2.5 to 10 bar with a maximum speed of 0.5 m/s using dried compressed air that is lubricated or unlubricated. It carries ATEX certification for gas and dust environments, permitting explosion-proof operation within an ambient temperature range of -5°C to +60°C in any assembly position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →Festo
The Festo part number 194963 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator with an integrated lock rotary knob actuator. It operates within a working and pressure regulation range of 2 to 12 bar and 0.5 to 12 bar respectively, delivering a standard nominal flow rate of 8,500 l/min across a medium and ambient temperature range of -10 to 60 °C. This unit includes a fully automatic condensate drain with an 80 cm3 maximum condensate volume, a 40 µm grade of filtration, a metal bowl guard, and a vertical assembly position within +/- 5°. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo 194369 is a double-acting industrial guide component featuring a 6 mm piston diameter, a 30 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. This unit incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 10 mm while supporting an operating pressure of 2.5 to 10 bar and a maximum speed of 0.5 m/s on dried compressed air. Certified with ATEX category II 2G and II 2D for explosive environments within an ambient temperature range of -5°C to +60°C, the device allows for position detection via proximity sensor and permits assembly in any position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

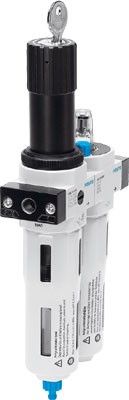

The Festo 194962 is a Maxi size Series D filter regulator without a pressure gauge, featuring a proportional standard mist lubricator and a manual rotary condensate drain with an 80 cm3 max condensate volume. Operating within a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar, this component delivers a standard nominal flow rate of 8,500 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases. The unit weighs 2,560 g, features a 40 µm filtration grade, a metal bowl guard, and a rotary knob actuator lock with an integrated lock for vertical assembly within +/- 5°. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo

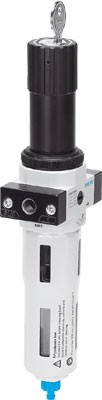

The Festo part number 194719 is a Series D mini filter regulator featuring a rotary knob with an integrated lock and a design structure without a pressure gauge, though it is prepared for G1⁄8. It delivers a standard nominal flow rate of 1,200 l⁄min across a pressure regulation range of 0.5 to 12 bar, operating with a fully automatic condensate drain and a 5 µm filtration grade inside a metal bowl guard. This component handles a maximum condensate volume of 22 cm3 within an assembly position of vertical +/- 5° using compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Submit the exact part number, quantity, and application requirements for a quote.
View product details →Festo
The Festo part number 194368 is a double-acting industrial component featuring a 6 mm piston diameter, a 20 mm stroke, and a yoke drive unit operating mode with a 0 mm centre of gravity distance from the working load to the yoke plate. Designed with a plain-bearing guide, flexible cushioning rings or plates at both ends, and an adjustable end-position range of 10 mm, this unit operates within a working pressure of 2.5 to 10 bar at a maximum speed of 0.5 m/s using dried compressed air. It includes position detection for proximity sensors, supports any assembly position, and complies with EU-Ex protection guidelines for gas category II 2G (c T4) and dust category II 2D (c 120°C) within an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194961 is a Maxi size D-series industrial component featuring a filter regulator with pressure gauge, proportional standard mist lubricator, and a fully automatic condensate drain housed with a metal bowl guard. It operates within a working pressure range of 2 to 12 bar, a pressure regulation range of 0.5 to 12 bar, and provides a standard nominal flow rate of 8,500 l/min with a 40 µm grade of filtration and an 80 cm3 max condensate volume. This 2,620 g unit includes a rotary knob actuator lock with an integrated lock and functions at a medium and ambient temperature range of -10 to 60 °C using compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 194367 is a double-acting drive unit featuring a yoke design with a 6 mm piston diameter, a 10 mm stroke, and a 10 mm adjustable end-position range. It incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends, and capability for position detection via proximity sensor, operating within a working pressure range of 2.5 to 10 bar at a maximum speed of 0.5 m/s. Certified for hazardous locations under ATEX category II 2G for gas (c T4) and II 2D for dust (c 120°C) within an explosion-proof ambient temperature of -5°C to +60°C, this component operates on dried compressed air that can be lubricated or unlubricated in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo 194960 is a Size Maxi Series D industrial component featuring a filter regulator with a pressure gauge and a proportional standard mist lubricator, operating within a working pressure range of 1 to 16 bar and a regulation range of 0.5 to 12 bar. It delivers a standard nominal flow rate of 8,500 l/min for compressed air to ISO 8573-1:2010 [-:9:-] or inert gases, utilizing a 40 µm grade of filtration, an 80 cm3 max. condensate volume with a manual rotary drain, and a metal bowl guard. Designed for a vertical assembly position within +/- 5° and a temperature range of -10 to 60 °C, the unit includes a rotary knob actuator lock with an integrated lock and weighs 2,620 g. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Festo
The Festo part number 194717 is a mini-sized D-series filter regulator featuring a design structure without a pressure gauge, prepared for G1/8 connections. It provides a standard nominal flow rate of 1,200 l/min across a working pressure of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar. Equipped with a 5 µm grade of filtration, manual rotary condensate drain, 22 cm3 max condensate volume, metal bowl guard, and a rotary knob with integrated lock, this component operates on compressed air to ISO 8573-1:2010 [-:9:-] or inert gases within a -10 to 60 °C medium and storage temperature range. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 194366 is a double-acting industrial drive unit featuring a 16 mm piston diameter, a 100 mm stroke, and a yoke operating mode with a plain-bearing guide. This component includes flexible cushioning rings or plates at both ends, a 15 mm adjustable end-position range, a through piston rod (S2 variant), and built-in capability for position detection via proximity sensor across an operating pressure of 1 to 10 bar. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust, it operates within an ambient temperature range of -5°C to +60°C using dried compressed air that can be lubricated or unlubricated. Request a formal quote by submitting the exact part number, quantity, and application requirements.
View product details →Festo
The Festo part number 194959 is a Series D Maxi industrial component featuring a filter regulator without a pressure gauge and a proportional standard mist lubricator with a fully automatic condensate drain and an 80 cm3 max. condensate volume. Operating within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 12 bar, this assembly delivers a standard nominal flow rate of 7,000 l/min while utilizing a 5 µm grade of filtration, a metal bowl guard, and a rotary knob with an integrated lock for the actuator. It functions with compressed air to ISO 8573-1:2010 [7:9:-] or inert gases at medium and ambient temperatures ranging from -10 to 60 °C, weighs 2,490 g, and is prepared for a G1/4 pressure gauge in a vertical +/- 5° assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →Festo
The Festo part number 194365 is a double-acting industrial guide component featuring a 16 mm piston diameter, an 80 mm stroke, and a yoke drive unit operating via a plain-bearing guide. This unit incorporates flexible cushioning rings at both ends, an adjustable end-position range of 15 mm, a through piston rod variant (S2), and provision for proximity sensor position detection for use within a working pressure range of 1 to 10 bar. Certified for hazardous locations under ATEX category II 2G for gas and II 2D for dust with an explosion-proof ambient temperature range of -5°C to +60°C, it functions with dried compressed air in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194958 is a Maxi size Series D industrial component featuring a filter regulator with pressure gauge, proportional standard mist lubricator, fully automatic condensate drain, and metal bowl guard. This assembly operates within a working and regulation pressure range of 0.5 to 12 bar, accommodating a standard nominal flow rate of 7,000 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases at temperatures from -10 to 60 °C. The unit weighs 2,490 g, integrates a rotary knob with an integrated lock for the actuator, and provides a 5 µm grade of filtration with a maximum condensate volume of 80 cm3. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →Festo
The Festo 194715 is a mini-size Series D filter regulator featuring a 40 µm filtration grade, fully automatic condensate drain with a 22 cm3 maximum condensate volume, and a metal bowl guard. This design structure operates within a working pressure of 2 to 12 bar and a pressure regulation range of 0.5 to 7 bar, delivering a standard nominal flow rate of 1,500 l/min for compressed air to ISO 8573-1:2010 [7:9:-] or inert gases. Incorporating a rotary knob actuator lock with an integrated lock and a G1/8-prepared pressure gauge, the unit maintains a maximum pressure hysteresis of 0.2 bar while achieving an output air purity class of ISO 8573-1:2010 [7:8:4]. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo 194364 is a double-acting industrial guide component featuring a 16 mm piston diameter, a 50 mm stroke, and a yoke drive unit with a through piston rod (S2 variant). It incorporates a plain-bearing guide, flexible cushioning rings or plates at both ends with a 15 mm adjustable end-position range, and a center of gravity distance of 0 mm from the working load to the yoke plate. Operating at pressures from 1 to 10 bar on dried compressed air, the unit accommodates speeds up to 0.8 m/s in any assembly position and includes position detection for a proximity sensor. Certified for hazardous locations, it meets ATEX category II 2G (gas ignition protection type c T4) and II 2D (dust ignition protection type c 120°C) within an explosion-proof ambient temperature range of -5°C to +60°C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Festo
The Festo part number 194957 is a Maxi size Series D industrial component featuring a filter regulator without a pressure gauge, a proportional standard mist lubricator, and a manual rotary condensate drain. It provides a standard nominal flow rate of 7,000 l/min across a working pressure range of 1 to 16 bar and a pressure regulation range of 0.5 to 12 bar with a maximum pressure hysteresis of 0.4 bar. Designed with a 5 µm grade of filtration, an 80 cm3 maximum condensate volume, a metal bowl guard, and a rotary knob with an integrated lock actuator lock, this unit operates within a temperature range of -10 to 60 °C and weighs 2,490 g. Submit the exact part number, quantity, and application requirements to request a quote for this component.
