Festo
The Festo 176610 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 piston rod thread, and an adjustable stroke ranging from 1 to 500 mm operating on compressed air according to ISO8573-1:2010 [7:4:4]. Constructed with a wrought aluminum alloy cover, FPM seals, and flexible cushioning rings at both ends, this unit delivers theoretical forces of 1,870 N for the advance stroke and 1,682 N for the return stroke at 6 bar across an ambient temperature range of -20 to 120 °C. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
The Festo 176466 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 1 to 500 mm, and a square guide providing protection against torque. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit incorporates flexible cushioning rings or plates at both ends and delivers a theoretical force of 754 N on the advance stroke at 6 bar. Constructed with a high alloy non-corrosive steel housing, wrought aluminum alloy covers, NBR and TPE-U seals, and a CRC 2 corrosion resistance classification, it functions at ambient temperatures from -20 to 80 °C with an M6 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177282 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 160 mm stroke, and a ball-bearing guide providing protection against torque. It operates within a pressure range of 2.5 to 8 bar, delivering a torque of 20 Nm at 6 bar with a maximum swivel frequency of 0.7 Hz and a 240 deg swivel angle within a 270 deg adjustment range. This unit incorporates shock absorbers at both ends alongside flexible cushioning rings, supporting an ambient temperature range of -10 to 60 °C using dried compressed air. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
Engineered with a 40 mm piston diameter and a variable stroke length from 1 to 500 mm, the Festo 176465 double-acting industrial component operates within a 1 to 10 bar working pressure range using compressed air meeting ISO8573-1:2010 [7:4:4]. This unit features flexible cushioning rings at both ends, an integrated square guide for torque protection, wrought aluminum alloy covers, and a non-corrosive high alloy steel housing with a CRC 2 corrosion resistance classification. It delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar, operating reliably across ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177818 industrial component is a double-acting pneumatic cylinder featuring a 3-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston rod thread built on the ISO 15552 standard. This profile barrel design incorporates adjustable pneumatic cushioning at both ends (PPV), a 20 mm cushioning length, 0.1 J impact energy in end positions, and position detection for proximity sensors, operating within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) across an ambient temperature of -20 to 80 °C. Operating with compressed air conforming to ISO 8573-1:2010 [7:4:4], the unit permits lubricated operation and maintains a CRC 2 moderate corrosion resistance classification with VDMA24364-B1/B2-L PWIS conformity in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 177281 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 160 mm stroke, and a 272 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and includes flexible cushioning rings or plates at both ends with a 2.1 degree cushioning angle. The assembly supports any position, incorporates a ball-bearing guide for torque and guide protection, accommodates inductive and proximity sensors for position detection, and features an S20 through, hollow piston rod variant. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
Engineered with a 40 mm piston diameter and an adjustable stroke from 1 to 500 mm, this double-acting Festo industrial component operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range. The unit features a square guide for torque protection, flexible cushioning rings or plates at both ends, a non-corrosive high-alloy steel housing, and wrought aluminum alloy covers sealed with NBR and TPE-U(PU). It delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar, while functioning across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

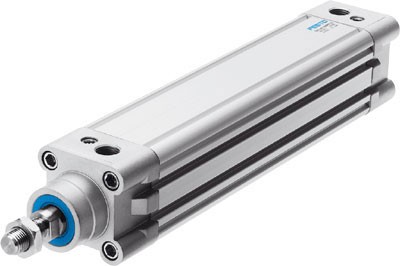

The Festo 177817 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 2" stroke, and a 3/8-24 UNF-2A male piston rod thread based on the ISO 15552 standard. Operating at pressures from 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4], this profile barrel design includes adjustable pneumatic cushioning at both ends with a 20 mm cushioning length and position detection for proximity sensors. It functions within an ambient temperature range of -20 to 80 °C, maintains a CRC 2 moderate corrosion resistance classification, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 177280 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 160 mm stroke, and a 240 mm swivel angle with a 270 deg rotation angle adjustment range. Operating at a pressure of 2.5 to 8 bar with dried compressed air, this unit delivers a torque of 20 Nm at 6 bar and incorporates both shock absorbers and flexible cushioning rings at both ends with a 15 deg cushioning angle. The assembly supports any position and includes position detection for inductive and proximity sensors, a ball-bearing guide, a through piston rod variant, and a maximum impact speed of 500 mm/s within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 176463 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke from 1 to 500 mm, and a square guide for torque and guide protection. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit incorporates flexible cushioning rings or plates at both ends and utilizes NBR and TPE-U(PU) seals alongside a wrought aluminum alloy cover and non-corrosive high alloy steel housing. It delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar, functioning across an ambient temperature range of -20 to 80 °C with CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 177816 is a double-acting industrial component with a 1 1/4" piston diameter, a 1.625" stroke, and a 3/8-24 UNF-2A male piston rod thread designed according to ISO 15552. It features adjustable pneumatic cushioning at both ends (PPV), a 20 mm cushioning length, 0.1 J impact energy in end positions, a profile barrel design structure with a single-ended piston rod, and integrated position detection for proximity sensors. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) and an ambient temperature range of -20 to 80 °C, the unit allows for any assembly position and lubricated operation. To receive pricing for this component, please submit your exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 177279 is a double-acting industrial rotary vane component featuring a 40 mm piston diameter, a 160 mm stroke, and a ball-bearing guide for torque and guide protection. Operating on dried compressed air within a 2.5 to 8 bar pressure range, this unit delivers a 20 Nm torque at 6 bar alongside a 272-degree swivel angle and a 270-degree rotation angle adjustment range. It incorporates flexible cushioning rings and plates at both ends with a 2.1-degree cushioning angle, a 12 mm cushioning length, and position detection capabilities for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 176462 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and a square guide providing protection against torque. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperature, this unit delivers theoretical forces of 633 N on the return stroke and 754 N on the advance stroke at 6 bar. Construction includes a high alloy steel non-corrosive housing, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings or plates at both ends with an M32x2 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177815 is a double-acting industrial component featuring a 1-inch stroke, 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston-rod end based on the ISO 15552 standard. This profile barrel design operates on compressed air matching ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.06 to 1.2 MPa and an ambient temperature range of -20 to 80 °C. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 20 mm cushioning length, position detection for proximity sensors, and a moderate corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
This Festo rotary vane industrial component, part number 177278, operates in a double-acting mode with a 40 mm piston diameter, a 125 mm stroke, and a 240 deg swivel angle within a 270 deg rotation angle adjustment range. The unit features a ball-bearing guide, a through hollow piston rod, CC shock absorbers and P flexible cushioning rings at both ends, a 15 deg cushioning angle, a 12 mm cushioning length, and a 1.5 deg fine adjustment. Powered by dried compressed air at an operating pressure of 2.5 to 8 bar, it delivers 20 Nm of torque at 6 bar with a maximum impact speed of 500 mm/s and a maximum swivel frequency of 0.7 Hz at 6 bar across an ambient temperature range of -10 to 60 °C in any assembly position with position detection for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 176461 is a double-acting industrial component featuring a 32 mm piston diameter, an M10x1,25 piston rod thread with a male end, and an adjustable pneumatic cushioning system at both ends (PPV). Operating within a working pressure range of 1 to 10 bar and an ambient temperature range of -20 to 80 °C, it delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar using dried compressed air. Constructed with a wrought aluminum alloy cover, a CRC 2 corrosion resistance classification, and a stroke length adjustable from 1 to 500 mm, this unit weighs 312 g at 0 mm stroke with a moving mass of 222 g. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177814 is a double-acting industrial component featuring a 1 1/4" piston diameter, a single-ended piston rod with a 3/8-24 UNF-2A male thread, and a stroke ranging from 0.08 to 80 inches based on ISO 15552. Built with a profile barrel design and position detection for proximity sensors, it operates at pressures between 0.06 and 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. Adjustable pneumatic cushioning at both ends provides a 20 mm cushioning length and 0.1 J impact energy absorption across an ambient temperature range of -20 to 80 °C. Submit your exact part number, quantity, and application requirements to request a quote for this Festo part.
View product details →
Festo
Manufactured by Festo, part number 177277 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 125 mm stroke, and a 272-degree swivel angle with a 270-degree rotation angle adjustment range. Operating at a pressure of 2.5 to 8 bar, this variant incorporates a through, hollow piston rod, a ball-bearing guide for torque protection, flexible cushioning rings or plates at both ends with a 2.1-degree cushioning angle, and compatibility with inductive and proximity sensors. It delivers a torque of 20 Nm at 6 bar while functioning within an ambient temperature range of -10 to 60 degrees Celsius using dried compressed air. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 176460 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and PPV pneumatic cushioning at both ends. Operating within a pressure range of 1 to 10 bar and temperatures from -20 to 80 °C, this unit utilizes dried compressed air, which can be lubricated or unlubricated. The assembly comprises a non-corrosive high-alloy steel housing, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and is free of copper and PTFE with a CRC rating of 2. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 177813 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 20" stroke, and a 3/8-24 UNF-2A male piston rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa and includes adjustable pneumatic cushioning at both ends with a 20 mm cushioning length. It functions within an ambient temperature range of -20 to 80 °C using compressed air conforming to ISO 8573-1:2010 [7:4:4], and maintains a CRC 2 moderate corrosion stress classification with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this component.
