Festo
The Festo 177276 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 125 mm stroke, and a 240 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and supports a max swivel frequency of 0.7 Hz at 6 bar and a max impact speed of 500 mm/s. It incorporates CC shock absorbers and P flexible cushioning rings at both ends with a 12 mm cushioning length, a 15 degree cushioning angle, and a 1.5 degree fine adjustment. Additional features include any assembly position, position detection for inductive and proximity sensors, an S2 through piston rod variant, and a ball-bearing guide for torque and guide protection across an ambient temperature range of -10 to 60 degrees Celsius. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 176459 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating within a pressure range of 1 to 10 bar using dried compressed air. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, and NBR and TPE-U seals, this unit provides adjustable pneumatic cushioning at both ends and delivers theoretical forces of 415 N on the return stroke and 483 N on the advance stroke at 6 bar. It operates in ambient temperatures between -20 and 80 °C, features M26x1,5 pneumatic connections, and has a CRC corrosion resistance classification of 2 while remaining free of copper and PTFE. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

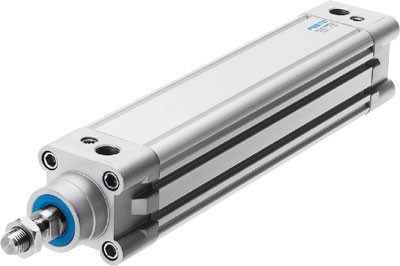

The Festo part number 177812 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 16" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Built with a profile barrel design and adjustable pneumatic cushioning at both ends, this unit operates within a pressure range of 0.06 to 1.2 MPa and an ambient temperature range of -20 to 80 °C using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It offers a CRC 2 moderate corrosion resistance classification, a 20 mm cushioning length, and supports any assembly position with lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 177275 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 125 mm stroke, and a 272 deg swivel angle with a 270 deg rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar with a torque of 20 Nm at 6 bar, this unit includes flexible cushioning rings at both ends, a ball-bearing guide, and position detection capabilities for inductive and proximity sensors. It functions within an ambient temperature range of -10 to 60 °C using dried compressed air and achieves a max impact speed of 500 mm/s and a max swivel frequency of 2 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 176458 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a pressure range of 1 to 10 bar using dried compressed air. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, this unit provides adjustable pneumatic cushioning at both ends (PPV) with a 19 mm cushioning length. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, while maintaining a basic weight of 312 g for a 0 mm stroke and a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 176601 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Built with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy cover, and FPM seals, it operates on compressed air according to ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar across an ambient temperature range of -20 to 120 °C. At a 6 bar operating pressure, the unit delivers a theoretical return force of 1,682 N and an advance force of 1,870 N through G3/4 pneumatic connections, with a basic weight of 1,397 g for a 0 mm stroke and lubricated operation enabled. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 177811 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 12" stroke, and a 3/8-24 UNF-2A male piston rod thread based on the ISO 15552 standard. Operating within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this profile barrel cylinder includes adjustable pneumatic cushioning at both ends with a 20 mm cushioning length. Built with a single-ended piston rod for any assembly position, it functions in ambient temperatures from -20 to 80 °C with a CRC 2 moderate corrosion resistance classification and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177274 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 100 mm stroke, and a 240 deg swivel angle within a 270 deg rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar, this variant includes a through, hollow piston rod, a ball-bearing guide, and dual shock absorbers combined with flexible cushioning rings at both ends. It operates within an ambient temperature range of -10 to 60 °C using dried compressed air and accommodates inductive or proximity sensors for position detection. Request a quote for this part number by submitting your required quantity and application details.
View product details →
Festo
The Festo 176457 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable 1 to 500 mm stroke, and a male M10x1.25 piston rod thread with wrought aluminum alloy covers. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and -20 to 120 °C ambient temperature range, it delivers 483 N of advance force and 415 N of return force at 6 bar. This unit incorporates PPV adjustable pneumatic cushioning at both ends with a 19 mm cushioning length and an M26x1.5 pneumatic connection. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 176600 is a double-acting industrial component with a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating at pressures between 1 and 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and FPM seals, it features flexible cushioning rings or plates at both ends and achieves a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. This unit functions within an ambient temperature range of -20 to 120 °C, boasts a corrosion resistance classification CRC of 2, and supports lubricated operation once subsequently required. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
Engineered with a 10-inch stroke and a 1 ¼" piston diameter, this Festo double-acting industrial component features a 3/8-24 UNF-2A male piston-rod end and an ISO 15552-compliant profile barrel design. The unit operates on compressed air within a working pressure range of 0.6 to 12 bar and incorporates adjustable pneumatic cushioning at both ends with a 20 mm cushioning length. Designed for any assembly position across an ambient temperature range of -20 to 80 °C, the assembly offers CRC 2 moderate corrosion resistance and allows for lubricated operation. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 177273 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 100 mm stroke, and a 272-degree swivel angle with a 270-degree rotation angle adjustment range. Operating at a pressure of 2.5 to 8 bar on dried compressed air, this unit delivers a torque of 20 Nm at 6 bar and incorporates flexible cushioning rings at both ends with a 2.1-degree cushioning angle and a 12 mm cushioning length. It operates within an ambient temperature range of -10 to 60 °C, accommodates inductive or proximity sensors for position detection, and includes a ball-bearing guide for torque protection. Submit the exact part number, quantity, and application requirements to receive a formal price quotation.
View product details →
Festo
This Festo part number 176456 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke length from 1 to 500 mm with PPV pneumatic cushioning at both ends. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 120 °C ambient temperatures, the unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover and an M10x1,25 male piston rod thread, it has a basic weight of 312 g for a 0 mm stroke with an additional 15.4 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 176599 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and FPM seals, it operates on compressed air matching ISO8573-1:2010 [7:4:4] standards within a pressure range of 1 to 10 bar and ambient temperatures from -20 to 120 °C. At 6 bar, this unit delivers a theoretical return force of 1,682 N and an advance force of 1,870 N, utilizing G3/4 pneumatic connections and supporting lubricated operation if subsequently required. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177809 is a double-acting industrial component featuring a 1 1/4" piston diameter, an 8" stroke, and a 3/8-24 UNF-2A male piston rod thread based on ISO 15552. Built with a profile barrel design and adjustable pneumatic cushioning at both ends, this unit operates within a pressure range of 0.06 to 1.2 MPa across an ambient temperature range of -20 to 80 °C using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. It offers moderate corrosion resistance classification CRC 2, VDMA24364-B1/B2-L PWIS conformity, and supports any assembly position with lubricated operation subsequently required. Submit your exact part number, quantity, and application requirements to receive an official quote.
View product details →
Festo
The Festo 177272 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 100 mm stroke, and a 240 deg swivel angle with a 270 deg rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and incorporates shock absorbers at both ends alongside flexible cushioning rings. It includes a ball-bearing guide, position detection for inductive and proximity sensors, a through piston rod variant, and operates within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 176455 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm with an M10x1,25 piston rod thread. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a pressure range of 1 to 10 bar, this unit delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, FPM seals, and flexible cushioning rings or plates at both ends, the assembly incorporates an M26x1,5 pneumatic connection and operates within an ambient temperature range of -20 to 120 °C. Submit the exact part number, quantity, and application requirements to receive an official price and lead time quote.
View product details →
Festo
The Festo 176598 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke length from 1 to 500 mm, utilizing flexible cushioning rings or plates at both ends for P-type cushioning. Constructed with a high alloy steel non-corrosive housing, wrought aluminum alloy covers, a high alloy steel piston rod, and FPM seals, this pneumatic actuator operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range and an ambient temperature range of -20 to 120 °C. Lubricated operation is possible and subsequently required for further operation, delivering theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar through an M45x1,5 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177808 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 6 " stroke, and a 3/8-24 UNF-2A male piston-rod end based on the ISO 15552 standard. Constructed with a piston, piston rod, and profile barrel design, this unit operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air meeting ISO 8573-1:2010 [7:4:4] standards. It incorporates adjustable pneumatic cushioning at both ends with a 20 mm cushioning length, 0.1 J impact energy in end positions, and a moderate corrosion resistance classification of CRC 2 for ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo part number 177271 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 100 mm stroke, and a ball-bearing guide providing torque and guide protection. Operating at pressures from 2.5 to 8 bar with a torque of 20 Nm at 6 bar, this unit achieves a swivel angle of 272 degrees with a 270-degree rotation angle adjustment range and a 2-degree cushioning angle. Flexible cushioning rings or plates at both ends provide cushioning over a 12 mm length, supporting a maximum impact speed of 500 mm/s and a maximum swivel frequency of 2 Hz at 6 bar in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
