Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 176454 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke length from 1 to 500 mm with an M10x1,25 piston rod thread. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit utilizes flexible cushioning rings at both ends and FPM seals housed in a wrought aluminum alloy cover. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, while functioning across an ambient temperature range of -20 to 120 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 176597 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Operating within a 1 to 10 bar pressure range, this unit utilizes compressed air conforming to ISO8573-1:2010 [7:4:4] and accommodates lubricated operation when subsequently required. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and FPM seals, the assembly delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 177807, is a double-acting profile barrel piston cylinder featuring a 1 1/4" piston diameter and a 5" stroke with a male 3/8-24 UNF-2A piston rod thread. Built according to ISO 15552 standards, the unit operates with compressed air within a working pressure range of 0.6 to 12 bar (0.06 to 1.2 MPa) and incorporates adjustable pneumatic cushioning at both ends (PPV) with a 20 mm cushioning length. The assembly supports any mounting position, withstands ambient temperatures from -20 to 80 °C, and includes a CRC 2 moderate corrosion stress classification with VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this specification.
View product details →
Festo
The Festo 177270 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, an 80 mm stroke, and a 240 deg swivel angle within a 270 deg rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and incorporates shock absorbers and flexible cushioning rings at both ends with a 15 deg cushioning angle. It is equipped with a ball-bearing guide for torque protection, supports position detection via inductive or proximity sensors, and features a through, hollow piston rod variant with a 1.5 deg fine adjustment. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 176596 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke ranging from 1 to 500 mm, operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] at pressures between 1 and 10 bar. Constructed with a high alloy steel housing and piston rod, wrought aluminum alloy covers, and FPM seals, this unit achieves a corrosion resistance classification CRC of 2 and functions within an ambient temperature range of -20 to 120 °C. At a working pressure of 6 bar, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke, utilizing flexible cushioning rings at both ends. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177806 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 4" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates on compressed air per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1.2 MPa and handles ambient temperatures from -20 to 80 °C. It incorporates adjustable pneumatic cushioning at both ends (PPV) with a 20 mm cushioning length, 0.1 J impact energy in end positions, a CRC 2 moderate corrosion resistance classification, and VDMA24364-B1/B2-L PWIS conformity for any assembly position with optional lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177269 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, an 80 mm stroke, and a 272-degree swivel angle with a 270-degree rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar, this unit delivers 20 Nm of torque at 6 bar and includes flexible cushioning rings at both ends with a 2.1-degree cushioning angle, a 12 mm cushioning length, and a 5-degree fine adjustment. Built with a ball-bearing guide for torque protection, it operates within an ambient temperature range of -10 to 60 °C using dried compressed air, supports a maximum impact speed of 500 mm/s, a maximum swivel frequency of 2 Hz at 6 bar, position detection for inductive and proximity sensors, and features an S20 through, hollow piston rod variant in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176595 is a double-acting industrial component with a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar. Built with a high alloy steel housing and piston rod, wrought aluminum alloy covers, and FPM seals, it features flexible cushioning rings or plates at both ends and achieves a CRC corrosion resistance classification of 2 across ambient temperatures of -20 to 120 °C. At a 6 bar operating pressure, this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke, utilizing G3/4 pneumatic connections. Submit your exact part number, quantity, and application requirements for an official quote.
View product details →
Festo
The Festo 177805 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 3" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Constructed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It is equipped with adjustable pneumatic cushioning at both ends spanning a 20 mm cushioning length, features a moderate corrosion resistance classification of CRC 2, and functions across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 177268 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, an 80 mm stroke, and a 240 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at pressures from 2.5 to 8 bar, this unit delivers 20 Nm of torque at 6 bar and incorporates shock absorbers at both ends alongside flexible cushioning rings, a 15 degree cushioning angle, and a 12 mm cushioning length. It operates with dried compressed air, supports ambient temperatures between -10 and 60 degrees Celsius, and includes a ball-bearing guide for torque protection, fine adjustment of 1.5 degrees, and position detection via inductive or proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176594 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends (P). It operates with compressed air according to ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar and an ambient temperature range of -20 to 120 °C, delivering a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, high alloy steel housing and piston rod, and FPM seals, this unit provides a corrosion resistance classification CRC of 2 and supports lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo

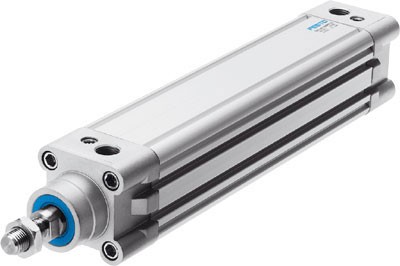

The Festo 177804 is a double-acting industrial component featuring a 1 1/4-inch piston diameter, a 2-inch stroke, and a 3/8-24 UNF-2A male piston-rod end. Built to ISO 15552 standards with a profile barrel design, this unit operates on compressed air within a pressure range of 0.06 to 1.2 MPa and includes adjustable pneumatic cushioning at both ends (PPV). It functions in ambient temperatures from -20 to 80 °C, exhibits a CRC 2 moderate corrosion resistance classification, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177267 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, an 80 mm stroke, and a ball-bearing guide for torque and guide protection. Operating on dried compressed air at pressures from 2.5 to 8 bar, this unit delivers a torque of 20 Nm at 6 bar with a swivel angle of 272 degrees, a rotation angle adjustment range of 270 degrees, and flexible cushioning rings or plates at both ends. It operates within an ambient temperature range of -10 to 60 degrees Celsius, accommodates a maximum impact speed of 500 mm/s, and includes position detection capabilities for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 176593 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating with compressed air meeting ISO8573-1:2010 [7:4:4] standards at pressures between 1 and 10 bar. Constructed with a high alloy steel housing, wrought aluminum alloy covers, a high alloy steel piston rod, and FPM seals, this unit provides flexible cushioning rings or plates at both ends and achieves a CRC corrosion resistance classification of 2 across ambient temperatures of -20 to 120 °C. At a working pressure of 6 bar, it delivers a theoretical return force of 1,682 N and a theoretical advance force of 1,870 N through its G3/4 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo part number 177803 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 1.625" stroke, and a 3/8-24 UNF-2A male piston rod thread based on the ISO 15552 standard. It operates with compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1.2 MPa and an ambient temperature span of -20 to 80 °C, utilizing adjustable pneumatic cushioning at both ends (PPV). Designed with a profile barrel structure and CRC 2 moderate corrosion stress resistance, this unit supports any assembly position and permits lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177266 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and a 240 deg swivel angle with a 270 deg rotation angle adjustment range. Operating at a pressure range of 2.5 to 8 bar, this unit delivers a torque of 20 Nm at 6 bar and incorporates shock absorbers and flexible cushioning rings at both ends with a 15 deg cushioning angle. It is equipped with a ball-bearing guide for torque protection, a through hollow piston rod variant, and provisions for inductive or proximity sensor position detection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 176592 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke length from 1 to 500 mm, utilizing flexible cushioning rings or plates at both ends. Operating within a pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4], this unit incorporates a high alloy non-corrosive steel housing, a wrought aluminum alloy cover, and FPM seals. At 6 bar, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke, with an ambient temperature rating of -20 to 120 °C and a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
The Festo part number 177802 is a double-acting industrial component featuring a 1-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A piston rod thread with a male end. Built according to ISO 15552 standards with a profile barrel design, this unit operates on compressed air complying with ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1.2 MPa. It includes adjustable pneumatic cushioning at both ends, a 20 mm cushioning length, and supports an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177265 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 50 mm stroke, and a 272 degree swivel angle with a 270 degree rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this component delivers a torque of 20 Nm at 6 bar and incorporates flexible cushioning rings at both ends along with a ball-bearing guide for torque protection. It supports position detection via inductive and proximity sensors, operates within an ambient temperature range of -10 to 60 degrees Celsius, and includes an S20 through, hollow piston rod variant. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 176591 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, utilizing flexible cushioning rings at both ends. Operating within a pressure range of 1 to 10 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], this assembly delivers a theoretical return force of 1,682 N and an advance force of 1,870 N at 6 bar. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and FPM seals, it withstands ambient temperatures from -20 to 120 °C and achieves a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
