Festo
The Festo 177241 is a double-acting industrial component featuring a rotary vane design structure with a 32 mm piston diameter and a 50 mm stroke. This variant includes a through, hollow piston rod, a ball-bearing guide for torque protection, and flexible cushioning rings or plates at both ends providing a 1.7 deg cushioning angle over an 8 mm cushioning length. It operates within a pressure range of 2.5 to 8 bar, delivering a torque of 10 Nm at 6 bar with a maximum impact speed of 500 mm/s and a maximum swivel frequency of 2 Hz at 6 bar. Position detection is supported for both inductive and proximity sensors across an adjustable rotation angle range of 270 deg, a swivel angle of 272 deg, and a 5 deg fine adjustment in any assembly position using dried compressed air between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Engineered with a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, this double-acting industrial component from Festo operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards at pressures between 1 and 10 bar. The unit features a square guide for torque protection, flexible cushioning rings at both ends, a non-corrosive high alloy steel housing, and wrought aluminum alloy covers with NBR and TPE-U(PU) seals. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 177776 is a double-acting industrial component featuring a 1-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A piston rod thread. Built on the ISO 15552 standard with a profile barrel design and flexible cushioning rings at both ends, this unit operates within a pressure range of 0.6 to 12 bar and an ambient temperature range of -20 to 80 °C. It provides a theoretical retracting force of 415 N at 0.6 MPa utilizing compressed air per ISO 8573-1:2010 [7:4:4]. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →
Festo
Engineered with a rotary vane design structure featuring a 32 mm piston diameter and a 50 mm stroke, this Festo industrial component operates in a double-acting mode with dried compressed air, lubricated or unlubricated, across an operating pressure range of 2.5 to 8 bar. The unit delivers 10 Nm of torque at 6 bar and incorporates a ball-bearing guide for torque and guide protection, a 246 deg swivel angle with a 270 deg rotation angle adjustment range, and shock absorbers plus flexible cushioning rings at both ends. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176565 is a double-acting industrial component featuring a 50 mm piston diameter, an M16x1,5 piston rod thread, and an adjustable pneumatic cushioning (PPV) system at both ends with a 27 mm cushioning length. Operating within a 1 to 10 bar pressure range and an ambient temperature of -20 to 80 °C, this unit delivers theoretical forces of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar using dried compressed air. Constructed with a wrought aluminum alloy cover and copper- and PTFE-free materials, it supports a stroke length from 1 to 500 mm with an M45x1,5 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176421 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable stroke from 1 to 500 mm, and a square guide providing protection against torque. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperatures, it delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a high alloy non-corrosive steel housing, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings at both ends, this unit incorporates a basic weight of 312 g for a 0 mm stroke alongside G1/8 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

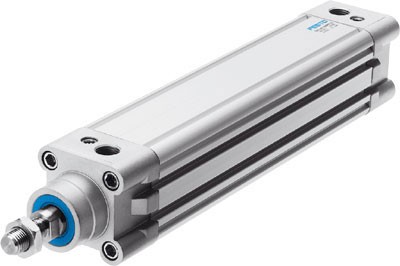

The Festo part number 177775 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 3/8-24 UNF-2A male piston-rod thread, and a profile barrel design with a single-ended piston rod. Built on the ISO 15552 standard, this unit operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and incorporates flexible cushioning rings at both ends for 0.1 J of impact energy absorption in the end positions. It provides an ambient temperature range of -20 to 80 °C, a CRC rating of 2 for moderate corrosion stress, and a theoretical retracting force of 415 N at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 177239 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and a 272 deg swivel angle with a 270 deg rotation angle adjustment range. This unit operates within a pressure range of 2.5 to 8 bar, delivering 10 Nm of torque at 6 bar and supporting a maximum swivel frequency of 2 Hz alongside a max impact speed of 500 mm/s. Equipped with flexible cushioning rings at both ends, a ball-bearing guide for torque protection, and position detection capabilities for inductive and proximity sensors, it functions with dried compressed air in ambient temperatures from -10 to 60 °C in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 176564 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke range from 1 to 500 mm, and pneumatic cushioning adjustable at both ends over a 27 mm cushioning length. Operating on dried compressed air at working pressures between 1 and 10 bar, this unit utilizes an M6 pneumatic connection, a non-corrosive high alloy steel housing, a wrought aluminum alloy cover, and NBR and TPE-U seals with a CRC rating of 2. It delivers theoretical forces of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar, with a basic weight of 977 g and a moving mass of 892 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176420 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm, utilizing a square guide for torque protection and flexible cushioning rings at both ends. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperature, this unit delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, the assembly weighs 312 g at 0 mm stroke with an M6 pneumatic connection and CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements for an RFQ.
View product details →
Festo
The Festo part number 177238 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and a ball-bearing guide for torque and guide protection. It operates on dried compressed air, lubricated or unlubricated, within an operating pressure range of 2.5 to 8 bar and ambient temperatures from -10 to 60 °C, delivering a torque of 10 Nm at 6 bar with a 246 deg swivel angle and 270 deg rotation angle adjustment range. Cushioning is provided by shock absorbers and flexible cushioning rings at both ends, supporting a maximum impact speed of 500 mm/s and a maximum swivel frequency of 0.7 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 176563 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating within a 1 to 10 bar pressure range. Constructed with a non-corrosive high alloy steel housing, a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a copper- and PTFE-free material design, it delivers theoretical forces of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar. This unit incorporates adjustable pneumatic cushioning at both ends with a 27 mm cushioning length, operates on dried compressed air in ambient temperatures from -20 to 80 °C, and has a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →
Festo
The Festo 176419 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and a square guide providing torque protection. Built with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, it operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and -20 to 80 °C ambient temperature range. This unit delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, utilizing G1/8 pneumatic connections and flexible cushioning rings at both ends. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177237 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and an S20 through, hollow piston rod with a ball-bearing guide for torque and guide protection. It delivers a torque of 10 Nm at 6 bar, operates within a pressure range of 2.5 to 8 bar on dried compressed air, and provides a swivel angle of 272 degrees with a 270 degree rotation angle adjustment range, a 1.7 degree cushioning angle, and flexible cushioning rings or plates at both ends. Designed with any assembly position and position detection for inductive or proximity sensors, it functions at ambient temperatures from -10 to 60 °C with a maximum impact speed of 500 mm/s and a max swivel frequency of 2 Hz at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176562 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating within a working pressure range of 1 to 10 bar using dried compressed air. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit achieves a corrosion resistance classification of 2 and functions in ambient temperatures from -20 to 80 °C. It incorporates adjustable pneumatic cushioning at both ends with a 27 mm cushioning length, delivering a theoretical force of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo
The Festo part number 176418 is a double-acting industrial component featuring a 32 mm piston diameter, a stroke length ranging from 1 to 500 mm, and integrated flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and a square guide for torque protection, this unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 1 to 10 bar and an ambient temperature span of -20 to 80 °C. It delivers a theoretical force of 415 N on the return stroke and 483 N on the advance stroke at 6 bar, with a basic weight of 312 g for a 0 mm stroke and an M26x1,5 pneumatic connection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 177236 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and a 246 deg swivel angle with a 270 deg rotation angle adjustment range. Operating at a pressure range of 2.5 to 8 bar with dried compressed air, this unit delivers a torque of 10 Nm at 6 bar and incorporates shock absorbers and flexible cushioning rings at both ends. It operates within an ambient temperature of -10 to 60 °C, supports a maximum impact speed of 500 mm/s, and includes a ball-bearing guide with position detection for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 176561 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and an M16x1,5 piston rod thread. Operating with compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit incorporates adjustable pneumatic cushioning at both ends (PPV) and wrought aluminum alloy covers rated at CRC 2 corrosion resistance. At 6 bar, it delivers a theoretical return stroke force of 989 N and a theoretical advance stroke force of 1,178 N across an ambient temperature range of -20 to 120 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →
Festo
Engineered by Festo, the part number 176417 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm. Operating within a 1 to 10 bar pressure range, this unit utilizes compressed air in accordance with ISO8573-1:2010 [7:4:4] and incorporates flexible cushioning rings at both ends along with a square guide for torque protection. The construction includes a high-alloy, non-corrosive steel housing, wrought aluminum alloy covers, and NBR and TPE-U seals providing a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177235 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 40 mm stroke, and a ball-bearing guide for torque and guide protection. It operates at pressures from 2.5 to 8 bar using dried compressed air—lubricated or unlubricated—delivering a torque of 10 Nm at 6 bar with a maximum swivel frequency of 2 Hz and a max impact speed of 500 mm/s. The unit includes flexible cushioning rings or plates at both ends with an 8 mm cushioning length, a 1.7-degree cushioning angle, a 272-degree swivel angle, a 270-degree rotation angle adjustment range with 5-degree fine adjustment, and position detection capabilities for inductive and proximity sensors in any assembly position. Submit your exact part number, quantity, and application requirements to receive a formal quotation for this S2 through piston rod variant.
