Festo
The Festo 176573 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and a square guide providing protection against torque. Operating within a pressure range of 1 to 10 bar using ISO 8573-1:2010 [7:4:4] compressed air, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing, NBR and TPE-U(PU) seals, and flexible cushioning rings at both ends, this unit functions in ambient temperatures from -20 to 80 °C with a CRC corrosion resistance classification of 2. Please submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 177783 is a double-acting industrial component featuring an 8-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston-rod end. Built on the ISO 15552 standard with a profile barrel design structure, this unit operates on compressed air within a working pressure range of 0.6 to 12 bar and delivers a theoretical retracting force of 415 N at 6 bar. It incorporates flexible cushioning rings at both ends, a moderate corrosion resistance classification of CRC 2, and accommodates an ambient temperature range of -20 to 80 °C in any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
This Festo industrial component, part number 177247, is a double-acting rotary vane actuator featuring a 32 mm piston diameter, a 100 mm stroke, and a ball-bearing guide for torque and guide protection. It delivers a torque of 10 Nm at 6 bar across a 272-degree swivel angle with a 270-degree rotation angle adjustment range, flexible cushioning rings or plates at both ends, and an operating pressure range of 2.5 to 8 bar. Position detection is supported for both inductive and proximity sensors, while operation utilizes dried compressed air, either lubricated or unlubricated, within an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Engineered by Festo, the part number 176572 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and a square guide for torque protection. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, operating within a pressure range of 1 to 10 bar and temperatures from -20 to 80 °C. The unit incorporates flexible cushioning rings at both ends, a wrought aluminum alloy cover, NBR and TPE-U seals, and a non-corrosive high-alloy steel housing with a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This double-acting industrial component from Festo features a 1 1/4" piston diameter, a 6" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.06 to 1.2 MPa pressure range, the profile barrel design incorporates flexible cushioning rings at both ends and achieves a retracting theoretical force of 415 N at 0.6 MPa. The unit accommodates any assembly position, operates within an ambient temperature range of -20 to 80 °C, and features a CRC 2 moderate corrosion resistance classification without position detection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177246 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a 246 deg swivel angle with a 270 deg rotation angle adjustment range. This unit operates on dried compressed air, lubricated or unlubricated, within an operating pressure range of 2.5 to 8 bar and delivers 10 Nm of torque at 6 bar. It incorporates a ball-bearing guide for torque protection, dual-end CC shock absorber and P flexible cushioning, a 12.5 deg cushioning angle, an 8 mm cushioning length, and position detection compatibility for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176571 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a 1 to 10 bar pressure range using compressed air meeting ISO8573-1:2010 [7:4:4]. This unit incorporates a square guide for torque protection, flexible cushioning rings at both ends, wrought aluminum alloy covers, NBR and TPE-U seals, and a non-corrosive high alloy steel housing with a CRC rating of 2. Operating across an ambient temperature range of -20 to 80 °C, it delivers a theoretical advance force of 1,870 N and return force of 1,682 N at 6 bar through G3/4 pneumatic connections. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 177781 is a double-acting industrial component featuring a 5-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston rod thread based on the ISO 15552 standard. This profile barrel unit operates on compressed air in accordance with ISO 8573-1:2010 [7:4:4] across an operating pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar), delivering a theoretical retracting force of 415 N at 6 bar. It incorporates flexible cushioning rings at both ends, accommodates any assembly position, and provides a CRC rating of 2 for moderate corrosion stress within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177245 is a double-acting industrial component featuring a rotary vane design structure with a 32 mm piston diameter, an 80 mm stroke, and a ball-bearing guide providing protection against torque. Operating at a pressure range of 2.5 to 8 bar with a torque of 10 Nm at 6 bar, this unit delivers a 272-degree swivel angle with a 270-degree rotation angle adjustment range, 1.7-degree cushioning angle, and 5-degree fine adjustment. It incorporates flexible cushioning rings and plates at both ends, accommodates inductive and proximity sensors for position detection, and operates within an ambient temperature range of -10 to 60 °C using dried compressed air. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 176570 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit operates within a pressure range of 1 to 10 bar and ambient temperatures from -20 to 80 °C using compressed air meeting ISO8573-1:2010 [7:4:4]. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, utilizing a square guide for torque protection and an M8 pneumatic connection. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 177780 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 4" stroke, and a male 3/8-24 UNF-2A piston rod thread based on ISO 15552. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It incorporates flexible cushioning rings at both ends, a CRC 2 moderate corrosion resistance classification, and functions across an ambient temperature range of -20 to 80 °C with a retracting theoretical force of 415 N at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 177244 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, an 80 mm stroke, and a 246 deg swivel angle with a 270 deg rotation angle adjustment range. This unit incorporates a ball-bearing guide for torque protection, a 12.5 deg cushioning angle, 8 mm cushioning length, and shock absorbers plus flexible cushioning rings at both ends. It operates within a 2.5 to 8 bar pressure range, delivering 10 Nm of torque at 6 bar with a maximum impact speed of 500 mm/s and a max swivel frequency of 0.7 Hz at 6 bar. Designed for any assembly position using dried compressed air, this variant includes a through piston rod and position detection for proximity and inductive sensors across an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo part number 176569 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and a square guide providing protection against torque. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit delivers theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, it incorporates flexible cushioning rings at both ends and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177779 is a double-acting industrial component featuring a 3-inch stroke and a 1 1/4-inch piston diameter with a 3/8-24 UNF-2A male piston rod thread. Built on the ISO 15552 standard, this profile barrel design operates within a pressure range of 0.06 to 1.2 MPa using compressed air according to ISO 8573-1:2010 [7:4:4] and includes flexible cushioning rings at both ends. It delivers a theoretical retracting force of 415 N at 0.6 MPa, supports any assembly position, and maintains moderate corrosion resistance under ambient temperatures from -20 to 80 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 177243 is a double-acting industrial component featuring a rotary vane design structure with a 32 mm piston diameter, an 80 mm stroke, and a ball-bearing guide for torque and guide protection. Operating within a 2.5 to 8 bar pressure range, this unit delivers a torque of 10 Nm at 6 bar, a swivel angle of 272 degrees with a 270 degree rotation angle adjustment range, and flexible cushioning rings at both ends. It operates on dried compressed air in ambient temperatures from -10 to 60 °C and accommodates position detection via inductive or proximity sensors. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
Engineered with a 63 mm piston diameter and a variable stroke ranging from 1 to 500 mm, this double-acting industrial component from Festo operates on compressed air conforming to ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar. The unit features flexible cushioning rings at both ends, a square guide for torque protection, wrought aluminum alloy covers, a non-corrosive high-alloy steel housing, and NBR and TPE-U(PU) seals with a CRC 2 corrosion resistance classification. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, functioning within ambient temperatures from -20 to 80 °C. Submit the exact part number 176568, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177778 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 2" stroke, and a male 3/8-24 UNF-2A piston rod thread. Built on a profile barrel design with flexible cushioning rings at both ends, this unit operates on compressed air within a pressure range of 0.6 to 12 bar and supports an ambient temperature span of -20 to 80 °C. It provides a theoretical retracting force of 415 N at 0.6 MPa, a CRC 2 moderate corrosion resistance classification, and functions in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177242 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 50 mm stroke, and a 246 deg swivel angle with a 270 deg rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this unit delivers 10 Nm of torque at 6 bar and includes a ball-bearing guide, a through hollow piston rod, and dual-end cushioning via shock absorbers and flexible rings. The assembly accommodates any mounting position and features position detection for inductive and proximity sensors within an ambient temperature range of -10 to 60 °C. Request a formal quotation by submitting the exact part number, required quantity, and application parameters.
View product details →
Festo
This Festo double-acting industrial component features a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends with a square guide for torque protection. Operating on compressed air meeting ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperature, the unit generates theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U seals, it includes an M45x1,5 pneumatic connection and supports lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

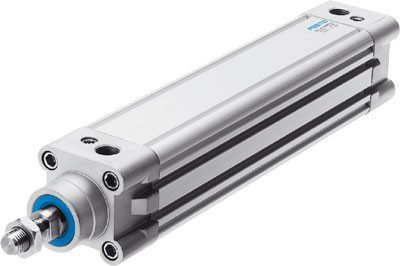

The Festo 177777 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 1.625" stroke, and a 3/8-24 UNF-2A male piston-rod end based on the ISO 15552 standard. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a 0.06 to 1.2 MPa range, this unit utilizes flexible cushioning rings at both ends and delivers a theoretical retracting force of 415 N at 0.6 MPa. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, exhibiting a CRC 2 moderate corrosion resistance classification and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
