Festo
The Festo part number 176435 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating at pressures between 1 and 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. Constructed with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy cover, and FPM seals, this unit delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a CRC 2 corrosion resistance classification, and an ambient temperature range of -20 to 120 °C with M26x1,5 pneumatic connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 177252 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 246 deg swivel angle, and an operating pressure range of 2.5 to 8 bar that delivers 10 Nm of torque at 6 bar. This unit incorporates a ball-bearing guide for torque and guide protection, a rotation angle adjustment range of 270 deg with 1.5 deg fine adjustment, a 12.5 deg cushioning angle, a stroke of 10 to 100 mm, and dual-end cushioning utilizing both shock absorbers and flexible rings. Designed with an S2 through piston rod variant and position detection compatibility for inductive and proximity sensors, it operates on dried compressed air within an ambient temperature range of -10 to 60 °C at a maximum impact speed of 500 mm/s and a max swivel frequency of 0.7 Hz at 6 bar in any assembly position. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 177788 is a double-acting industrial component featuring a 1 1/4" piston diameter, a stroke length ranging from 0.08 to 80 inches, and a 3/8-24 UNF-2A male piston rod thread based on ISO 15552. Built with a profile barrel design structure, it operates at pressures from 0.06 to 1.2 MPa using compressed air according to ISO 8573-1:2010 [7:4:4] and includes flexible cushioning rings at both ends for end-position impact energy of 0.1 J. This model accommodates any assembly position, features position detection for proximity sensors, and delivers a theoretical retracting force of 415 N at 0.6 MPa alongside moderate corrosion resistance classified as CRC 2 within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 176434 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke ranging from 1 to 500 mm with flexible cushioning rings or plates at both ends. Constructed with a wrought aluminum alloy cover, a high alloy non-corrosive steel housing and piston rod, and FPM seals, it operates on compressed air matching ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and -20 to 120 °C ambient temperature range. This unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, with a basic weight of 312 g and moving mass of 222 g at 0 mm stroke. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Festo
The Festo part number 176577 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing, a wrought aluminum alloy cover, and NBR and TPE-U seals, this unit operates on compressed air within a working pressure range of 1 to 10 bar and an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, utilizing a square guide for protection against torque. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo

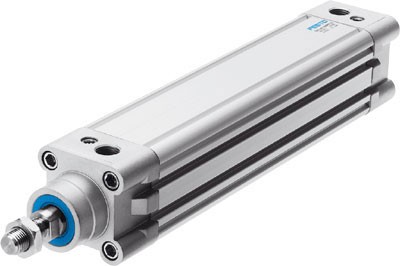

The Festo 177787 is a double-acting industrial component featuring a 20-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston rod thread designed to ISO 15552 standards. Operating within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this profile barrel unit utilizes flexible cushioning rings at both ends and delivers a theoretical retracting force of 415 N at 0.6 MPa. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, featuring a CRC 2 moderate corrosion resistance classification and a single-ended piston rod without position detection. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →
Festo
The Festo part number 176433 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke length from 1 to 500 mm with PPV pneumatic cushioning at both ends. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover and an M10x1,25 male piston-rod end, the hardware maintains a CRC 2 corrosion resistance classification across ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177251 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 272-degree swivel angle, and a 270-degree rotation angle adjustment range with 5-degree fine adjustment. Operating at pressures from 2.5 to 8 bar, this unit delivers 10 Nm of torque at 6 bar and incorporates a ball-bearing guide for torque and guide protection, flexible cushioning rings at both ends with an 8 mm cushioning length, and position detection compatibility for inductive and proximity sensors. It supports dried compressed air operation across an ambient temperature range of -10 to 60 °C, handling a maximum swivel frequency of 2 Hz at 6 bar and a maximum impact speed of 500 mm/s. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176576 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing, a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a square guide for torque protection, this unit operates within a 1 to 10 bar working pressure range and an ambient temperature of -20 to 80 °C using compressed air according to ISO8573-1:2010 [7:4:4]. It delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar, featuring a basic weight of 1,397 g for a 0 mm stroke with an M8 pneumatic connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177786 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 16" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Built with a profile barrel design and flexible cushioning rings at both ends, it operates within a pressure range of 0.06 to 1.2 MPa using compressed air according to ISO 8573-1:2010 [7:4:4]. This variant delivers a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 176432 is a double-acting industrial component featuring a 32 mm piston diameter, an M10x1,25 piston rod thread with a male end, and a variable stroke ranging from 1 to 500 mm. Operating within a 1 to 10 bar pressure range and an ambient temperature span of -20 to 80 °C, this unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. It utilizes adjustable pneumatic cushioning at both ends with a 19 mm cushioning length, wrought aluminum alloy covers, and an M26x1,5 pneumatic connection. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 177250 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 100 mm stroke, and a ball-bearing guide for torque and guide protection. It operates between 2.5 and 8 bar using dried compressed air in ambient temperatures from -10 to 60 °C, delivering 10 Nm of torque at 6 bar with a swivel angle of 246 degrees, a rotation angle adjustment range of 270 degrees, and a max impact speed of 500 mm/s. Cushioning is provided via shock absorbers and flexible rings at both ends, accompanied by position detection capabilities for inductive and proximity sensors as well as a through, hollow piston rod variant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This double-acting industrial component from Festo features a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and a square guide providing protection against torque. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range and -20 to 80 °C ambient temperature, it delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. The unit utilizes a non-corrosive high alloy steel housing, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings at both ends, accompanied by G3/4 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177785 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 12" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Operating on compressed air per ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar), this profile barrel unit incorporates flexible cushioning rings at both ends and delivers a theoretical retracting force of 415 N at 0.6 MPa. It functions in any assembly position across an ambient temperature range of -20 to 80 °C, featuring a single-ended piston rod, CRC 2 moderate corrosion resistance, and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176431 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm operating at a working pressure of 1 to 10 bar. Constructed with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and an M10x1,25 male piston-rod end, it delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. This unit incorporates flexible cushioning rings at both ends, a CRC corrosion resistance rating of 2, and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo industrial component, part number 177249, is a double-acting rotary vane design featuring a 32 mm piston diameter, a 100 mm stroke, and an S20 through, hollow piston rod with a ball-bearing guide. It operates within a 2.5 to 8 bar pressure range using dried compressed air—either lubricated or unlubricated—delivering a torque of 10 Nm at 6 bar with a maximum impact speed of 500 mm/s and a maximum swivel frequency of 2 Hz at 6 bar. The unit includes flexible cushioning rings or plates at both ends with an 8 mm cushioning length, a 1.7-degree cushioning angle, a 272-degree swivel angle, a 270-degree rotation angle adjustment range, a 5-degree fine adjustment, position detection capability for inductive and proximity sensors, and functions in any assembly position across ambient temperatures from -10 to 60 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
This Festo part number 176574 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm with a square guide for torque protection. Operating on compressed air meeting ISO8573-1:2010 [7:4:4] standards at pressures between 1 and 10 bar, it utilizes flexible cushioning rings or plates at both ends and accommodates lubricated operation. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing, and NBR and TPE-U(PU) seals, the unit delivers theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177784 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 10" stroke, and a male 3/8-24 UNF-2A piston rod thread based on ISO 15552. Built with a profile barrel design structure and flexible cushioning rings at both ends, it operates within a pressure range of 0.06 to 1.2 MPa using compressed air conforming to ISO 8573-1:2010 [7:4:4]. This unit delivers a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C, while achieving a CRC 2 moderate corrosion resistance classification and VDMA24364-B1/B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176430 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and an M10x1,25 piston rod thread with a male end. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit delivers theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings at both ends, it functions within an ambient temperature range of -20 to 80 °C and possesses a corrosion resistance classification of CRC 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177248 is a double-acting rotary vane industrial component featuring a 32 mm piston diameter, a 100 mm stroke, and a ball-bearing guide providing protection against torque. This unit operates within a 2.5 to 8 bar pressure range, delivering 10 Nm of torque at 6 bar with a maximum impact speed of 500 mm/s and a maximum swivel frequency of 0.7 Hz at 6 bar. It offers a 246-degree swivel angle, a 270-degree rotation angle adjustment range with a 1.5-degree fine adjustment, 12.5-degree cushioning angle, and CC shock absorbers alongside P flexible cushioning rings at both ends. Designed with position detection capabilities for inductive and proximity sensors and variant S2 through a piston rod, it functions using dried compressed air in ambient temperatures between -10 and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote for this component.
