Festo
The Festo 172550 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range. Constructed with a high alloy steel non-corrosive housing, wrought aluminum alloy cover, and NBR and TPE-U seals, this unit achieves a corrosion resistance classification CRC of 2 and functions in ambient temperatures between -20 and 80 °C utilizing flexible cushioning rings at both ends. At 6 bar, it delivers a theoretical force of 989 N on the return stroke and 1,178 N on the advance stroke through G1/4 pneumatic connections. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173034 is an electrical 5/2 bistable industrial component featuring a 17.8 mm width, an 18 mm grid dimension, and a 5 mm nominal size with a piston slide design structure. It operates at a working and pilot pressure of 1.5 to 8 bar, delivers a standard nominal flow rate of 650 l/min, and utilizes internal pilot air supply with an air spring reset. Featuring IP65 protection class, soft sealing principle, positive overlap lap, throttleable exhaust-air function, and c UL us - Recognized (OL) authorization, this piloted unit supports any assembly position with non-reversible flow direction and detenting manual override via accessories. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →

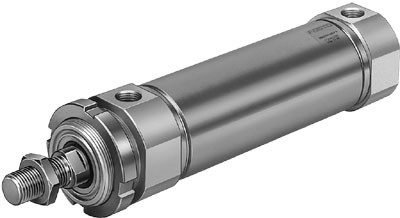

Festo
The Festo 172539 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 1 to 500 mm. Operating within a 1 to 10 bar pressure range using compressed air conforming to ISO8573-1:2010 [7:4:4], this unit incorporates flexible cushioning rings at both ends and delivers an advance force of 1,178 N at 0.6 MPa. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, it maintains a CRC rating of 2 for moderate corrosion stress across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173033 is an electrical 5/3 pressurized industrial component featuring a piston slide design structure and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 400 l/min across a working pressure range of -0.9 to 10 bar, utilizing a soft sealing principle and mechanical spring reset with an IP65 protection class. Certified as c UL us - Recognized (OL), this piloted unit supports external pilot air supply, reversible flow direction, throttleable exhaust-air function, and freedom from overlap. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 172528 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke range from 1 to 500 mm, and flexible cushioning rings or plates at both ends (P). Operating within a 1 to 10 bar working pressure range using compressed air per ISO8573-1:2010 [7:4:4], this unit delivers a theoretical force of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar. Constructed with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, it maintains a CRC 2 corrosion resistance classification across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173032 is a 5/3 pressurized industrial component featuring an electrical actuation and a piston slide design structure with a 17.8 mm width, a 5 mm nominal size, and an 18 mm grid dimension. It delivers a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar, utilizing an external pilot air supply with a pilot pressure of 3 to 8 bar, mechanical spring reset, soft sealing principle, positive overlap lap, and throttleable exhaust-air function. Certified with c UL us - Recognized (OL) authorization and an IP65 protection class, this reversible flow unit supports any assembly position, piloted operation, and detenting manual override with accessories. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo 172517 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a working pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and flexible cushioning rings or plates at both ends, this unit delivers a theoretical retracting force of 989 N and an advancing force of 1,178 N at 0.6 MPa. It functions in ambient temperatures from -20 to 80 °C, exhibits a CRC rating of 2 for moderate corrosion stress, and permits lubricated operation. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173031 is an electrical industrial component featuring a 5/3 pressurized valve function, a piston slide design structure, and a standard nominal flow rate of 400 l/min across an 17.8 mm width. This unit operates within a working pressure range of -0.9 to 10 bar, utilizes a mechanical spring reset, and includes a soft sealing principle with a positive overlap lap. Certified as c UL us - Recognized (OL) with an IP65 protection class, it supports an external pilot air supply, reversible flow direction, and throttleable exhaust-air function. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 1731999 is an industrial component featuring a size 40 build with a 9 mm holder diameter 1, a 12 mm holder diameter 2, and a nominal length of 66 mm. This RoHS-compliant unit weighs 139 g, supports any assembly position, and operates at a maximum speed of 6,500 1/min with a transferable torque of 21 Nm and a mass moment of inertia of 42.3 kgmm2 across an ambient and storage temperature range of -25 to 60 °C and 0 to 95% relative air humidity. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 172506 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating at pressures between 1 and 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4]. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, this unit achieves a CRC corrosion resistance classification of 2 and functions within an ambient temperature range of -20 to 80 °C with flexible cushioning rings at both ends. It delivers a theoretical force of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar, utilizing G1/4 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 173030 is an electrical 5/3 pressurized industrial component featuring a piston slide design structure with positive overlap and a soft sealing principle. It offers a standard nominal flow rate of 400 l/min, a nominal size of 5 mm, a 17.8 mm width, an 18 mm grid dimension, and operates within a working and pilot pressure range of 3 to 8 bar. This c UL us recognized unit provides IP65 protection, mechanical spring reset, internal pilot air supply, non-reversible flow direction, throttleable exhaust-air function, and can be mounted in any assembly position with detenting manual override available via accessories. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo
The Festo 172495 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke range of 1 to 500 mm, operating within a pressure range of 1 to 10 bar using compressed air meeting ISO8573-1:2010 [7:4:4] standards. Built with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit delivers theoretical forces of 1,178 N on the advance stroke and 989 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, maintains a CRC 2 corrosion resistance classification, and functions across an ambient temperature range of -20 to 80 °C with M6 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173029 is a 5/3 pressurized industrial component featuring electrical actuation, a piston slide design, and a mechanical spring reset with a positive overlap lap. This piloted valve has a 17.8 mm width, an 18 mm grid dimension, a 5 mm nominal size, and a standard nominal flow rate of 500 l/min operating at a working and pilot pressure of 3 to 8 bar. Built with soft sealing, internal pilot air supply, non-reversible flow direction, throttleable exhaust-air function, and IP65 protection, it includes detenting manual override with accessories and c UL us - Recognized (OL) authorization for any assembly position. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 172484 is a double-acting industrial component featuring a 50 mm piston diameter, an adjustable stroke range from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit operates on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and -20 to 80 °C ambient temperature range. At 6 bar, it delivers a theoretical return force of 989 N and a theoretical advance force of 1,178 N through G1/4 pneumatic connections. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173028 is an electrical industrial component featuring a 5/3 pressurized valve function, a piston slide design structure, and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 400 l/min across a working and pilot pressure range of 3 to 8 bar, utilizing internal pilot air supply, positive overlap lap, and soft sealing principles with a mechanical spring reset. Certified with c UL us - Recognized (OL) authorization and an IP65 protection class, this piloted unit includes throttleable exhaust-air function, non-reversible flow direction, and a 5 mm nominal size configurable with detenting manual override accessories in any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Festo
The Festo part number 172473 is a double-acting industrial component with a 50 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating at working pressures between 1 and 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. This unit features a non-corrosive high alloy steel housing, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings or plates at both ends, delivering a theoretical retracting force of 989 N and an advance force of 1,178 N at 0.6 MPa (6 bar, 87 psi). It incorporates an M45x1,5 pneumatic connection, a CRC 2 moderate corrosion resistance classification, and VDMA24364-B2-L PWIS conformity for ambient temperatures ranging from -20 to 80 °C, supporting lubricated operation once subsequently required. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173027 is an electrical industrial component featuring a 5/3 exhausted valve function, a 17.8 mm width, and a piston slide design structure with a soft sealing principle. This piloted unit operates within a working pressure range of -0.9 to 10 bar, provides a standard nominal flow rate of 500 l/min, and achieves an IP65 protection class with c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →

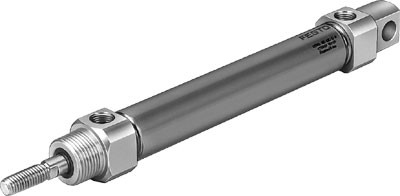

Festo
The Festo part number 172462 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range. Built with a high alloy non-corrosive steel housing, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, this unit achieves a CRC 2 moderate corrosion resistance classification and operates within an ambient temperature range of -20 to 80 °C. It delivers a theoretical force of 1,178 N advancing and 989 N retracting at 0.6 MPa (6 bar, 87 psi), utilizing flexible cushioning rings at both ends and supporting lubricated operation. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173026 is an electrically actuated 5/3 exhausted industrial component featuring a piston slide design structure with a soft sealing principle and positive overlap lap. Operating across a working pressure range of -0.9 to 10 bar with a standard nominal flow rate of 500 l/min, this piloted unit utilizes external pilot air supply, mechanical spring reset, and a throttleable exhaust-air function within a 17.8 mm width and 18 mm grid dimension. It includes a nominal size of 5 mm, IP65 protection class, c UL us Recognized (OL) authorization, reversible flow direction, pilot pressure of 3 to 8 bar, any assembly position, and detenting manual override available with accessories. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →

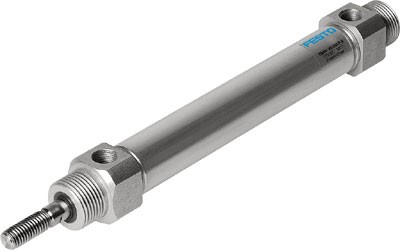

Festo
The Festo part number 172451 is a double-acting industrial component featuring a 50 mm piston diameter and an adjustable stroke from 1 to 500 mm, utilizing flexible cushioning rings or plates at both ends and operating within a working pressure range of 1 to 10 bar on compressed air complying with ISO8573-1:2010 [7:4:4]. Constructed with a high alloy steel non-corrosive housing, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, this unit delivers a theoretical force of 989 N retracting and 1,178 N advancing at 0.6 MPa (6 bar, 87 psi). Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
