Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 173025 is an electrical industrial component featuring a 5/3 exhausted valve function, a piston slide design structure, and a 17.8 mm width with a nominal size of 5 mm and an 18 mm grid dimension. This piloted unit operates with a working pressure of -0.9 to 10 bar, a standard nominal flow rate of 500 l/min, external pilot air supply, and a soft sealing principle with a mechanical spring reset. It incorporates an IP65 protection class, c UL us - Recognized (OL) authorization, throttleable exhaust-air function, reversible flow direction, freedom from overlap, and a detenting manual override usable with accessories. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 172450 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke range from 1 to 500 mm, and an M12x1,25 piston rod thread with a male end. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working range, this unit delivers a theoretical retraction force of 633.3 N and an advance force of 754.3 N at 6 bar. It incorporates adjustable pneumatic cushioning at both ends with a 22 mm cushioning length, operates in ambient temperatures from -20 to 80 °C, and possesses a CRC 2 moderate corrosion resistance classification alongside VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173024 is an electrical 5/3 exhausted industrial component featuring a piston slide design structure with a soft sealing principle and positive overlap lap. Measuring 17.8 mm in width with an 18 mm grid dimension and a 5 mm nominal size, this c UL us recognized unit delivers a standard nominal flow rate of 500 l/min across a 3 to 8 bar working and pilot pressure range. It incorporates an internal pilot air supply, mechanical spring reset, throttleable exhaust-air function, non-reversible flow direction, IP65 protection class, and a detenting manual override operable with accessories in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →

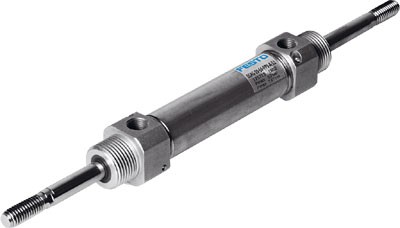

Festo
The Festo 172449 is a double-acting industrial component featuring a 40 mm piston diameter, an M12x1,25 piston rod thread, and a variable stroke ranging from 1 to 500 mm. Designed to operate on compressed air in accordance with ISO8573-1:2010 [7:4:4] at pressures between 1 and 10 bar, this unit incorporates adjustable pneumatic cushioning at both ends (PPV) with a 22 mm cushioning length. It delivers a theoretical force of 754.2 N advancing and 633.2 N retracting at 0.6 MPa (6 bar, 87 psi), while maintaining a moderate corrosion resistance classification CRC of 2 and VDMA24364-B2-L PWIS conformity across ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173023 is an electrical industrial component featuring a 5/3 exhausted valve function, a piston slide design structure, and a standard nominal flow rate of 500 l/min across an 17.8 mm width and 18 mm grid dimension. This c UL us recognized unit operates within a working and pilot pressure range of 3 to 8 bar, utilizing a mechanical spring reset, internal pilot air supply, and a soft sealing principle with a nominal size of 5 mm. Additional specifications include IP65 protection class, throttleable exhaust-air function, non-reversible flow direction, positive overlap lap, any assembly position, and a detenting manual override available with accessories. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →

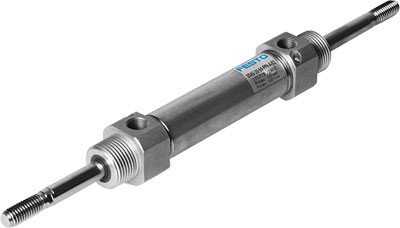

Festo
The Festo 172448 is a double-acting industrial component featuring a 40 mm piston diameter, an M12x1,25 piston rod thread with a male end, and an adjustable stroke ranging from 1 to 500 mm. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] at working pressures between 1 and 10 bar, this unit utilizes flexible cushioning rings or plates at both ends and incorporates a wrought aluminum alloy cover with a CRC 2 moderate corrosion resistance classification. At 0.6 MPa (6 bar, 87 psi), it delivers a theoretical retracting force of 633.1 N and an advancing force of 754.1 N across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173022 is an electrical industrial component featuring a 5/3 exhausted valve function with a piston slide design structure and mechanical spring reset. This 17.8 mm wide unit operates at a standard nominal flow rate of 500 l/min across a working pressure and pilot pressure of 3 to 8 bar. Built with an IP65 protection class, soft sealing principle, and c UL us Recognized authorization, it utilizes internal piloted air supply with throttleable exhaust-air function. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 172447 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit delivers a theoretical retracting force of 633 N and an advance force of 754 N at 0.6 MPa. Constructed with wrought aluminum alloy covers and featuring flexible cushioning rings at both ends, the assembly incorporates an M12x1,25 male piston-rod end and an M32x2 pneumatic connection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173021 is a 5/3 closed industrial component featuring electrical actuation, a piston slide design, and a standard nominal flow rate of 500 l/min across a working pressure range of -0.9 to 10 bar. Built with a 17.8 mm width, 18 mm grid dimension, 5 mm nominal size, and soft sealing principle, this piloted valve incorporates a mechanical spring reset, positive overlap lap, reversible flow direction, throttleable exhaust-air function, and external pilot air supply operating at 3 to 8 bar. Rated IP65 and c UL us recognized, it includes a detenting manual override operable with accessories and supports assembly in any position. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 172436 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating on compressed air compliant with ISO8573-1:2010 [7:4:4] at pressures between 1 and 10 bar. Built with wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification, this unit incorporates pneumatic cushioning adjustable at both ends with a 22 mm cushioning length. It delivers a theoretical force of 633 N retracting and 754 N advancing at 6 bar (0.6 MPa), operating within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173020 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a soft sealing principle. Built with a 17.8 mm width, an 18 mm grid dimension, and a nominal size of 5 mm, this piloted unit delivers a standard nominal flow rate of 600 l/min across a working pressure range of -0.9 to 10 bar. It includes mechanical spring reset, external pilot air supply, throttleable exhaust-air function, positive overlap lap, and IP65 protection class with c UL us recognition. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
This Festo industrial component, part number 172425, is a double-acting pneumatic actuator featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, it delivers a theoretical advancing force of 754 N and retracting force of 633 N at 6 bar. Constructed with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and PPV adjustable pneumatic cushioning at both ends, the unit operates in ambient temperatures from -20 to 80 °C with a CRC 2 moderate corrosion resistance classification. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
The Festo 173019 is a 5/3 closed industrial component featuring electrical actuation, a piston slide design, and a mechanical spring reset. Measuring 17.8 mm in width with an 18 mm grid dimension and a 5 mm nominal size, this piloted valve operates across a working pressure range of -0.9 to 10 bar, delivering a standard nominal flow rate of 500 l/min. It includes IP65 protection, a soft sealing principle, external pilot air supply with a 3 to 8 bar pilot pressure, positive overlap lap, throttleable exhaust-air function, reversible flow direction, and a detenting manual override with accessories in any assembly position under c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →

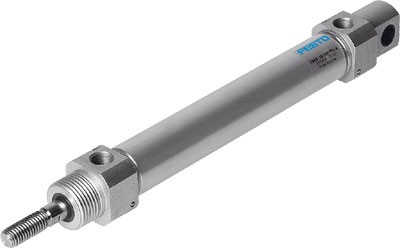

Festo
The Festo part number 172414 is a double-acting industrial component with a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar. It features PPV pneumatic cushioning adjustable at both ends over a 22 mm cushioning length, wrought aluminum alloy cover construction, and NBR and TPE-U(PU) seals, delivering theoretical forces of 754 N advancing and 633 N retracting at 6 bar. Operating within an ambient temperature range of -20 to 80 °C, this unit provides a CRC rating of 2 for moderate corrosion stress and VDMA24364-B2-L PWIS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 173018 is an electrical industrial component featuring a 5/3 closed valve function with a piston slide design structure and a 17.8 mm width. This unit delivers a standard nominal flow rate of 500 l/min across a working and pilot pressure range of 3 to 8 bar, utilizing internal pilot air supply, a mechanical spring reset, and a soft sealing principle. Built with an IP65 protection class, a nominal size of 5 mm, an 18 mm grid dimension, throttleable exhaust-air function, and c UL us Recognized (OL) authorization, it supports any assembly position and non-reversible flow direction with a positive overlap lap. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →

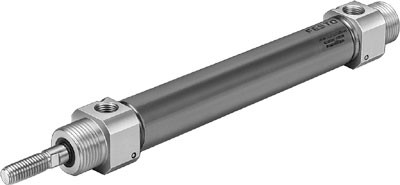

Festo
The Festo part number 172403 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm. Built with wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a -20 to 80 °C ambient temperature range and 1 to 10 bar working pressure. This assembly incorporates PPV pneumatic cushioning adjustable at both ends, yielding theoretical forces of 633 N retracting and 754 N advancing at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 173017 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a positive overlap lap. This unit has an 17.8 mm width, an 18 mm grid dimension, a 5 mm nominal size, and a standard nominal flow rate of 600 l/min operating within a working and pilot pressure range of 3 to 8 bar. Additional specifications include internal pilot air supply, piloted actuation, mechanical spring reset, throttleable exhaust-air function, soft sealing principle, non-reversible flow direction, and IP65 protection class with c UL us - Recognized (OL) authorization and any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →

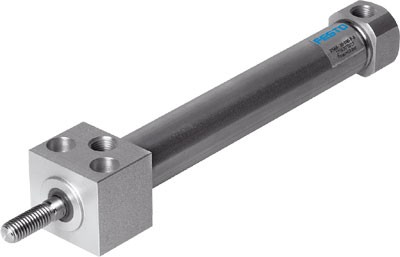

Festo
The Festo part number 172392 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a 1 to 10 bar pressure range using compressed air compliant with ISO8573-1:2010 [7:4:4]. This unit incorporates PPV pneumatic cushioning at both ends with a 22 mm cushioning length, NBR and TPE-U(PU) seals, a wrought aluminum alloy cover, and an M6 pneumatic connection, delivering theoretical forces of 633 N retracting and 754 N advancing at 0.6 MPa. It is classified under CRC 2 for moderate corrosion stress, conforms to VDMA24364-B2-L, and functions across an ambient temperature range of -20 to 80 °C with a basic weight of 586 g for a 0 mm stroke. Submit the exact part number, quantity, and application requirements for an RFQ quote.
View product details →
Festo
The Festo part number 173016 is an electrical industrial component featuring a 5/3 closed valve function and a piston slide design structure with a positive overlap lap. This unit provides a standard nominal flow rate of 500 l/min across a working and pilot pressure range of 3 to 8 bar, operating via internal piloting and a mechanical spring reset. Constructed with a 17.8 mm width, 5 mm nominal size, 18 mm grid dimension, and soft sealing principle, the IP65-rated assembly includes a throttleable exhaust-air function, detenting manual override via accessories, and c UL us - Recognized (OL) authorization for any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

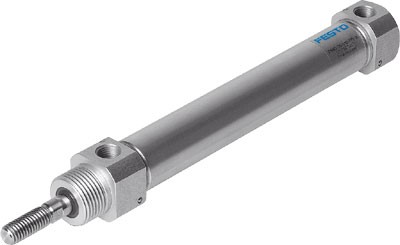

Festo
The Festo 172381 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm. Operating on compressed air per ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit incorporates adjustable pneumatic cushioning at both ends with a 22 mm cushioning length. Constructed with wrought aluminum alloy covers and NBR and TPE-U(PU) seals, it provides moderate corrosion resistance classified as CRC 2 and functions in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
