Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo 173182 is a 17.8 mm wide pneumatic industrial component featuring a 5/3 pressurized valve function, piston slide design, and a standard nominal flow rate of 300 l/min. This UL-recognized unit operates within a working pressure range of -0.9 to 10 bar, utilizes direct piloting with an external pilot air supply of 3 to 8 bar, and incorporates a mechanical spring reset with a soft sealing principle. Featuring a reversible flow direction, throttleable exhaust-air function, and positive overlap lap, it accommodates any assembly position within an 18 mm grid dimension. Submit the exact part number, quantity, and application requirements to receive an RFQ quote.
View product details →
Festo
The Festo 173015 is a 5/2 monostable industrial component utilizing a piston slide design structure and soft sealing principle with a positive overlap lap. Featuring an electrical actuation type, piloted piloting, external pilot air supply, and an air spring reset, it delivers a standard nominal flow rate of 600 l/min across a working pressure range of -0.9 to 10 bar and a pilot pressure of 2.5 to 8 bar. Built with a 17.8 mm width, 5 mm nominal size, 18 mm grid dimension, and IP65 protection class, the unit offers throttleable exhaust-air function, reversible flow direction, detenting manual override via accessories, and c UL us - Recognized (OL) authorization for any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo

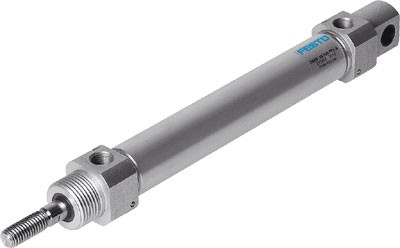

The Festo part number 172370 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating at pressures between 1 and 10 bar using compressed air in accordance with ISO8573-1:2010 [7:4:4]. This unit incorporates PPV pneumatic cushioning adjustable at both ends over a 22 mm cushioning length, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals with a CRC rating of 2 for moderate corrosion stress. Operating within an ambient temperature range of -20 to 80 °C, it delivers a theoretical force of 633 N retracting and 754 N advancing at 6 bar (87 psi). Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 173181 is a 5/3 pressurized pneumatic industrial component featuring a piston slide design structure with a soft sealing principle and a positive overlap lap. Operating across a working pressure range of -0.9 to 10 bar, this unit delivers a standard nominal flow rate of 300 l/min through a 5 mm nominal size and an 17.8 mm width with a b value of 0.37. It incorporates direct piloting with an external pilot supply, mechanical spring reset, throttleable exhaust-air function, and a grid dimension of 18 mm while maintaining UL - Recognized (OL) authorization and accommodating any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo 173014 is a 5/2 monostable industrial component featuring an electrical type of actuation, a 17.8 mm width, and a standard nominal flow rate of 700 l/min across a working pressure range of -0.9 to 10 bar. Built with a piston slide design structure, an air spring reset, and soft sealing, this c UL us recognized unit includes an IP65 protection class, an 18 mm grid dimension, and throttleable exhaust-air functionality. It operates with a 5 mm nominal size, external pilot air supply, reversible flow direction, positive overlap lap, and a pilot pressure of 2.5 to 8 bar with any assembly position and detenting manual override accessories. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

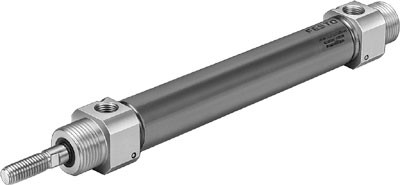

This Festo double-acting industrial component, part number 172359, features a 40 mm piston diameter with a customizable stroke ranging from 1 to 500 mm and operates within a working pressure of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. Built with wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification, the unit incorporates adjustable pneumatic cushioning at both ends with a 22 mm cushioning length. It delivers theoretical forces of 633 N retracting and 754 N advancing at 0.6 MPa (6 bar, 87 psi), while functioning in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 173180 is a 5/3 pressurized pneumatic industrial component featuring a piston slide design structure with a soft sealing principle and positive overlap lap. Measuring 17.8 mm in width with an 18 mm grid dimension and a 5 mm nominal size, this UL-recognized (OL) unit delivers a standard nominal flow rate of 300 l/min across a working pressure range of -0.9 to 10 bar. It utilizes direct piloting with an external pilot air supply operating between 3 and 8 bar, mechanical spring reset, throttleable exhaust-air function, and reversible flow direction in any assembly position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173013 is an electrical industrial component featuring a 5/2 monostable valve function, a piston slide design structure, and a standard nominal flow rate of 600 l/min across an 17.8 mm width. This piloted unit operates within a working pressure range of -0.9 to 10 bar, utilizes an air spring reset with positive overlap lap, and holds c UL us recognized authorization along with an IP65 protection class. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
Engineered with a 40 mm piston diameter and an adjustable stroke from 1 to 500 mm, the Festo 172348 is a double-acting industrial component operating between 1 and 10 bar on compressed air conforming to ISO8573-1:2010 [7:4:4]. This unit features a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, NBR and TPE-U(PU) seals, and flexible cushioning rings at both ends. It delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar, with a basic weight of 586 g for a 0 mm stroke. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173179 is a pneumatic industrial component featuring a 5/3 exhausted valve function with a 17.8 mm width, 18 mm grid dimension, and 5 mm nominal size. Built with a piston slide design structure, soft sealing principle, and positive overlap lap, it supports a standard nominal flow rate of 350 l/min across a working pressure range of -0.9 to 10 bar. This UL-recognized unit utilizes direct piloting with an external pilot supply, mechanical spring reset, throttleable exhaust-air function, and reversible flow direction, operating under a 3 to 8 bar pilot pressure with a b value of 0.5 in any assembly position without manual override. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
The Festo part number 173012 is a 17.8 mm wide electrical industrial component featuring a 5/2 monostable valve function and piston slide design structure. This piloted unit operates within a working and pilot pressure range of 2.5 to 8 bar, delivering a standard nominal flow rate of 600 l/min through a 5 mm nominal size. Equipped with an air spring reset, soft sealing principle, internal pilot air supply, positive overlap lap, and throttleable exhaust-air function, it achieves an IP65 protection class and holds c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

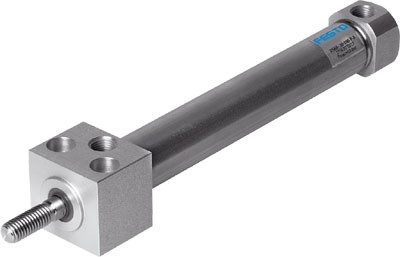

The Festo 172337 is a double-acting industrial component with a 40 mm piston diameter and an adjustable stroke ranging from 1 to 500 mm, operating at a working pressure of 1 to 10 bar with compressed air meeting ISO8573-1:2010 [7:4:4]. It features flexible cushioning rings or plates at both ends, a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a non-corrosive high alloy steel housing providing a CRC rating of 2 for moderate corrosion stress. At 0.6 MPa (6 bar, 87 psi), the unit delivers a theoretical retracting force of 633 N and an advance force of 754 N across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
Festo
The Festo 173178 is a 17.8 mm wide pneumatic industrial component featuring a 5/3 exhausted valve function with a piston slide design and soft sealing principle. It delivers a standard nominal flow rate of 350 l/min across a working pressure range of -0.9 to 10 bar, utilizing direct piloting with an external pilot air supply and a pilot pressure of 3 to 8 bar. This UL-recognized unit incorporates a mechanical spring reset, positive overlap lap, throttleable exhaust-air function, and reversible flow direction in an 18 mm grid dimension with any assembly position. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 173011 is a 5/2 monostable industrial component featuring an electrical actuation method, a piston slide design structure, and an air spring type of reset. This piloted unit operates within a working and pilot pressure range of 2.5 to 8 bar, delivering a standard nominal flow rate of 700 l/min across an 17.8 mm width with an IP65 protection class and c UL us - Recognized (OL) authorization. Additional attributes include a 5 mm nominal size, 18 mm grid dimension, internal pilot air supply, non-reversible flow direction, positive overlap lap, throttleable exhaust-air function, soft sealing principle, any assembly position, and a manual override with accessories and detenting. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 172326 is a double-acting industrial component featuring a 40 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and G1/4 pneumatic connections. Operating within a pressure range of 1 to 10 bar and an ambient temperature range of -20 to 80 °C, this unit delivers a theoretical force of 754 N on the advance stroke and 633 N on the return stroke at 6 bar. Constructed with a high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, it utilizes flexible cushioning rings at both ends and accommodates compressed air conforming to ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →
Festo
The Festo 173177 is a 5/3 exhausted pneumatic industrial component featuring a 17.8 mm width, a 5 mm nominal size, and an 18 mm grid dimension with a piston slide design structure. This UL-recognized part delivers a standard nominal flow rate of 350 l/min across a working pressure range of -0.9 to 10 bar utilizing direct piloting with an external pilot air supply and a pilot pressure of 3 to 8 bar. Incorporating a mechanical spring reset, soft sealing principle, throttleable exhaust-air function, and reversible flow direction, it operates with a positive overlap lap, a b value of 0.5, and allows any assembly position without a manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173010 is an electrical 5/2 monostable industrial component featuring a 17.8 mm width, a 5 mm nominal size, and a standard nominal flow rate of 600 l/min operating within a 2.5 to 8 bar working and pilot pressure range. Built with a piston slide design structure, soft sealing principle, positive overlap lap, and internal pilot air supply, this piloted unit utilizes an air spring type of reset and a throttleable exhaust-air function. It includes a c UL us Recognized (OL) authorization, IP65 protection class, 18 mm grid dimension, detenting manual override available with accessories, and accommodates assembly in any position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo

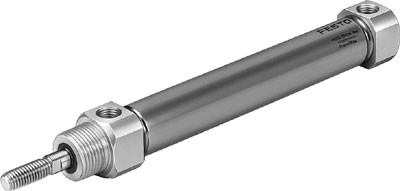

The Festo 172315 is a double-acting industrial component featuring a 40 mm piston diameter and an adjustable stroke length from 1 to 500 mm, utilizing flexible cushioning rings or plates at both ends. Operating within a 1 to 10 bar pressure range, this unit delivers a theoretical retraction force of 633 N and advancement force of 754 N at 6 bar using compressed air meeting ISO8573-1:2010 [7:4:4]. Built with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, the assembly achieves a CRC 2 moderate corrosion resistance classification and operates across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173176 is a 5/3 closed industrial component featuring a pneumatic actuation type, piston slide design, and a 17.8 mm width with an 18 mm grid dimension. This unit operates within a working pressure range of -0.9 to 10 bar, a pilot pressure of 3 to 8 bar, and delivers a standard nominal flow rate of 500 l/min through a 5 mm nominal size. Additional attributes include direct piloting with external pilot supply, mechanical spring reset, soft sealing principle, positive overlap lap, throttleable exhaust-air function, reversible flow direction, and UL recognized authorization with any assembly position and no manual override. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 173009 is an electrical industrial component featuring a 5/2 monostable valve function, a piston slide design structure, and a 17.8 mm width with an 18 mm grid dimension. It delivers a standard nominal flow rate of 600 l/min across a working pressure range of -0.9 to 10 bar, utilizing soft seals, mechanical spring reset, and a positive overlap lap with throttleable exhaust-air functions. This IP65-rated piloted unit operates with an external pilot air supply ranging from 2.5 to 8 bar, features a 5 mm nominal size, accommodates any assembly position, and includes a detenting manual override with accessories alongside c UL us - Recognized (OL) authorization. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
