Festo
172898

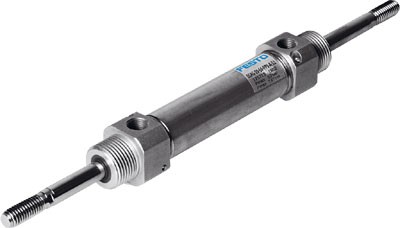

Round cylinder DSAG-63- -PPV-A-S2
The Festo part number 172898 is a double-acting industrial component featuring a 63 mm piston diameter, an M16x1,5 piston rod thread, and an adjustable pneumatic cushioning (PPV) at both ends with a 27 mm cushioning length. Operating within a 1 to 10 bar working pressure range and an ambient temperature of -20 to 80 °C, this unit delivers a theoretical advance force of 1,870 N and retracting force of 1,682 N at 0.6 MPa (6 bar, 87 psi) using compressed air conforming to ISO8573-1:2010 [7:4:4]. Constructed with a 1 to 500 mm stroke, M45x1,5 pneumatic connection, and a CRC 2 moderate corrosion resistance classification, the base weight measures 1,397 g with an additional weight of 43.9 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements for a formal quotation.
