Industrial sourcing catalog
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
The Festo part number 172752 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, a non-corrosive high alloy steel housing and piston rod, and NBR and TPE-U(PU) seals, it functions in ambient temperatures from -20 to 80 °C with CRC 2 corrosion resistance and permits lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 171531 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke ranging from 1 to 250 mm. Operating on compressed air according to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure, this unit incorporates PPV pneumatic cushioning adjustable at both ends with a 14 mm cushioning length. Constructed with a wrought aluminum alloy cover and NBR and TPE-U(PU) seals, it provides a CRC 2 moderate corrosion resistance classification and operates across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo 172741 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating within a 1 to 10 bar pressure range using ISO8573-1:2010 [7:4:4] compressed air. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, it provides flexible cushioning rings at both ends and achieves a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. This unit has a CRC 2 corrosion resistance classification, operates in ambient temperatures from -20 to 80 °C, and weighs 1,397 g at 0 mm stroke with an additional weight of 43.9 g per 10 mm of stroke. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
The Festo part number 171521 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke from 1 to 250 mm. It operates with compressed air per ISO8573-1:2010 [7:4:4] at pressures between 1 and 10 bar, providing PPV pneumatic cushioning at both ends over a 14 mm cushioning length. Constructed with a wrought aluminum alloy cover and NBR and TPE-U(PU) seals, the unit achieves a CRC corrosion resistance rating of 2 and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo part number 172730 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a 1 to 10 bar pressure range using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Constructed with a high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, a CRC 2 corrosion resistance classification, and functions within an ambient temperature range of -20 to 80 °C utilizing G3/4 pneumatic connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 171511 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke length from 1 to 250 mm. Built with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within an ambient temperature range of -20 to 80 °C and pressures from 1 to 10 bar. This unit includes PPV pneumatic cushioning at both ends, an M5 pneumatic connection, and provides a theoretical force of 120.6 N advancing and 103.7 N retracting at 0.6 MPa. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 172719 is a double-acting industrial component with a 63 mm piston diameter and an adjustable stroke length from 1 to 500 mm. Built with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, it operates on compressed air meeting ISO8573-1:2010 [7:4:4] standards within a temperature range of -20 to 80 °C and pressures from 1 to 10 bar. This unit features flexible cushioning rings or plates at both ends, an M8 pneumatic connection, and a CRC corrosion resistance classification of 2, delivering theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

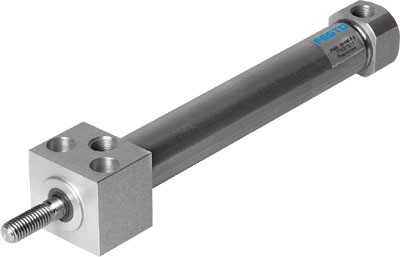

The Festo part number 171501 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke ranging from 1 to 250 mm, and PPV pneumatic cushioning at both ends. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, this unit delivers a theoretical retracting force of 103.7 N and an advancing force of 120.6 N at 6 bar. Constructed with a wrought aluminum alloy cover and NBR and TPE-U(PU) seals, it provides moderate corrosion resistance (CRC 2) and functions within an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo 172708 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] across a working pressure range of 1 to 10 bar, this unit delivers a theoretical advance force of 1,870 N and a return force of 1,682 N at 6 bar. Constructed with a high alloy steel housing and piston rod, a wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, it functions within an ambient temperature range of -20 to 80 °C and features CRC 2 corrosion resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

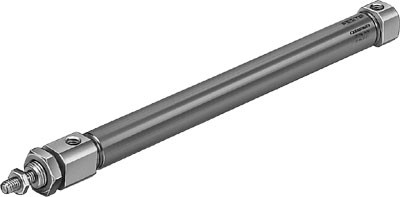

The Festo 171491 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke length from 1 to 250 mm, and M10x1 pneumatic connections. Constructed with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification, it operates within a temperature range of -20 to 80 °C and a working pressure of 1 to 10 bar using compressed air in accordance with ISO 8573-1:2010 [7:4:4]. This unit provides adjustable pneumatic cushioning at both ends with a 14 mm cushioning length, delivering a theoretical retracting force of 103.7 N and an advancing force of 120.6 N at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 172697 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke from 1 to 500 mm, operating within a pressure range of 1 to 10 bar using compressed air that complies with ISO8573-1:2010 [7:4:4]. Built with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. It incorporates flexible cushioning rings at both ends, supports lubricated operation, and maintains a CRC 2 corrosion resistance classification across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
This Festo 16 mm piston diameter industrial component operates in a double-acting mode with a stroke length ranging from 1 to 250 mm using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Featuring PPV pneumatic cushioning adjustable at both ends over a 14 mm cushioning length, the unit delivers theoretical forces of 103.7 N retracting and 120.6 N advancing at 6 bar (0.6 MPa). Constructed with a wrought aluminum alloy cover and NBR and TPE-U(PU) seals, the assembly provides a CRC 2 moderate corrosion resistance classification and operates within an ambient temperature range of -20 to 80 °C at a working pressure of 1 to 10 bar. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 172686 is a double-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Operating within a pressure range of 1 to 10 bar using compressed air per ISO8573-1:2010 [7:4:4], this unit delivers a theoretical force of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. Constructed with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, it functions in ambient temperatures between -20 and 80 °C with a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

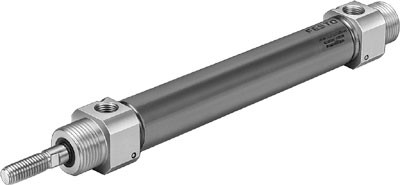

The Festo 171471 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke range of 1 to 250 mm, and M5 pneumatic connections. Built with a wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and a CRC 2 moderate corrosion resistance classification, this unit operates on compressed air meeting ISO 8573-1:2010 [7:4:4] standards within an ambient temperature range of -20 to 80 °C and a working pressure of 1 to 10 bar. It delivers a theoretical retracting force of 103.7 N and an advancing force of 120.6 N at 0.6 MPa (6 bar, 87 psi), utilizing adjustable pneumatic cushioning (PPV) at both ends with a 14 mm cushioning length. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 172675 is a double-acting industrial component featuring a 63 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating within a pressure range of 1 to 10 bar using compressed air conforming to ISO8573-1:2010 [7:4:4]. Built with a non-corrosive high alloy steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U(PU) seals, this unit incorporates flexible cushioning rings at both ends and achieves theoretical forces of 1,870 N on the advance stroke and 1,682 N on the return stroke at 6 bar. It functions across an ambient temperature range of -20 to 80 °C with a CRC corrosion resistance classification of 2, and allows for lubricated operation once subsequently required. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 171461 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke from 1 to 250 mm. Built with a high alloy non-corrosive steel housing and piston rod, wrought aluminum alloy covers, and NBR and TPE-U seals, this unit operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar. It incorporates flexible cushioning rings at both ends, delivers theoretical forces of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, and functions in ambient temperatures from -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 171451 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke ranging from 1 to 250 mm. Built with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, it operates within a pressure range of 1 to 10 bar and an ambient temperature of -20 to 80 °C. It utilizes flexible cushioning rings or plates at both ends and achieves a theoretical force of 120.6 N advancing and 103.7 N retracting at 0.6 MPa. Please submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
The Festo 171441 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke ranging from 1 to 250 mm, and M5 pneumatic connections. Constructed with a high-alloy, non-corrosive steel housing and piston rod, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, it operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure and -20 to 80 °C ambient temperature range. This unit delivers a theoretical force of 120.6 N on the advance stroke and 103.7 N on the return stroke at 6 bar, utilizing flexible cushioning rings at both ends. Please submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Festo
The Festo part number 171431 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke from 1 to 250 mm, equipped with flexible cushioning rings or plates at both ends (P). It operates within a working pressure range of 1 to 10 bar utilizing compressed air in accordance with ISO8573-1:2010 [7:4:4], and delivers a theoretical force of 120.6 N advancing and 103.7 N retracting at 0.6 MPa (6 bar, 87 psi). Constructed with a high alloy steel non-corrosive housing, wrought aluminum alloy cover, and NBR and TPE-U(PU) seals, the unit achieves a CRC 2 moderate corrosion stress rating and functions across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
Festo

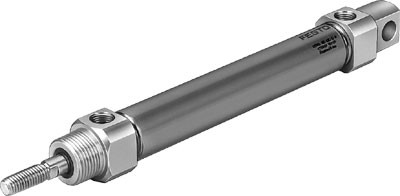

The Festo 171421 is a double-acting industrial component featuring a 16 mm piston diameter and an adjustable stroke length from 1 to 250 mm. Operating within a pressure range of 1 to 10 bar, this unit delivers a theoretical retraction force of 103.7 N and an advance force of 120.6 N at 0.6 MPa using compressed air conforming to ISO8573-1:2010 [7:4:4]. Constructed with a non-corrosive high alloy steel housing, wrought aluminum alloy cover, NBR and TPE-U(PU) seals, and flexible cushioning rings at both ends, it operates in ambient temperatures between -20 and 80 °C under moderate corrosion stress (CRC 2). Submit part number 171421, quantity, and application requirements to request a quote.
View product details →
