Midori
The Midori LP-100FX is a conductive plastic displacement sensor featuring a 100 mm electrical stroke and an R output. Constructed with a 32 mm case section, this unit achieves a linearity of +/-0.3% FS and incorporates an electrical connector with an IP40 protection class. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori LP-100FP utilizes conductive plastic technology featuring a 100 mm electrical stroke and a 12 mm case section. This component includes lead wires for electrical connection, an R output, and a linearity of +/-1 %FS. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Midori
The Midori LP-100FJS is a conductive plastic position sensor featuring a 100 mm electrical stroke and an R output. Housed in a 22.2 mm case section with an IP65 protection class, this model utilizes a coaxial cable electrical connection and offers a linearity of 0.1 to 0.3 plus-minus percent full scale. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the Midori LP-100FJS.
View product details →Midori
The Midori LP-100FJ is a conductive plastic displacement sensor featuring a 100 mm electrical stroke and a 22.2 mm case section. This component provides an R output with selectable linearity tolerances of plus or minus 0.1 percent or 0.3 percent full scale, and includes an integrated coax cable electrical connection within an IP40-rated enclosure. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Midori
The Midori LP-100F is a conductive plastic displacement sensor featuring a 100 mm electrical stroke and a 22.2 mm case section. This component provides an R output with selectable linearity tolerances of plus or minus 0.1 or 0.3 percent of full scale. Electrical connection is established via integrated lead wires. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Midori
The Midori LP-100F-13 is a conductive plastic position sensor featuring a 100 mm electrical stroke and a 22.2 mm case section. This component provides an R output, an electrical connection via connector, and a linearity of 0.1 to 0.3 plus/minus percent full scale. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori

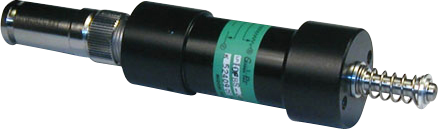

The Midori LP-10-FBS-3 is a conductive plastic position sensor featuring a 10 mm electrical stroke and an R output. Constructed within a 28 mm case section with an IP54 protection class, this component includes an electrical connector and delivers a linearity of 0.5 to 1 +/- %FS. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the Midori LP-10-FBS-3.
View product details →
Midori
The Midori HP-18 is a resistive wirewound HP-18 featuring a 22.3 mm housing diameter and a 6 mm shaft with a metal sleeve ball bearing. It operates on a supply voltage of 0 to 40 V, delivering an output signal of 0 to 100% Vin across a 3600-degree electrical angle with a linearity of plus or minus 2 percent full scale. This bushing M9 mounted unit includes a wire output connection, a maximum torque of 2 mNm, and a temperature range of -40 to +100 degrees Celsius without a backspring. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CPP-60 is a resistive technology product featuring a 61 mm housing diameter, servo Ø62 mounting, and a 6 mm shaft supported by a ball bearing. Operating with a 0 to 15 V supply voltage, this model delivers an output signal of 0 to 100% Vin across one output and a 355-degree electrical angle with linearity options of ±0.02% FS or ±0.05% FS. It utilizes solder pin connections, exerts a maximum torque of 25 mNm, lacks a backspring, and functions within a temperature range of -40 to +120 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →
Midori
The Midori CP-45F-10SX is a resistive analog rotary sensor featuring a 45 mm housing diameter, servo mounting, and a 6 mm shaft supported by a ball bearing. Operating on a 0 to 15 V supply voltage with a current consumption of 17 mA, it delivers a 0 to 100% Vin output signal across a 3500-degree electrical angle with 0.1 ± %FS linearity. The IP40-enclosed unit includes solder pin output connections, exerts a maximum torque of 4 mNm, and functions within a temperature range of -40 to +120 °C without a backspring. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Midori

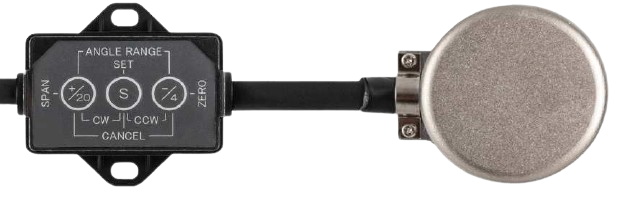

The Midori CP36U is a programmable contactless magneto-resistive sensor housed in a 36 mm diameter flange-mounted body featuring a 6 mm shaft supported by ball bearings. It operates on a 16 to 32 V supply voltage with an electrical angle ranging from 18 to 360 degrees, delivering a single 4 to 20 mA output signal and achieving a linearity of ±0.2 %FS. This unit functions within a temperature range of -40 to +85 °C and exhibits a maximum torque of 1 mNm for IP50 or 10 mNm for IP67 configurations via wire output connection. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CP-5S is a resistive wirewound sensor featuring a 52 mm housing diameter and a 355-degree electrical angle. Engineered with a servo Ø47.6 mounting configuration, a 6 mm shaft, and a ball bearing, this unit operates on a 0 to 200 V supply voltage with 1 output delivering a 0 to 100% Vin output signal via solder pin connections. It achieves a linearity of ±0.2 %FS alongside a maximum torque of 3.5 to 4 mNm within a typical temperature range of 40°C, subject to derating. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Midori
The Midori CP-45H is a contactless Hall technology rotary sensor featuring a 45 mm housing diameter and a 6 mm shaft with ball bearings. It operates on a 5 V DC supply voltage with a current consumption of 10 mA or 21 mA, delivering a 0 to 5 V DC ratiometric output signal across 1 to 2 outputs and an electrical angle of 90 to 360 degrees. This servoflange-mounted component provides a linearity of ±0.4 %FS, a maximum torque of 1.8 mNm to 30 mNm, wire output connections, and an operating temperature range of -40 to +100 °C within an IP40 or IP54 enclosure. Submit the exact part number, quantity, and application requirements to receive a quote for this part.
View product details →
Midori
The Midori CP-45H-A is a contactless Hall-effect sensor featuring a 45 mm housing diameter, a 6 mm shaft, and servoflange mounting with ball bearings. It operates on a 20 to 28 V supply voltage, drawing 13 to 26 mA of current, and delivers a 4 to 20 mA output signal across 1 to 2 outputs with an electrical angle ranging from 90 to 360 degrees. This unit offers a linearity of ±1 %FS, a maximum torque of 1.8 to 30 mNm, an IP40 and IP54 enclosure rating, and an operating temperature range of -40 to +100 °C without a backspring. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Midori
The Midori CP-45H-5V is a contactless Hall technology rotary sensor housed in a 45 mm diameter servoflange package with a 6 mm shaft and ball bearing construction. It operates on a supply voltage of 8 to 32 V DC, delivering an output signal of 0 to 5 V DC across 1 or 2 outputs with an electrical angle spanning 90 to 360 degrees and a linearity of ±1% FS. Featuring wire output connections, an IP40 or IP54 enclosure rating, a maximum torque of 1.8 to 30 mNm, and a current consumption of 13 to 26 mA, the unit functions within a temperature range of -40 to +100 °C without a backspring. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori
The Midori CP-45H-10V utilizes contactless Hall technology within a 45 mm housing diameter, featuring a 6 mm shaft supported by ball bearings and a servoflange mounting configuration. This unit operates on a supply voltage of 14 to 32 V DC, delivering a 0 to 10 V DC output signal across an electrical angle of 90 to 360 degrees. With an IP40 or IP54 enclosure rating, it functions across a temperature range of -40 to +100 degrees Celsius while maintaining a linearity of 1 percent full scale. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Midori
The Midori CP-45H-10S is a contactless Hall effect rotary sensor featuring a 61 mm flange-mounted housing and a 6 mm shaft supported by ball bearings. Operating on a 5 V supply voltage with a 30 mA current consumption, it delivers a 0 to 5 V DC ratiometric output signal across a 3500-degree electrical angle with a 10:01 gear ratio and a linearity of ±0.2 %FS. The unit functions within a temperature range of -40 to +100 °C, utilizes a terminal block output connection, has a maximum torque of 4 mNm without a backspring, and carries an IP40 enclosure rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Midori

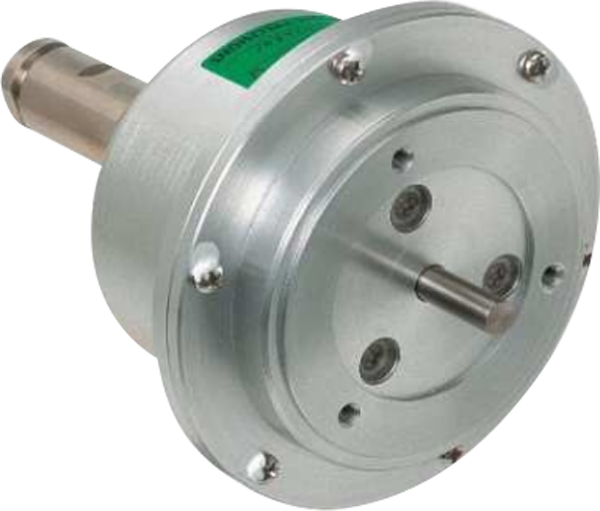

The Midori CP-45FRBN is a resistive technology rotary sensor featuring a 67 mm housing diameter and a flange Ø66 mounting configuration. This single-output component operates on a 0 to 15 V supply voltage with an output signal of 0 to 100% Vin, a 350-degree electrical angle, and a center tap option. Fitted with a ball bearing, a 6 mm shaft, and a stecker output connection, it delivers a 0.1 ± %FS linearity and a maximum torque of 25 mNm across a -20 to +80 °C temperature range. Submit the exact part number, quantity, and application requirements to request a quote for this Midori part.
View product details →
Midori
The Midori CP-45F is a resistive technology rotary sensor featuring a 45 mm housing diameter and a servo Ø45 mounting configuration. This component operates on a supply voltage of 0 to 15 V, delivering an output signal of 0 to 100% Vin across a 350-degree electrical angle with a linearity of ±0.1% FS. Constructed with a 4 mm shaft, ball bearing, and solder tab output connections, the unit handles a maximum torque of either 1.8 or 3.3 mNm within a temperature range of -40 to +120 °C. Available in 1 or 2 output configurations with options for 2 gangs and output phase, this model can be requested by submitting the exact part number, quantity, and application requirements.
View product details →
Midori
The Midori CP-45F-XXSX is a resistive CP-45F-xxSX featuring a 61 mm housing diameter, a 6 mm shaft diameter with ball bearing support, and a single output signal ranging from 0 to 100% Vin via a terminal block connection. This component operates on a supply voltage of 0 to 15 V across a temperature range of -40 to +120 °C, delivering a maximum torque of 4 mNm with a linearity of ±0.1 %FS. Available electrical angles include 3500° and 350'000°, alongside gear ratio options of 10:1, 24:1, 35:1, and 100:1. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
