Midori
The Midori CP-3HK-100 is a contactless Hall effect position sensor featuring a 36 mm housing diameter and a 6 mm shaft with ball bearings. It operates on a 5 V supply voltage with a current consumption of 30 mA, delivering a 0 to 5 V DC ratiometric output signal across a 360-degree electrical angle with a linearity of plus-minus 0.2 percent full scale. Housed in an IP54-rated enclosure, this flange-mounted unit with a cable connection operates within a temperature range of -40 to +100 degrees Celsius and a maximum torque of 2 mNm without a backspring. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Midori
The Midori CP-3HABS is a contactless Hall effect rotary sensor featuring a 20 mm housing diameter, a 6 mm shaft with ball bearing support, and a 5 V DC ratiometric output signal with 1 or 2 outputs. Configurable with electrical angles of 60 or 90 degrees, flange mounting, wire output connections, and optional backspring configurations, this component operates within a temperature range of -40 to +125 degrees Celsius at a current consumption of 20 mA. It provides a linearity of plus or minus 3 percent full scale, a maximum torque of 20 or 60 mNm, and an IP54 or IP65 enclosure rating, supplied with a connector as a replacement for the QP-3HA, with an option available without a connector. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CP-30H is a contactless Hall effect rotary sensor featuring a 28 mm housing diameter, a 6 mm shaft with ball bearings, and a 60-degree electrical angle. This unit operates on a 5 V DC supply voltage with a current consumption of 10 mA, delivering a 0 to 5 V DC ratiometric output signal across one output channel with a linearity of plus or minus 6 percent full scale. Housed in an IP50 enclosure with a wire output connection and a maximum torque of 0.3 mNm, it functions within a temperature range of -20 to plus 80 degrees Celsius without a backspring. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori

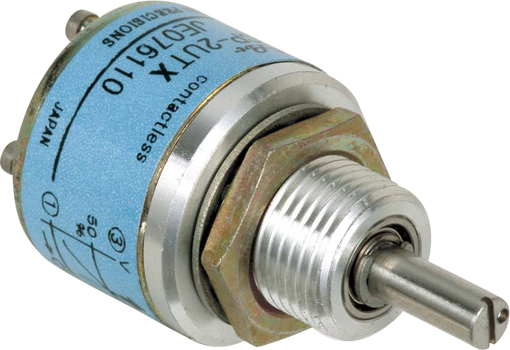

The Midori CP-2UTN is a contactless magneto resistive product featuring a 16 mm housing diameter, an M9 bushing mounting, and a 3 mm shaft supported by a ball bearing. Operating with a 1.4 mA current consumption and a supply voltage of 0 to 10 V, this low power and low torque component delivers a 90-degree electrical angle with an output signal of 40% to 60% Vin across a temperature range of -40 to +100 degrees Celsius. Additional specifications include a single output, solder pin connection, 2 percent full-scale linearity, a maximum torque of 0.05 mNm, no backspring, and optional temperature compensation as a direct replacement for the CP-2UTX. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Midori

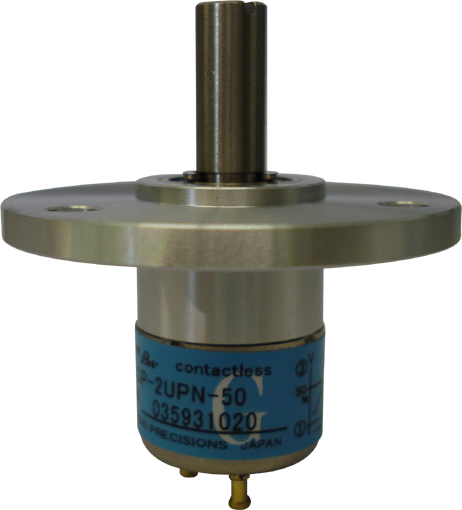

The Midori CP-2UPN-50 is a contactless magnetoresistive rotary component featuring a 16 mm housing diameter and a 6 mm shaft with ball bearings. This 1-output unit operates on a 0 to 10 V supply voltage, delivering an output signal of 40% to 60% of Vin across a 90-degree electrical angle with a linearity of ±2 %FS. Designed with flange mounting, solder pin output connection, and a maximum torque of 0.5 mNm, the low-power device consumes 1.4 mA and functions within a temperature range of -40 to +100 °C without a backspring. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori

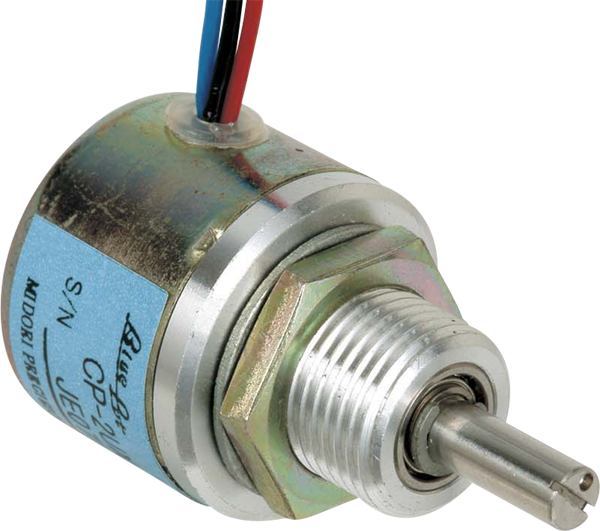

The Midori CP-2UN is a contactless magnetoresistive sensing component featuring a 16 mm housing diameter and an M9 bushing mounting configuration. This low-power and low-torque unit operates on a 0 to 10 V supply voltage with 1.4 mA current consumption, providing a 40% to 60% Vin single output across a 90-degree electrical angle. Built with a ball bearing, a 3 mm shaft, and wire output connections, it functions across a temperature range of -40 to +100 °C with a linearity of ±2% FS and optional temperature compensation as a direct replacement for the CP-2UX. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Midori
The Midori CP-2UKN-A is a contactless magneto resistive sensor housed in a 36 mm diameter flange-mounted body featuring a 6 mm shaft with ball bearings and no backspring. It operates on a supply voltage of 20 to 28 V, delivers a 4 to 20 mA current output across a 90-degree electrical angle, and functions within a temperature range of -25 to +80 °C with an IP54 enclosure rating, linearity of ±2.2 %FS, and a maximum torque of 2 mNm as a direct replacement for the CP-2UK-A200. Request a quote by submitting the exact part number, required quantity, and application specifications.
View product details →
Midori
The Midori CP-2HX is a contactless Hall-effect position sensor featuring a 40 mm housing diameter, an 8 mm shaft, and a bearingless design with flange mounting and an electrical connection via connector. It operates on a 5 V supply voltage with a current consumption of 20 mA, delivering a dual-output PWM signal ranging from 10 to 90% of Vin across selectable electrical angles of 90, 180, or 360 degrees. Enclosed in an IP67-rated housing, this component functions within a temperature range of -30 to +100 °C and maintains a linearity of ±2% FS. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the Midori CP-2HX.
View product details →
Midori
The Midori CP-2HK is a contactless Hall-effect rotary sensor housed in a 36 mm diameter flange-mounting package featuring a 6 mm shaft with ball bearings. This 5 V DC supply unit delivers a ratiometric 0 to 5 V DC output signal across selectable electrical angles of 80, 270, 300, or 360 degrees, drawing 13 mA with an IP54 enclosure and a linearity of ±0.5 %FS. Designed with a maximum torque of 2 mNm and an operating temperature range of -40 to +100 °C via cable output connection, this model serves as a direct replacement for the CP-2UK-R200. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →Midori
The Midori CP-2HK-8R is a contactless Hall effect sensor featuring a 36 mm housing diameter and a 6 mm shaft and bore diameter supported by a ball bearing, serving as a direct replacement for the CP-2UK-R200. Operating on an 8V supply voltage with a current consumption of 13 mA, this flange-mounted unit delivers a 10% to 90%Vin output signal across selectable electrical angles of 80, 270, 300, or 360 degrees, while maintaining a linearity of ±0.5% FS within an IP54-rated enclosure. Featuring cable output connection and a maximum torque of 2 mNm, it functions reliably across a temperature range of -40 to +100 °C without a backspring. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →Midori
The Midori CP-2HK-10R is a contactless Hall-effect rotary sensor featuring a 36 mm housing diameter, a 6 mm shaft diameter, and a flange mounting configuration with a cable output connection. Operating on a 10 V supply voltage with a current consumption of 13 mA, this single-output unit delivers an output signal ranging from 10% to 90%Vin across selectable electrical angles of 80, 270, 300, or 360 degrees. Supported by ball bearings with a maximum torque of 2 mNm and an IP54 enclosure rating, the component functions within a temperature range of -40 to +100 °C while maintaining a linearity of ±0.5 %FS without a backspring. This model serves as a direct replacement for the CP-2UK-R200. Please submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Midori
The Midori CP-2HB is a contactless Hall effect rotary sensor featuring a 16 mm housing diameter and a 6 mm shaft supported by a metal sleeve bearing. It operates on a 5 V supply voltage with a 10 mA current consumption, delivering a 0 to 5 V DC ratiometric output signal across a 90-degree electrical angle. Designed with an M10 bushing mount and solder pin output connections, this unit exhibits a maximum torque of 5 mNm, a linearity of ±3 %FS, and an operating temperature range of -20 to +100 °C without a backspring. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CP-2HA is a contactless Hall effect rotary sensor featuring a 28 mm flange-mounted housing with a 6 mm shaft supported by ball bearings. It operates on a 5 V supply voltage, delivering a 0 to 5 V DC ratiometric output signal across configurable electrical angles of 100, 200, or 350 degrees with a linearity of ±1 %FS. Designed with an IP65 enclosure, this unit functions within a temperature range of -30 to +100 °C and features wire output connections. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CP-2FWP-10S is a resistive technology rotary sensor featuring a 30 mm aluminum die-cast housing and a 6 mm shaft supported by ball bearings. It operates on a supply voltage of 0 to 15 V, delivering a 0 to 100% Vin output signal across a 3400 and 34000 degree electrical angle with a linearity of ±1.5 %FS. This flange-mounted unit includes solder pin output connections, a maximum torque of 25 mNm, gear ratios of 5:1 or 10:1, an IP65 enclosure rating, and an operating temperature range of -40 to +80 °C without a backspring. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Midori
The Midori CP-2FL is a resistive technology component featuring a 22.3 mm housing diameter and a 340-degree electrical angle. This model operates on a supply voltage of 0 to 15 V, delivering a 0 to 100% Vin output signal through a single output via wire connection. Constructed with a metal sleeve ball bearing, a shaft with 3.175 or 6 mm diameters, and M9 bushing mounting, it provides a maximum torque of 2 mNm within a temperature range of -40 to +100 degrees Celsius, offering a linearity of plus or minus 1% FS with an optional 0.5% configuration. Submit the exact part number, quantity, and application requirements to request a quote for this low-cost unit.
View product details →
Midori
The Midori CP-2FC-6 is a resistive technology component featuring a 22.3 mm housing diameter and a 6 mm shaft supported by a Teflon coated metal bearing. This single-output model operates on a 0 to 15 V supply voltage with an electrical angle of 340 degrees, a 0 to 100 percent Vin output signal, and a linearity of ±1 percent FS. Built with an M9 bushing mounting, miniature connector output connection, and a maximum torque rating of 3.4 to 20 mNm, it functions within a temperature range of -40 to +100 °C without a backspring. Submit the exact part number, quantity, and application requirements to request a quote for this Midori product.
View product details →
Midori
The Midori CP-2FBJ-6 is a resistive technology rotary component housed in a 22.3 mm diameter chassis featuring a 6 mm shaft supported by a metal sleeve bearing. It operates on a supply voltage of 0 to 15 V, delivering a 0 to 100 percent Vin output signal across a 340-degree electrical angle with a linearity of plus or minus 1 percent full scale. This unit utilizes a bushing M9 mounting configuration, solder pin output connections, and operates within a temperature range of -40 to +100 degrees Celsius with a maximum torque of 3.5 to 20 mNm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Midori
The Midori CP-2FABSJ is a resistive technology rotary sensor featuring a 28 mm housing diameter, a 6 mm shaft with a DD cut, and a flange mounting configuration. It operates within a 0 to 15 V supply voltage range, delivering an output signal of 0 to 100 percent of Vin across 1 or 2 outputs with a 90-degree electrical angle and 3 percent full scale linearity. Housed in an IP65 enclosure with ball bearings, this component functions in temperatures from -40 to +100 degrees Celsius and offers a maximum torque of 20 or 100 mNm with optional electrical angles and wire output connections. Submit the exact part number, quantity, and application requirements for a quote on this model.
View product details →Midori
The Midori CP-2FABSJ-128 is a resistive technology rotary sensor featuring a 28 mm flange-mounted housing and a 6 mm shaft supported by ball bearings. Operating on a supply voltage of 0 to 15 V, this single-output unit delivers an output signal of 0 to 100% Vin across a 340-degree electrical angle with a linearity of ±3% FS and a maximum torque of 20 mNm. Enclosed in an IP65-rated housing with wire output connections, the component functions within a temperature range of -40 to +100 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →Midori
The Midori CP-2FABSJ-09 is a resistive technology rotary sensor featuring a 28 mm flange-mounted housing with a 6 mm shaft and ball bearing construction. It operates on a supply voltage range of 0 to 15 V, delivering a single output signal from 0 to 100% Vin across a 90-degree electrical angle with a linearity of ±3 %FS and a maximum torque of 20 mNm. Designed with wire output connections, an IP65 enclosure rating, and an operating temperature range of -40 to +100 °C, this unit provides continuous 360-degree mechanical rotation without a backspring. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
View product details →
