Midori
The Midori CP-2F-XXSRB is a resistive CP-2F-xxSRB featuring a 30 mm housing diameter, a 6 mm shaft diameter, and a flange mounting configuration with solder pin output connections. This component operates on a 0 to 15 V supply voltage with 1 output delivering an output signal of 0 to 100% Vin across an electrical angle of 3400 to 18000 degrees and a 1.5 %FS linearity. Integrated with a ball bearing, a max torque of 4 mNm, gear ratios ranging from 5:1 to 50:1, and a temperature range of -40 to +100 degrees Celsius, it supports an optional shaft D-cut on the CP-2F-10S-RB-1 model without a backspring. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Midori
The Midori CP-22H-XS is a contactless Hall effect rotary sensor housed in a 22 by 30 mm body with a 6 mm shaft and ball bearing construction. This component operates on a 5 V supply voltage, draws 16 mA of current, and delivers an output signal of 10 to 90 percent of Vin across an electrical angle ranging from 1800 to 21600 degrees. Featuring a 1 percent full-scale linearity, a maximum torque of 4 mNm, and a gear ratio spanning from 05:01 up to 60:01, it is built with wire output connections, a flange mount, and an IP54 or IP67 enclosure rated for temperatures between -40 and +100 degrees Celsius. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori
The Midori CP-20H is a contactless Hall-effect position sensor featuring a 22 mm housing diameter, M9 bushing mounting, and a standard shaft available in 3.175 mm or 6 mm diameters with a metal sleeve ball bearing. It operates on a 5 V supply voltage with 16 mA or 33 mA current consumption, delivering a 0 to 5 V DC ratiometric output signal across electrical angles of 270, 300, 340, or 359 degrees. Built for operational temperatures ranging from -30 to +100 degrees Celsius, this contactless wide-angle sensor achieves a linearity of ±1 %FS and provides IP60 or IP50 enclosure protection with an optional drip-proof design. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CP-1HX is a contactless Hall-effect rotary sensor featuring a slim 28 x 14 mm housing with a 14 mm thickness and a 6 mm shaft. Operating on a 4.5 to 5.5 V supply voltage, this unit provides an electrical angle ranging from 50° up to 360° with 10 to 90% Vin PWM dual outputs and a linearity of ±2% FS. Designed with flange mounting and wire output connections, the component functions across a temperature range of -40 to +85 °C without a backspring. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori CP-16U is a contactless magneto resistive rotary sensor featuring a 16 mm diameter housing and an M9 bushing mounting configuration. Operating on a supply voltage of 3 to 5.5V with a current consumption of 0.6 mA, this component delivers an output signal of 30 to 70% Vin across a 90-degree electrical angle through a single wire output connection. It is constructed with a ball bearing, a 3 mm shaft, and operates within a temperature range of -30 to +100 °C while maintaining a linearity of ±1.5% FS and a maximum torque of 0.1 mNm. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →Midori
The Midori CP-16U-1 is a contactless, magneto resistive sensor featuring a 16 mm housing diameter and a bushing M9 mounting configuration. Operating on a supply voltage of 3 to 5.5 V with a low current consumption of 0.6 mA, this single-output unit delivers an output signal of 30 to 70% Vin across a 120-degree electrical angle. It is constructed with a ball bearing, a 3 mm shaft, and wire output connections, achieving a maximum torque of 0.1 mNm and a linearity of ±1.5% FS within a -30 to +100 °C temperature range. Submit the exact part number, quantity, and application requirements to receive a quote.
View product details →
Midori
The Midori CE36M is an absolute, singleturn magnetic shaft encoder featuring a 6 mm shaft diameter and a 36 mm case diameter. Operating on a 5 V supply voltage, it delivers a singleturn resolution ranging from 11 to 13 bits with SSI and ASI outputs. This component functions within a temperature range of -20 to +80 °C and includes IP65 and IP67 enclosure ratings. Submit the exact part number, quantity, and application requirements to request a quote for this Midori part.
View product details →
Midori

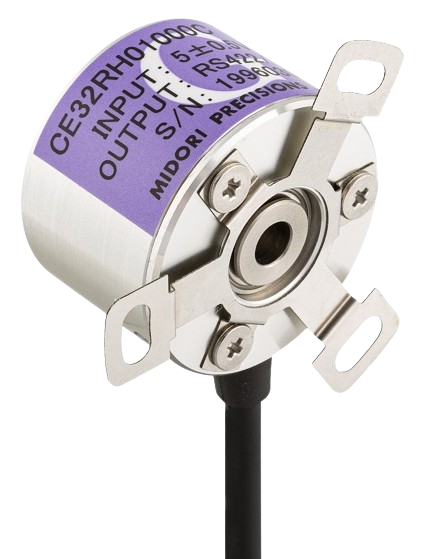

The Midori CE32R series is an incremental, optical hollow shaft encoder featuring a 5 mm bore diameter and a 32 mm case diameter. This component delivers an incremental resolution ranging from 360 to 72000 CPR, operating on a supply voltage of 4.5 to 30 V with ABZ incremental signals and an NPN open collector output. Designed for a temperature range of -25 to +85 °C, the unit carries an IP50 enclosure rating. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori

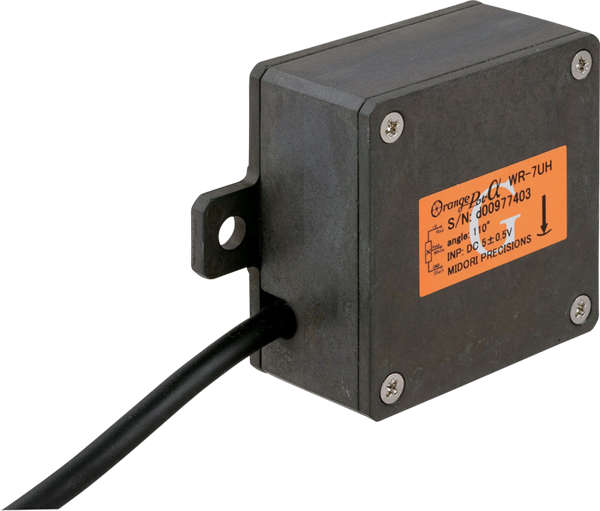

The Midori WR-7UHA360 is a single-axis plug and play module featuring a measuring range of plus or minus 0 to 360 degrees and an input voltage of 5 VDC. It delivers an output signal ranging from 0.5 V to 4.5 V with a 3 Hz bandwidth, 0.4 percent FS linearity, and 0.5 percent FS sensitivity across an operating temperature range of -30 to 80 degrees Celsius. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →Midori
The Midori WR-7UHA is a single-axis Plug&Play Module featuring a measuring range of ± 60 and an input voltage of 5 VDC. This unit outputs a signal from 0.5 V to 4.5 V with a bandwidth of 3 Hz, a linearity of 0.8 % FS, and a sensitivity of 0.5 % FS across a temperature range of -30 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori

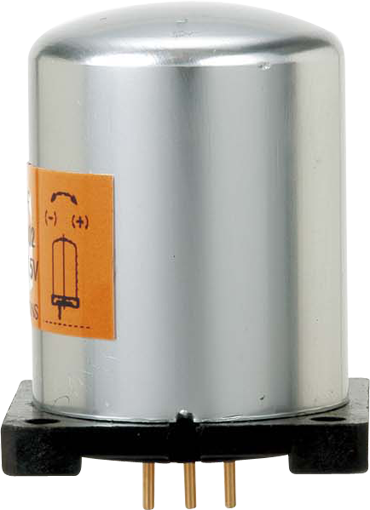

The Midori UV-3HF is a 1-axis PCB design instrument featuring a measuring range of ±20 and a 1 V to 4 V output signal. This component operates on an input voltage of 5 VDC across a temperature range of -30 to 80 °C, maintaining a linearity of 2 % FS and a bandwidth of 1 Hz. Submit the exact part number, quantity, and application requirements to request a quote for this Midori part.
View product details →
Midori

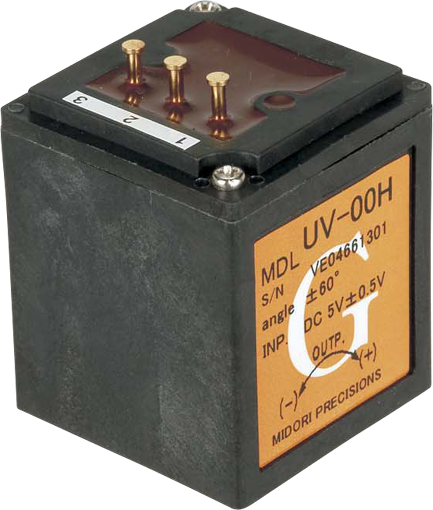

The Midori UV-00H is a 1-axis plug-and-play module featuring a measuring range of ± 60 and an input voltage of 5 VDC. This unit delivers an output signal ranging from 0.5 V to 4.5 V with a bandwidth of 2 Hz, a sensitivity of 0.7 % FS, and a linearity of 1.5, 3.0 % FS across an operating temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Midori
The Midori PMP-S30HT is a 1-axis PCB design sensor featuring a measuring range of ± 30 and an output signal of 0.5 V to 4.5 V at a 5 VDC input voltage. This unit operates within a temperature range of -20 to 80 °C, providing a linearity of 1.5 % FS, a bandwidth of 3 Hz, and a sensitivity of 0.1 % FS. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the Midori PMP-S30HT.
View product details →Midori
The Midori PMP-S20HT is a 1-axis PCB design component featuring a measuring range of ± 20 and an input voltage of 5 VDC. This unit outputs a signal ranging from 0.5 V to 4.5 V with a linearity of 1.5 % FS, a bandwidth of 3 Hz, and a sensitivity of 0.1 % FS across a temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a quote for this Midori product.
View product details →
Midori

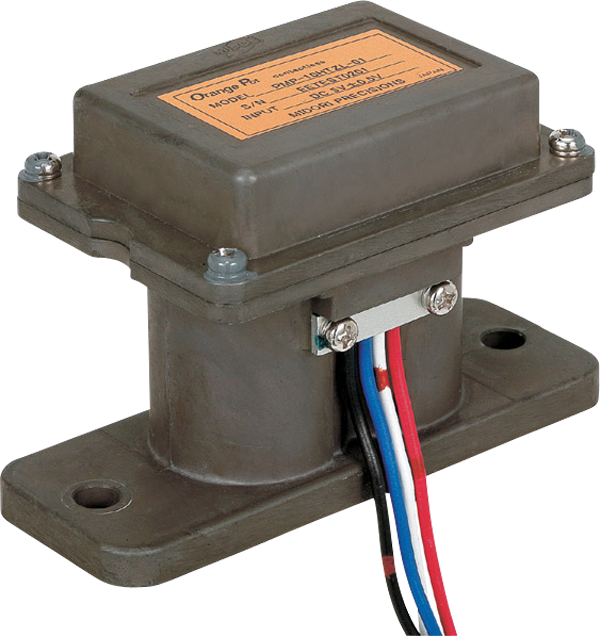

The Midori PMP-5HTZL is a 2-axis Plug&Play Module featuring a measuring range of ± 5 and an input voltage of 5 VDC. It delivers an output signal ranging from 0.5 V to 4.5 V with a linearity of 1 % FS, a bandwidth of 2 Hz, and a sensitivity of 0.1 % FS within an operating temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Midori component.
View product details →Midori
The Midori PMP-30HTZL is a plug and play module featuring a 2-axis design with a measuring range of ± 30. This unit operates on an input voltage of 5 VDC and delivers an output signal ranging from 0.5 V to 4.5 V with a bandwidth of 2 Hz. It functions across a temperature range of -20 °C to 80 °C, offering a linearity of 1.5 % FS and a sensitivity of 0.1 % FS. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →Midori
The Midori PMP-30HTL is a 1-axis Plug&Play Module featuring a measuring range of ± 30 and an input voltage of 5 VDC. This component delivers an output signal from 0.5 V to 4.5 V with a linearity of 1.5 % FS, a bandwidth of 2 Hz, and a sensitivity of 0.1 % FS across a temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the Midori PMP-30HTL.
View product details →Midori
The Midori PMP-20HTZL is a plug and play module featuring a two-axis design with a measuring range of plus or minus 20 and an input voltage of 5 VDC. This unit outputs a signal from 0.5 V to 4.5 V, operating within a temperature range of -20 to 80 °C, and incorporates a linearity of 1.5 % FS, a bandwidth of 2 Hz, and a sensitivity of 0.1 % FS. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →Midori
The Midori PMP-20HTL is a plug and play module featuring a single-axis design with a measuring range of plus or minus 20. It operates on an input voltage of 5 VDC, producing an output signal ranging from 0.5 V to 4.5 V across a temperature range of -20 to 80 °C. This unit provides a linearity of 1.5 % FS, a bandwidth of 2 Hz, and a sensitivity of 0.1 % FS. Submit the exact part number, quantity, and application requirements to request a quote for this Midori component.
View product details →
Midori

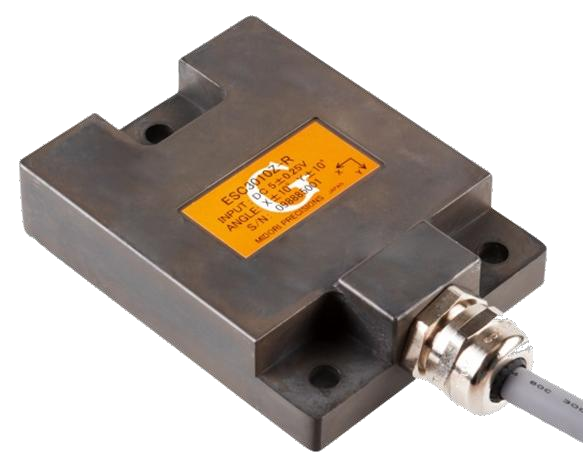

The Midori ESC30 is a 2-axis plug-and-play module featuring a measuring range of ± 10, 20, 30, 45, 60, and 80, along with a sensitivity of 0.01° to 0.04°. It operates within an input voltage of 5V, 8 to 30, and 20 to 28 VDC, delivering output signals of 10% - 90% Vin, 0.5 - 4.5 V, 4...20mA, and RS-485. Housed in an IP67 enclosure, this unit functions across a temperature range of -30 to 85 °C with a linearity of 0.5 % FS and a bandwidth of 1 to 14Hz. Submit the exact part number, quantity, and application requirements to receive a formal quotation for the Midori ESC30.
View product details →
