Festo
8035186
Air solenoid valve VUVS-LT25-M52-MZD-G14-F8-1B2
The Festo 8035186 is an electrical 5/2-way monostable industrial component featuring a 26.5 mm valve size and a plate seat structural design with a soft sealing principle. Operating at 24V DC within a pressure range of 0.25 MPa to 1 MPa, it achieves a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports and a 6.6 mm nominal width. This c UL us recognized unit provides IP65 protection when using a plug socket and incorporates piloted control with external pilot air supply, adjustable exhaust air, a mechanical spring reset, and both detenting and non-detenting manual overrides. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8036878
Flow sensor SFAW-100T-TG1-E-PNLK-PNVBA-M12
The Festo part number 8036878 is an industrial component designed for unidirectional flow measurement utilizing vortex technology alongside a PT1000 temperature sensor. This device monitors flow rates from 5 l/min to 100 l/min and temperatures from 0 °C to 90 °C within operating pressures up to 1.2 MPa (12 bar / 174 psi) at 40°C. It operates with liquid media, water, and neutral liquids possessing a kinematic viscosity of 1.8 mm²/sec or less, featuring RCM compliance, c UL us listing, and CE and UKCA markings per EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8033714
Solenoid valve VSVA-B-M52-MH-D1-F8-1B2
The Festo 8033714 is a 5/2-way monostable industrial component utilizing a piston gate valve structural design with an electrical actuation type and a 24V DC operating voltage. This piloted unit features a 42 mm width, a nominal width of 8 mm, an ISO 8778 standardized nominal flow rate of 1800 l/min, and an operating pressure range of 0.3 MPa to 1 MPa (3 bar to 10 bar) with internal pilot air supply. Conforming to ISO 5599-1 with size 1 sub-base pneumatic working ports, it includes a mechanical spring reset method, soft sealing principle, non-detenting manual override, and adjustable exhaust air function via individual sub-base while achieving an IP65 and NEMA 4 degree of protection for any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →
Festo
8033157
Sub-base VABS-S4-1S-G14-R3-EX1E
Engineered by Festo with a 26 mm width based on the ISO 15407-2 norm, this industrial component features external pilot air supply ports and operates at a DC voltage range of 24 V with an operating pressure spanning from -0.09 MPa to 1 MPa. It carries CE and UKCA markings compliant with ATEX, low voltage, and RoHS directives, while providing Zone 2 explosion protection for gas environments with an allowable explosive ambient temperature range of -5°C to +50°C. The unit accommodates compressed air media per ISO 8573-1:2010 [7:4:4] requiring oil lubrication for continued use, possesses a 0 corrosion resistance class, and functions in any mounting position with a 2 A current rating at 40° C. Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
Festo
8035185
Air solenoid valve VUVS-LT25-M52-MD-G14-F8-1B2
The Festo 8035185 is a piloted 5/2-way monostable industrial component featuring a 26.5 mm valve size, a 6.6 mm nominal width, and a plate seat structural design with soft sealing. It operates on 24V DC with a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), delivering a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports. Built with IP65 protection using a plug socket, an internal pilot air supply, and an adjustable exhaust air function, it includes a mechanical spring reset and both detenting and non-detenting manual override options for any mounting position. This c UL us recognized unit is non-reversible with a negative overlap lap and supports internal control. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8036877
Flow sensor SFAW-100-TG1-E-PNLK-PNVBA-M12
The Festo 8036877 industrial component measures flow rate via vortex measurement and temperature via a PT1000 sensor across a unidirectional P1 to P2 flow direction. It operates within a 5 l/min to 100 l/min flow measuring range, 0 bar to 12 bar operating pressure, and 0 °C to 90 °C medium temperature for water, liquid media, and neutral liquids. This RoHS compliant part carries RCM compliance, c UL us - Listed (OL), CE, and UKCA markings per EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8033156
Sub-base VABS-S4-2S-G18-B-R3-EX1E
The Festo 8033156 is an 18 mm industrial component based on the ISO 15407-2 norm, featuring an internal pilot air supply port and an operating pressure range of -0.09 MPa to 1 MPa. Rated for a 24 V DC operating voltage, 2 A current at 40° C, and 0.8 kV surge resistance, this unit operates with compressed air as per ISO 8573-1:2010 [7:4:4] in any mounting position and permits oil lubrication. It carries CE, UKCA, and EPL Gc (GB) certifications for Zone 2 ATEX and UKEX explosive atmospheres with gas ignition protection type Ex ec IIC T3 Gc X across an explosive ambient temperature of -5°C to +50°C, featuring a contamination level of 3 and CRC 0 corrosion resistance. Submit the exact part number, quantity, and application requirements for a formal quotation.
View product details →
Festo
8033713
Solenoid valve VSVA-B-M52-AH-D1-F8-1B2
The Festo 8033713 is an electrical 5/2-way monostable industrial component featuring a piston gate valve structural design and a nominal width of 8 mm. This piloted valve operates at 24V DC with an operating pressure ranging from 0.3 MPa to 1 MPa (3 bar to 10 bar), delivering a standardized nominal flow rate of 1800 l/min according to ISO 8778. Built with a 42 mm width, soft sealing principle, non-detenting manual override, and IP65 / NEMA 4 degree of protection, it conforms to ISO 5599-1 using a size 1 pneumatic working port sub-base. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8035184
Air solenoid valve VUVS-LT25-M52-MZD-G14-F8-1C1
The Festo 8035184 is a 5/2-way monostable industrial component utilizing a plate seat structural design with a soft sealing principle and a 26.5 mm valve size. This electrically actuated valve features a piloted type of control with an external pilot air supply port, delivering a nominal width of 6.6 mm and a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports. Operating at 24V DC within a pressure range of 0.25 MPa to 1 MPa, the unit incorporates an adjustable exhaust air function, a mechanical spring reset method, and both detenting and non-detenting manual overrides. Certified as c UL us - recognized (OL) with an IP65 degree of protection when used with a plug socket, it supports any mounting position, non-reversible flow direction, and negative overlap. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
8036876
Flow sensor SFAW-100T-TG34-E-PNLK-PNVBA-M12
The Festo part number 8036876 is an industrial component that measures unidirectional flow rate and temperature for liquid media, water, and neutral liquids with a kinematic viscosity equal to 1.8 mm²/sec. It utilizes a vortex method for flow measurement from 5 l/min to 100 l/min and a PT1000 sensor for temperatures ranging from 0 °C to 90 °C, operating at pressures up to 1.2 MPa (12 bar / 174 psi) at 40°C. The device carries c UL us - Listed (OL) and RCM certifications, along with CE and UKCA markings compliant with EU and UK EMC and RoHS directives. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8033155
Sub-base VABS-S4-2S-G18-R3-EX1E
The Festo part number 8033155 is an industrial component featuring an 18 mm width built on the ISO 15407-2 norm with any mounting position and an external pilot air supply port. Operating within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and a 24 V DC operating voltage, it handles a 2 A current rating at 40° C with a surge resistance of 0.8 kV and contamination level 3. It carries CE and UKCA markings per EU and UK directives for low voltage, RoHS, and explosion protection, including ATEX Zone 2 and EPL Gc (GB) certifications with an explosive ambient temperature of -5°C <= Ta <= +50°C, IIC explosion group, and Ex ec IIC T3 Gc X gas ignition protection. Designed for compressed air operating medium as per ISO 8573-1:2010 [7:4:4] with oil lubrication capability required for further use and a corrosion resistance class of CRC 0, this unit has no corrosion stress. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8033712
Solenoid valve VSVA-B-D52-H-D1-F8-1B2
The Festo 8033712 is a 5/2-way dominant, bistable industrial component featuring electrical actuation and a piston gate valve structural design with a soft sealing principle and positive overlap lap. This piloted, non-reversible part delivers a standardized nominal flow rate of 1800 l/min across an operating pressure range of 3 bar to 10 bar utilizing an internal pilot air supply port and an 8 mm nominal width. Built with a 42 mm width dimension, non-detenting manual override, and adjustable exhaust air function via individual sub-base, it conforms to ISO 5599-1 standards with size 1 pneumatic working ports and offers IP65 and NEMA 4 degree of protection for any mounting position at 24V DC operating voltage. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8035183
Air solenoid valve VUVS-LT25-M52-MD-G14-F8-1C1
The Festo 8035183 is a 26.5 mm electrical 5/2-way monostable industrial component featuring a plate seat structural design, soft sealing principle, and internal pilot air supply port with a 6.6 mm nominal width. This piloted valve operates on 24V DC within an operating pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar), delivering a normal nominal flow rate of 1000 l/min through G1/4 pneumatic working ports. It includes a mechanical spring reset method, adjustable exhaust air function, detenting and non-detenting manual override, and offers IP65 degree of protection when fitted with a plug socket in accordance with IEC 60529, backed by c UL us recognition (OL). Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
View product details →

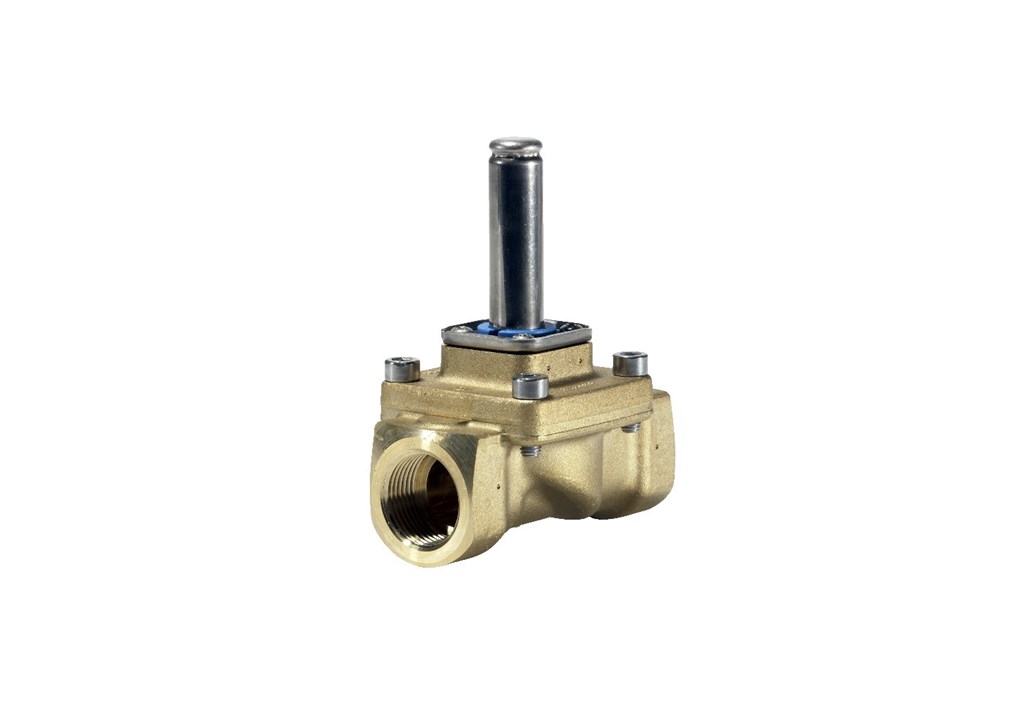

Danfoss Industrieautomatik
032U5254
Danfoss Industrieautomatik 032U5254 — Solenoid Valve
The Danfoss Industrieautomatik 032U5254 is a normally closed solenoid valve featuring a G 3/4 port size, an 18,0 mm nominal size, and assisted-lift (zwangsgesteuert) actuation housed in DZR brass. Equipped with an EPDM seal material, this component operates across a differential pressure range of 0 to 10 bar and supports media temperatures from -30 to 140 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
8033081
Air solenoid valve VSVA-B-P53EP-Z-A1-1T1L
The Festo part number 8033081 is an electrical 5/3 exhausted piston gate valve with a 26 mm width, a nominal width of 9 mm, and a normal nominal flow rate of 1000 l/min. Featuring a soft sealing principle, positive overlap, piloted control with external pilot air supply, and a mechanical spring and electrical reset method, this component operates on 24V DC within a pressure range of -0.09 MPa to 1 MPa. It is built with an IP65 and NEMA 4 degree of protection, a covered manual override, an LED signal status display, and sub-base pneumatic working ports according to ISO 15407-2 and G1/4. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8036875
Flow sensor SFAW-100-TG34-E-PNLK-PNVBA-M12
The Festo part number 8036875 is an industrial component utilizing vortex measurement for flow rate and a PT1000 for temperature, providing unidirectional P1 to P2 flow measurement within a 5 l/min to 100 l/min range. It operates with liquid media, water, and neutral liquids at pressures up to 1.2 MPa (12 bar / 174 psi) at 40°C and medium temperatures from 0 °C to 90 °C, meeting RCM, c UL us - Listed (OL), CE, and UKCA directives. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8033711
Solenoid valve VSVA-B-B52-H-D1-F8-1B2
The Festo 8033711 is a 5/2-way bistable industrial component featuring a piloted, piston gate valve design with soft seals and a positive overlap lap. Operating on 24V DC with an electrical actuation type and a non-detenting manual override, this unit achieves a standardized nominal flow rate of 1800 l/min across an operating pressure range of 3 bar to 10 bar. It conforms to ISO 5599-1 standards with a nominal width of 8 mm, an individual sub-base pneumatic working port of size 1, internal pilot air supply, and an IP65 and NEMA 4 degree of protection. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8035182
Air solenoid valve VUVS-LT25-M52-MZD-G14-F8
The Festo part number 8035182 is a 5/2-way monostable industrial component featuring electrical actuation, a 26.5 mm valve size, and a normal nominal flow rate of 1000 l/min normalized to DIN 1343. Designed with a plate seat structural design, soft sealing principle, and mechanical spring reset method, this piloted valve operates within a pressure range of 0.25 MPa to 1 MPa (2.5 bar to 10 bar) and includes G1/4 pneumatic working ports alongside an external pilot air supply port. It incorporates an adjustable exhaust air function, a negative overlap lap, a 6.6 mm nominal width, and both detenting and non-detenting manual override capabilities while carrying c UL us recognition certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8033080
Air solenoid valve VSVA-B-M52-MZ-A1-1T1L-APX-0.5
Engineered with a 26 mm width and a 5/2-way monostable valve function, this Festo industrial component part number 8033080 utilizes a piston gate valve structural design with a soft sealing principle and mechanical spring reset method. The unit features an electrical actuation type with piloted control, external pilot air supply port, and a normal nominal flow rate of 1100 l/min normalized to DIN 1343 across an operating pressure range of -0.09 MPa to 1 MPa. It provides an IP65 and NEMA 4 degree of protection, CE marking as per the EU EMC directive, KC-EMV characters, and pneumatic working ports via a 26 mm sub-base complying with ISO 15407-2 or G1/4. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8036874
Flow sensor SFAW-32T-TG34-E-PNLK-PNVBA-M12
The Festo part number 8036874 is an industrial component that measures unidirectional flow rate via vortex technology and temperature via PT1000 across a flow range of 1.8 l/min to 32 l/min and a temperature range of 0 °C to 90 °C. It operates with liquid media, water, and neutral liquids at pressures up to 1.2 MPa (12 bar / 174 psi) at 40°C and features RCM and c UL us listings alongside CE and UKCA compliance for EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
