Industrial sourcing catalog
Search by Manufacturer Part Number
Browse verified product records and request commercial availability, lead time and technical documentation.
Festo
8004932
Inscription label holder ASCF-H-L1-18-8V
The Festo inscription label holder ASCF-H-L1-18-8V is an industrial component with a product weight of 22.2 g and a corrosion resistance class (CRC) of 2 for moderate corrosion stress. This RoHS compliant part features VDMA24364-B1/B2-L LABS (PWIS) conformity according to the official Festo data sheet. Submit your exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8000209
Connecting cable NEBU-M8G3-K-0.5-M12G3
The Festo part number 8000209 is a 29 g industrial component featuring a straight M8x1 A-coded socket with 3 pins on the field device end and a straight M12x1 A-coded plug with 3 pins on the control side, both utilizing screw-type locks and conforming to EN 60947-5-2, EN 61076-2-101, and EN 61076-2-104 standards. Designed with 2x label holders and wire colors matching connection numbers, this assembly operates within a DC operating voltage range of 0 V to 60 V. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
Festo
8004931
Inscription label holder ASCF-H-L1-18-7V
The Festo inscription label holder ASCF-H-L1-18-7V is an industrial component with a product weight of 20.05 g and a corrosion resistance class (CRC) of 2 for moderate corrosion stress. This RoHS compliant part adheres to LABS conformity standard VDMA24364-B1/B2-L. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8022752
Pressure sensor SPAW-P6R-G12M-2P-M12
The Festo part number 8022752 is a piezoresistive pressure sensor engineered to measure relative pressure from 0 to 0.6 MPa (0 to 6 bar, 0 to 87 psi) with an overload pressure rating of 1.2 MPa (12 bar, 174 psi). This industrial component operates with compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature range of -20 °C to 85 °C and an ambient temperature range of 0 °C to 80 °C. It features 2xPNP switching outputs with freely programmable switching functions, switchable switching element function, a maximum output current of 250 mA, 3 ms rise time, and short-circuit protection, delivering 1 %FS accuracy and 0.15 %FS repetition accuracy. The unit holds c UL us - Listed (OL) and RCM certifications, carries CE and UKCA markings per EU and UK EMC and RoHS directives, and utilizes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8002340
Service unit FRC-1/2-D-7-MIDI-MPA
The Festo part number 8002340 is a Midi size Series D industrial component featuring a structural design of a filter regulator with pressure gauge combined with a proportional standard oil mist lubricator. It operates within a pressure range of 1 bar to 16 bar, a regulation range of 0.5 bar to 7 bar, and delivers a normal nominal flow rate of 2800 l/min using compressed air or inert gases. Equipped with a 40 µm grade of filtration, manual rotating condensate drain, metal bowl guard, and a rotary knob actuator lock with detent, this unit functions at medium temperatures from -10 °C to 60 °C in a vertical ±5° mounting position. Submit the exact part number, quantity, and application requirements to request a formal quotation.
View product details →

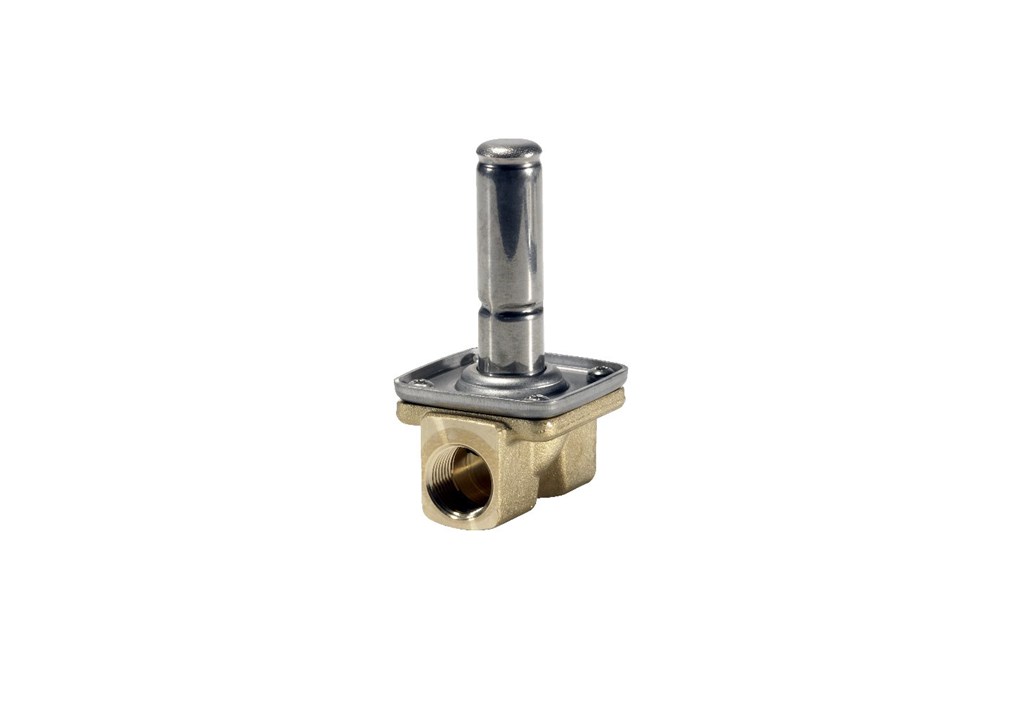

Danfoss Industrieautomatik
032U1249
Danfoss Industrieautomatik 032U1249 — Solenoid Valve
The Danfoss Industrieautomatik 032U1249 is a servo-operated diaphragm solenoid valve featuring a brass housing, a G 1/2 port size, and a 10.0 mm nominal size. This normally open (NO) valve utilizes an FKM seal and operates within a differential pressure range of 0.1 to 10 bar for media temperatures from 0 to 100 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8004930
Inscription label holder ASCF-H-L1-18-6V
The Festo ASCF-H-L1-18-6V inscription label holder is an industrial component with a product weight of 17.9 g and a corrosion resistance class (CRC) of 2 for moderate corrosion stress. This RoHS compliant part adheres to VDMA24364-B1/B2-L LABS (PWIS) conformity standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8000208
Connecting cable NEBU-M12G5-K-0.5-M12G4
The Festo part number 8000208 is an industrial component weighing 36 g featuring a straight M12x1 A-coded socket with 5 pins (4 occupied) on the field device end and a straight M12x1 A-coded plug with 4 pins (4 occupied) on the control side, both utilizing a screw-type lock design and adhering to EN 61076-2-101. This cable designation includes 2x label holders and conforms to EN 60947-5-2 and EN 61076-2-101 standards for wire colors and connection numbers across a DC operating voltage range of 0 V to 250 V. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8002339
Service unit FRC-3/8-D-7-MIDI-MPA
The Festo part number 8002339 is a Midi-size Series D industrial component featuring a structural design that combines a filter regulator with a pressure gauge and a proportional standard oil mist lubricator. It operates within a pressure range of 1 bar to 16 bar, provides a pressure regulation range of 0.5 bar to 7 bar, and delivers a normal nominal flow rate of 2000 l/min using compressed air or inert gases. Equipped with a 40 µm grade of filtration, a manual rotating condensate drain with a 43 cm³ max condensate volume, and a rotary knob with detent actuator lock, this unit is designed for vertical mounting within ±5°. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8022751
Pressure sensor SPAW-P2R-G12M-2P-M12
The Festo 8022751 is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 to 0.2 MPa (0 to 2 bar, 0 to 29 psi) with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This component features 2xPNP switching outputs with freely programmable and switchable switching functions, short-circuit protection, and a max output current of 250 mA with a 3 ms rise time. It operates within a medium temperature of -20 °C to 85 °C and an ambient temperature of 0 °C to 80 °C, utilizing compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media while carrying RCM, c UL us - Listed (OL), CE, and UKCA compliance markings along with RoHS certification. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8004929
Inscription label holder ASCF-H-L1-18-5V
The Festo inscription label holder ASCF-H-L1-18-5V is an industrial component weighing 15.75 g with a corrosion resistance class (CRC) of 2 for moderate corrosion stress. This RoHS-compliant part conforms to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8002338
Service unit FRC-3/8-D-7-MINI-MPA
The Festo 8002338 is a Series D mini filter regulator and proportional standard oil mist lubricator featuring a rotary knob actuator lock with detent, a manual rotating condensate drain, and an integrated pressure gauge. Designed for a normal nominal flow rate of 1500 l/min, it operates within a pressure range of 1 bar to 16 bar and regulates pressure from 0.5 bar to 7 bar using compressed air or inert gases within a medium temperature of -10 °C to 60 °C. This unit incorporates a 40 µm filtration grade, a metal bowl guard, a maximum condensate volume of 22 cm³, and a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
8022750
Pressure sensor SPAW-B11R-G12M-2P-M12
The Festo part number 8022750 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure across a range of -0.1 to 1 MPa (-1 to 10 bar / -14.5 to 145 psi) with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This device operates with compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature of -20 °C to 85 °C and an ambient temperature of 0 °C to 80 °C, featuring an overload pressure of 2 MPa (20 bar / 290 psi). It includes 2xPNP switching outputs with freely programmable switching functions, switchable switching element functions, short-circuit protection, and a maximum output current of 250 mA with a 3 ms rise time. The component carries RCM compliance, c UL us - Listed (OL), CE marking as per EU EMC and RoHS directives, and UKCA marking to UK instructions for EMC and RoHS, alongside RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
8000117
Pressure transmitter SPTW-P100R-G14-VD-M12
The Festo 8000117 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure from 0 to 10 MPa (0 to 100 bar, or 0 to 1450 psi) with an accuracy of 1 percent full scale and a repetition accuracy of 0.1 percent full scale. This device operates within a DC voltage range of 14 V to 30 V, featuring short-circuit protection and reverse polarity protection for the operating voltage, along with an analog output of 0.1 V to 10 V. Rated for medium and ambient temperatures between 0 °C and 80 °C, the unit accommodates compressed air, liquid media, and gaseous media while carrying c UL us listing, RCM compliance, CE marking, and UKCA marking. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8004928
Inscription label holder ASCF-H-L1-18-4V
The Festo inscription label holder ASCF-H-L1-18-4V is an industrial component with a product weight of 13.6 g and a corrosion resistance class (CRC) of 2 for moderate corrosion stress. Featuring VDMA24364-B1/B2-L LABS conformity, this RoHS compliant hardware meets material specifications. Request a quote by submitting part number 8004928 along with your required quantity and application specifications.
View product details →
Festo
8004926
Manifold rail VABM-L1-18W-G38-24-M-G
Engineered with a wrought aluminum alloy manifold rail and a width dimension of 19 mm, this Festo industrial component supports a maximum of 24 valve positions and any mounting position. The unit weighs 4909 g, features a corrosion resistance class of 2 for moderate corrosion stress, and complies with VDMA24364-B1/B2-L LABS conformity alongside RoHS material standards. It includes G3/8 pneumatic connections 1, 3, and 5, G1/4 pneumatic connections 2 and 4, G1/8 pilot air ports 12/14, and G1/8 pilot exhaust air ports 82/84, while holding c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quote.
View product details →
Festo
8002337
Service unit FRC-1/4-D-7-MINI-MPA
The Festo part number 8002337 is a mini Series D industrial component featuring a filter regulator with pressure gauge and a proportional standard oil mist lubricator, incorporating a rotary knob with detent actuator lock and a manual rotating condensate drain with a 22 cm³ max condensate volume. Operating within a pressure range of 1 bar to 16 bar and a regulation range of 0.5 bar to 7 bar, this unit delivers a normal nominal flow rate of 1300 l/min while utilizing compressed air or inert gases across a medium temperature of -10 °C to 60 °C. The assembly includes a 40 µm grade of filtration, metal bowl guard, and maintains a vertical ±5° mounting position with a CRC 2 moderate corrosion stress rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8022749
Pressure sensor SPAW-B2R-G12M-2P-M12
The Festo 8022749 is a piezoresistive industrial pressure sensor engineered to measure relative pressure across a range of -0.1 to 0.1 MPa (-1 to 1 bar, -14.5 to 14.5 psi) with an overload pressure rating of 0.2 MPa (2 bar, 29 psi). Featuring 2xPNP switching outputs with freely programmable and switchable functions, this component supports a maximum output current of 250 mA, a 3 ms rise time, and integrated short-circuit protection. It operates with compressed air complying with ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature range of -20 °C to 85 °C and an ambient temperature range of 0 °C to 80 °C. Certified with RCM compliance, cULus listing, CE marking under the EU EMC and RoHS directives, and UKCA conformity, the RoHS-compliant unit delivers 1 %FS accuracy and 0.15 %FS repetition accuracy. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
8000116
Pressure transmitter SPTW-P50R-G14-VD-M12
The Festo 8000116 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure across a 0 MPa to 5 MPa range. This device operates with a DC operating voltage range of 14 V to 30 V, featuring short-circuit protection and reverse polarity protection for the operating voltage alongside an analog output of 0.1 V to 10 V. Compliance certifications include the RCM compliance mark, c UL us - Listed (OL), CE marking as per the EU EMC and RoHS directives, UKCA marking to UK instructions for EMC and RoHS, and RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Danfoss Industrieautomatik
032U1247
Danfoss Industrieautomatik 032U1247 — Industrial Component
The Danfoss Industrieautomatik industrial component, part number 032U1247, features a brass housing with a G 3/8 port size and a 10,0 mm nominal size. This servo-assisted diaphragm valve utilizes an FKM seal material, operates normally closed (NC), and handles a differential pressure range of 0,1 to 30 bar within a media temperature range of 0 to 100 °C. Request a quote by submitting the exact part number, quantity, and application requirements.
View product details →
