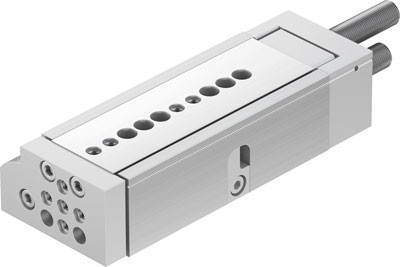

Festo
The Festo 566318 is a double-acting industrial component featuring a 20 mm piston diameter, a 50 mm stroke, and a ball bearing cage guide supporting a yoke, piston, piston rod, and slide design structure. Operating on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, this unit achieves a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. It incorporates P1 flexible cushioning rings and plates with stops at both ends, offering an adjustable end position range of 37.5 mm at the front and 39.5 mm at the rear for ambient temperatures between 0 and 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

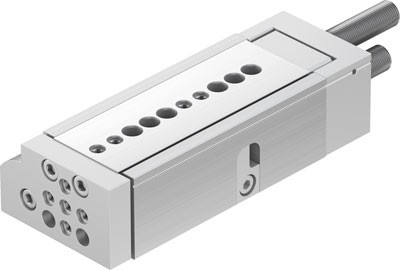

Festo
The Festo 566317 is a double-acting industrial component featuring a 20 mm piston diameter, a 40 mm stroke, and a yoke drive unit operating design structure comprising a piston, piston rod, and slide. Driven by compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, this unit achieves a maximum speed of 0.8 m/s and a repetition accuracy of ±0,01 mm. It incorporates flexible cushioning rings/plates with a stop at both ends providing 0.12 Nm impact energy in end positions, front and rear adjustable end position ranges of 37.5 mm and 39.5 mm respectively, and a ball bearing cage guide supporting any assembly position. Submit the exact part number, quantity, and application requirements for an official quote.
View product details →

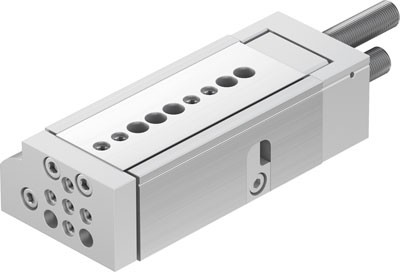

Festo
The Festo part number 566316 is a double-acting industrial component featuring a 20 mm piston diameter and a 30 mm stroke, operating via a yoke drive unit design structure with a slide, piston rod, and piston. This drive functions within a working pressure range of 1 to 8 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4], achieving a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It incorporates P1 flexible cushioning rings and plates at both ends with a 4.2 mm cushioning length, adjustable end position ranges of 37.5 mm at the front and 39.5 mm at the rear, and a ball bearing cage guide for any assembly position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →

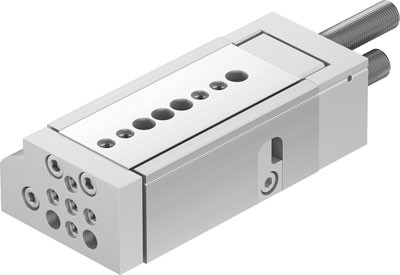

Festo
The Festo part number 566315 is a double-acting industrial component featuring a 20 mm piston diameter, a 20 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. This unit operates on compressed air within a working pressure range of 1 to 8 bar, achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm with flexible cushioning rings and plates at both ends. It functions at ambient temperatures from 0 to 60 °C and includes position detection capabilities for proximity sensors along with adjustable end position ranges of 37.5 mm at the front and 39.5 mm at the rear. Submit the exact part number, quantity, and application requirements for a quote.
View product details →

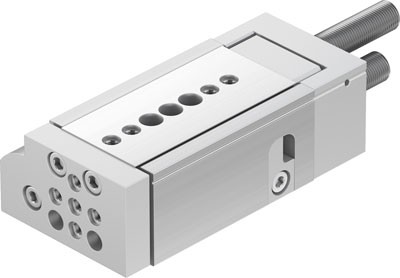

Festo
The Festo 566314 is a double-acting industrial component featuring a 20 mm piston diameter, a 10 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Driven by compressed air within a working pressure range of 1 to 8 bar and operating at a maximum speed of 0.8 m/s, it achieves a repetition accuracy of ±0.01 mm with P1 flexible cushioning rings and plates at both ends. The unit is equipped with a ball bearing cage guide, allows for any assembly position, and includes position detection capability for proximity sensors within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

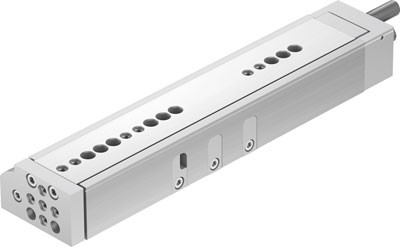

Festo
The Festo 566313 is a double-acting industrial component featuring a 16 mm piston diameter, a 150 mm stroke, and a ball bearing cage guide utilizing a yoke, piston, piston rod, and slide design structure. Operating at a working pressure range of 1 to 8 bar with compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit achieves a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm with flexible cushioning rings and plates at both ends. It operates within an ambient temperature range of 0 to 60 °C and includes provisions for position detection via a proximity sensor alongside adjustable end position ranges of 87 mm at the front and 25.5 mm at the rear. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

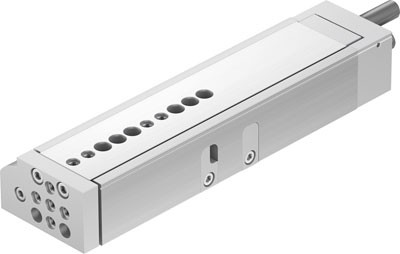

The Festo part number 566312 is a double-acting industrial component featuring a 16 mm piston diameter, a 100 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Operating at a working pressure range of 1 to 8 bar with compressed air conforming to ISO8573-1:2010 [7:4:4], this unit utilizes a ball bearing cage guide, flexible cushioning rings with stops at both ends, and allows for proximity sensor position detection. It operates within an ambient temperature range of 0 to 60 °C, achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

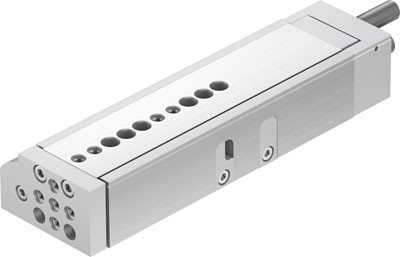

Festo
The Festo part number 566311 is a double-acting industrial component featuring a 16 mm piston diameter, an 80 mm stroke, and a yoke drive unit design structure comprising a piston, piston rod, and slide. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 1 to 8 bar working pressure range, this unit incorporates a ball bearing cage guide and flexible cushioning rings/plates at both ends. It achieves a repetition accuracy of ±0.01 mm, a maximum speed of 0.8 m/s, and functions across an ambient temperature range of 0 to 60 °C with position detection via proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →

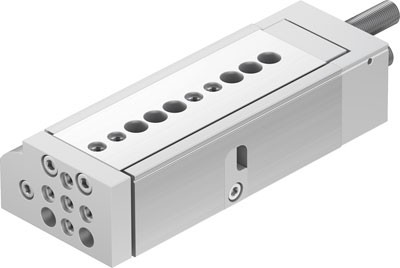

Festo
The Festo 566310 is a double-acting industrial component featuring a 16 mm piston diameter and a 50 mm stroke driven by a yoke operating mode. It incorporates flexible cushioning rings with stops at both ends providing a 3.7 mm cushioning length, a ball bearing cage guide, and position detection for a proximity sensor within an operating pressure range of 1 to 8 bar. Designed for an ambient temperature range of 0 to 60 °C and a maximum speed of 0.8 m/s, this unit operates with compressed air in accordance with ISO8573-1:2010 [7:4:4] and achieves a repetition accuracy of ±0,01 mm. Submit the exact part number, quantity, and application requirements for a quote.
View product details →

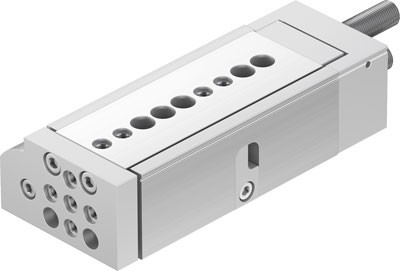

Festo
The Festo 566309 is a double-acting industrial component featuring a yoke drive unit, 16 mm piston diameter, and 40 mm stroke. Engineered with a ball bearing cage guide, flexible cushioning rings at both ends, and position detection for proximity sensors, this unit operates within a working pressure range of 1 to 8 bar and a maximum speed of 0.8 m/s. It delivers a repetition accuracy of ±0.01 mm using compressed air in accordance with ISO 8573-1:2010 [7:4:4] across an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo

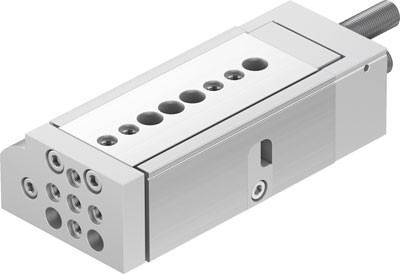

The Festo 566308 is a double-acting industrial component featuring a 16 mm piston diameter, a 30 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar and an ambient temperature range of 0 to 60 °C, utilizing P1 flexible cushioning rings and plates at both ends with a 3.7 mm cushioning length and 0.06 Nm end position impact energy. This unit accommodates a front adjustable end position range of 29 mm, a rear adjustable end position range of 25.5 mm, a maximum speed of 0.8 m/s, and a repetition accuracy of ±0.01 mm, while supporting position detection via proximity sensors and allowing lubricated operation. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo

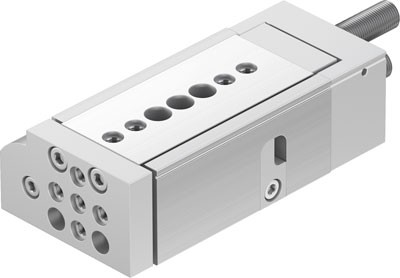

The Festo 566307 is a double-acting industrial component featuring a 16 mm piston diameter, a 20 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air compliant with ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar, delivering a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm. Equipped with flexible cushioning rings and plates at both ends with a 3.7 mm cushioning length, the unit functions at ambient temperatures from 0 to 60 °C and includes position detection capability for a proximity sensor. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →

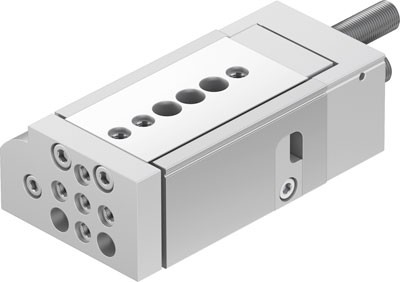

Festo
The Festo 566306 is a double-acting industrial component featuring a 16 mm piston diameter, a 10 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air conforming to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 8 bar and an ambient temperature range of 0 to 60 °C, utilizing P1 flexible cushioning rings with stops at both ends and a 3.7 mm cushioning length to absorb 0.06 Nm of impact energy. This unit provides a repetition accuracy of ±0.01 mm, a maximum speed of 0.8 m/s, integrated position detection for proximity sensors, and adjustable end position ranges of 29 mm at the front and 25.5 mm at the rear. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo

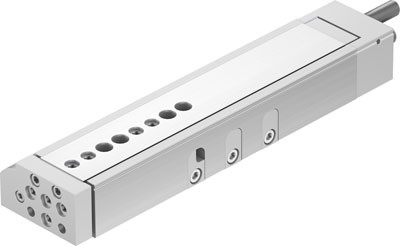

The Festo part number 566305 is a double-acting industrial component featuring a 12 mm piston diameter, a 100 mm stroke, and a yoke drive unit design structure incorporating a piston, piston rod, and slide. Operating at a working pressure range of 1.5 to 8 bar with compressed air in accordance with ISO 8573-1:2010 [7:4:4], this unit includes a ball bearing cage guide, P1 flexible cushioning rings/plates with stops at both ends, and provisions for position detection via proximity sensor. It achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and functions across an ambient temperature range of 0 to 60 °C with zero corrosion stress resistance classification CRC. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →

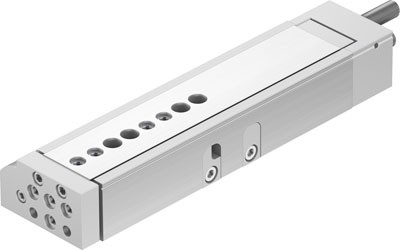

Festo
The Festo 566304 is a double-acting industrial component featuring a yoke design structure with a piston, piston rod, and slide operating over an 80 mm stroke with a 12 mm piston diameter. This unit utilizes a ball bearing cage guide, flexible cushioning rings/plates with a stop at both ends for P1 cushioning over a 3.4 mm cushioning length, and supports proximity sensor position detection within an operating pressure range of 1.5 to 8 bar. Designed for any assembly position, it achieves a maximum speed of 0.8 m/s, a repetition accuracy of ±0.01 mm, and operates within an ambient temperature range of 0 to 60 °C using compressed air in accordance with ISO8573-1:2010 [7:4:4]. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
View product details →

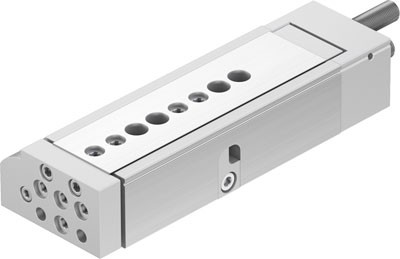

Festo
The Festo 566303 is a double-acting industrial component featuring a 12 mm piston diameter, a 50 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. It operates within a working pressure range of 1.5 to 8 bar, achieves a maximum speed of 0.8 m/s, and maintains a repetition accuracy of ±0.01 mm using compressed air conforming to ISO8573-1:2010 [7:4:4]. Flexible cushioning rings and plates with stops at both ends provide P1 cushioning across a 3.4 mm cushioning length within an ambient temperature range of 0 to 60 °C. Submit the exact part number, quantity, and application requirements to request a formal quote.
View product details →

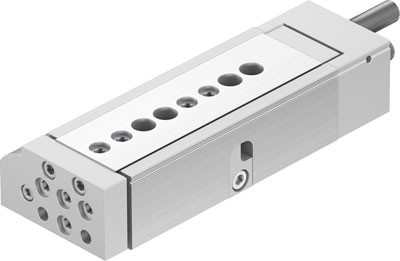

Festo
The Festo 566302 is a double-acting industrial component featuring a 12 mm piston diameter, a 40 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide with a ball bearing cage guide. It operates on compressed air within a working pressure range of 1.5 to 8 bar, delivering a maximum speed of 0.8 m/s and a repetition accuracy of ±0.01 mm with P1 flexible cushioning rings at both ends. Designed for an ambient temperature range of 0 to 60 °C, this unit includes position detection capability for proximity sensors and features an adjustable end position range of 27.5 mm at the front and 20 mm at the rear. Submit the exact part number, quantity, and application requirements to request a quote for this component.
View product details →

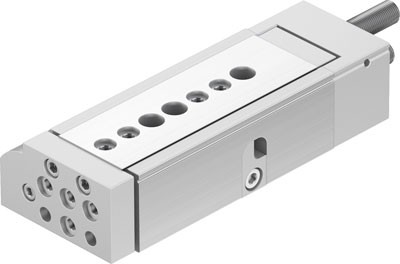

Festo
The Festo 566301 is a double-acting industrial component featuring a 12 mm piston diameter and a 30 mm stroke, operating via a yoke, piston, piston rod, and slide design structure with a ball bearing cage guide. It operates on compressed air matching ISO 8573-1:2010 [7:4:4] within a working pressure range of 1.5 to 8 bar, achieving a maximum speed of 0.8 m/s and a repetition accuracy of ±0,01 mm. Cushioning is provided by P1 flexible cushioning rings and plates with stops at both ends, accommodating an ambient temperature range of 0 to 60 °C and an impact energy of 0.04 Nm in the end positions. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →

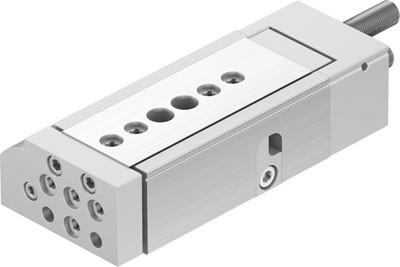

Festo
The Festo part number 566300 is a double-acting industrial component featuring a 12 mm piston diameter, a 20 mm stroke, and a ball bearing cage guide with a yoke drive unit design structure. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a working pressure range of 1.5 to 8 bar, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm. It includes flexible cushioning rings/plates at both ends providing a 3.4 mm cushioning length and 0.04 Nm impact energy, alongside adjustable end position ranges of 27.5 mm at the front and 20 mm at the rear. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →

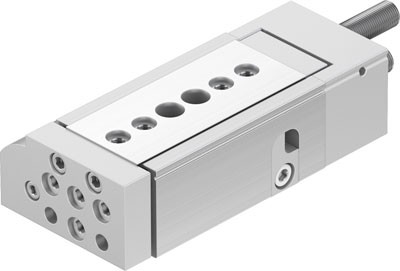

Festo
The Festo 566299 is a double-acting industrial component featuring a 12 mm piston diameter, a 10 mm stroke, and a yoke drive unit design incorporating a piston, piston rod, and slide. Driven by compressed air within a 1.5 to 8 bar working pressure range, this unit achieves a maximum speed of 0.8 m/s with a repetition accuracy of ±0.01 mm, utilizing integrated flexible cushioning rings at both ends and a ball bearing cage guide. It operates across an ambient temperature range of 0 to 60 °C and includes provisions for proximity sensor position detection. Submit the exact part number, quantity, and application requirements to receive a quote for this component.
