Festo
The Festo 177259 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 40 mm stroke, and a ball-bearing guide for torque and guide protection. Operating within a pressure range of 2.5 to 8 bar, this variant delivers a torque of 20 Nm at 6 bar and supports a maximum swivel frequency of 2 Hz, a 272 deg swivel angle, and a 270 deg rotation angle adjustment range. It incorporates flexible cushioning rings and plates at both ends with a 2.1 deg cushioning angle, a 12 mm cushioning length, and 5 deg fine adjustment, alongside provisions for inductive and proximity sensors. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
The Festo part number 177795 is a double-acting industrial component featuring a 6-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston rod thread based on ISO 15552. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It includes flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176441 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke ranging from 1 to 500 mm, utilizing flexible cushioning rings or plates (P) at both ends. Operating on compressed air in accordance with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range, it delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a non-corrosive high alloy steel housing and piston rod, a wrought aluminum alloy cover, and FPM seals, this unit withstands ambient temperatures from -20 to 120 °C and features a CRC 2 corrosion resistance classification. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.
View product details →
Festo
The Festo 177258 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 25 mm stroke, and a 240-deg swivel angle with a 270-deg rotation angle adjustment range. Operating at 2.5 to 8 bar with dried compressed air, this unit delivers 20 Nm of torque at 6 bar and includes dual-end shock absorber and flexible cushioning along with a ball-bearing guide for torque protection. It supports an ambient temperature range of -10 to 60 °C, accommodates inductive and proximity sensors for position detection, and incorporates a through, hollow piston rod variant. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177794 is a double-acting industrial component featuring a 5-inch stroke and a 1 1/4-inch piston diameter with a 3/8-24 UNF-2A male piston rod thread, built upon the ISO 15552 standard. Engineered with a profile barrel design, flexible cushioning rings at both ends, and position detection for proximity sensors, it operates within a pressure range of 0.06 to 1.2 MPa and an ambient temperature span of -20 to 80 °C. This unit achieves a theoretical retracting force of 415 N at 0.6 MPa while utilizing compressed air in accordance with ISO 8573-1:2010 [7:4:4] with moderate corrosion stress resistance. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176440 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable stroke length from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range, this unit delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and FPM seals, it achieves a CRC 2 corrosion resistance classification and functions in ambient temperatures from -20 to 120 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177257 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 25 mm stroke, and a ball-bearing guide for torque and guide protection. Operating at pressures from 2.5 to 8 bar with dried compressed air, it delivers a torque of 20 Nm at 6 bar and supports a maximum swivel frequency of 2 Hz alongside a 272-degree swivel angle and a 270-degree rotation angle adjustment range. Equipped with flexible cushioning rings at both ends, a 2.1-degree cushioning angle, and position detection capabilities for proximity and inductive sensors, this variant includes a through, hollow piston rod design with an ambient temperature range of -10 to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177793 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 4" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. Designed with flexible cushioning rings at both ends and a profile barrel structure, this unit operates within a pressure range of 0.06 to 1.2 MPa using compressed air per ISO 8573-1:2010 [7:4:4]. It delivers a theoretical retracting force of 415 N at 0.6 MPa while accommodating an ambient temperature range of -20 to 80 °C and providing position detection via proximity sensors. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 176439 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke length from 1 to 500 mm, operating on compressed air compliant with ISO8573-1:2010 [7:4:4] within a 1 to 10 bar pressure range. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and FPM seals, this unit provides flexible cushioning rings at both ends and achieves a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. It operates across an ambient temperature range of -20 to 120°C and exhibits a CRC corrosion resistance classification of 2, with a basic weight of 312 g at 0 mm stroke. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177256 is a double-acting rotary vane industrial component featuring a 40 mm piston diameter, a 25 mm stroke, and a ball-bearing guide for torque and guide protection. Operating on dried compressed air at pressures from 2.5 to 8 bar, this variant includes a through piston rod (S2), CC shock absorbers and P flexible cushioning rings at both ends, a 240 deg swivel angle, and a torque output of 20 Nm at 6 bar. It accommodates a 270 deg rotation angle adjustment range with a 15 deg cushioning angle, 1.5 deg fine adjustment, and position detection via inductive or proximity sensors across an ambient temperature range of -10 to 60 deg C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 177792 is a double-acting industrial component featuring a 3-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston-rod end built on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) utilizing compressed air according to ISO 8573-1:2010 [7:4:4] with flexible cushioning rings at both ends. It accommodates any assembly position, includes position detection for proximity sensors, and provides a theoretical retracting force of 415 N at 0.6 MPa alongside a CRC 2 moderate corrosion resistance classification for ambient temperatures between -20 and 80 °C. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 176438 is a double-acting industrial component featuring a 32 mm piston diameter and an adjustable stroke from 1 to 500 mm, utilizing flexible cushioning rings or plates at both ends. Constructed with a wrought aluminum alloy cover, high alloy non-corrosive steel housing and piston rod, and FPM seals, this unit operates within a 1 to 10 bar working pressure range using compressed air meeting ISO8573-1:2010 [7:4:4] standards. It delivers a theoretical force of 483 N on the advance stroke and 415 N on the return stroke at 6 bar, maintaining an ambient temperature tolerance of -20 to 120 °C and a CRC corrosion resistance classification of 2. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
Engineered with a rotary vane design structure and a 40 mm piston diameter, this double-acting Festo industrial component part number 177255 delivers a torque of 20 Nm at 6 bar across a 272-deg swivel angle and 25 mm stroke. The unit features flexible cushioning rings at both ends with a 2.1-deg cushioning angle, a ball-bearing guide for torque protection, 270-deg rotation angle adjustment range with 5-deg fine adjustment, and position detection capabilities for inductive or proximity sensors. It operates within a pressure range of 2.5 to 8 bar on dried compressed air at ambient temperatures between -10 and 60 °C, accommodating a maximum swivel frequency of 2 Hz at 6 bar and a maximum impact speed of 500 mm/s. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
View product details →
Festo

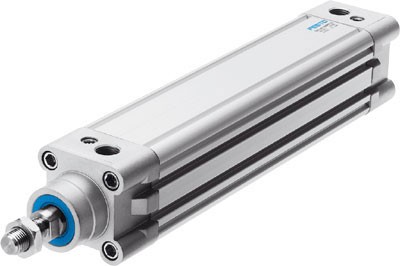

Engineered by Festo as part number 177791, this double-acting industrial component features a 1 1/4" piston diameter, a 2" stroke, and a male 3/8-24 UNF-2A piston rod thread based on the ISO 15552 standard. The profile barrel design incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and a single-ended piston rod operating within a pressure range of 0.06 to 1.2 MPa. It delivers a theoretical retracting force of 415 N at 0.6 MPa while withstanding ambient temperatures from -20 to 80 °C and moderate corrosion stress classified as CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo 176437 is a double-acting industrial component featuring a 32 mm piston diameter, an adjustable stroke ranging from 1 to 500 mm, and flexible cushioning rings or plates at both ends. Constructed with a wrought aluminum alloy cover, non-corrosive high alloy steel housing and piston rod, and FPM seals, this unit operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a working pressure range of 1 to 10 bar and ambient temperatures from -20 to 120 °C. At 6 bar, it delivers a theoretical force of 415 N on the return stroke and 483 N on the advance stroke, utilizing G1/8 pneumatic connections and supporting lubricated operation if subsequently required. Submit the exact part number, quantity, and application requirements for a quote.
View product details →
Festo
This Festo industrial component features a 32 mm piston diameter and a rotary vane design structure with a 246 deg swivel angle, a 270 deg rotation angle adjustment range, and a 12.5 deg cushioning angle. Operating at pressures from 2.5 to 8 bar with dried compressed air, the double-acting unit delivers 10 Nm of torque at 6 bar and includes CC shock absorbers and P flexible cushioning rings at both ends. The assembly incorporates a ball-bearing guide for torque protection, position detection capabilities for inductive and proximity sensors, and a through hollow piston rod variant S20. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177790 is a double-acting industrial component featuring a 1 1/4" piston diameter, a 1.625" stroke, and a 3/8-24 UNF-2A male piston-rod thread based on the ISO 15552 standard. Designed with a profile barrel, piston, and single-ended piston rod, this unit operates within a pressure range of 0.06 to 1.2 MPa (0.6 to 12 bar) using compressed air compliant with ISO 8573-1:2010 [7:4:4]. It incorporates flexible cushioning rings at both ends, position detection capabilities for proximity sensors, and delivers a theoretical retracting force of 415 N at 0.6 MPa across an ambient temperature range of -20 to 80 °C. Submit the exact part number, quantity, and application requirements to receive a formal quote.
View product details →
Festo
Engineered as a double-acting industrial component with a 32 mm piston diameter and an adjustable stroke length from 1 to 500 mm, this Festo part operates on compressed air conforming to ISO8573-1:2010 [7:4:4] within a 1 to 10 bar working pressure range and -20 to 120 °C ambient temperatures. The assembly incorporates flexible cushioning rings at both ends, a wrought aluminum alloy cover, FPM seals, and high-alloy non-corrosive steel for both the housing and piston rod, delivering theoretical forces of 483 N on the advance stroke and 415 N on the return stroke at 6 bar. Please submit the exact part number, quantity, and application requirements to request a quote.
View product details →
Festo
The Festo part number 177253 is a double-acting industrial component featuring a rotary vane design structure with a 32 mm piston diameter and a ball-bearing guide for torque protection. This unit delivers a torque of 10 Nm at 6 bar across an operating pressure range of 2.5 to 8 bar, while providing a rotation angle adjustment range of 270 degrees, a 272-degree swivel angle, and a stroke of 10 to 100 mm. It incorporates flexible cushioning rings and plates at both ends with an 8 mm cushioning length, a 1.7-degree cushioning angle, and a 5-degree fine adjustment capability. Position detection is supported for inductive and proximity sensors, operating with dried compressed air within an ambient temperature range of -10 to 60 °C. Please submit the exact part number, quantity, and application requirements to receive a formal quotation.
View product details →
Festo
The Festo 177789 is a double-acting industrial component featuring a 1-inch stroke, a 1 1/4-inch piston diameter, and a 3/8-24 UNF-2A male piston-rod end based on the ISO 15552 standard. Operating on compressed air in accordance with ISO 8573-1:2010 [7:4:4] within a 0.06 to 1.2 MPa pressure range, this unit includes flexible cushioning rings at both ends and provisions for position detection via proximity sensors. It delivers a theoretical retracting force of 415 N at 0.6 MPa while functioning across an ambient temperature range of -20 to 80 °C under moderate corrosion stress (CRC 2). Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
View product details →
